HO Scale Desert Layout Project  -  18/22 See 160 photos of the finished layout taken in December 2015 and January 2016

Part 2/2016 - Cajon Pass Cajon Pass Area (Hill 582, WSI, Mormon Rocks) West side of the Tunnels, Flyover and along the shelf

incl. Cajon Pass (Mormon Rocks - Hill 582 - WSI)

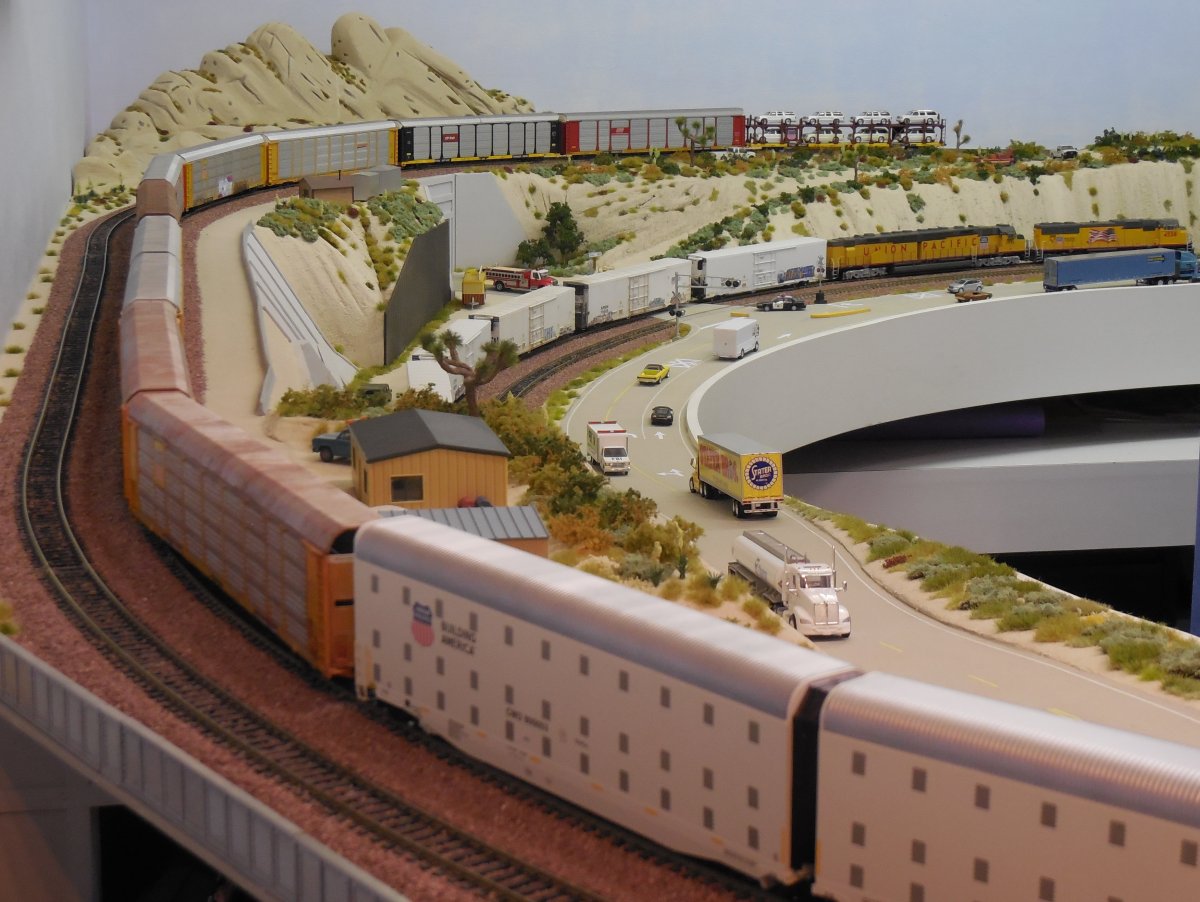

Inside Office 2: Cajon Pass with Mormon Rocks - 2292

I started with my layout in late December 2007 and it is finally finshed in late September 2015. Well, I will add some detailing, weathering of the roads, road signs and street railings along main street in Percyville. Thank you for your interest in my Mojave Desert Layout - Werner Meer

2/12/16: Trains are rolling:  https://www.youtube.com/watch?v=AqyLRyKma2A&feature=em-upload_owner

1/29/16: Cab Ride 1:  https://www.youtube.com/watch?v=Soaz-cNiU1o&feature=em-upload_owner 1/29/16: Cab Ride 2:  https://www.youtube.com/watch?v=iUdxXdO3b1g&feature=em-upload_owner

12/15/15: Test movie 1 of my layout:  https://www.youtube.com/watch?v=JBp4X3lnvRc&feature=em-upload_owner Test movie 2: https://www.youtube.com/watch?v=aDCZzK6MhyQ&feature=em-upload_owner Test Movie 3: https://www.youtube.com/watch?v=UDSBNYdyK3A&feature=em-upload_owner all movies made by Martin Raemy

Technical Data of my Layout: Size: 4,5 x 6,5 m (13,5 x 19,5 feet), Era: Modern, Location: Southern California in the Mojave Desert (Cajon Pass), Layout Style: unconventional, in house along the walls, 2 swing up bridges, 1 lift out bridge, double track, min. radius 104 cm (41 inch), max. grade 1,5 %, Track: Atlas flextrack code 100, Turnouts: Peco code 100, Power: conventional DC with electrical feeders every 2 m, Mainline: 32 m (96 feet), Height: 93 cm (36,5 inch)

Overview of the layout (each square is 0,5 m)

Photos 2186 - 2345, starting 12/25/15 and ending 1/25/16 (just click on the 4-digit number for bigger size photos)
As usual, I am taking a huge amount of photos from a scene to show a lot of sequences.

The Westside of the Tunnels are located in Office 2
We start our tour at the right side, where the tracks are coming from Office 1. Take a look at the Tunnels West Portals, inside Office 2. Afterwards, we will be see the Cajon Pass area with West Summit Island, Hill 582, Mormon Rocks, Flyover and along the shelf. These photos were taken in December 2015

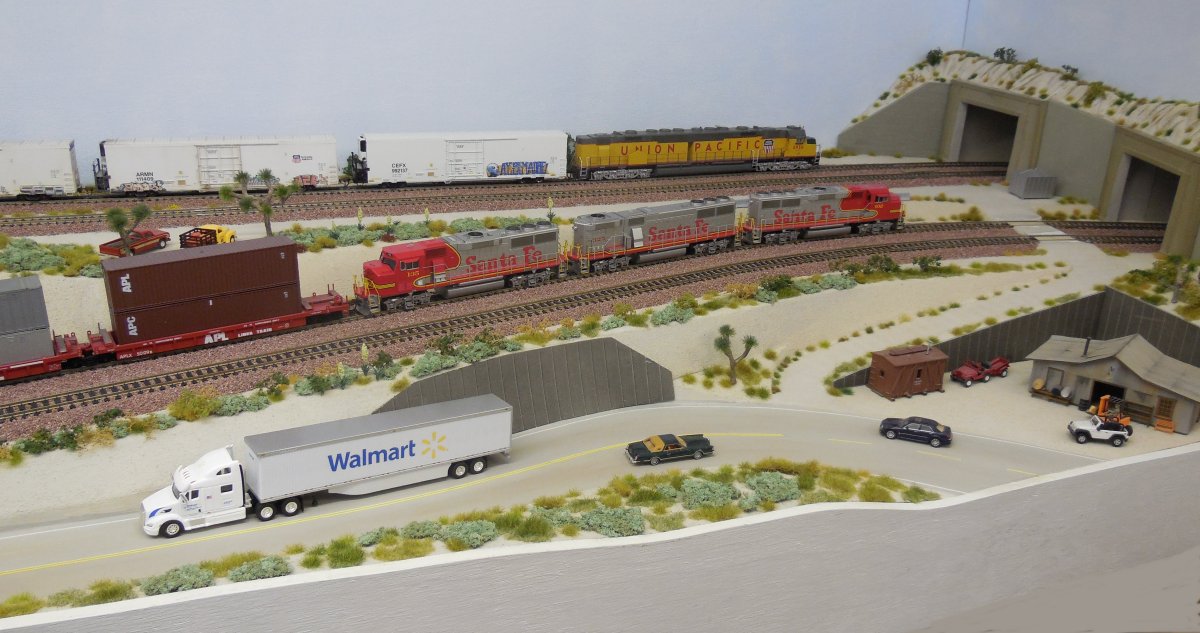

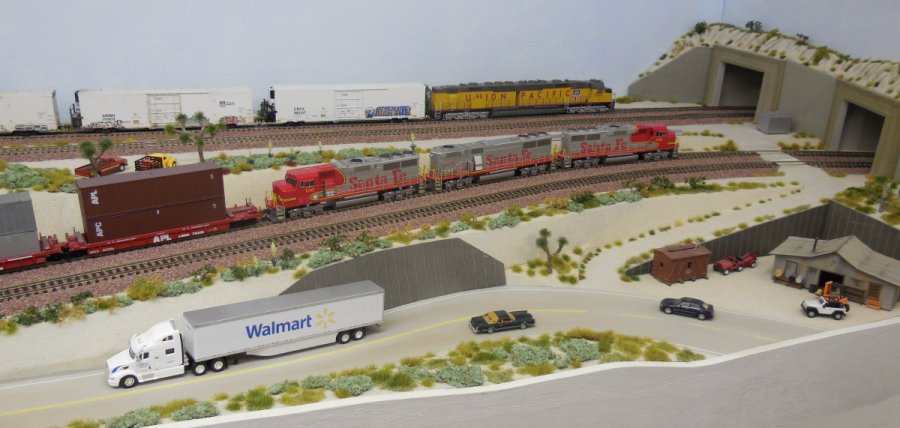

we are inside office 2 on the West side of the tunnels - 2186

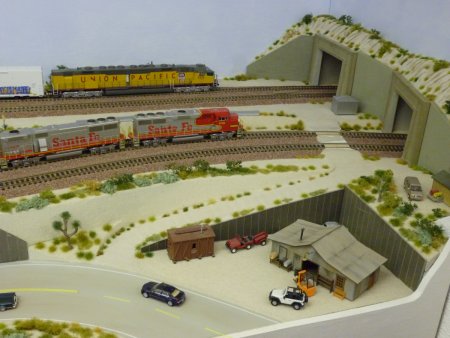

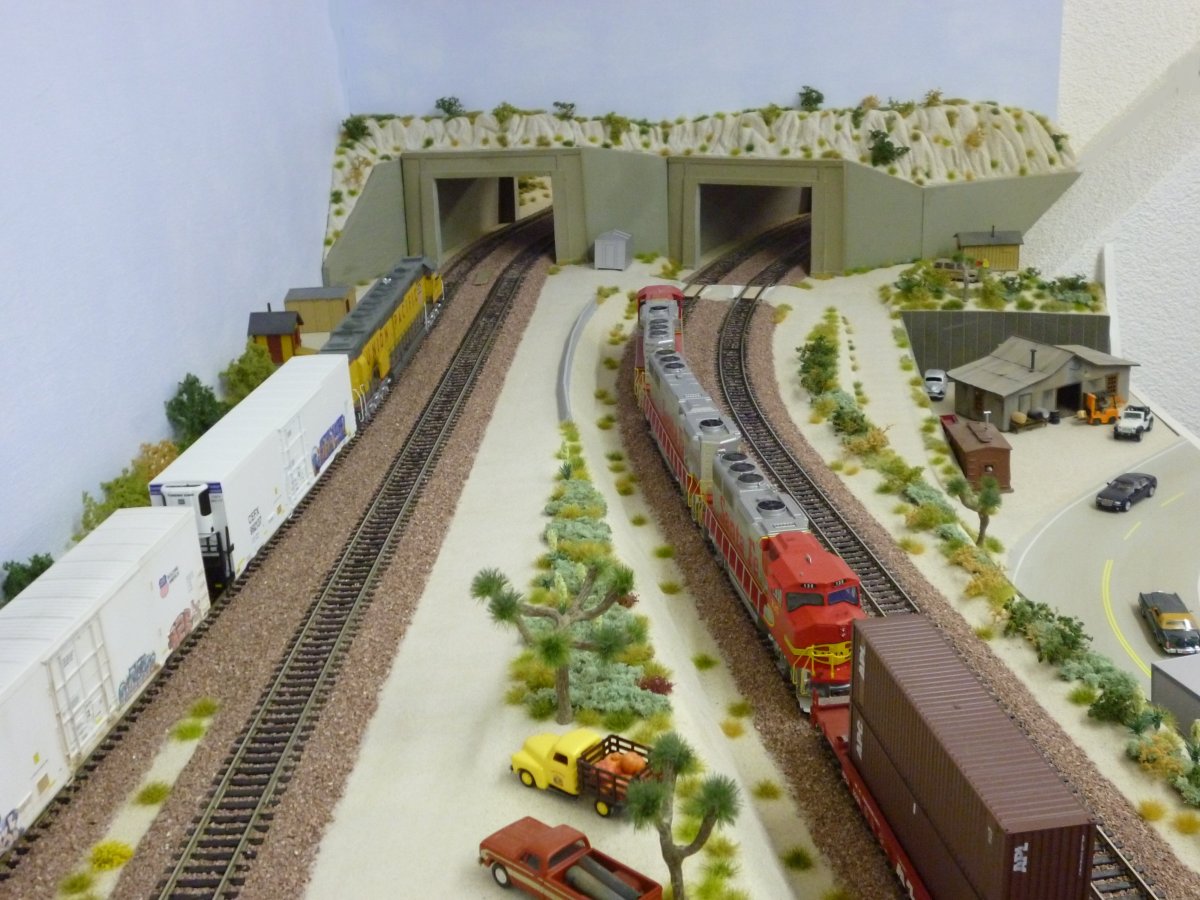

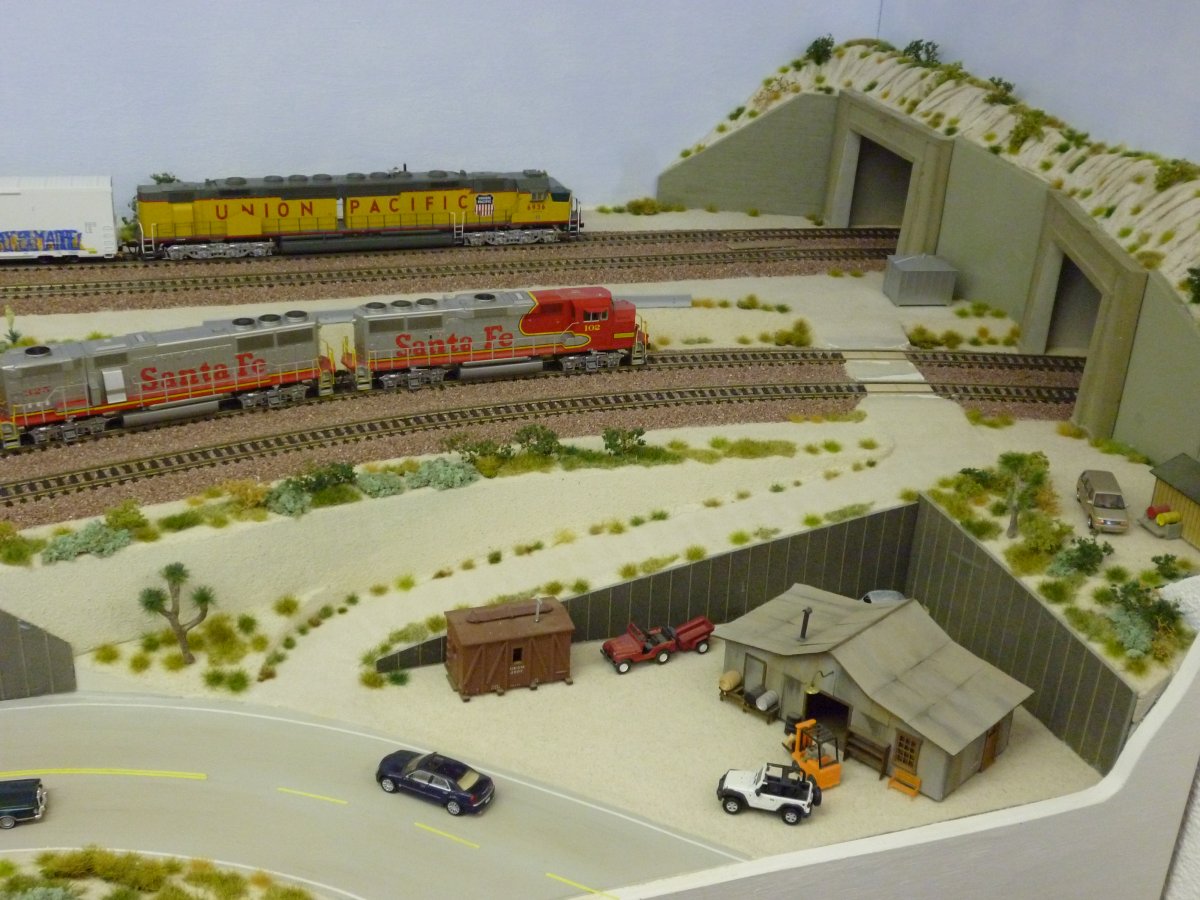

heavy action on all main lines and Route 66 as well - 2187	UP train is going downhill and SF train uphill - 2188

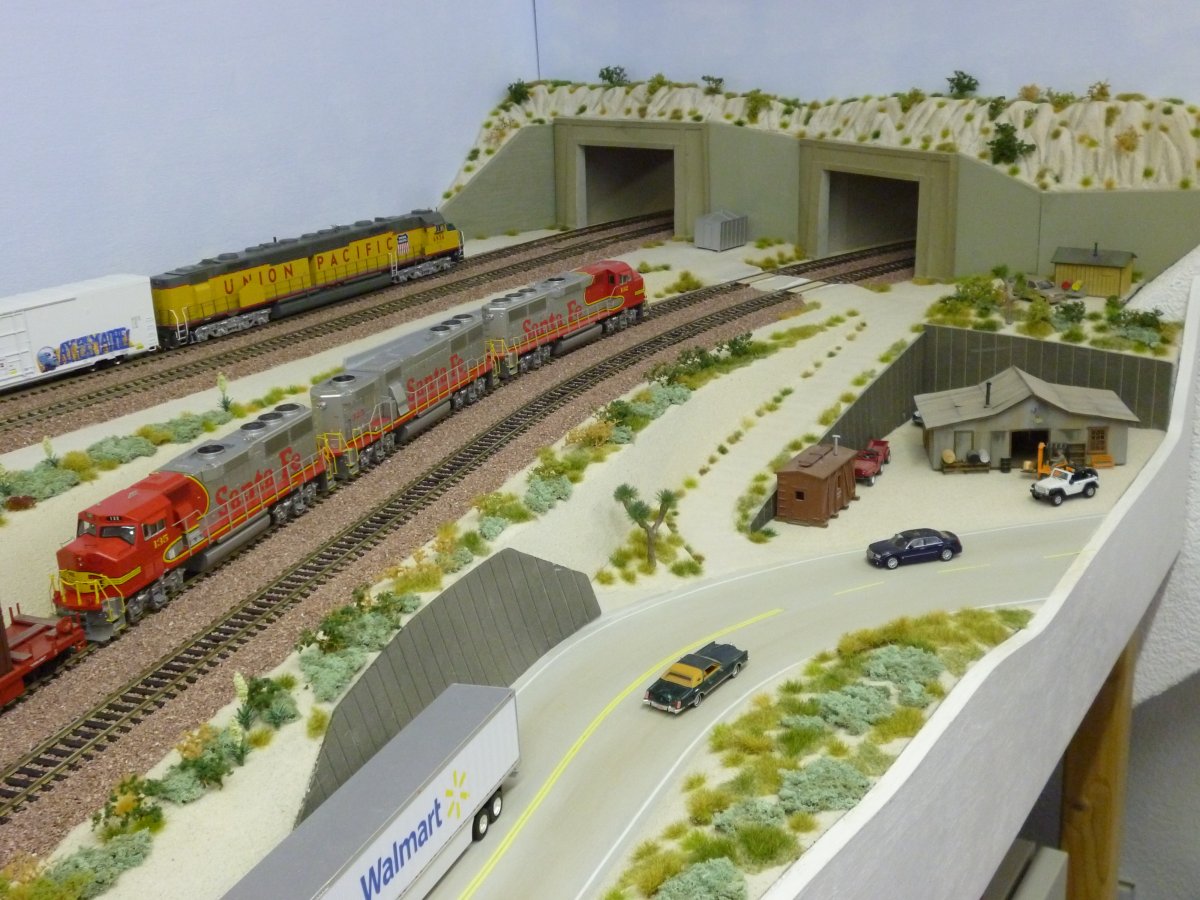

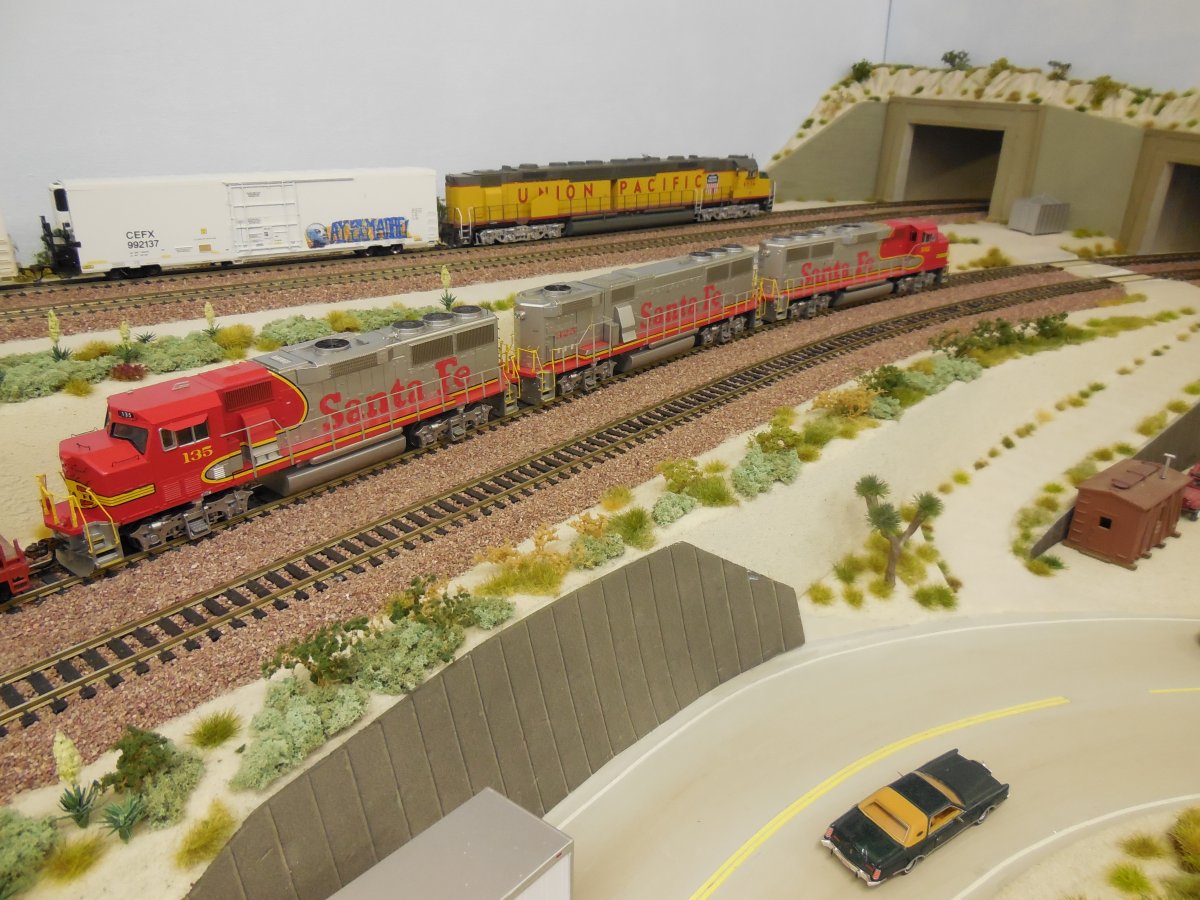

at the tunnels, uphill and downhill tracks are same level - 2189	Athearn RTR AT&SF EMD GP60M and GP60B - 2190

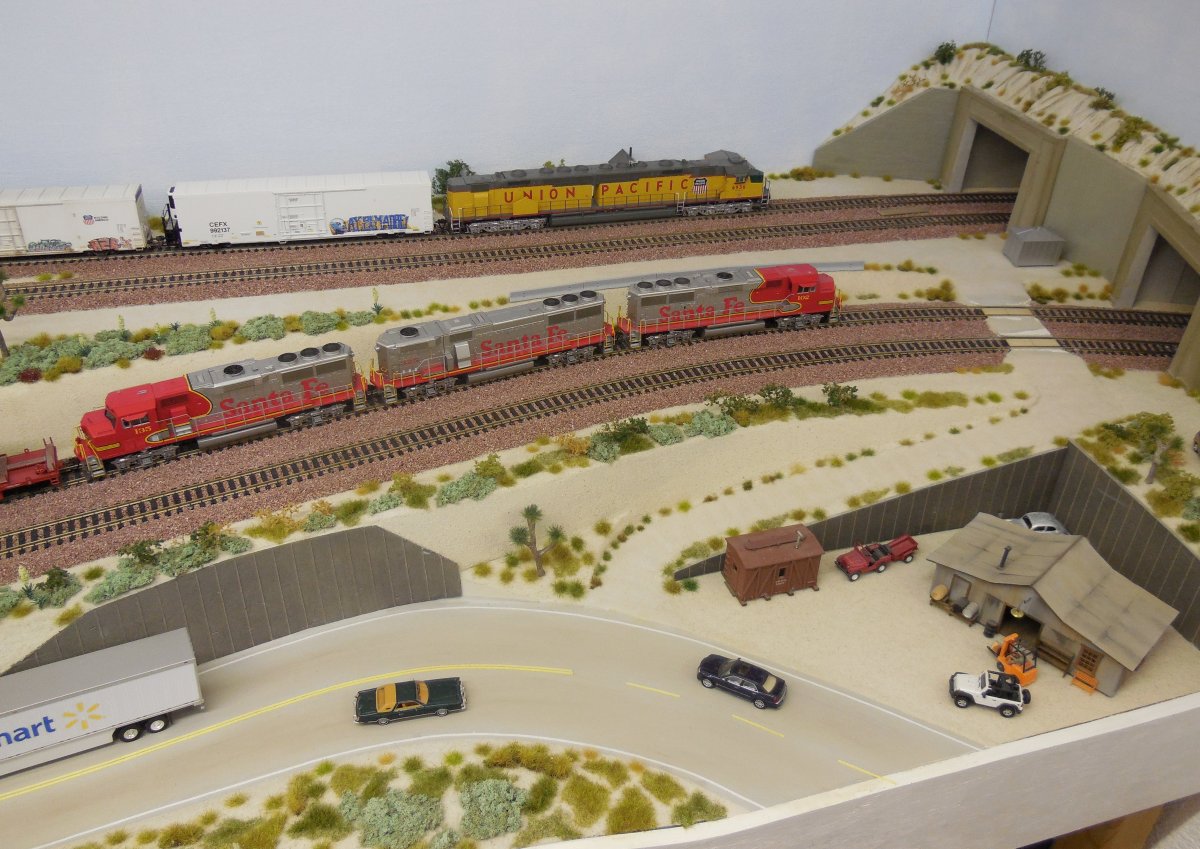

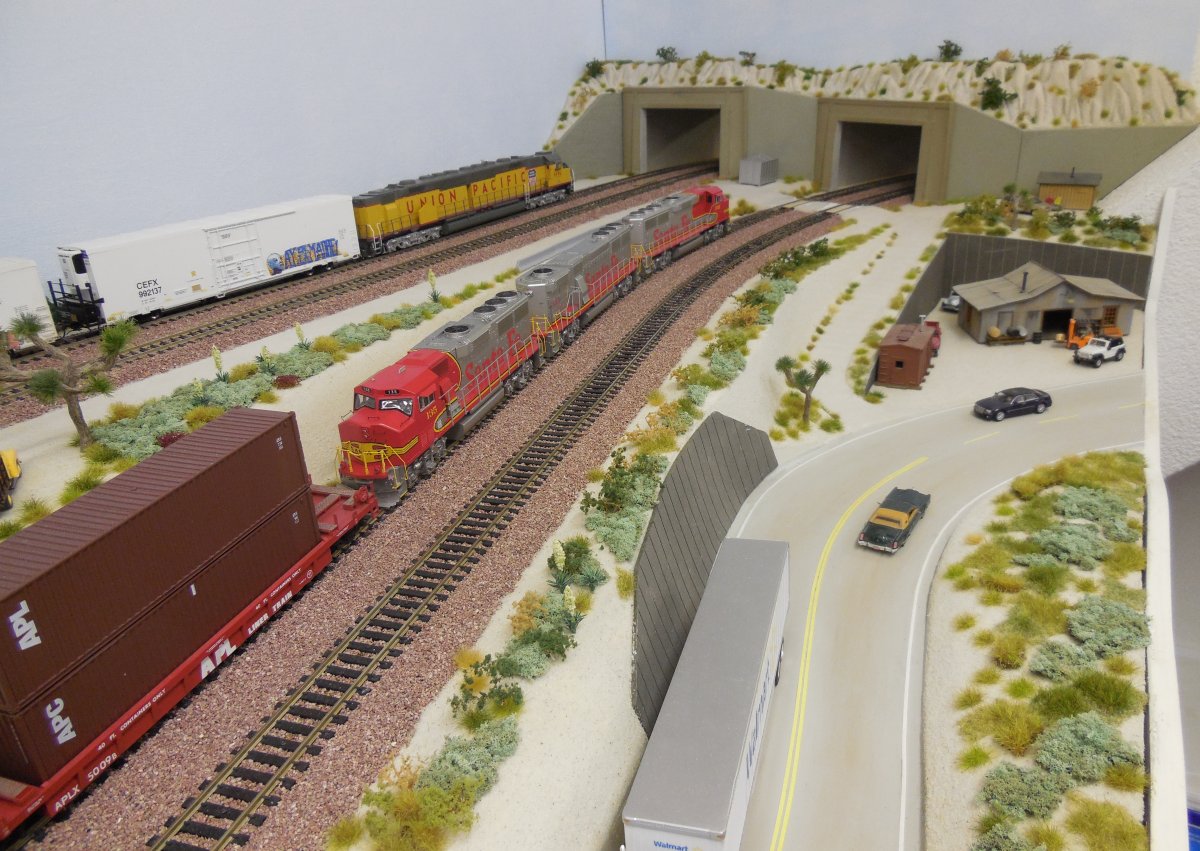

the grade of both main lines is 1,5 % - 2191	view from above of West tunnel portals - 2192

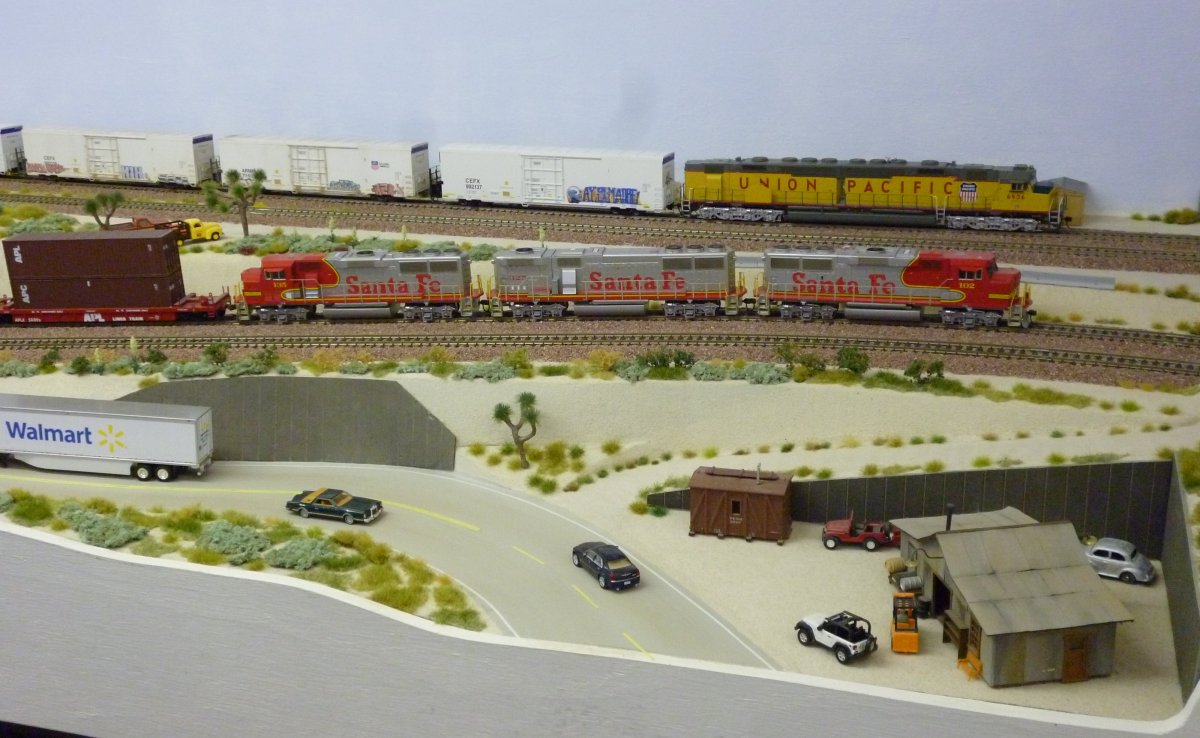

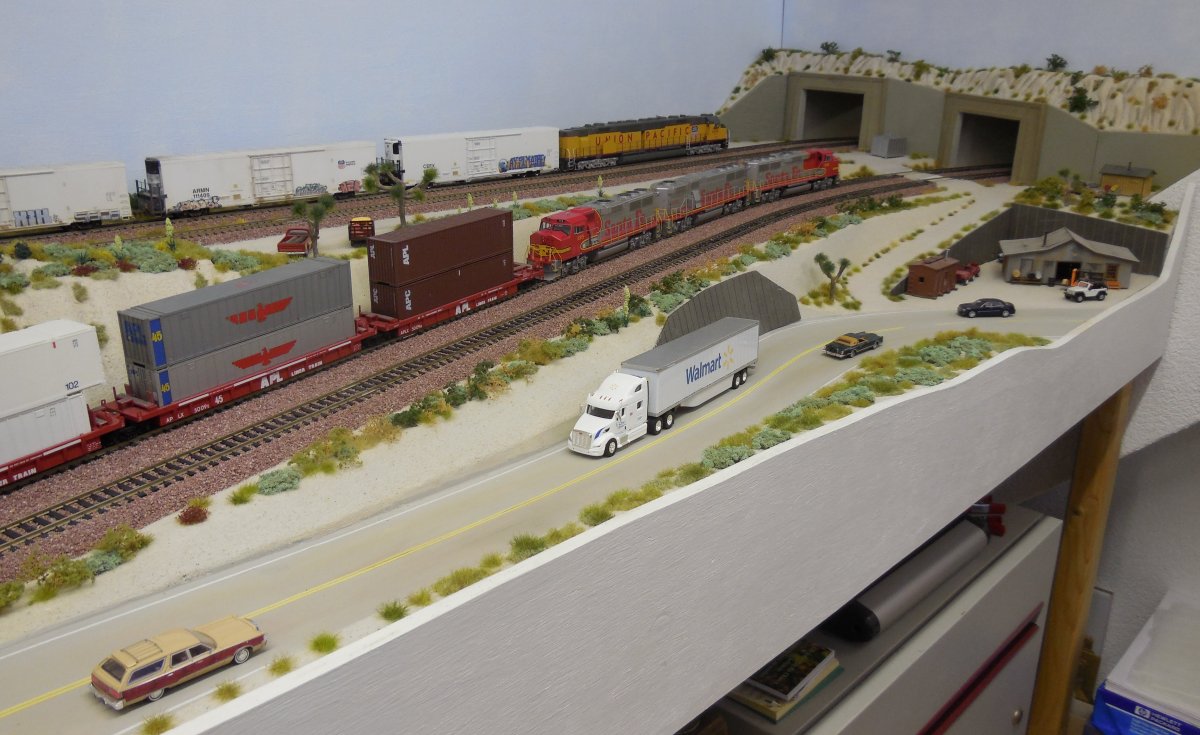

left = Tunnel 2, right = Tunnel 1 - 2193	2194

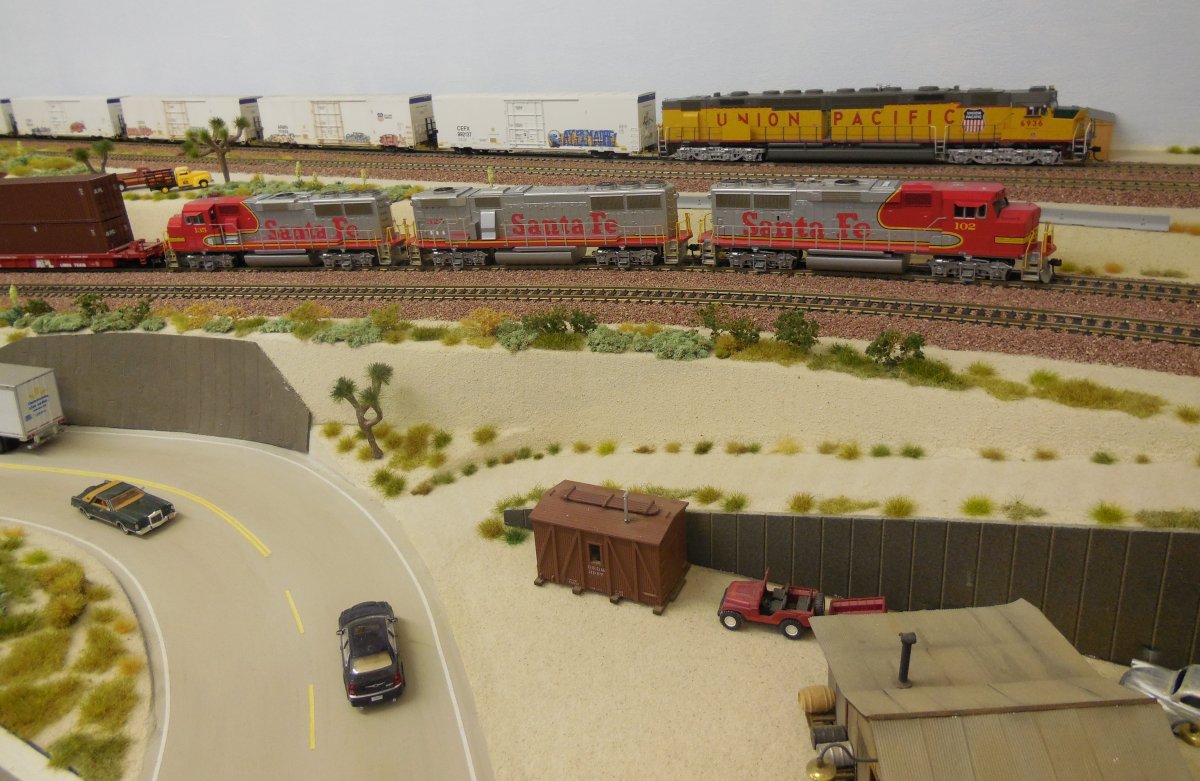

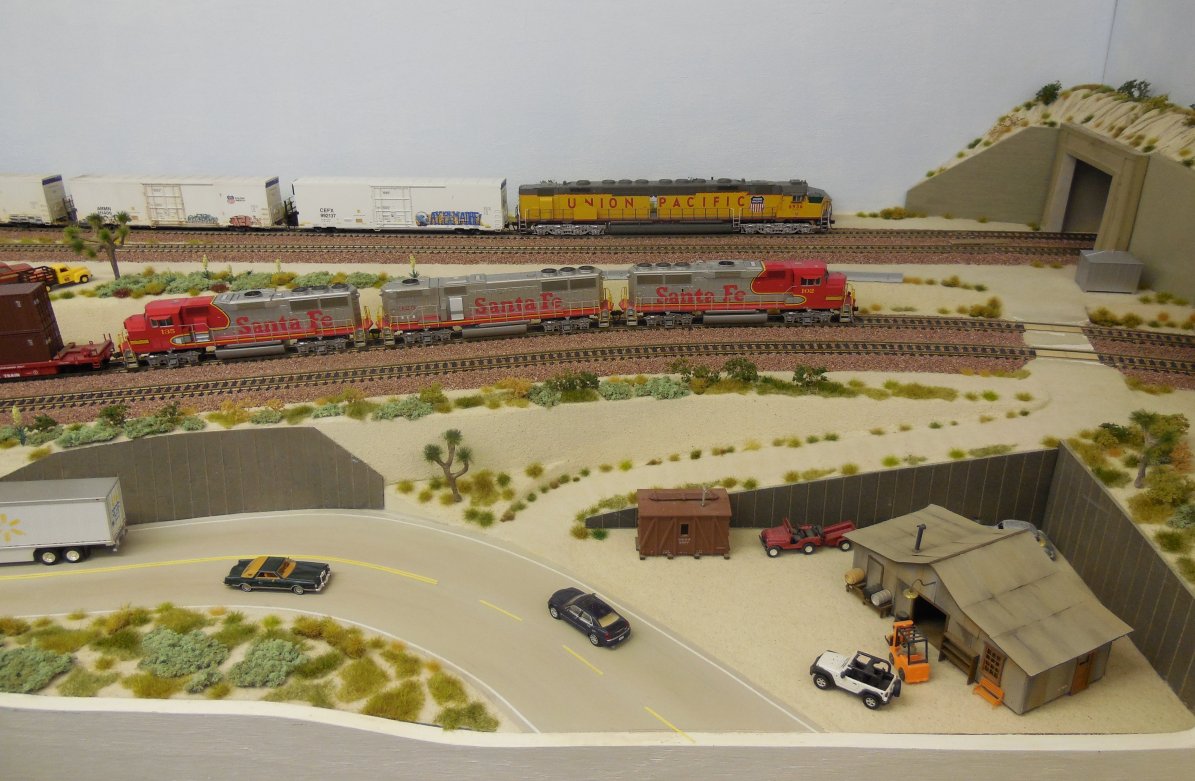

2195	Athearn Genesis UP EMD DDA40X - 2196

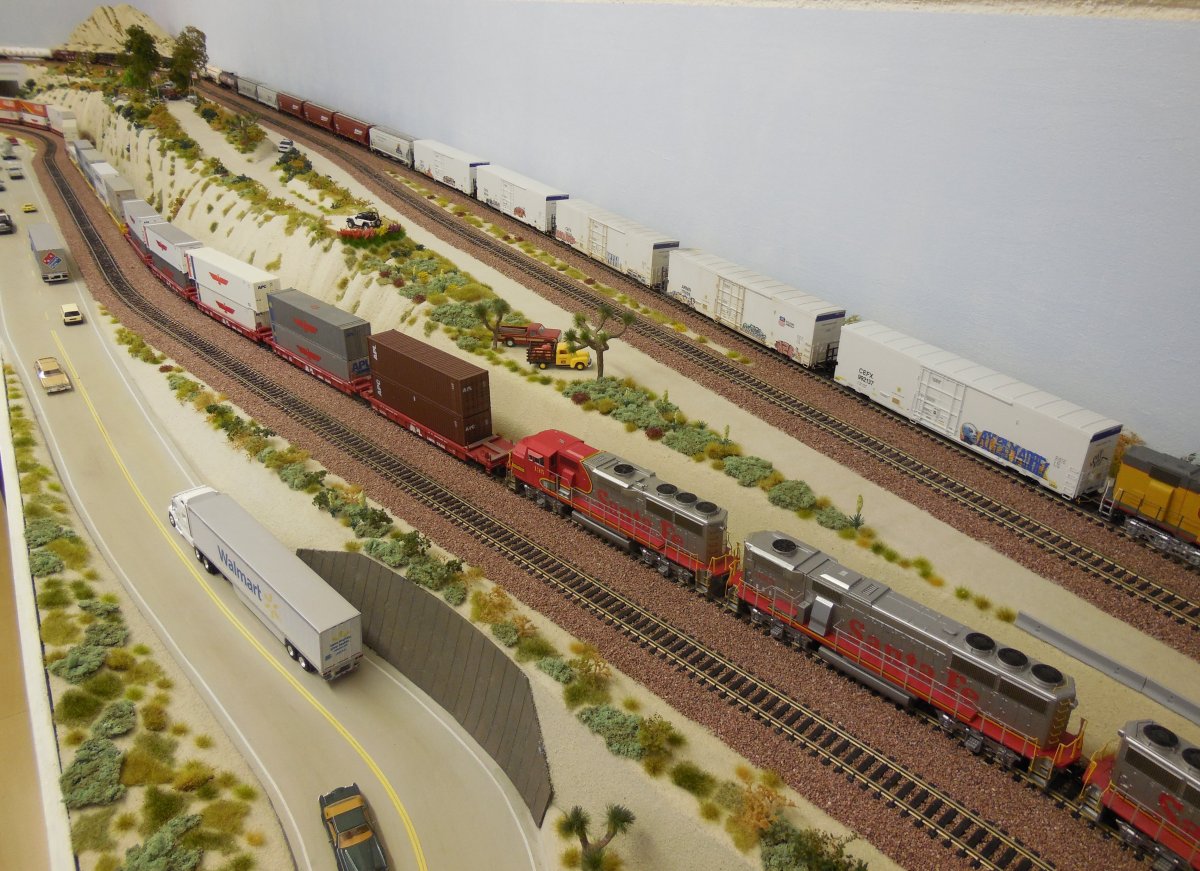

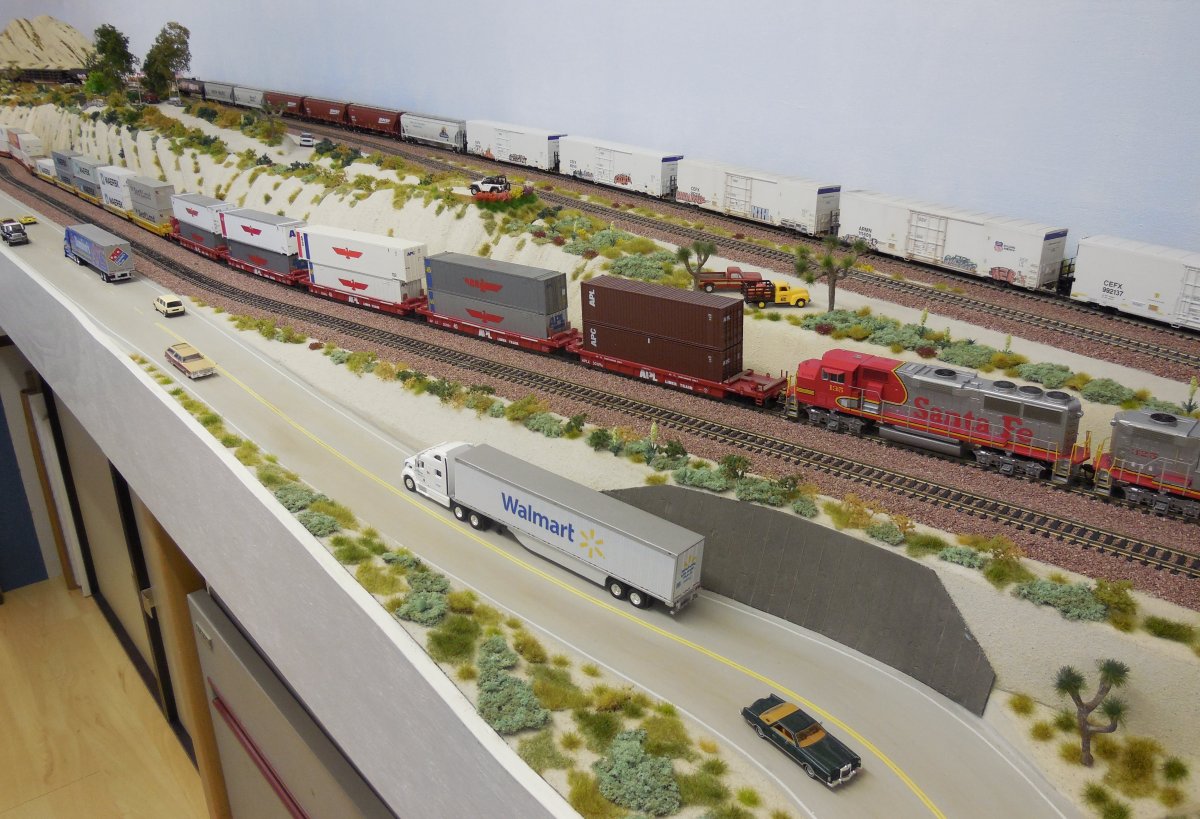

shortend Cajon pass area - 2197	2198

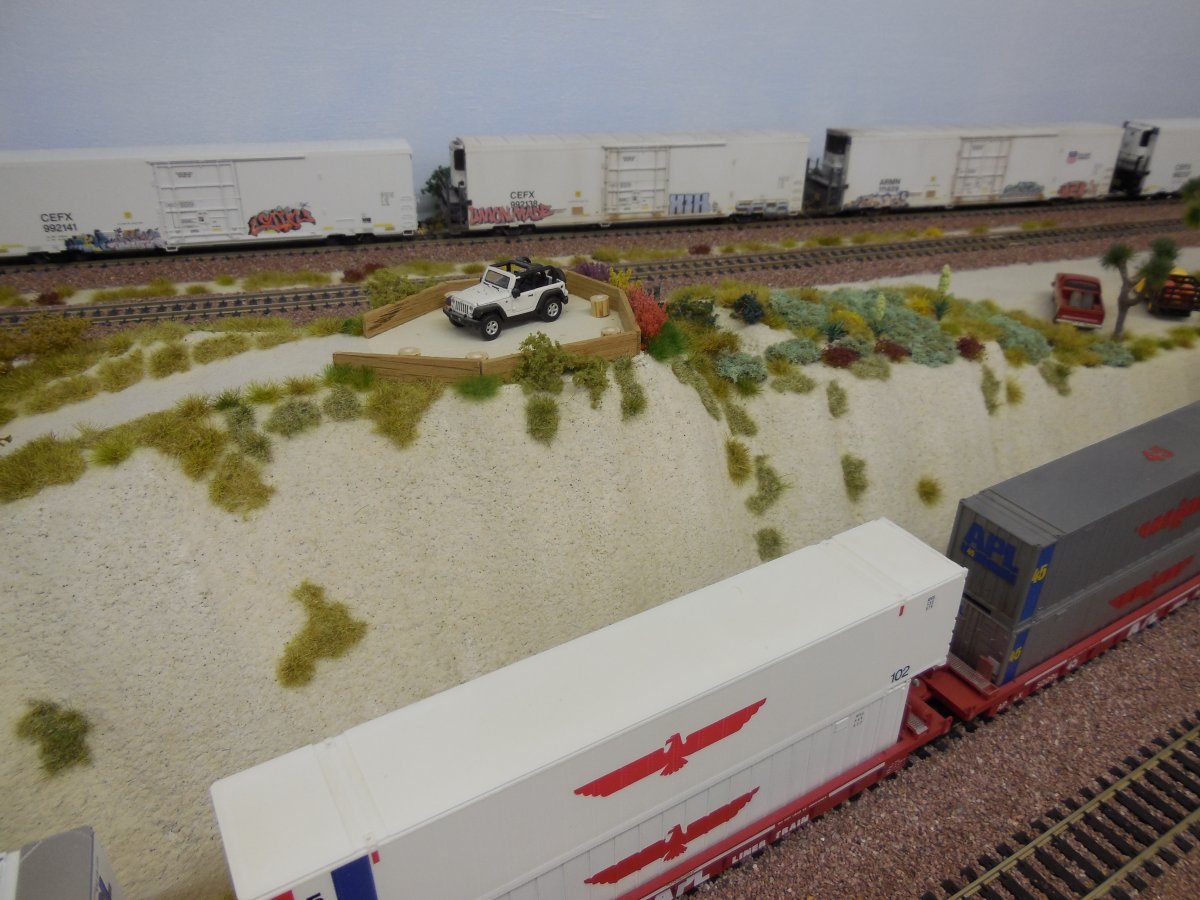

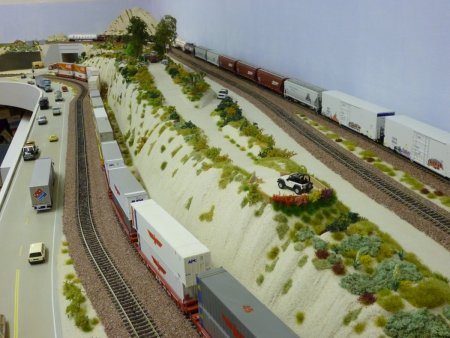

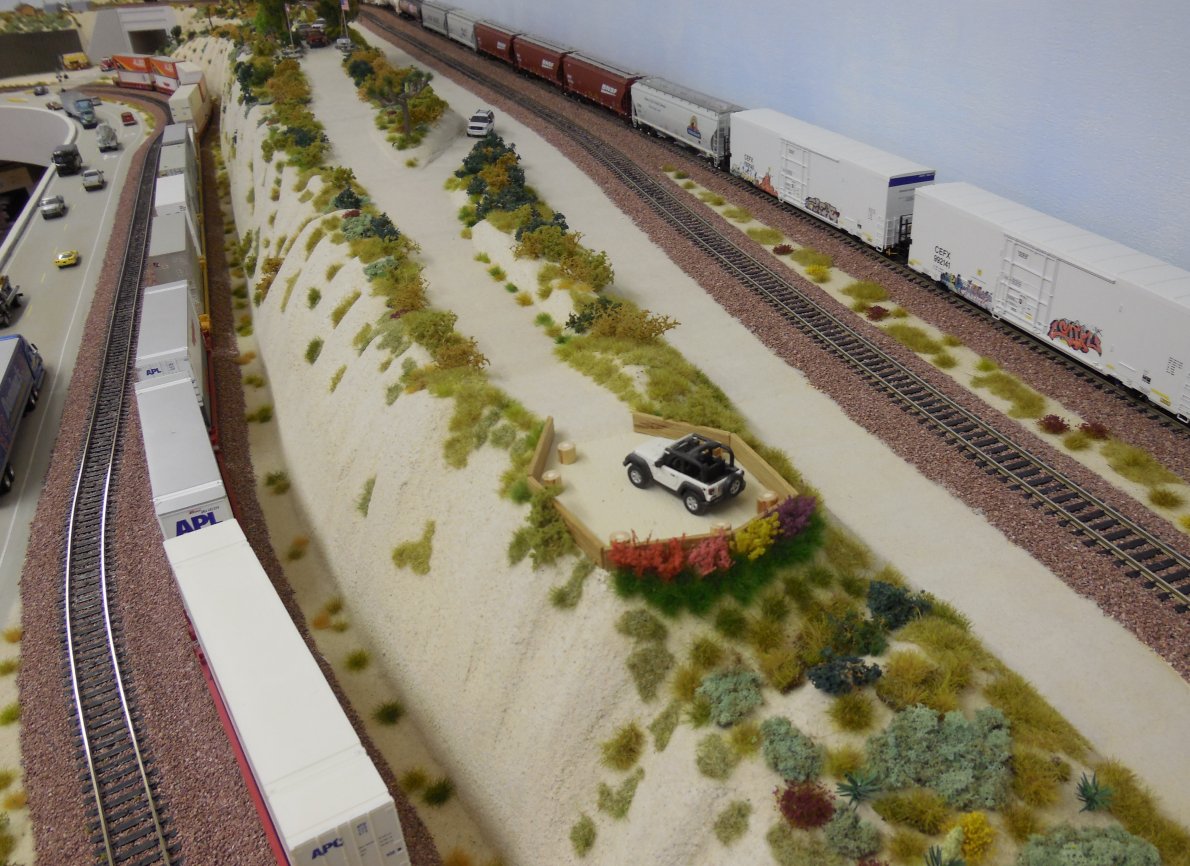

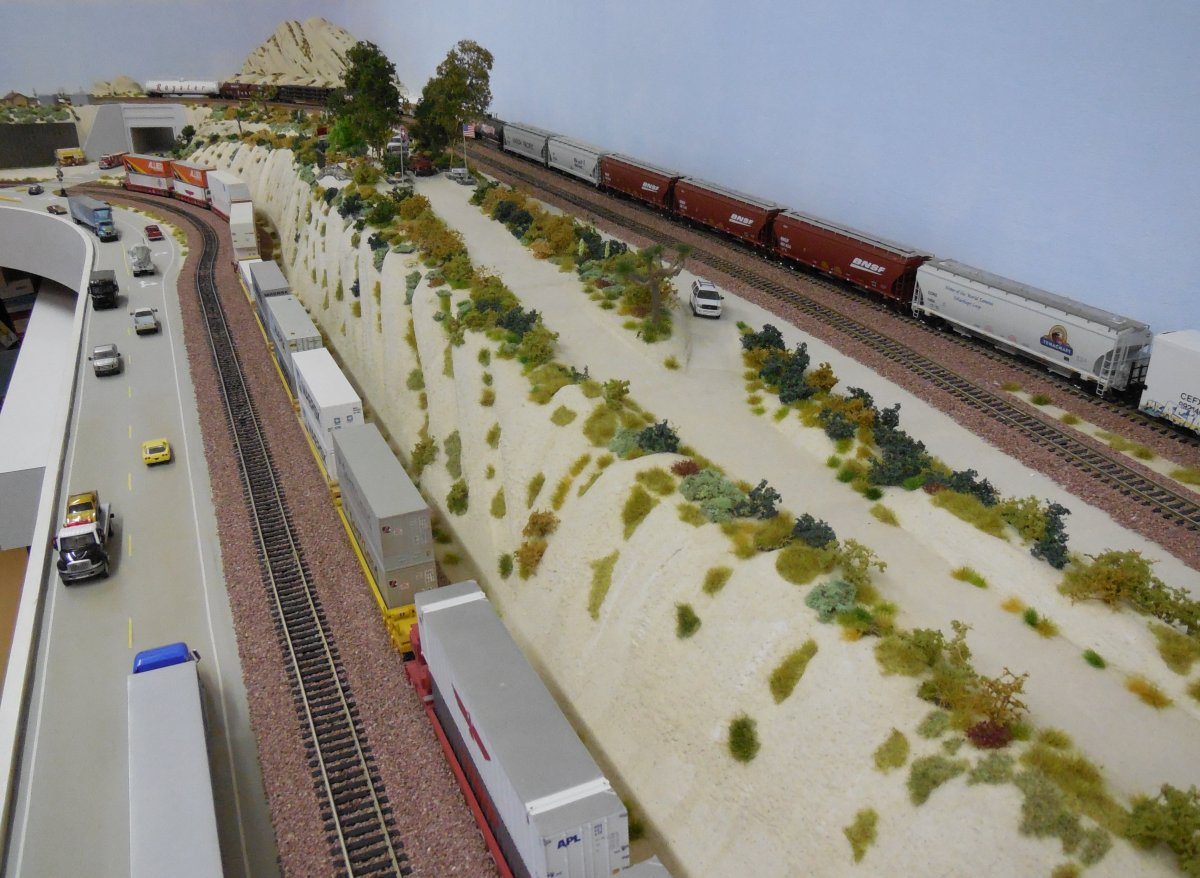

the Jeep is on WSI (West Summit Island) - 2199	the width is just 75 cm - 2200

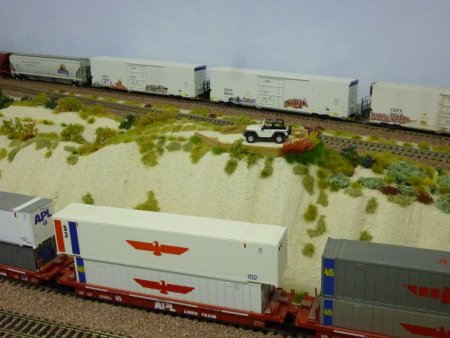

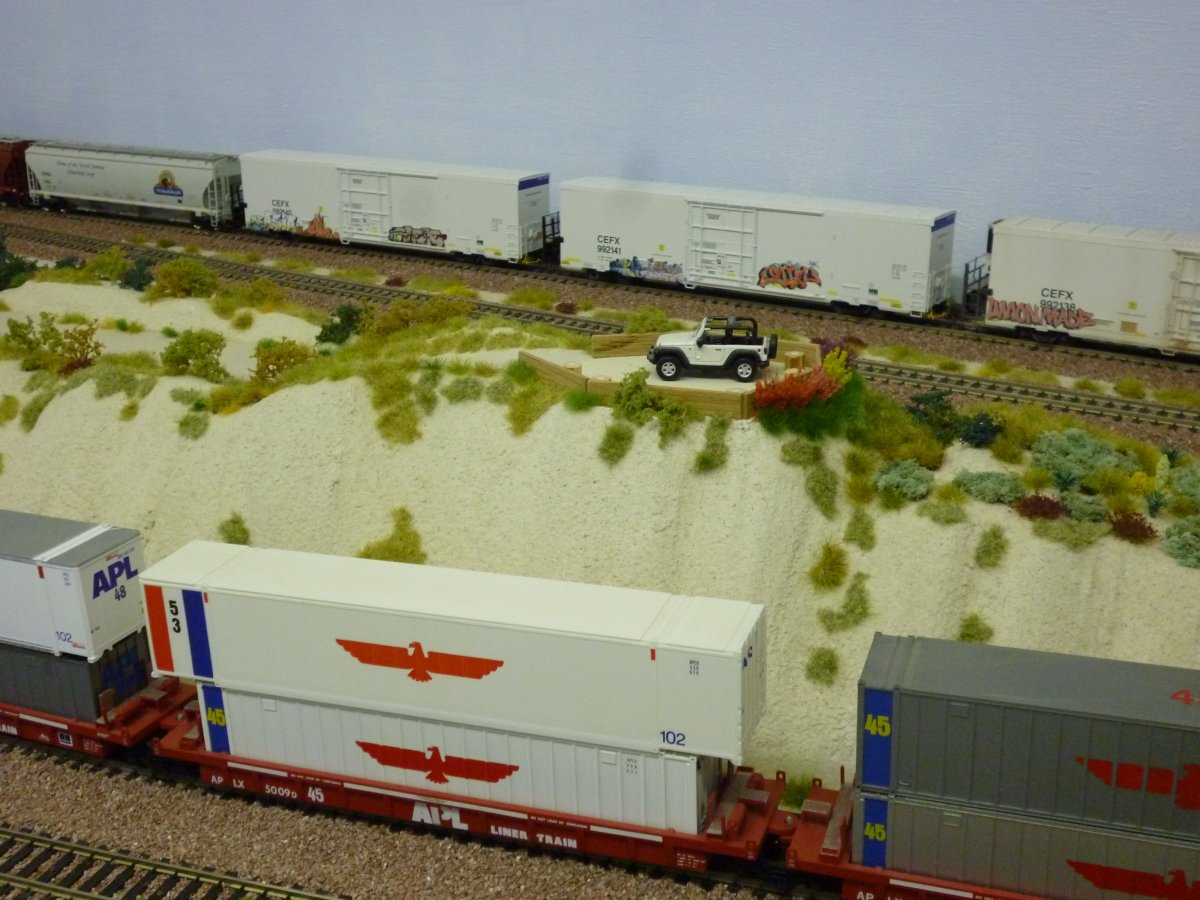

2201	in real: WSI is at Silverwood - 2202

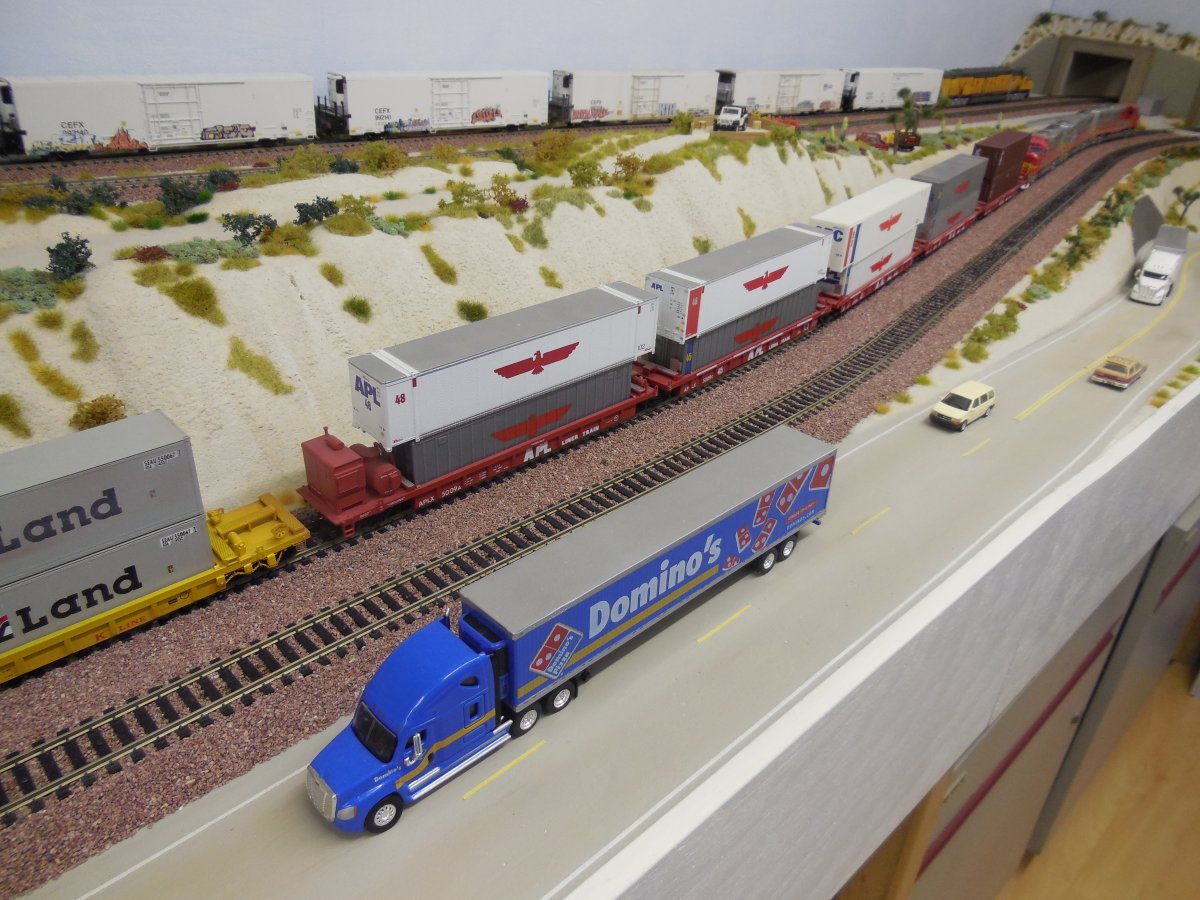

in real: WSI is located between BNSF MT-1/2 and MT-3 - 2203	of course, there are no tunnels near WSI - 2204

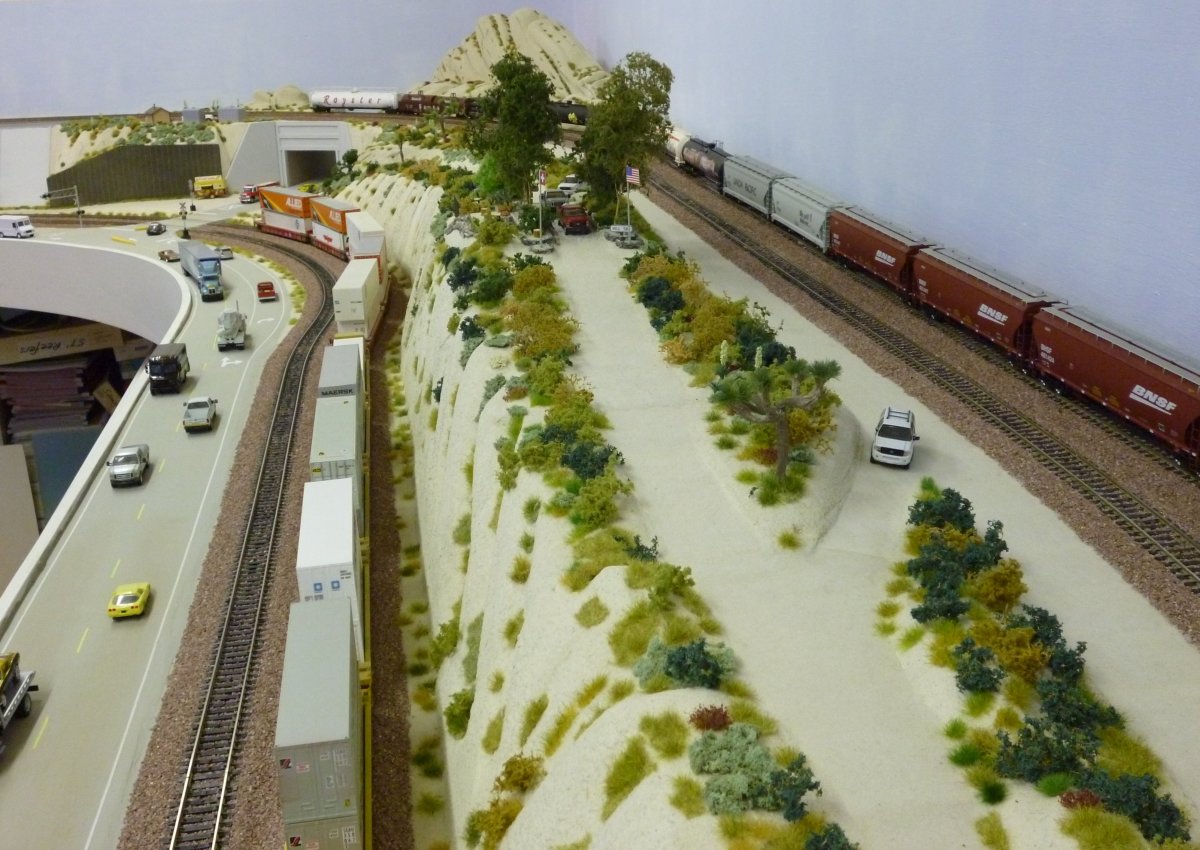

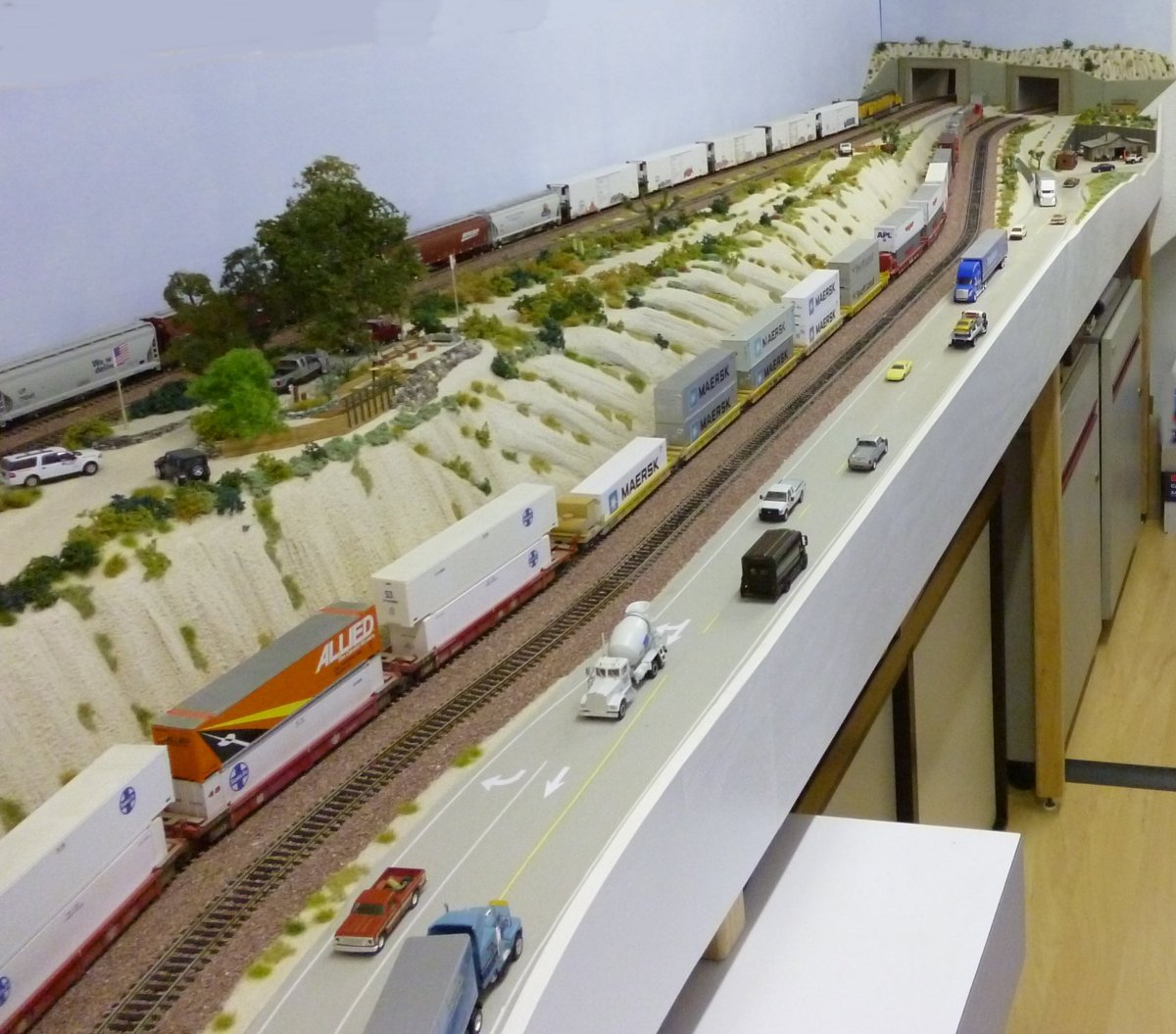

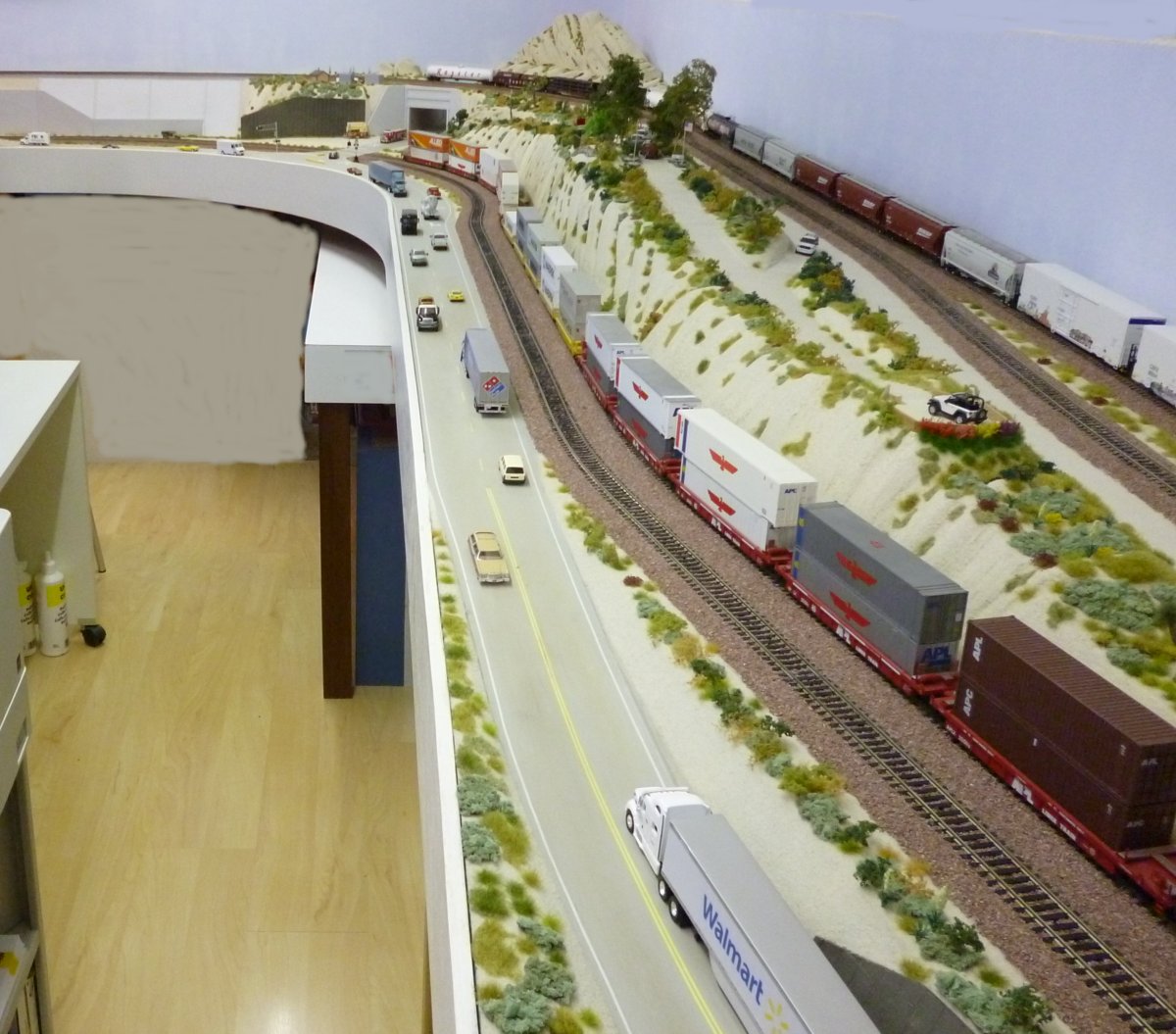

from Hill 582 looking toward WSI and West side of the tunnels - 2336	from WSI looking toward Hill 582 and the Mormon Rocks - 2337

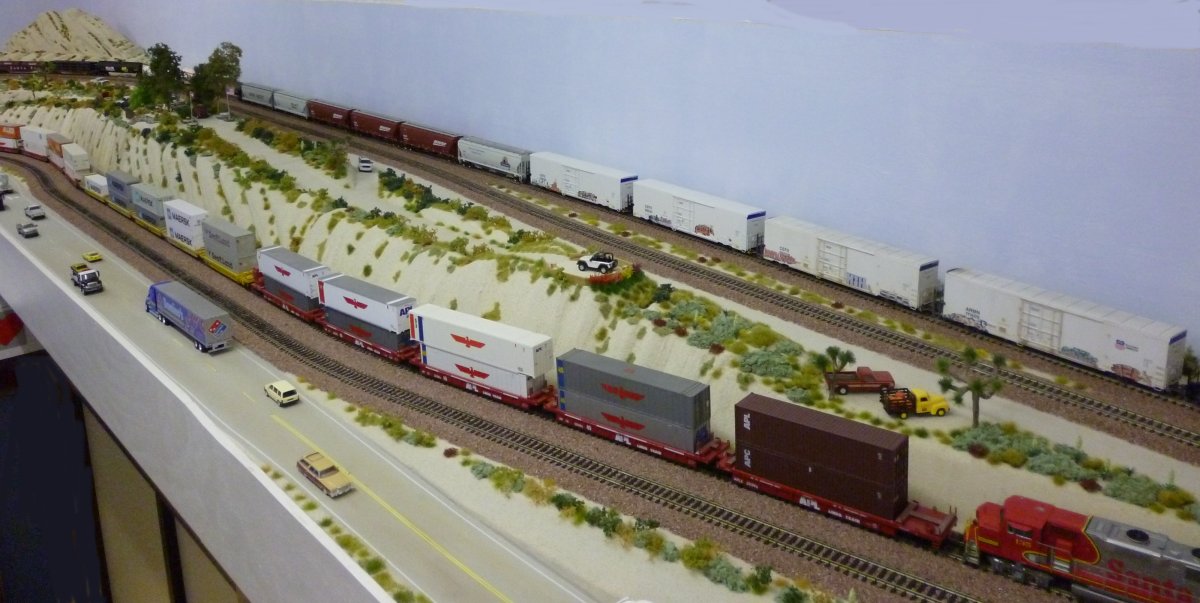

between the Mormon Rocks and the West side of tunnels (wall to wall) the distance is just 5 m - 2338

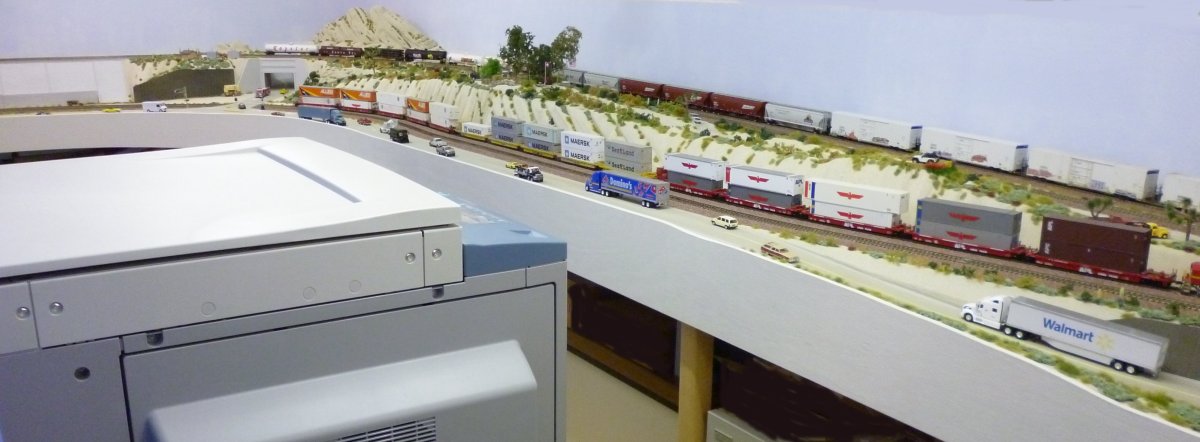

well, ther is a big copy machine inside office 2, but it does not really disturb the Cajon Pass area - 2339

Hill 582 is a Railfans' Paradise. Don Toles is the "Hillkeeper" and taking care of the Hill. But there are other gentlemen involved: Gary Gray, Marc Fournier, Jerry Shinar and some others as well.

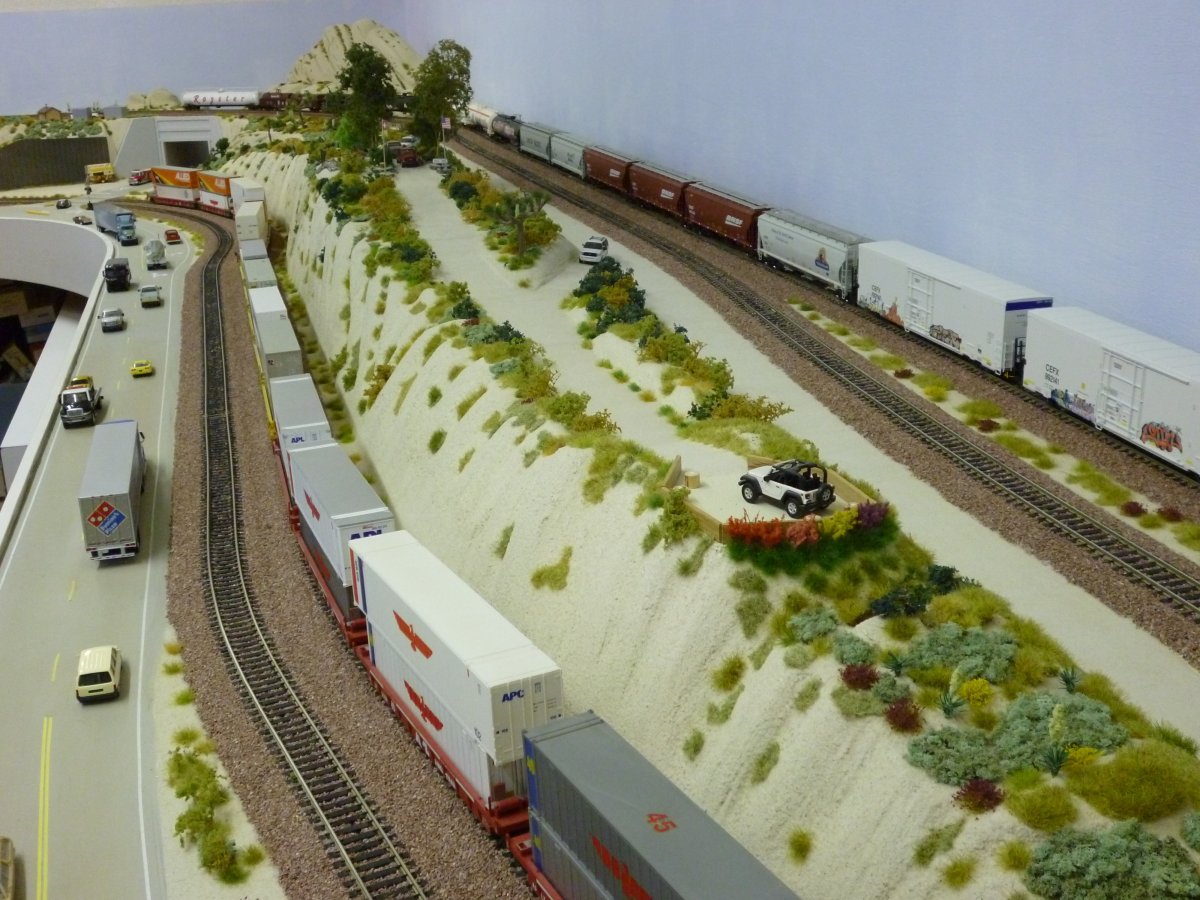

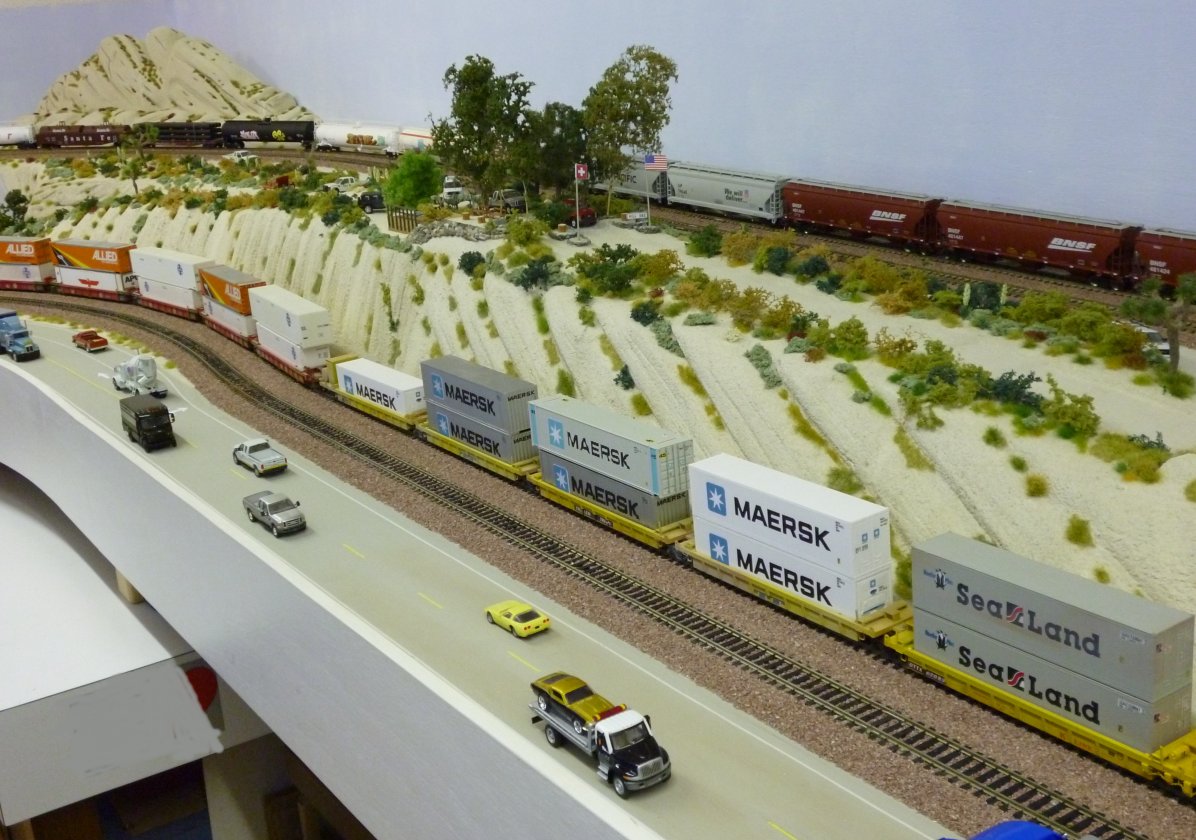

my scale version of Hill 582 is parallel to the tracks - 2205	but in real life, it is actually square to the tracks - 2206

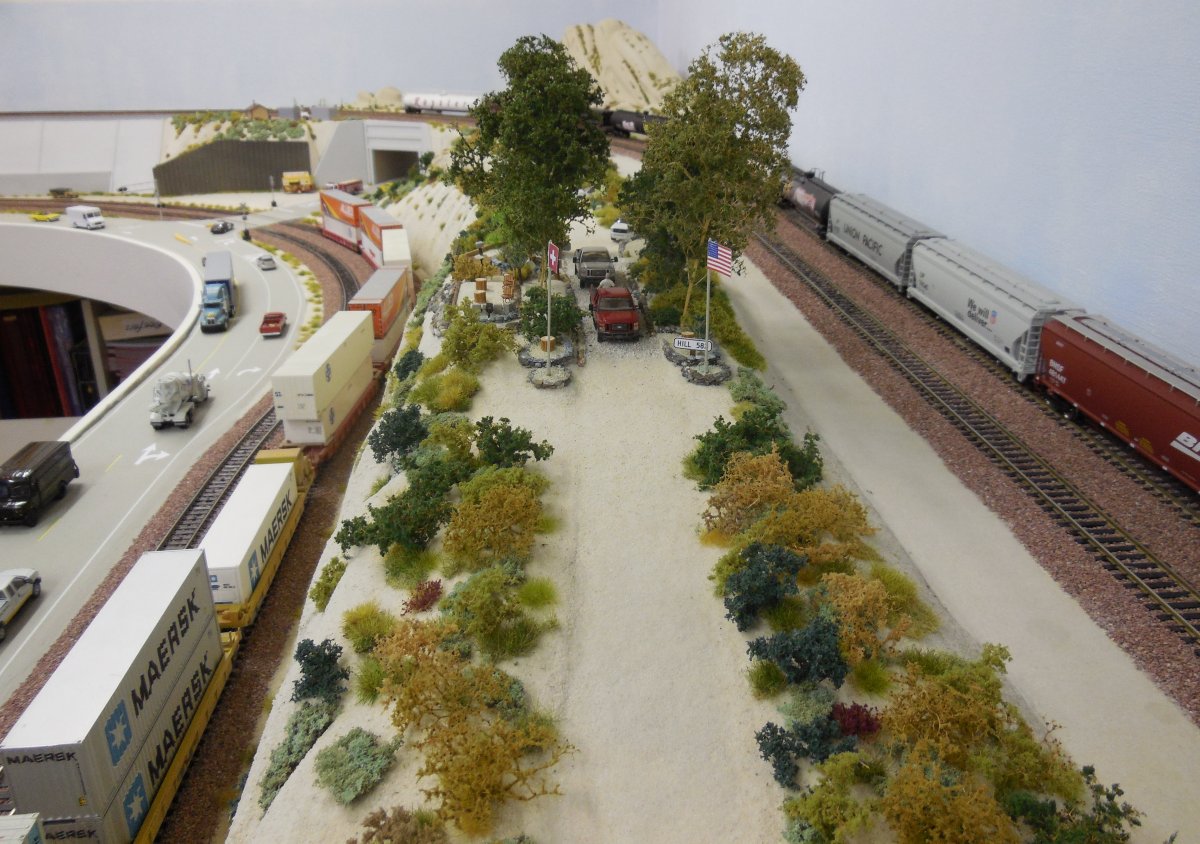

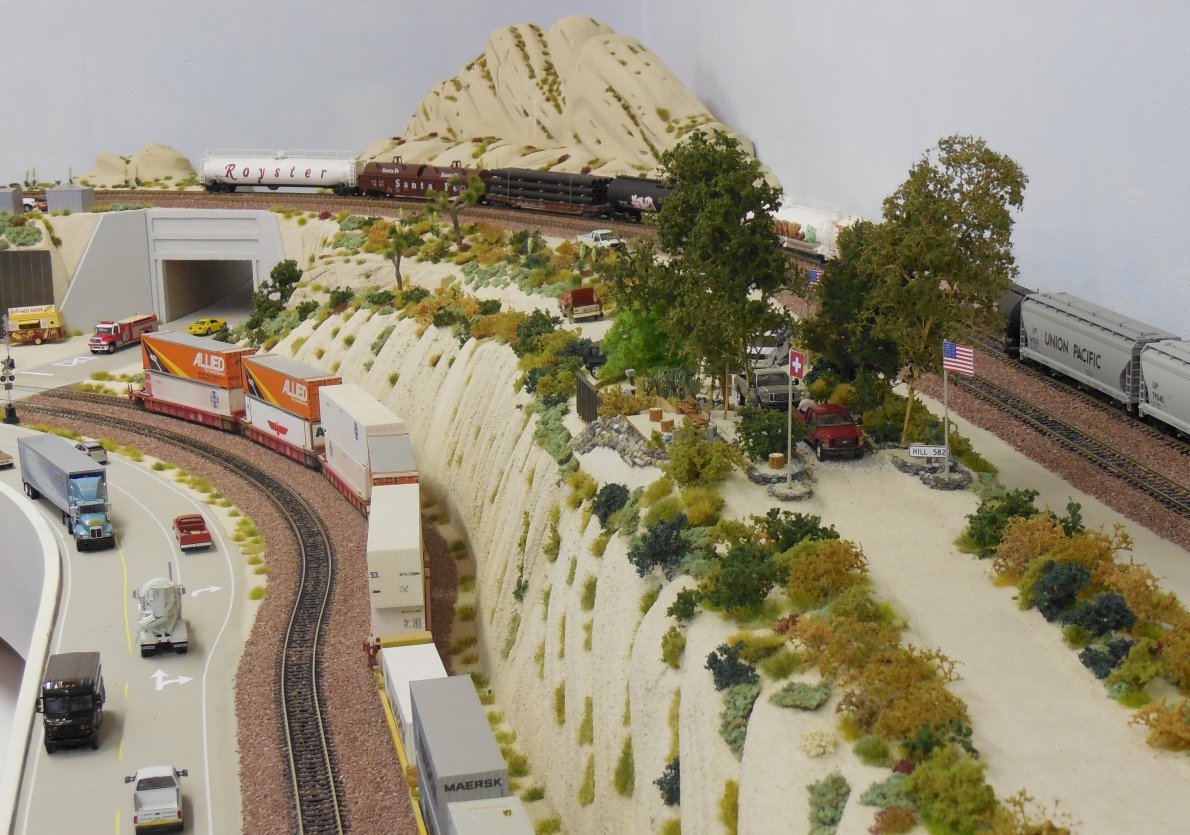

looking from the East to the West - 2207	2208

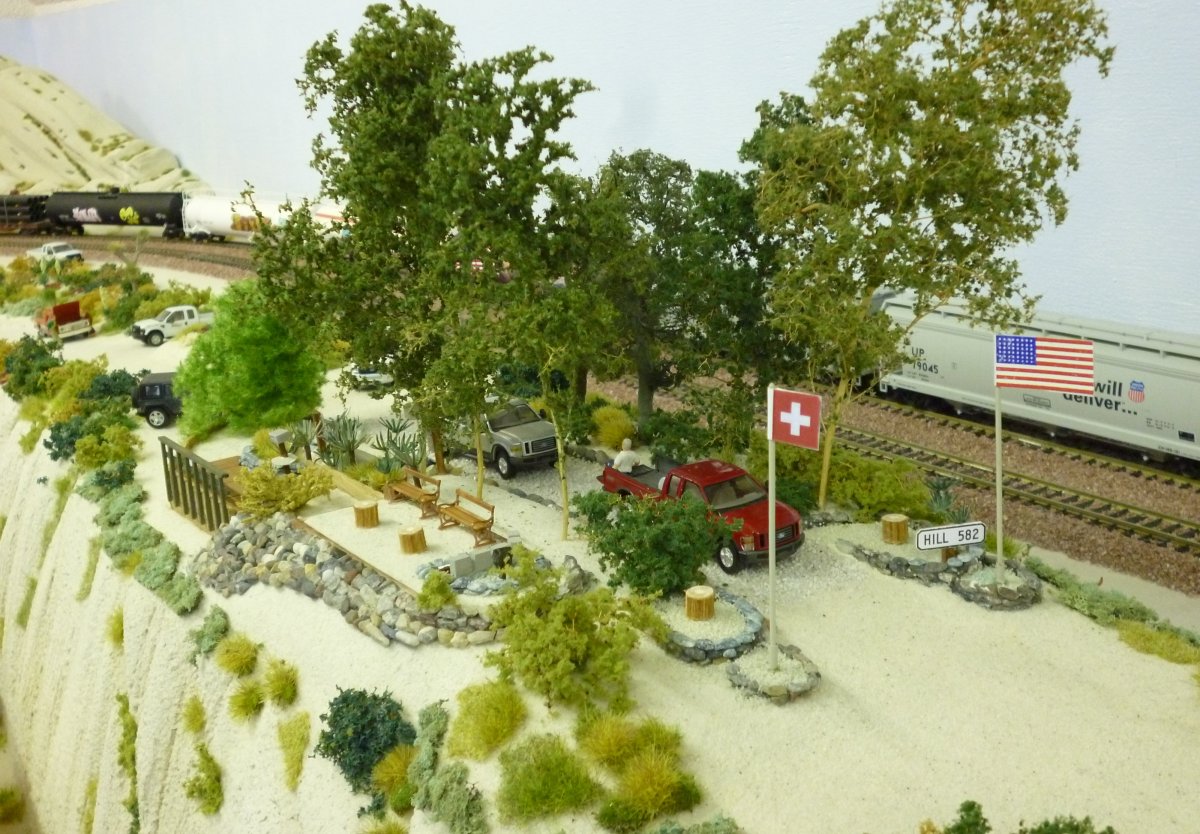

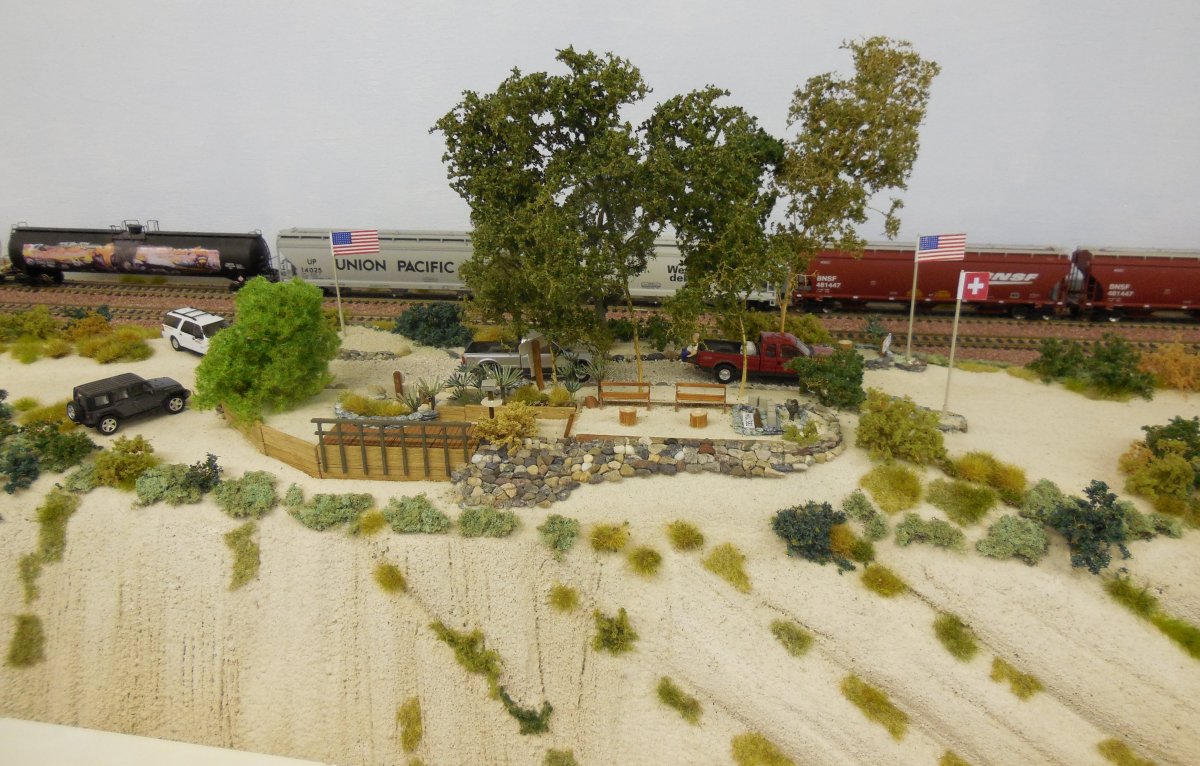

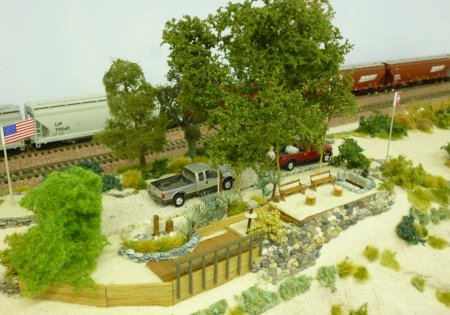

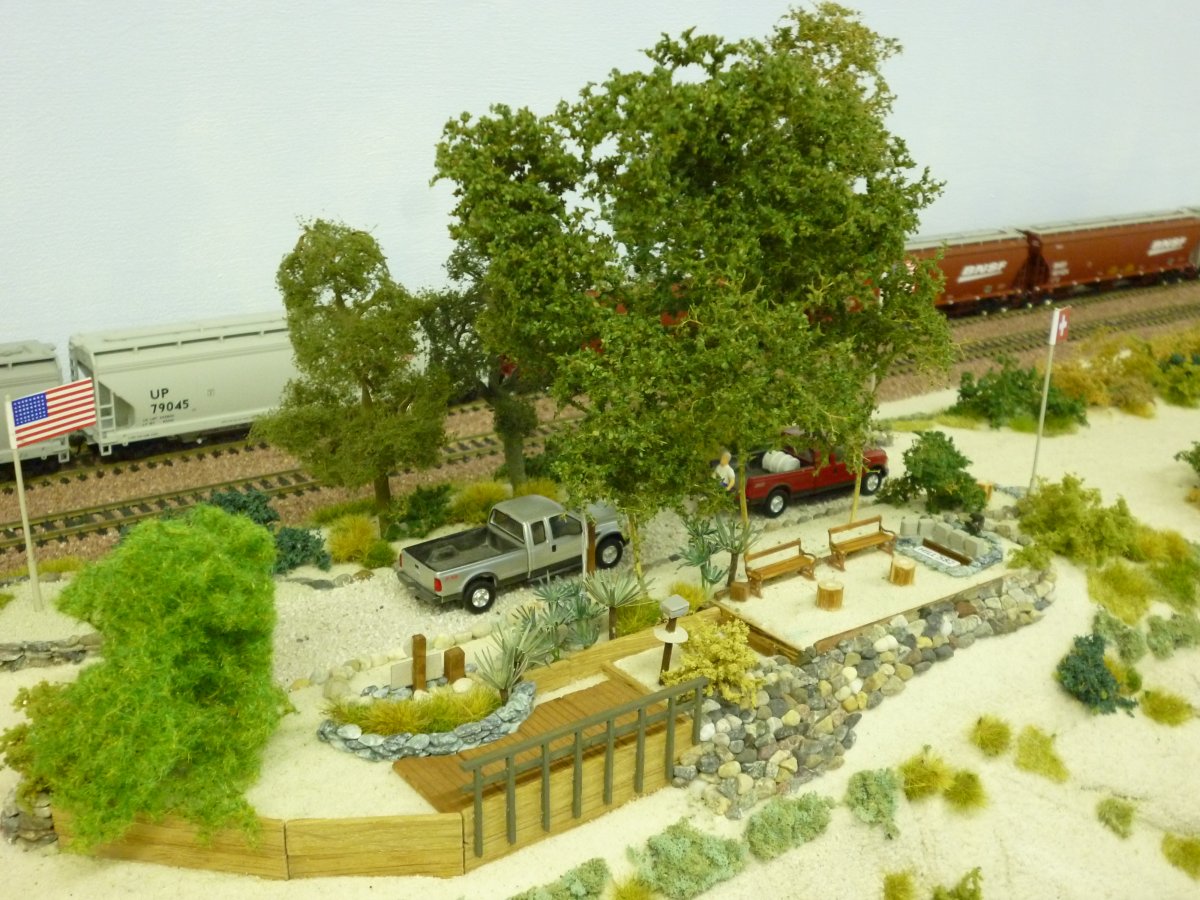

the silver Ford pickup truck belongs to Gary Gray - 2209	the red Ford pickup truck belongs to Don Toles - 2210

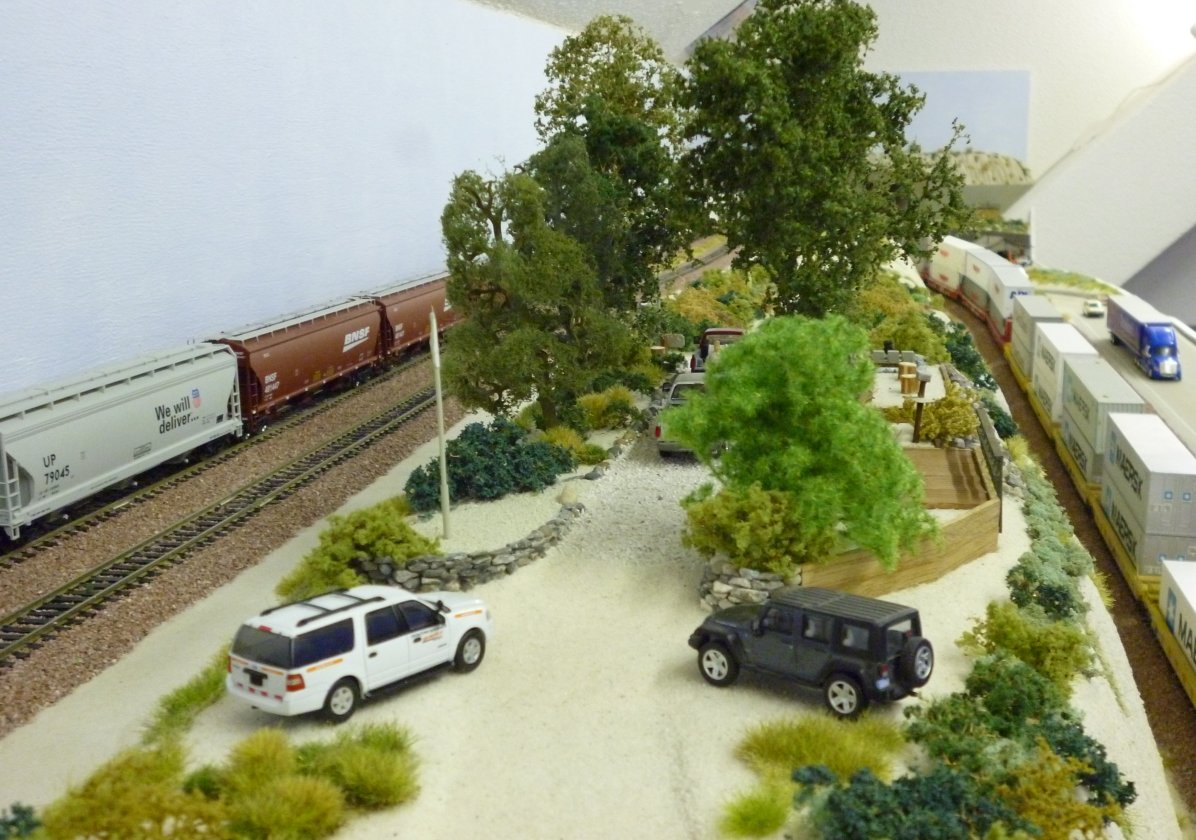

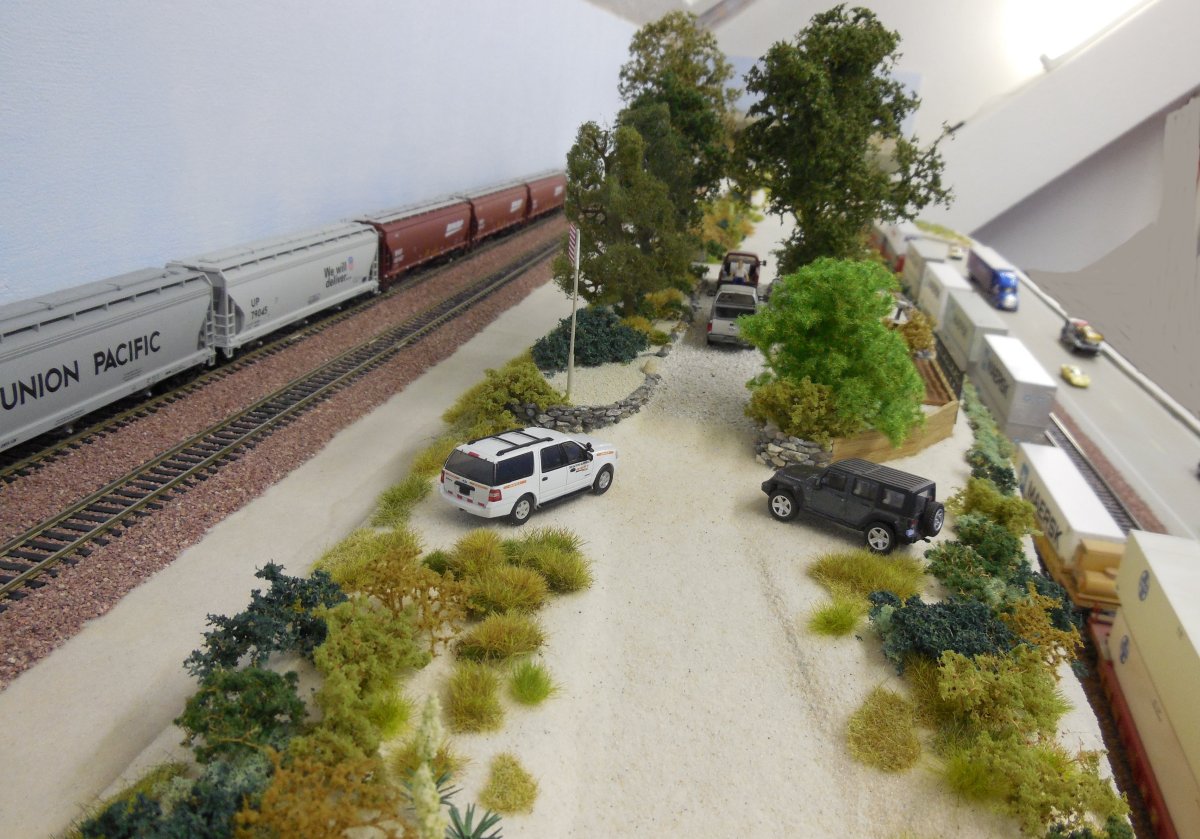

looking from West to East - 2211	the blue Jeep belongs to Marc Fournier - 2212

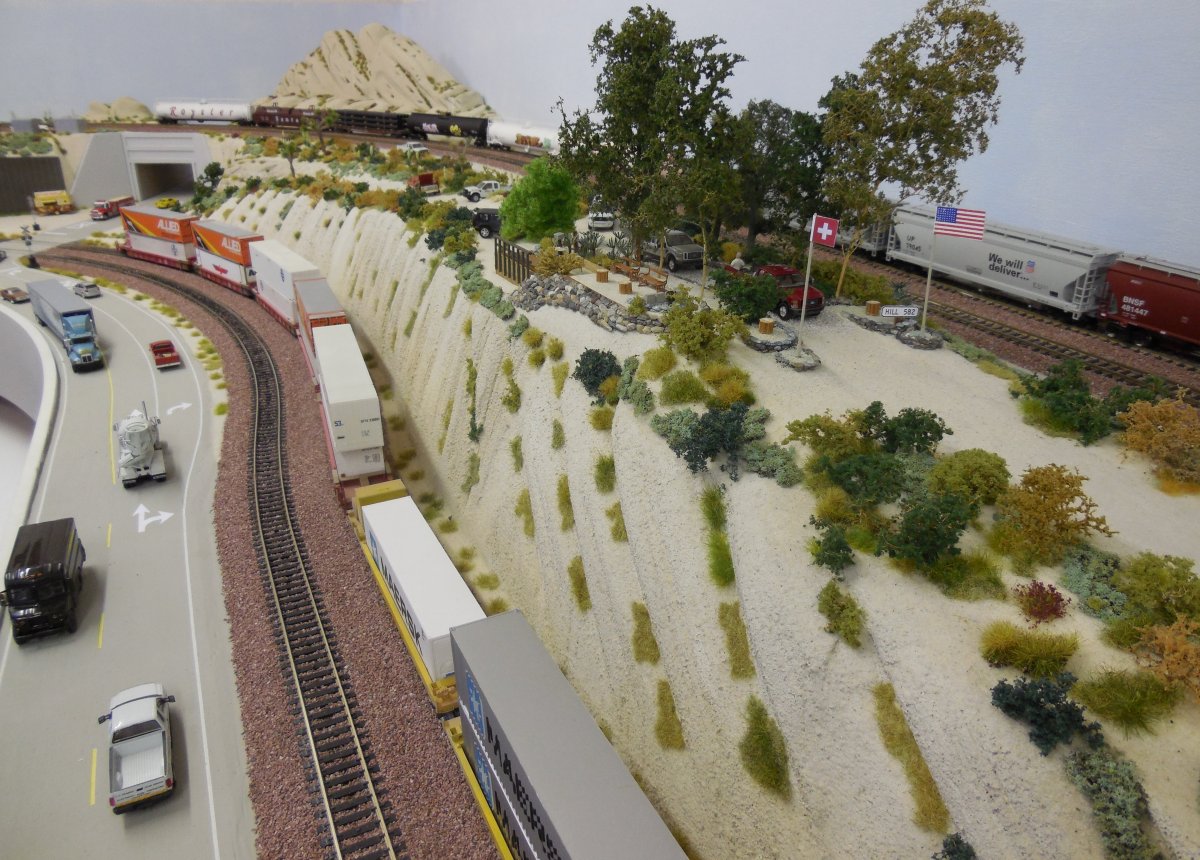

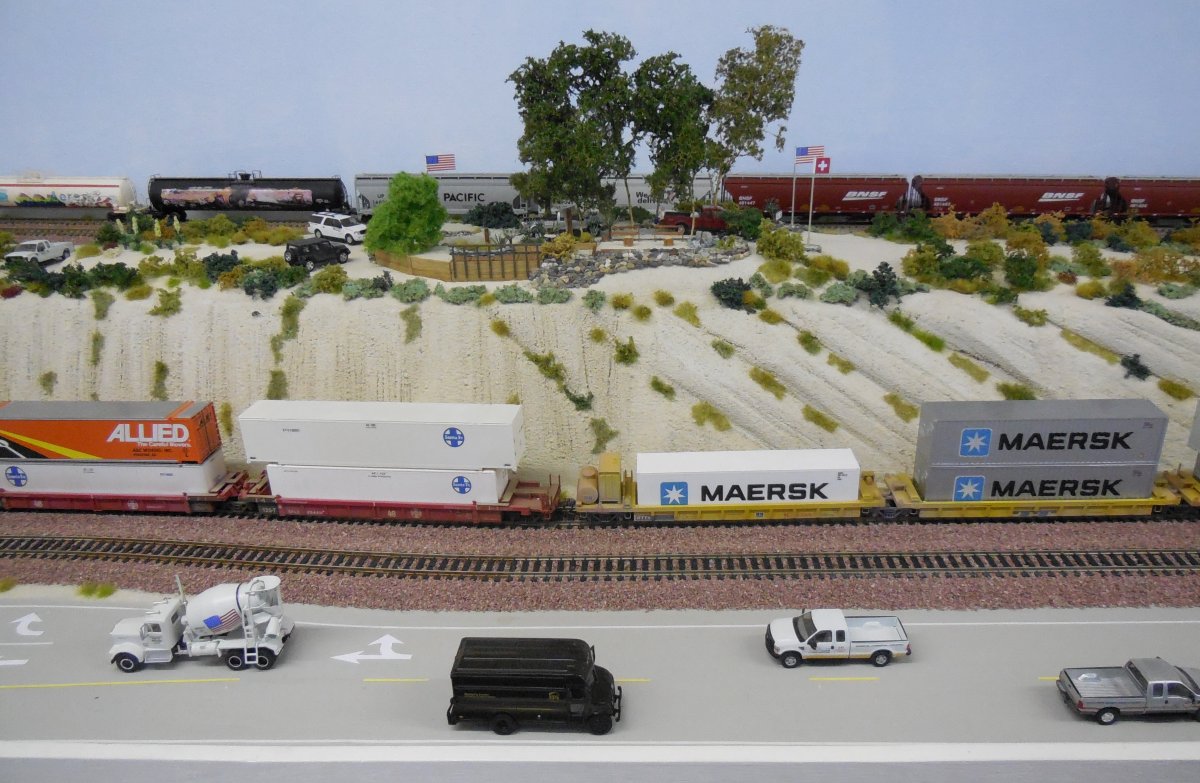

2227	2228

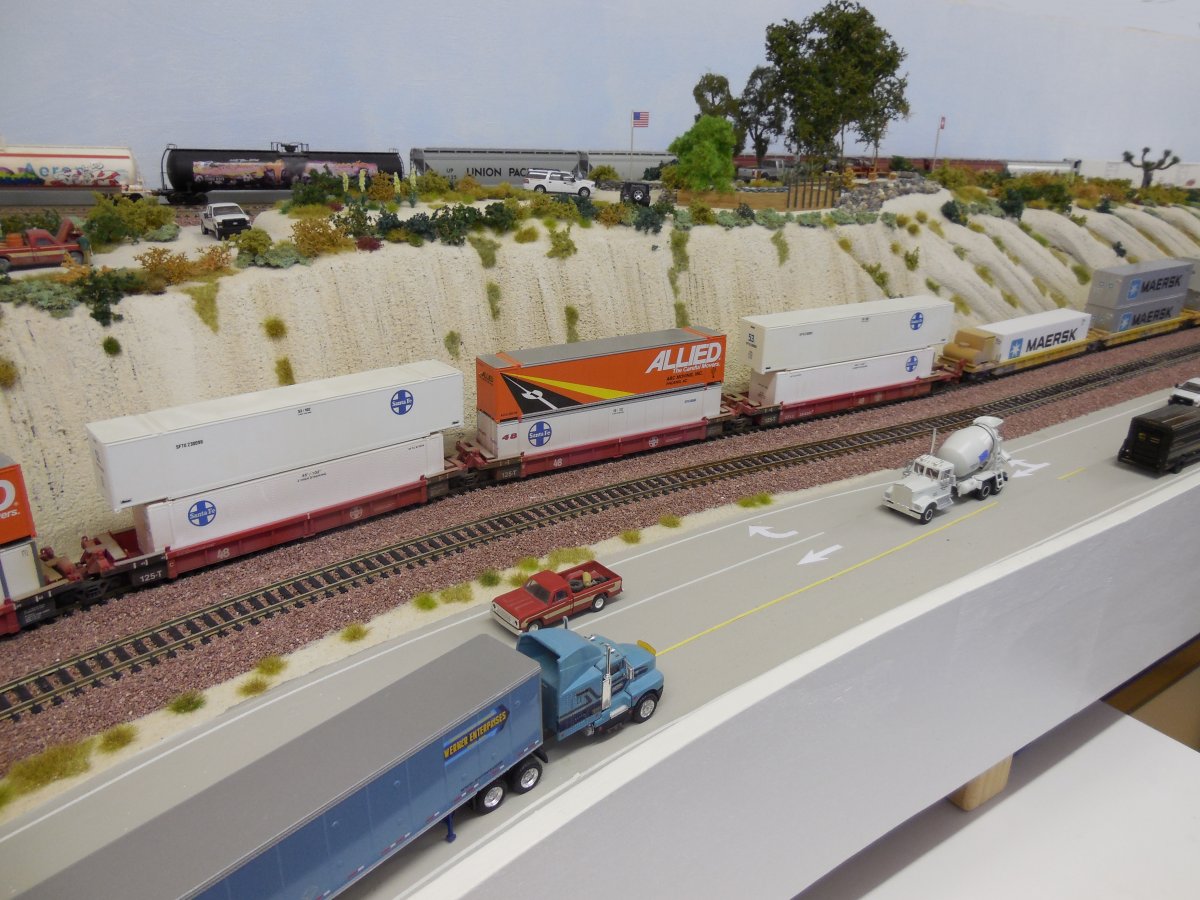

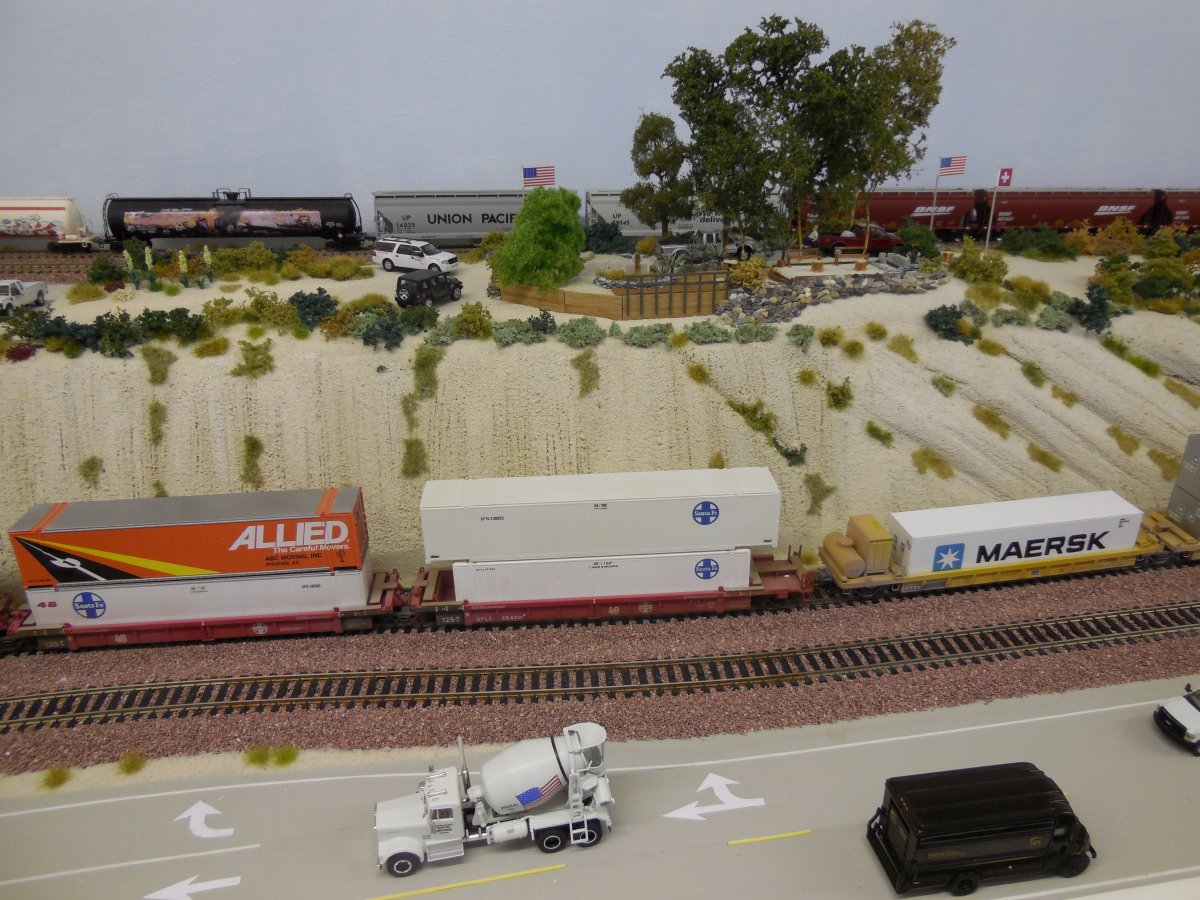

2229	2230
2231	2232

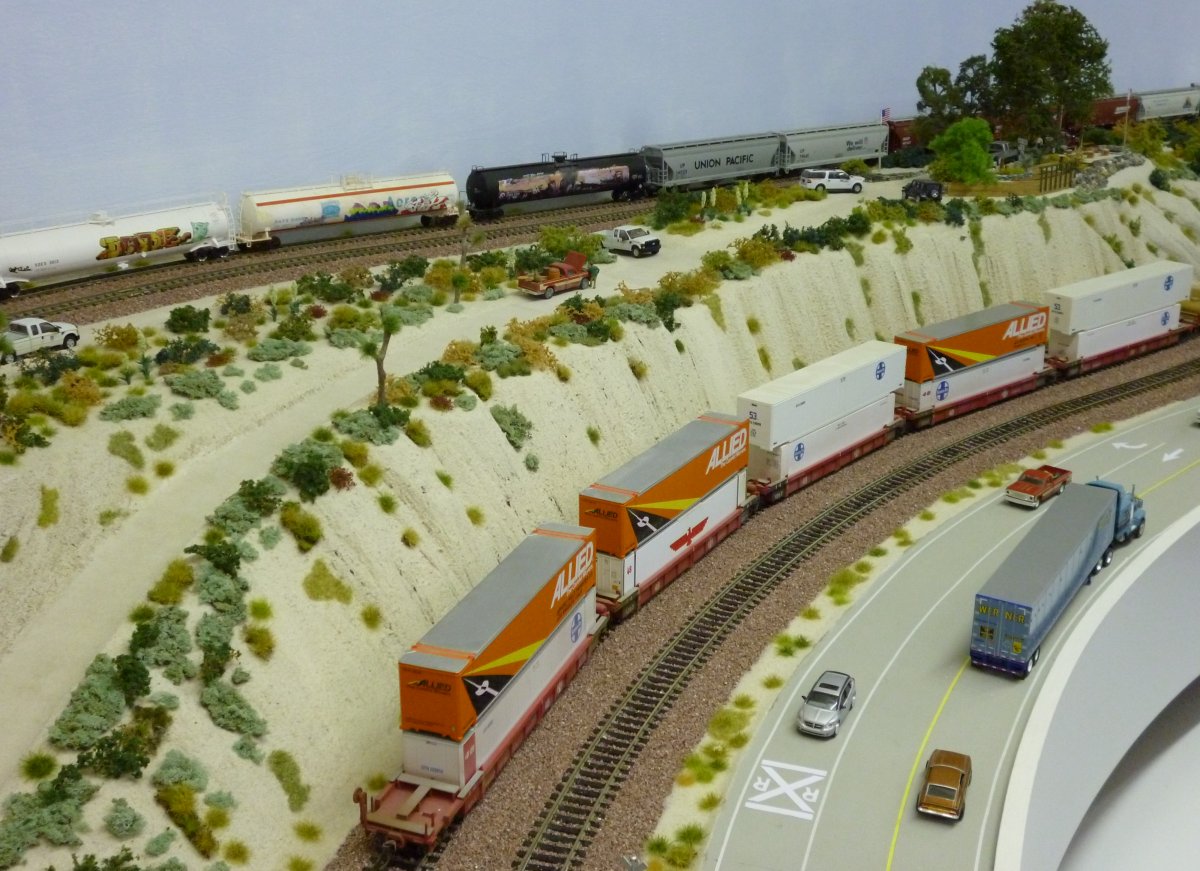

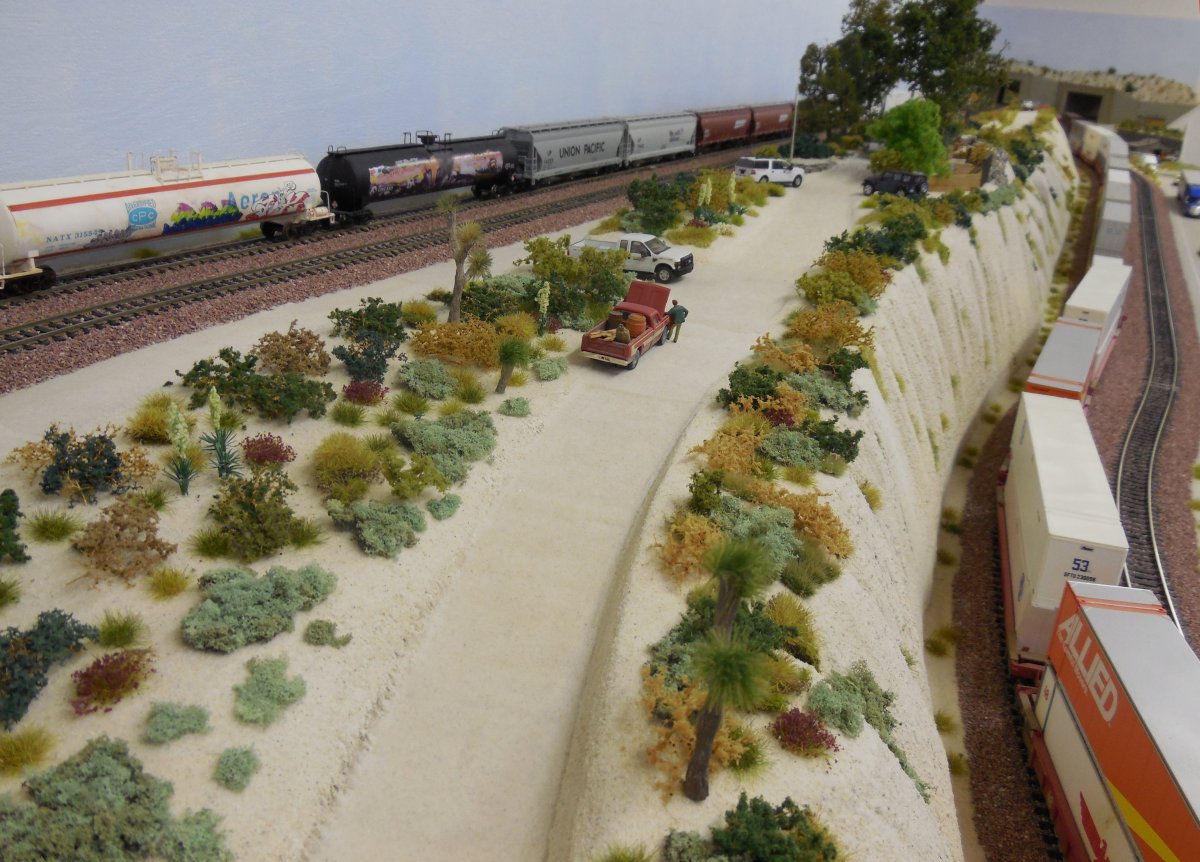

2213	2214

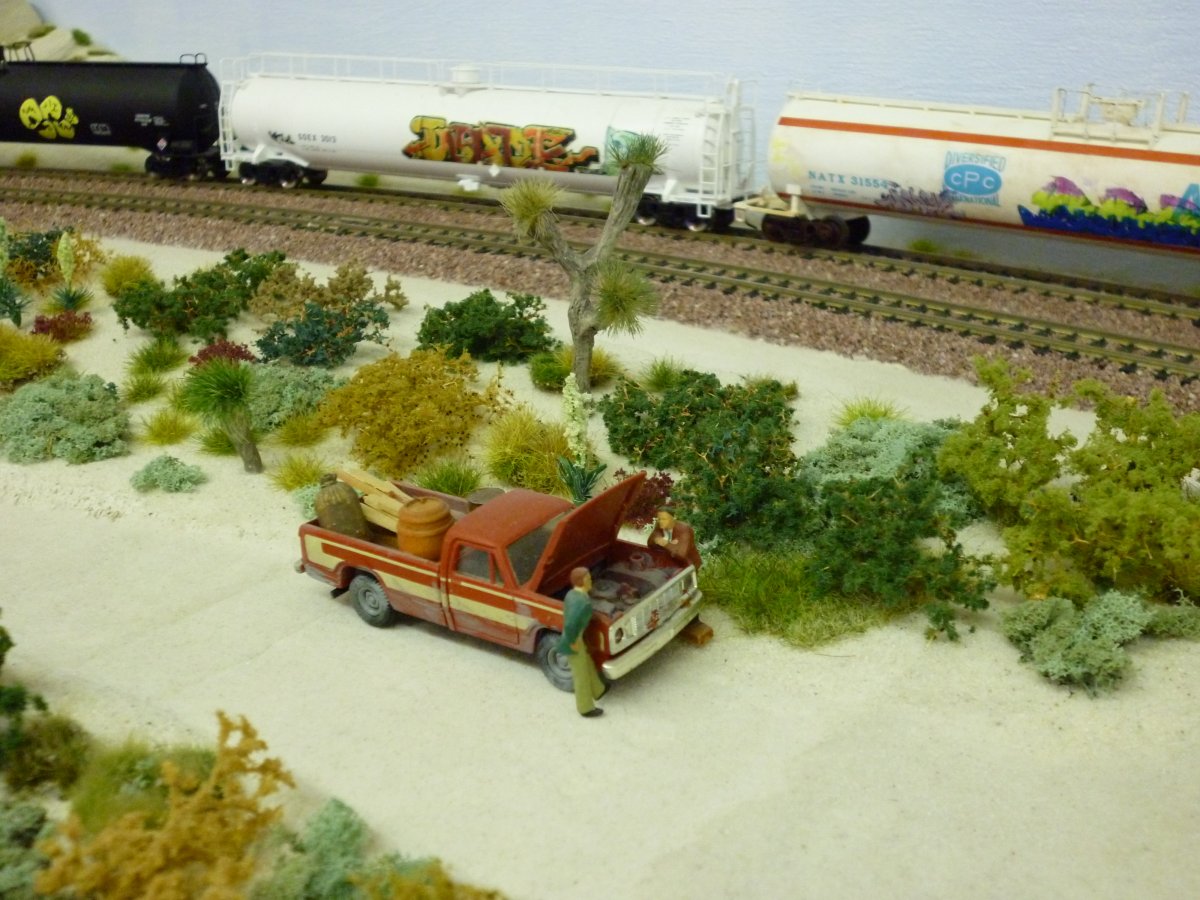

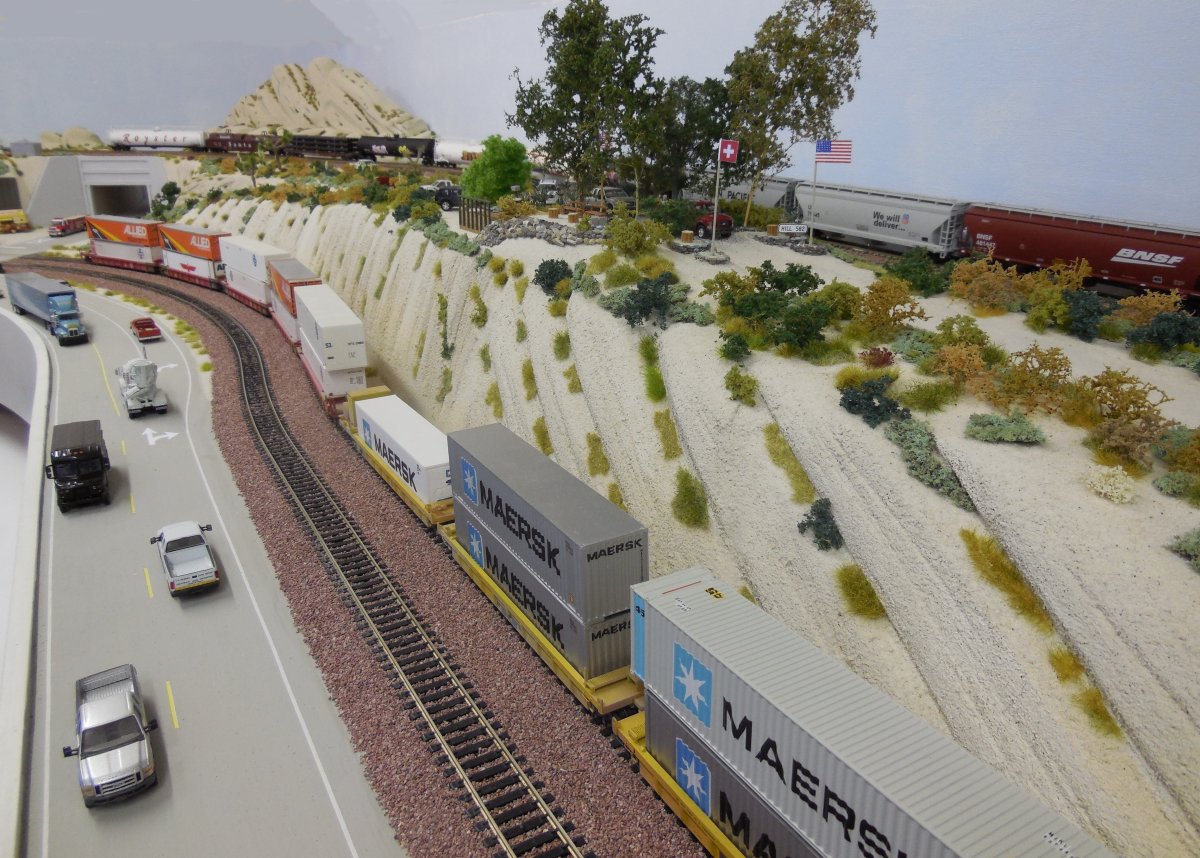

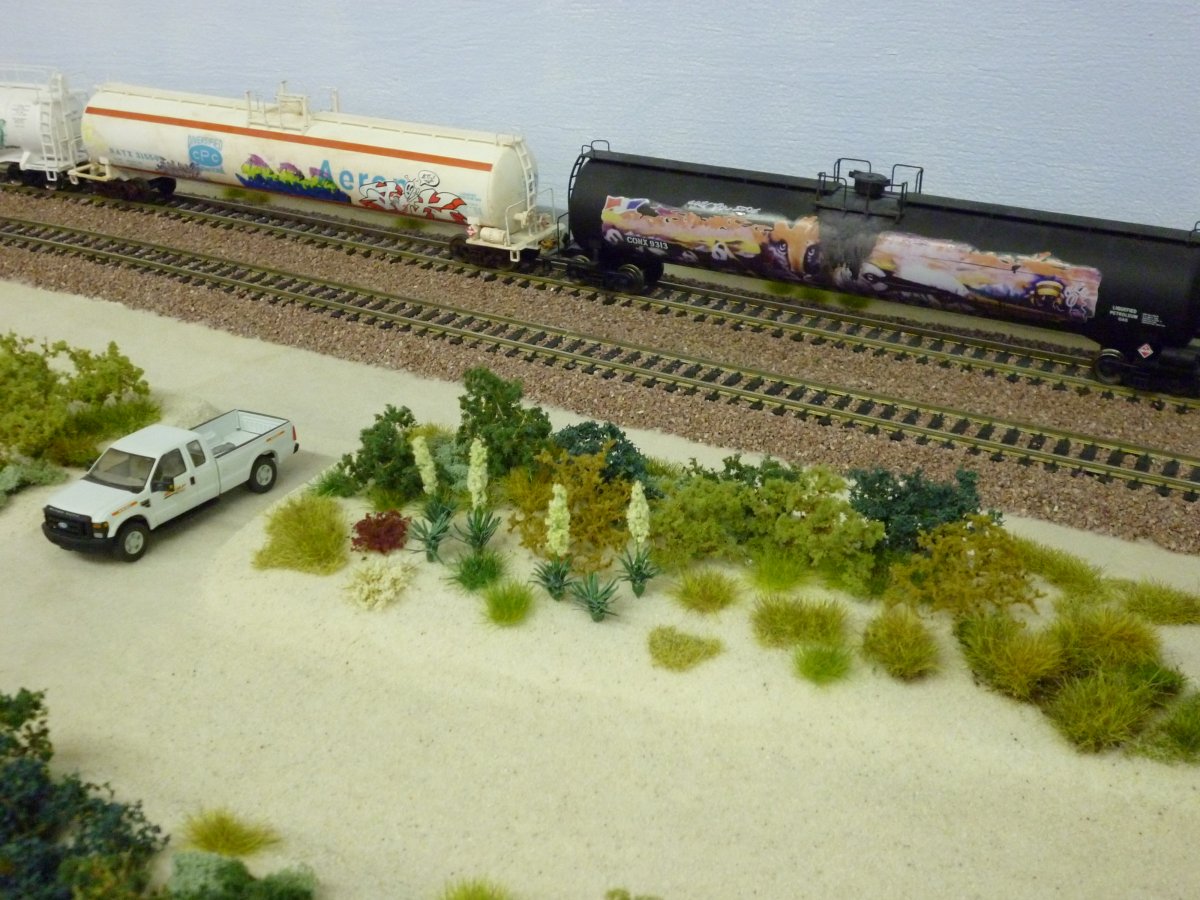

well, these guys are having a problem - 2215	graffiti on tank cars by Peter Schönenberger - 2216
These photos of Hill 582 (below) have been taken in January 2016

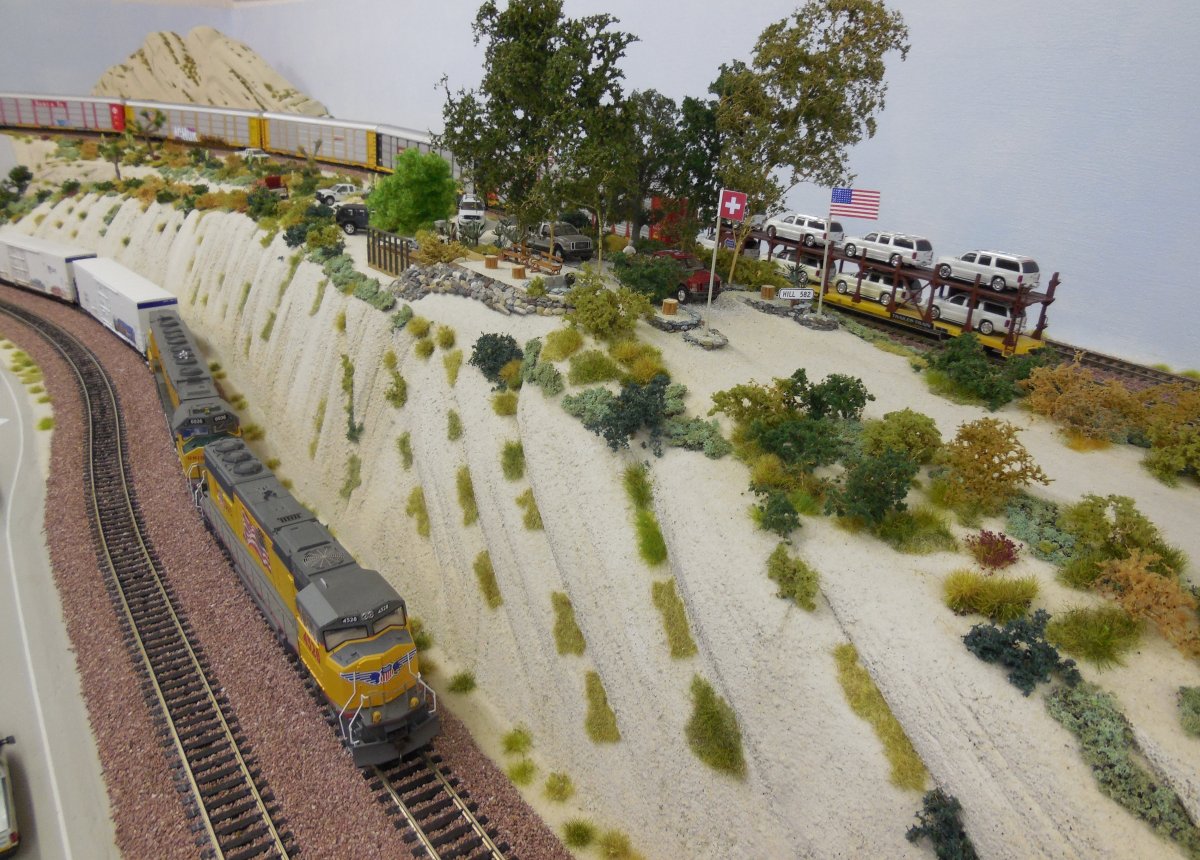

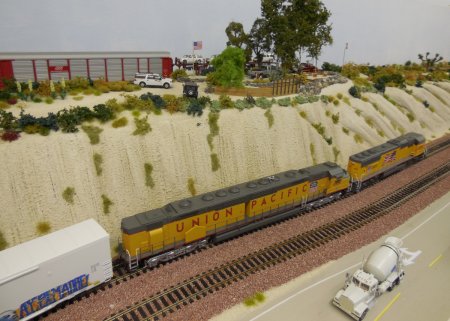

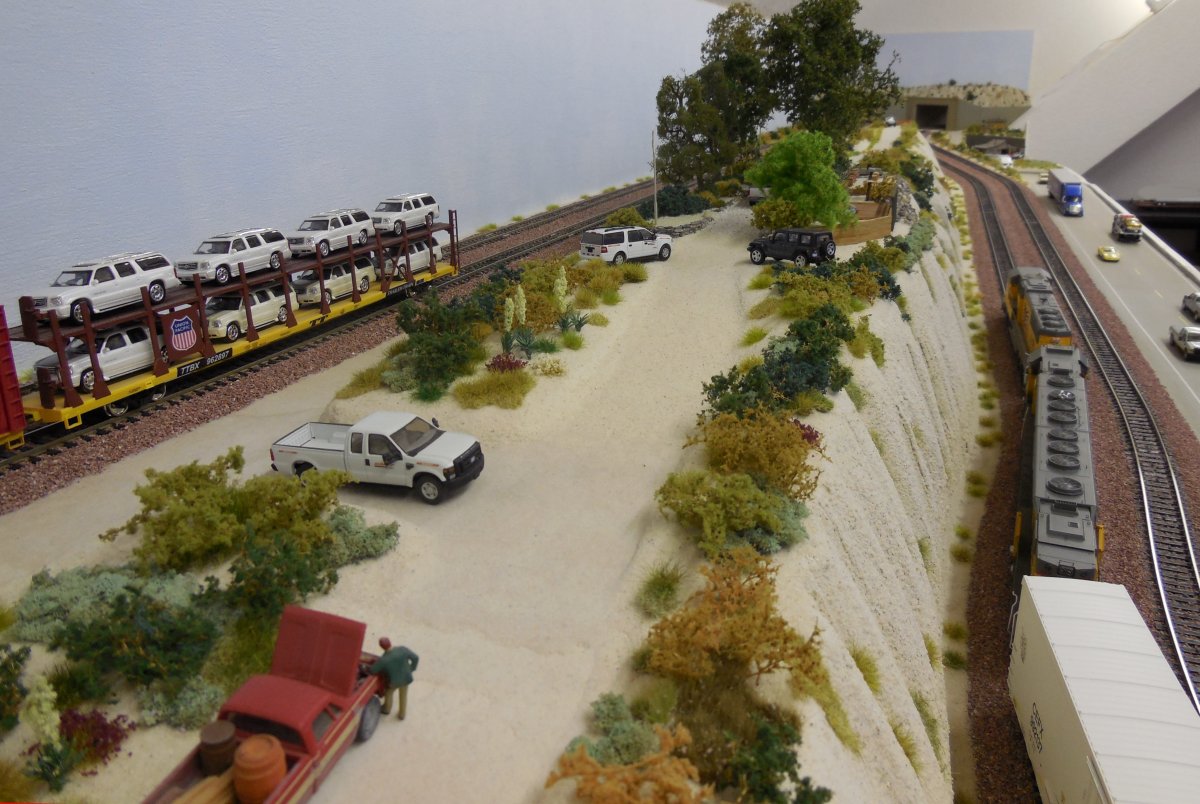

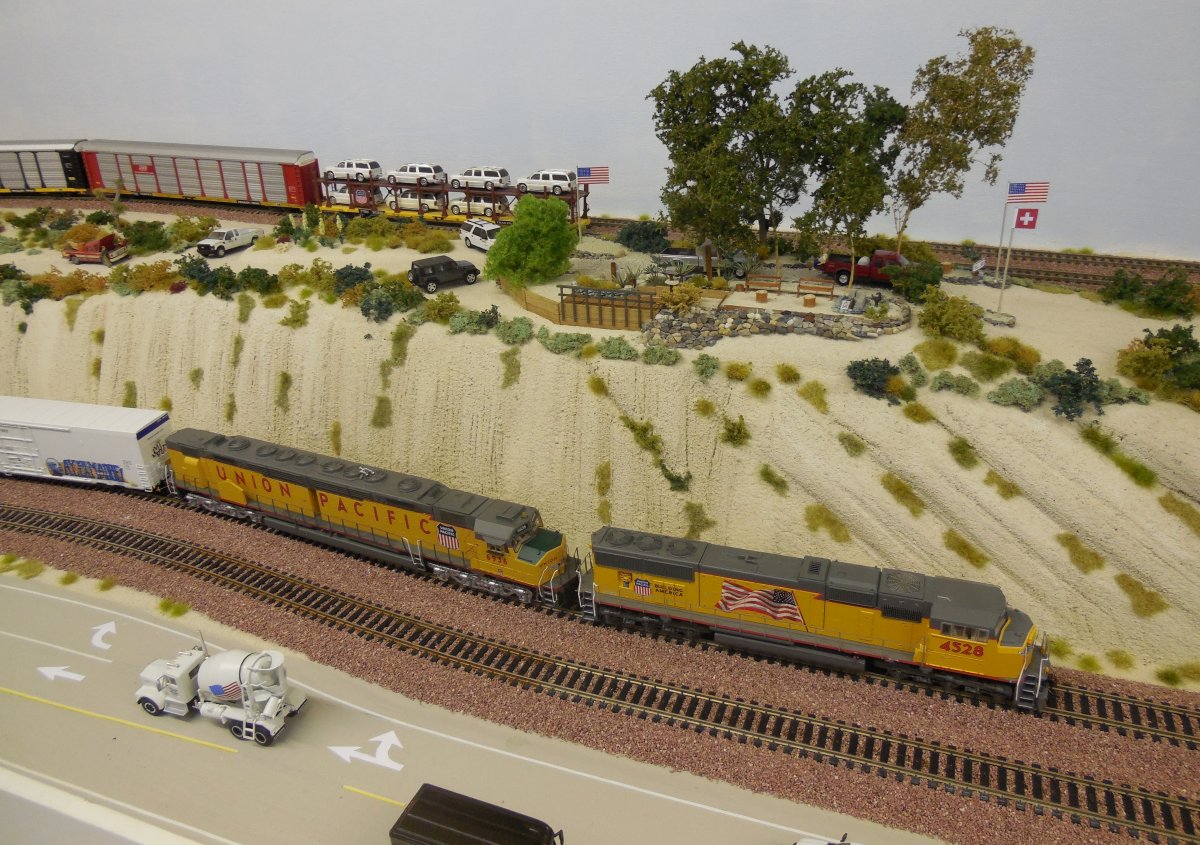

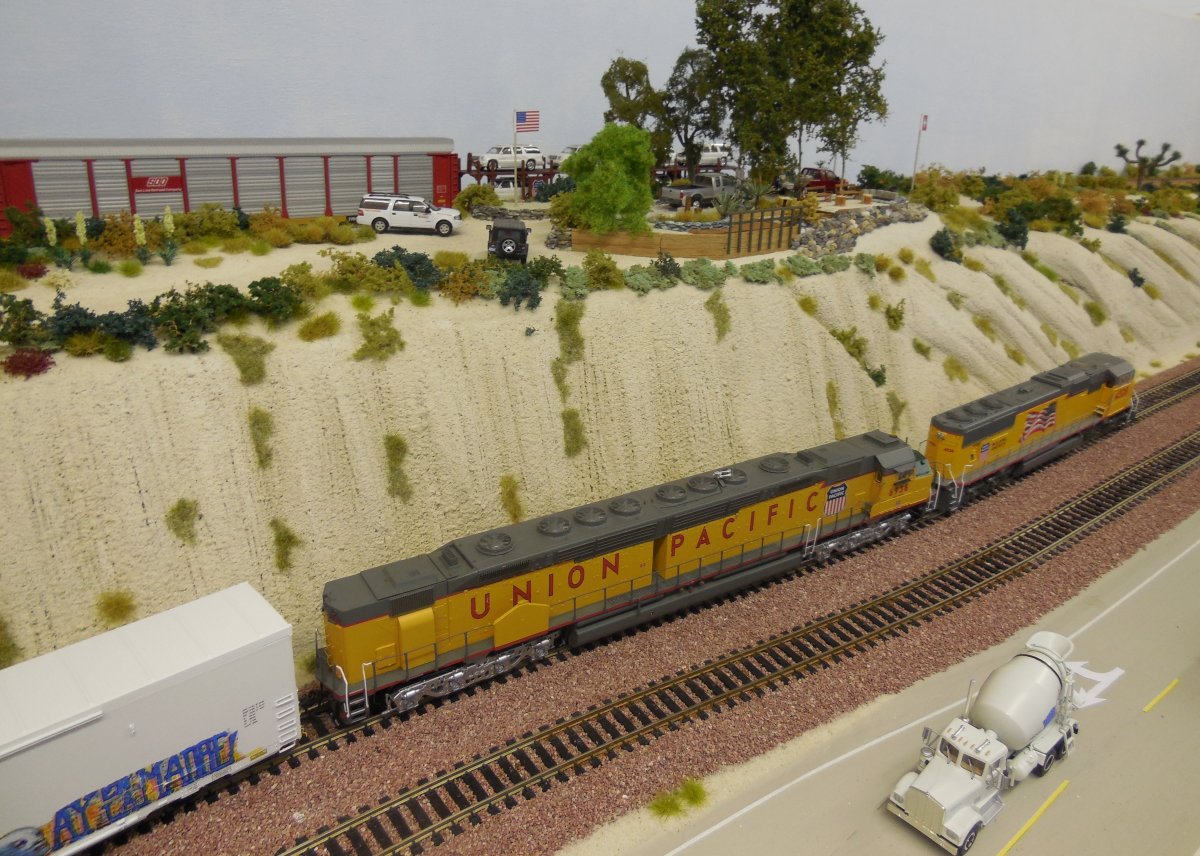

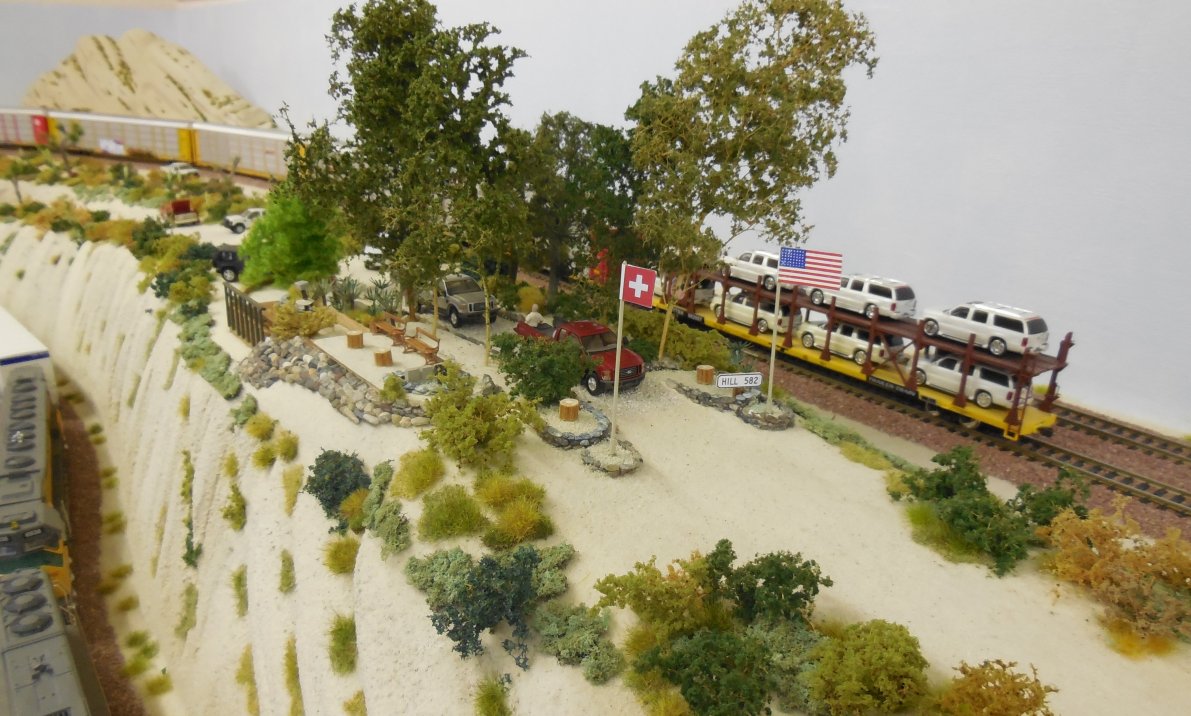

2217	2218

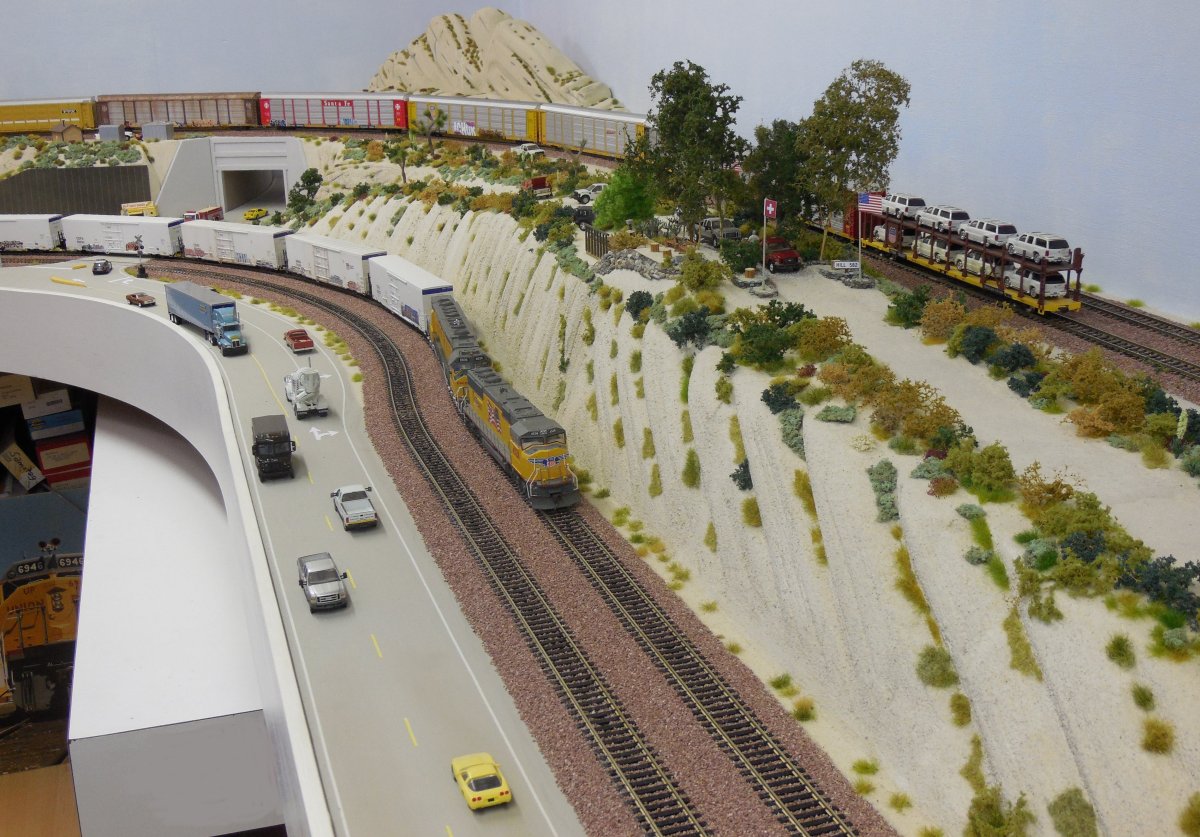

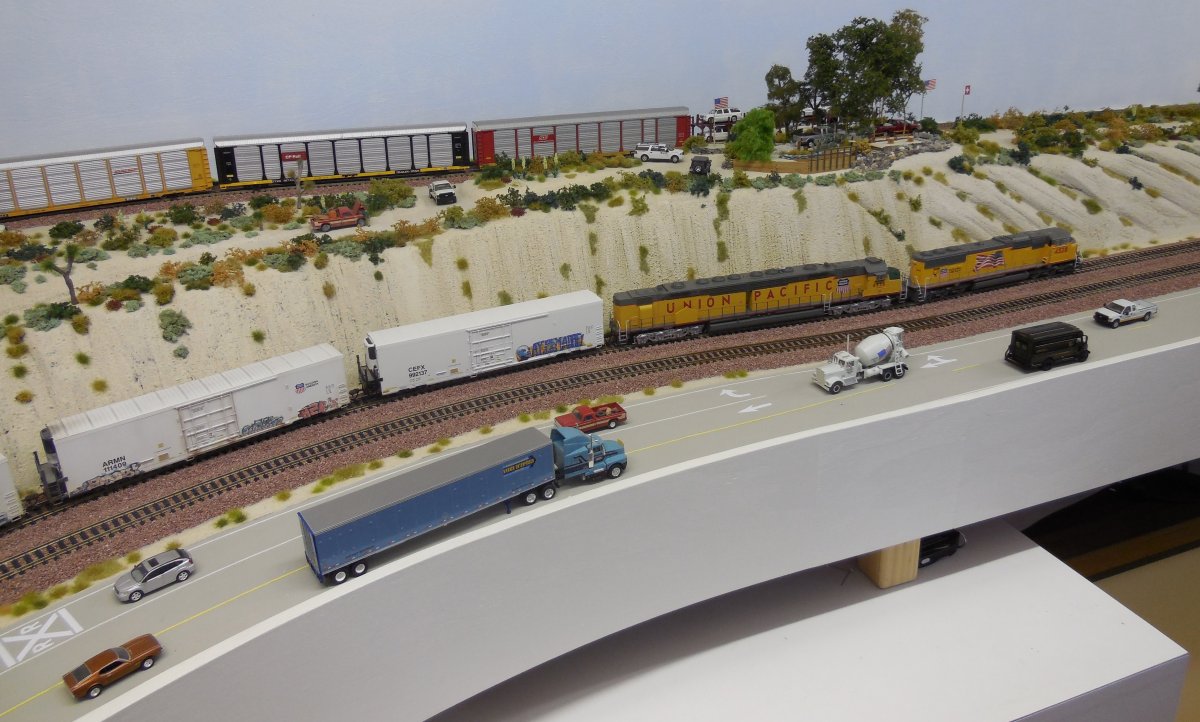

2219	2220
2221	2222

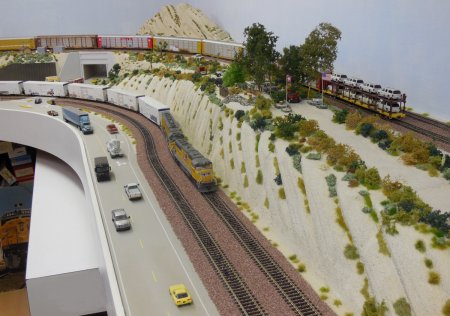

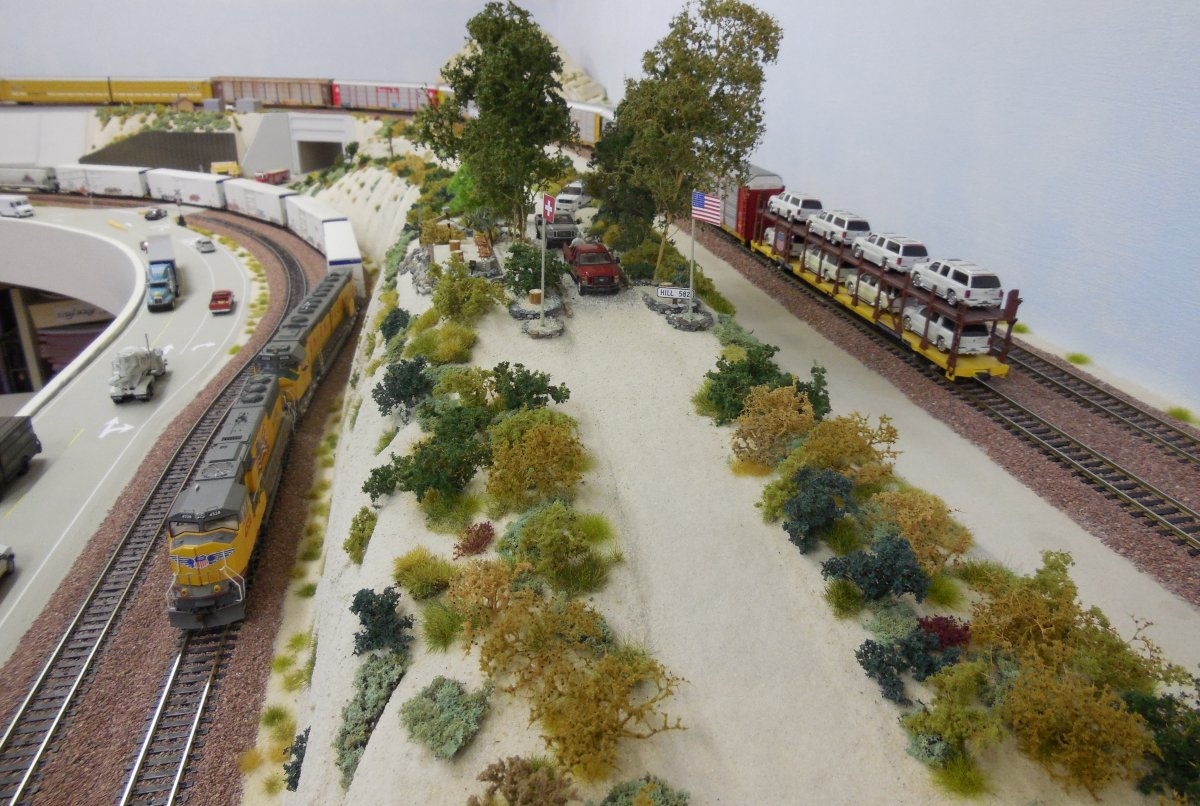

2223	2224

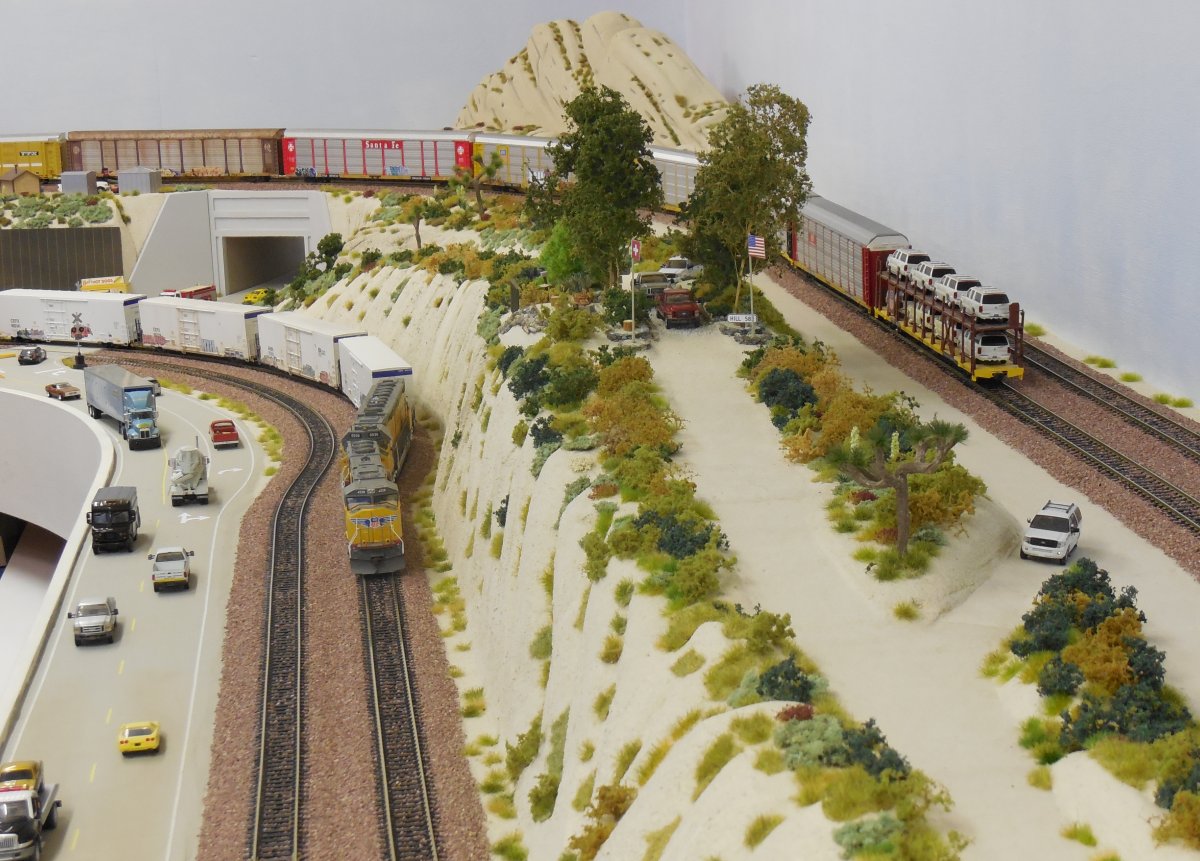

2225	2226

The Mormon Rocks were created out of Styrofoam as per this photo which I took some years ago.
The real thing - famous Mormon Rocks near Highway 138
HO Scale version of the Mormon Rocks on my layout (length 80 cm = 31,5", height 23 cm = 9")

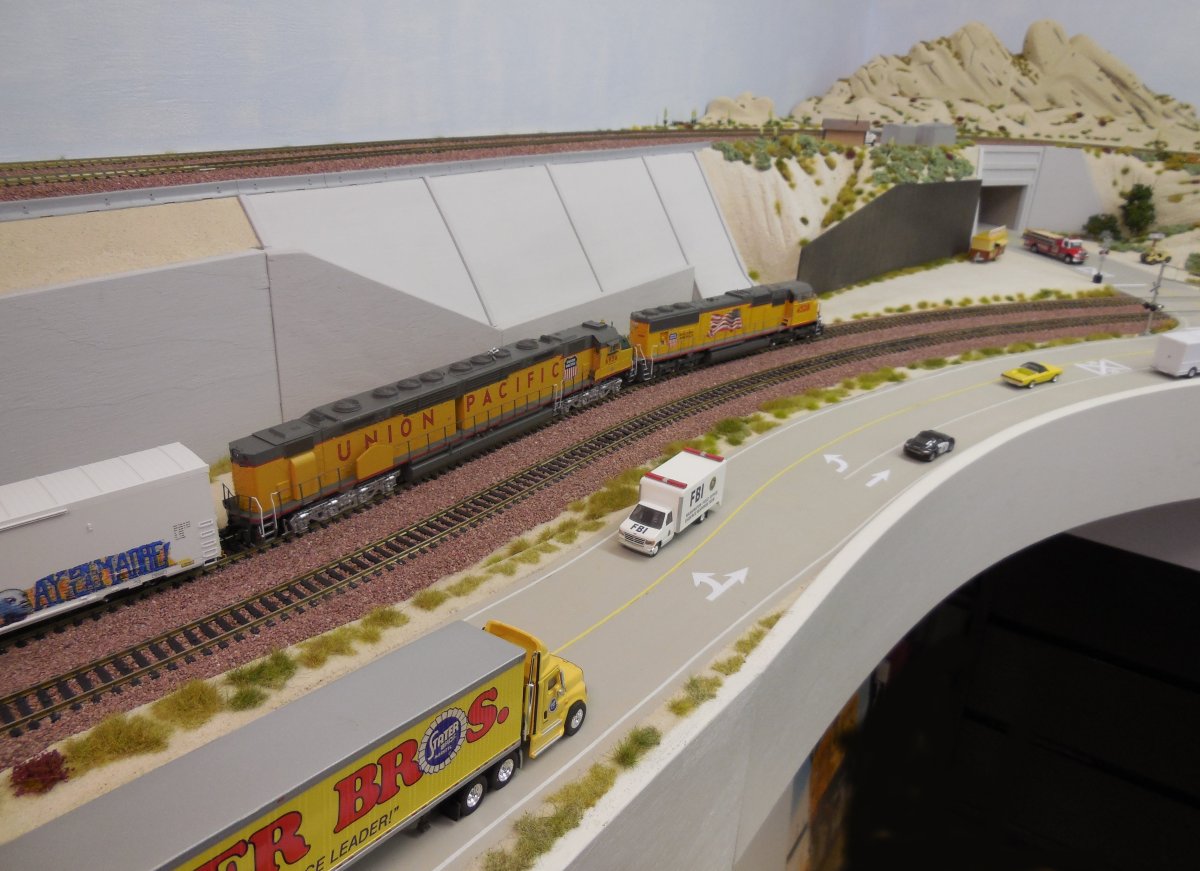

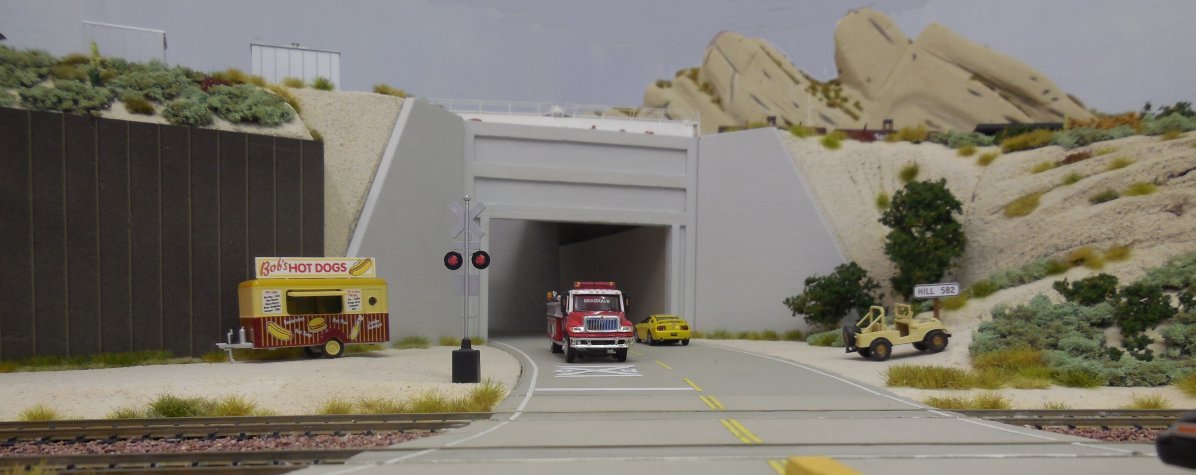

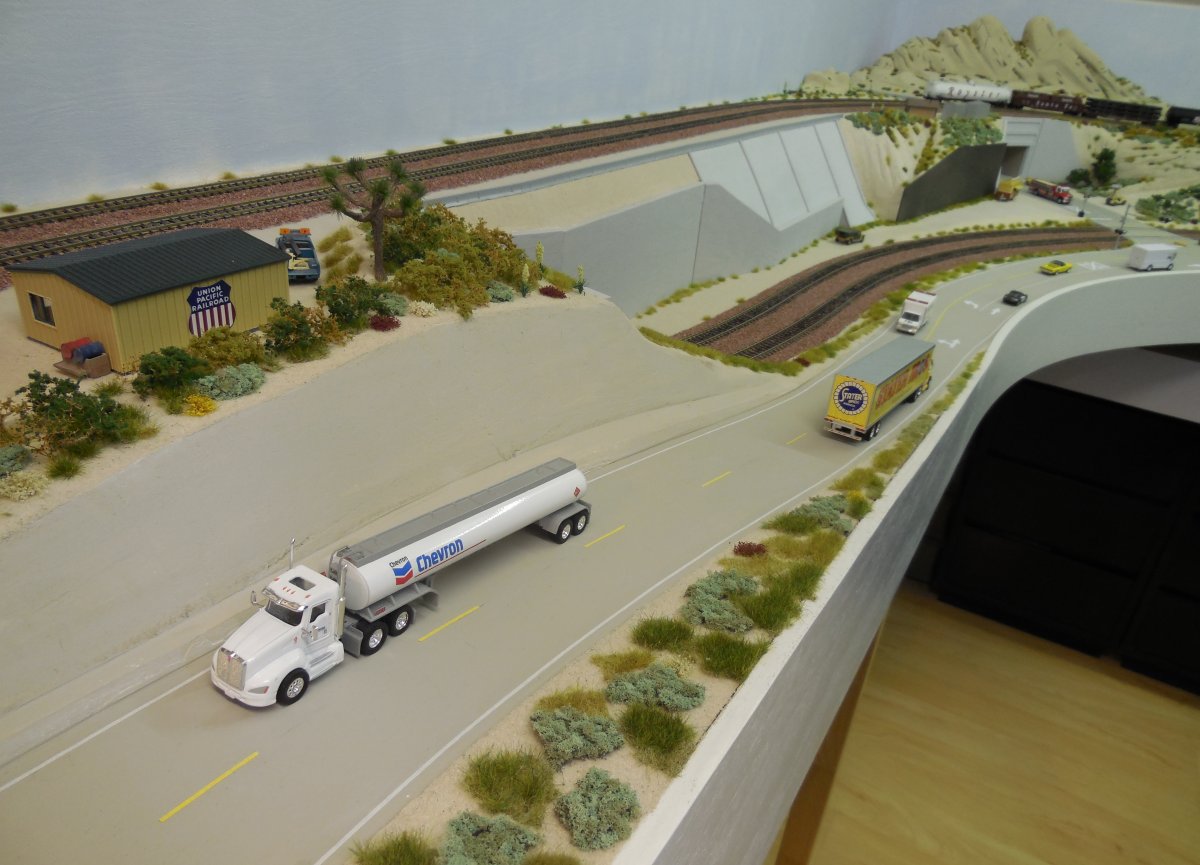

Highway 138 is going under the upper main tracks and along the Mormon Rocks - 2233

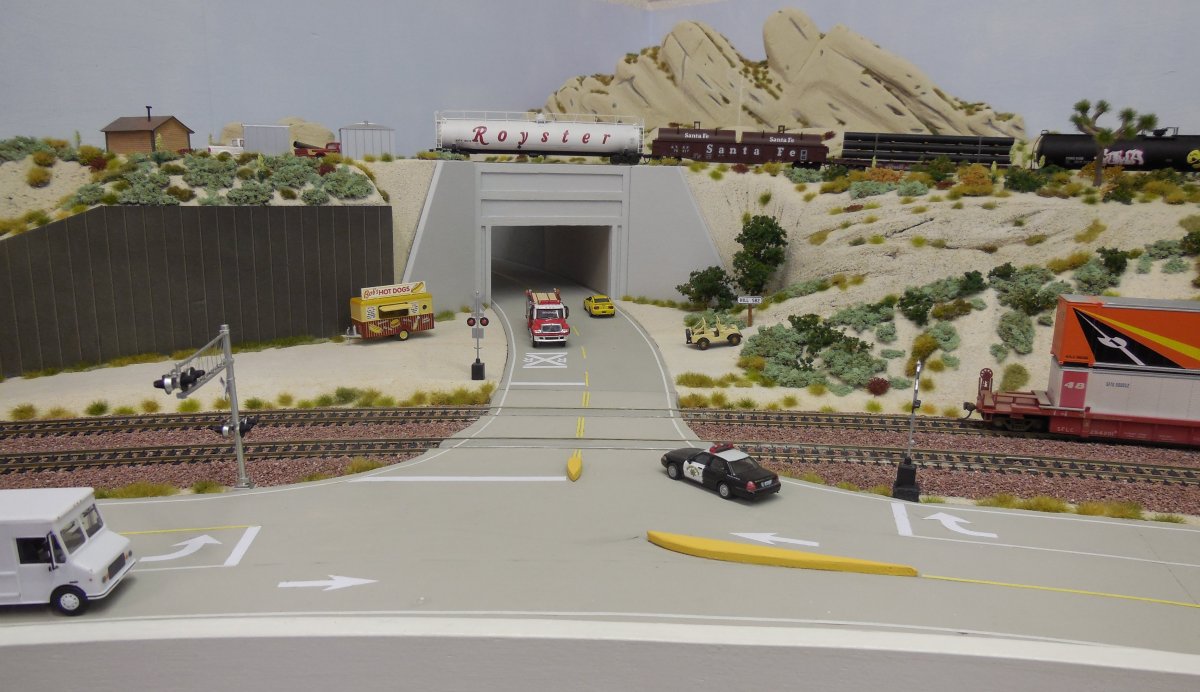

from Highway 138 we can visit the Mormon Rocks. In addition, there is a dirt road going to Sullivan's curve - 2234

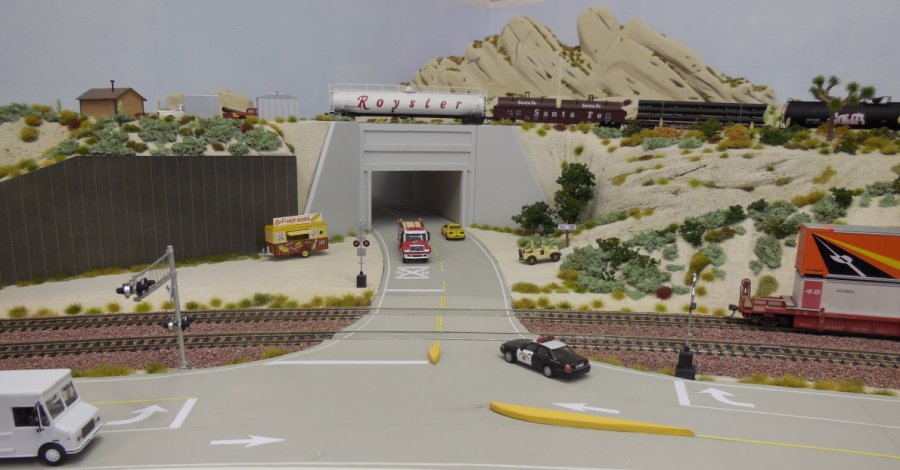

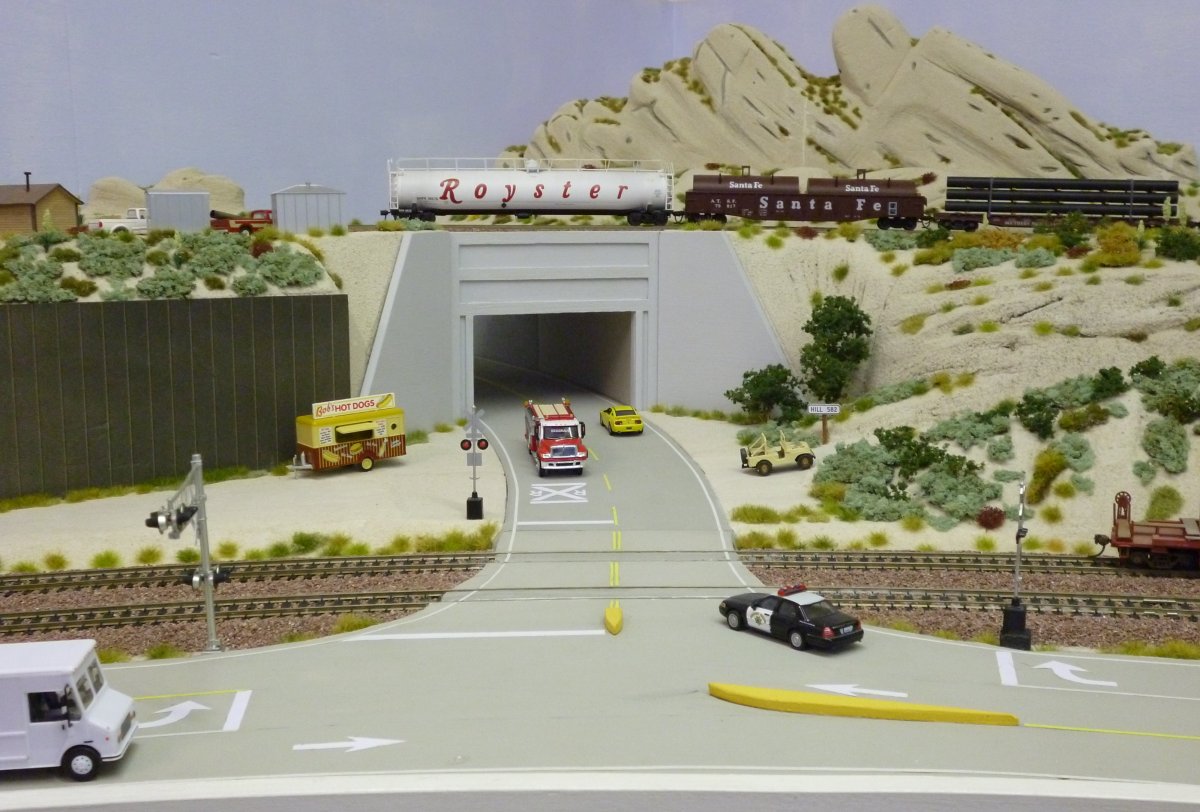

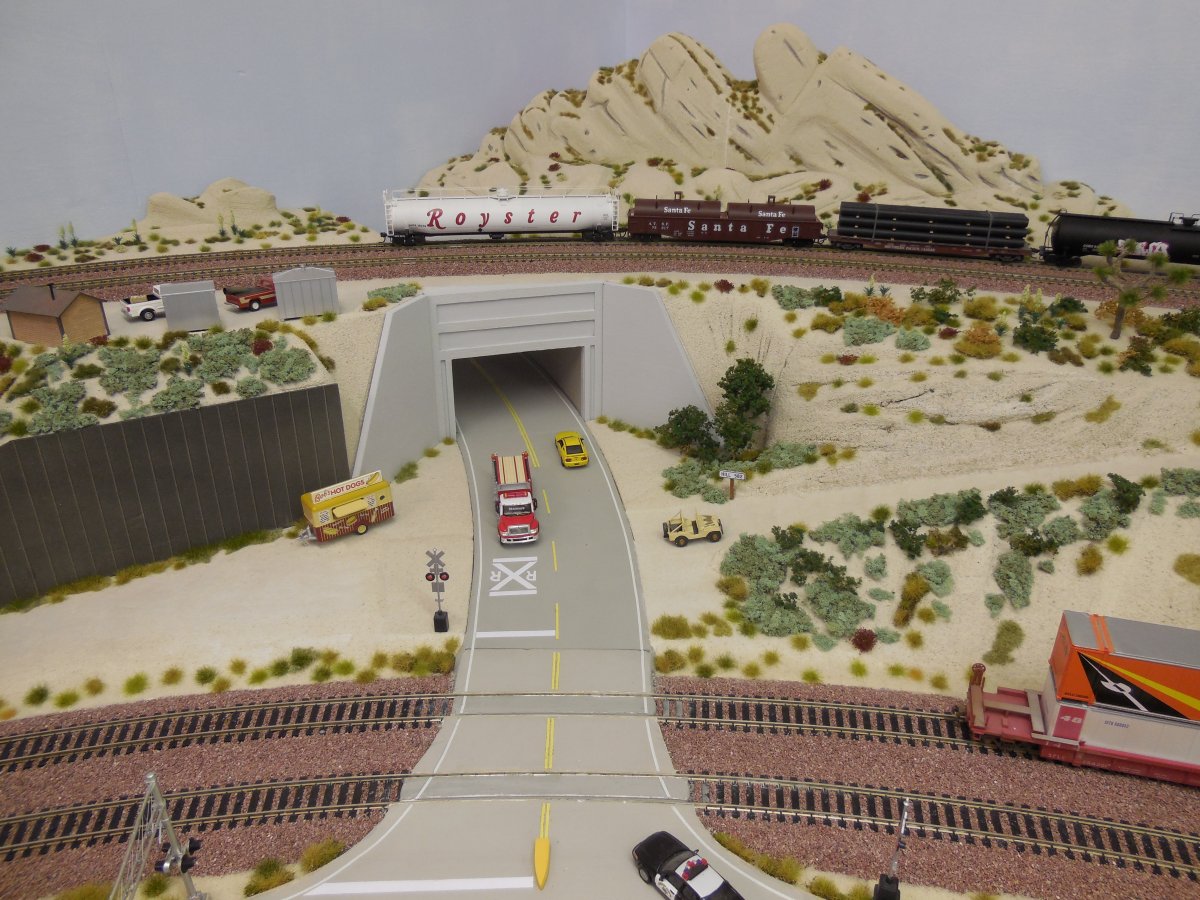

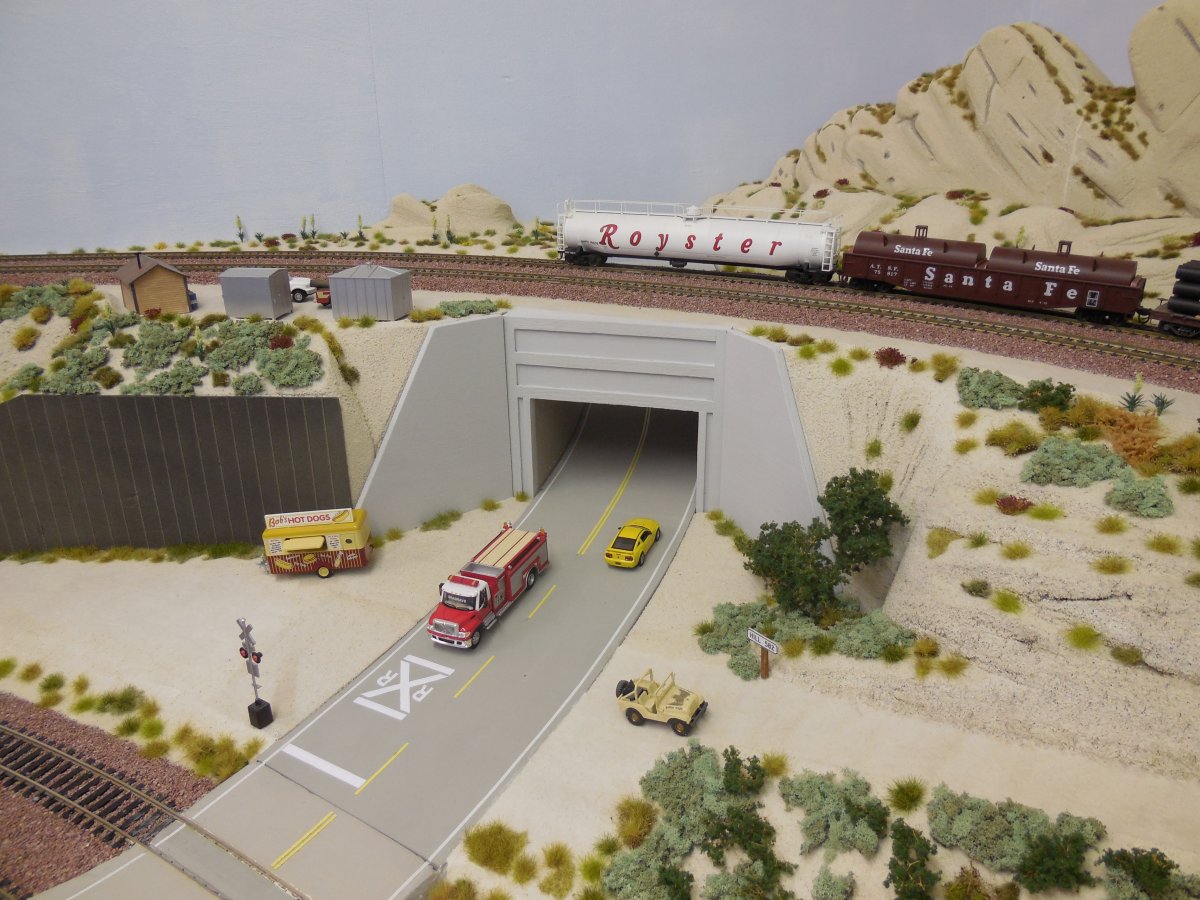

Highway 138 is going under the upper tracks - 2235	2236

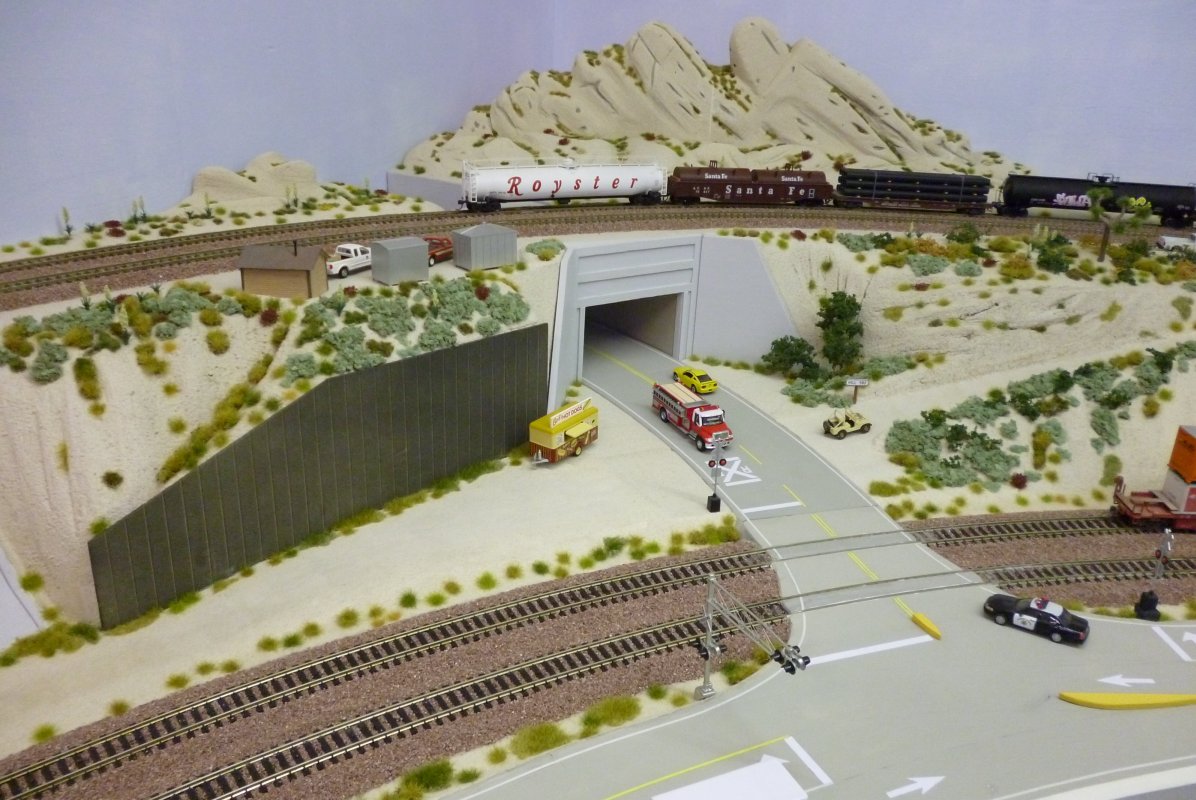

2237	2238

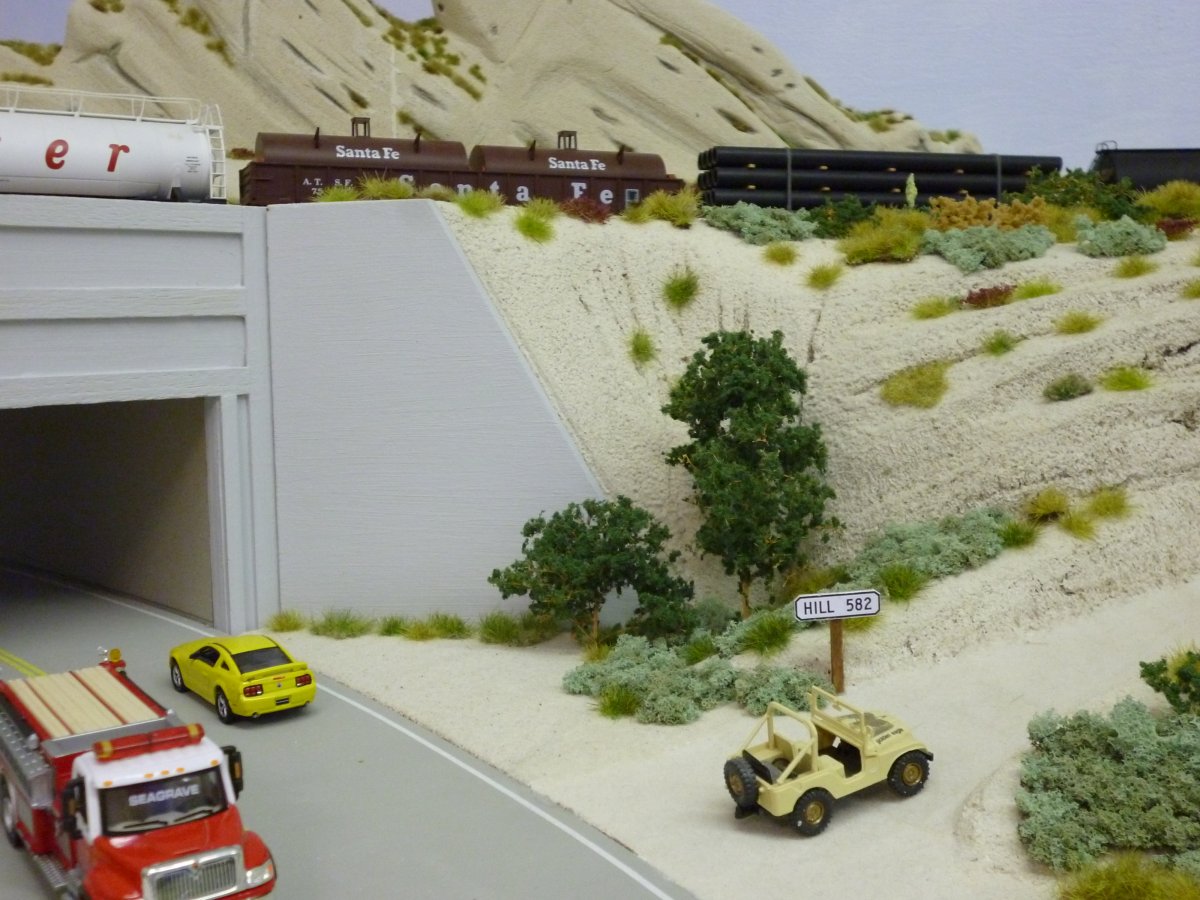

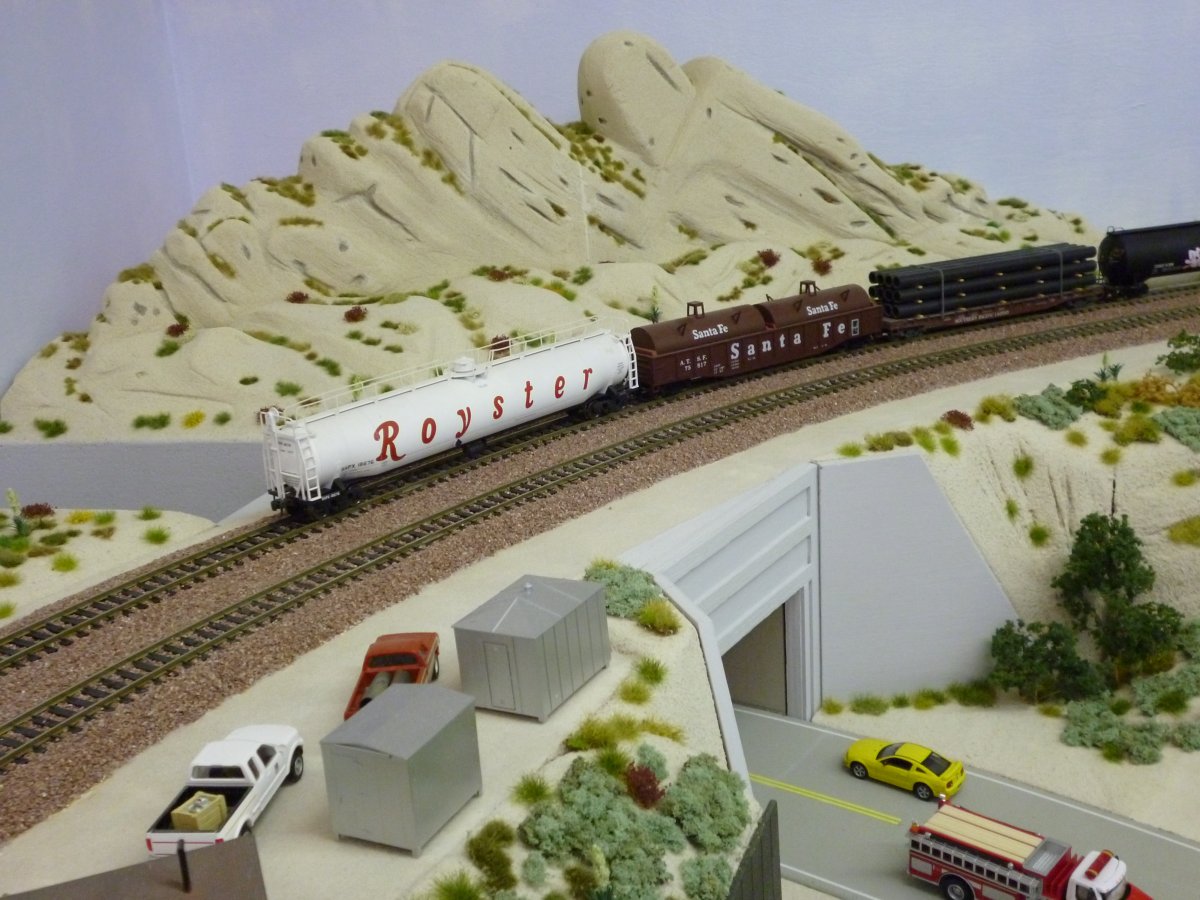

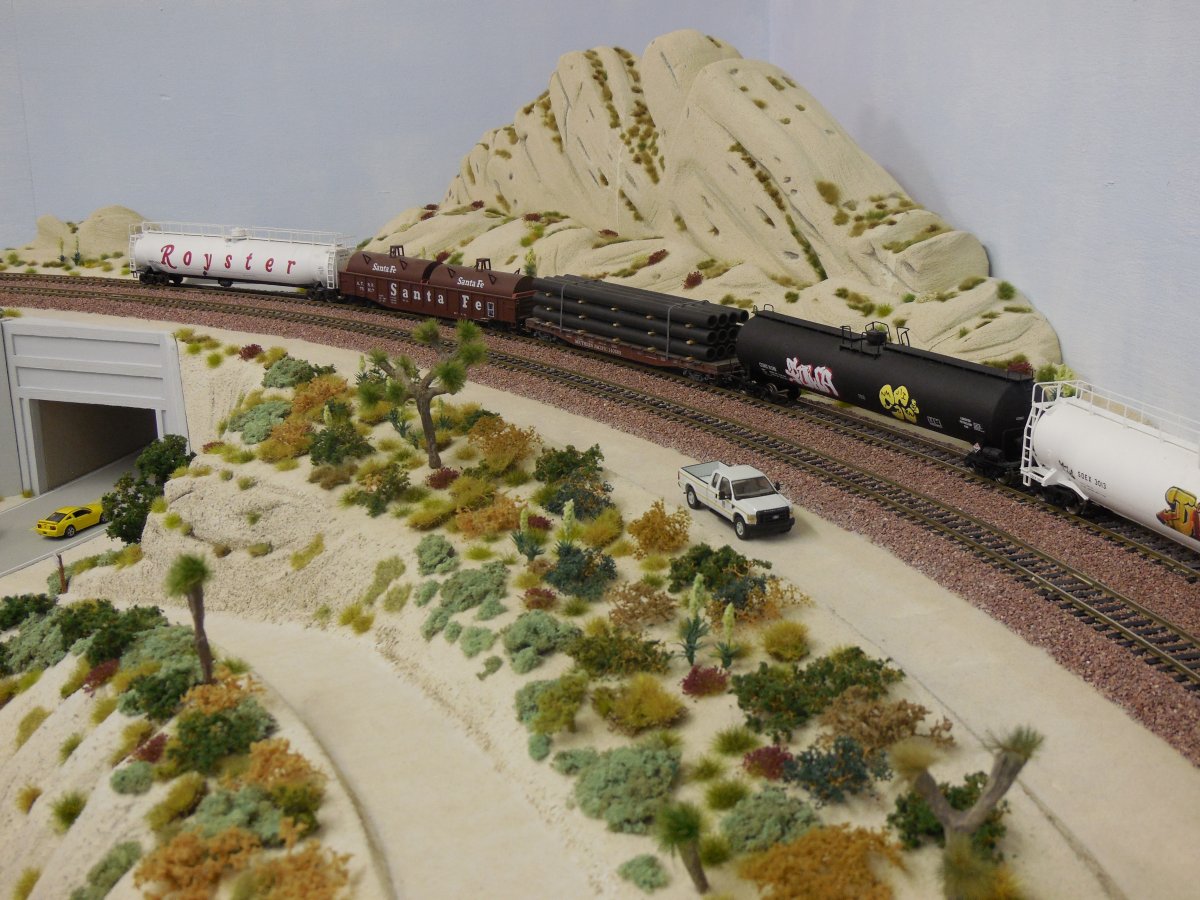

on my layout, there is an access road to Hill 582 - 2239	2240

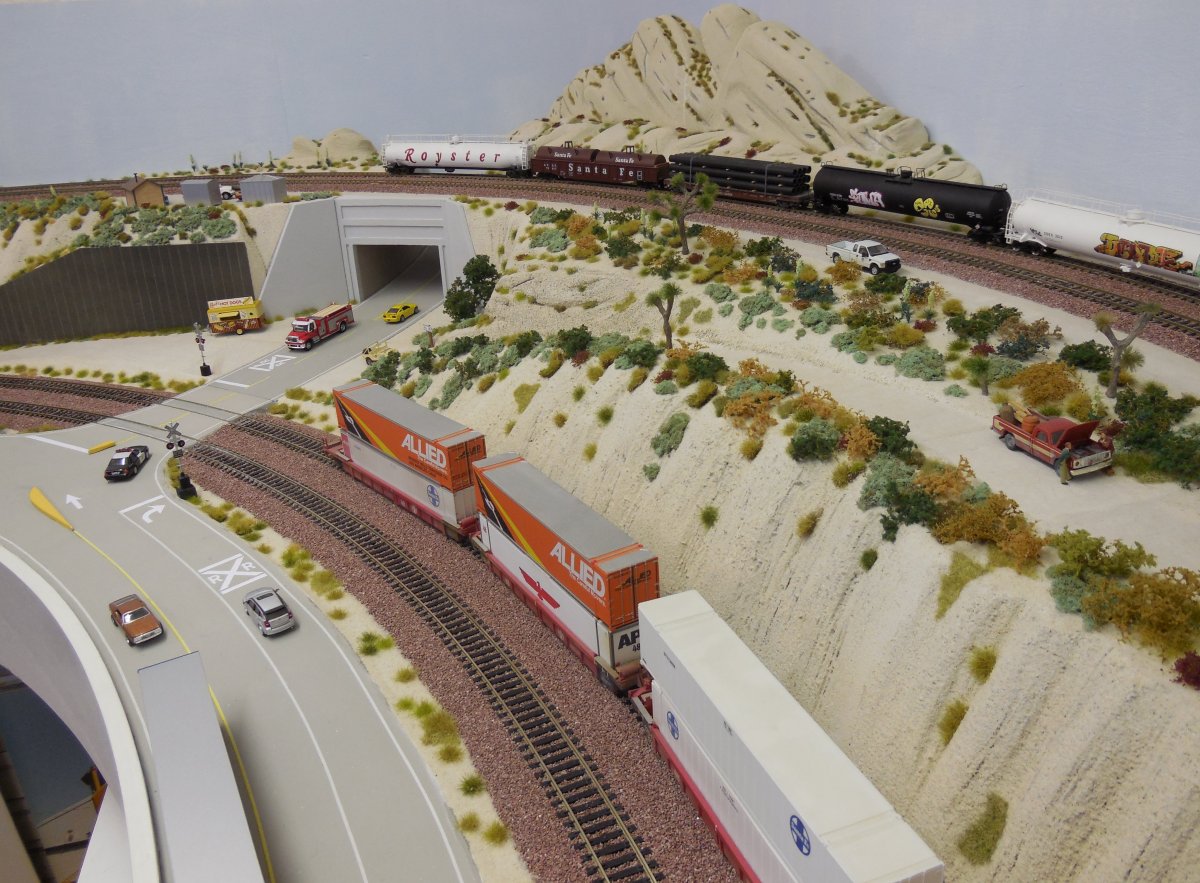

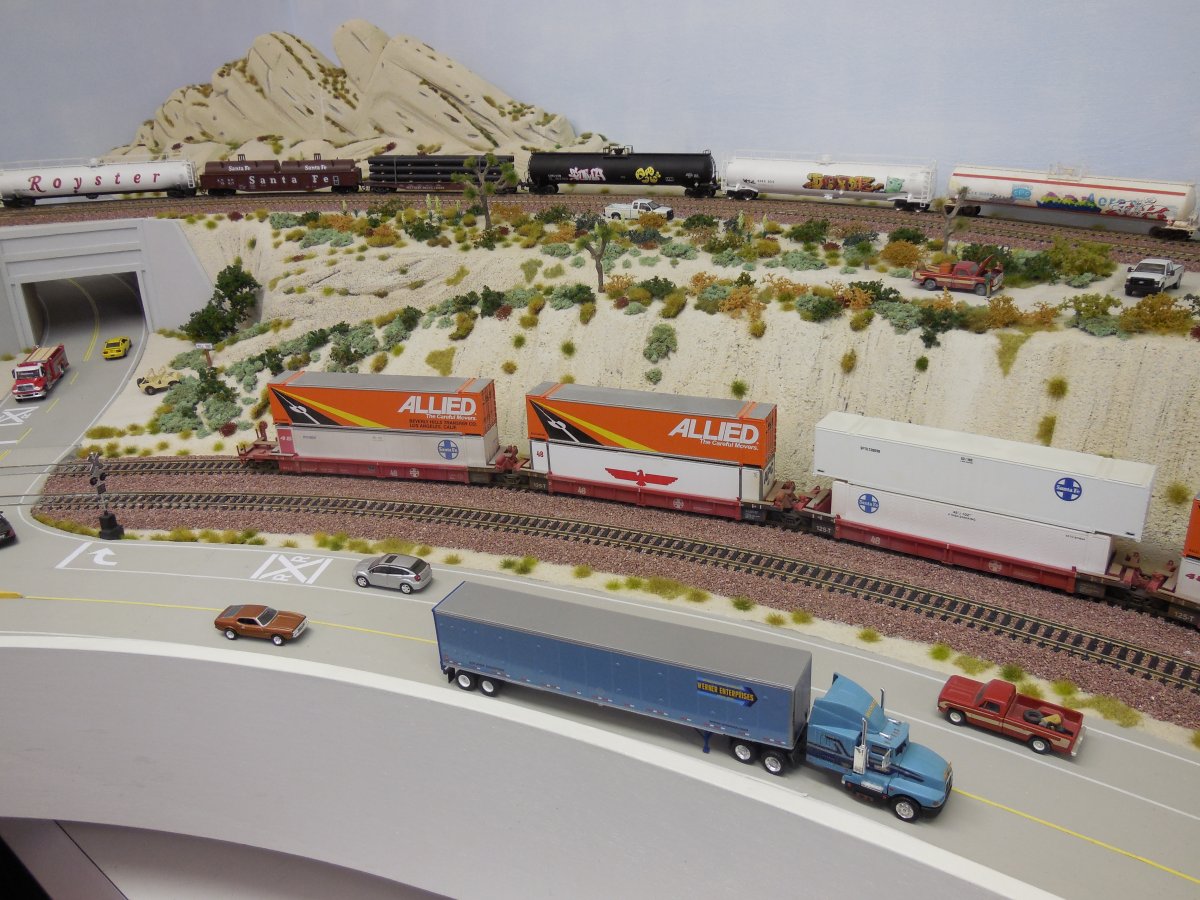

2241	2242

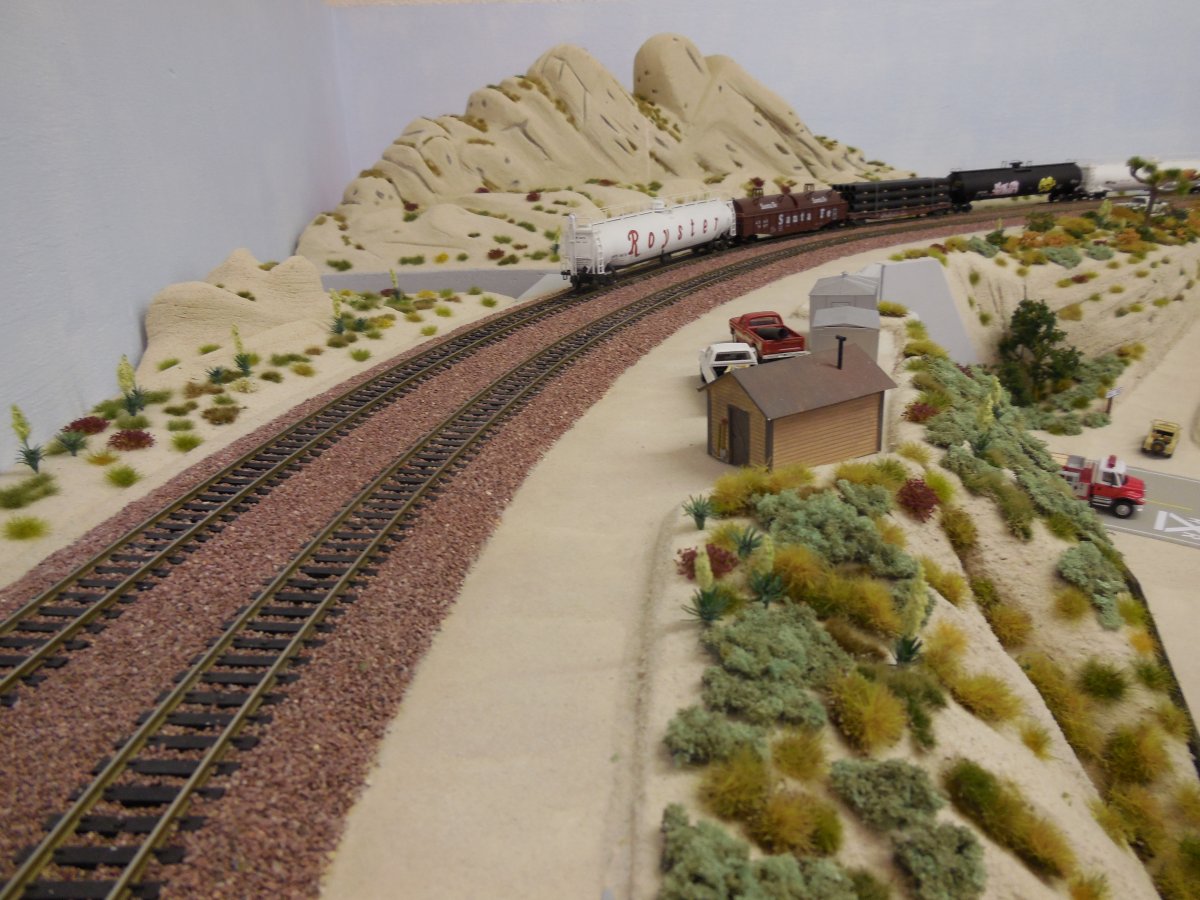

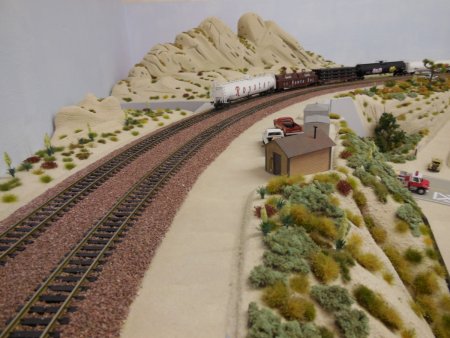

there is a BNSF service road along the upper main line - 2243	2244

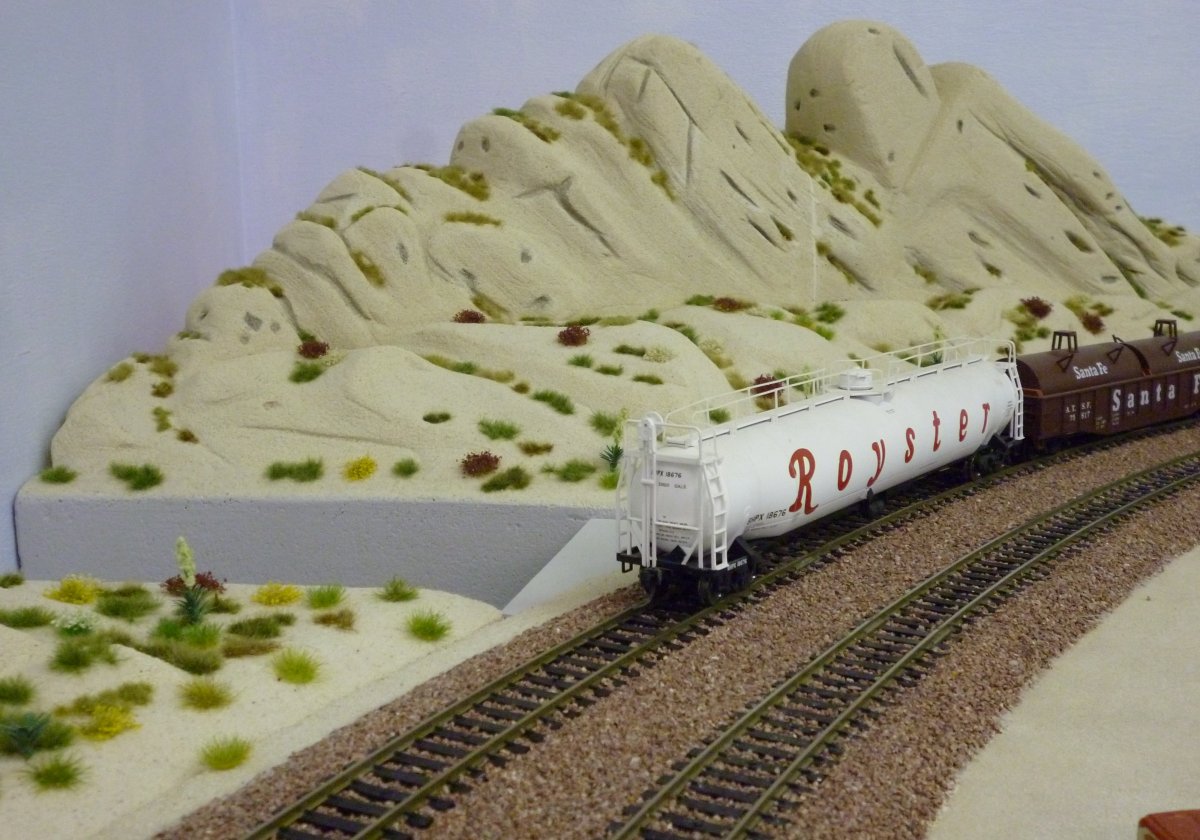

2245	2246

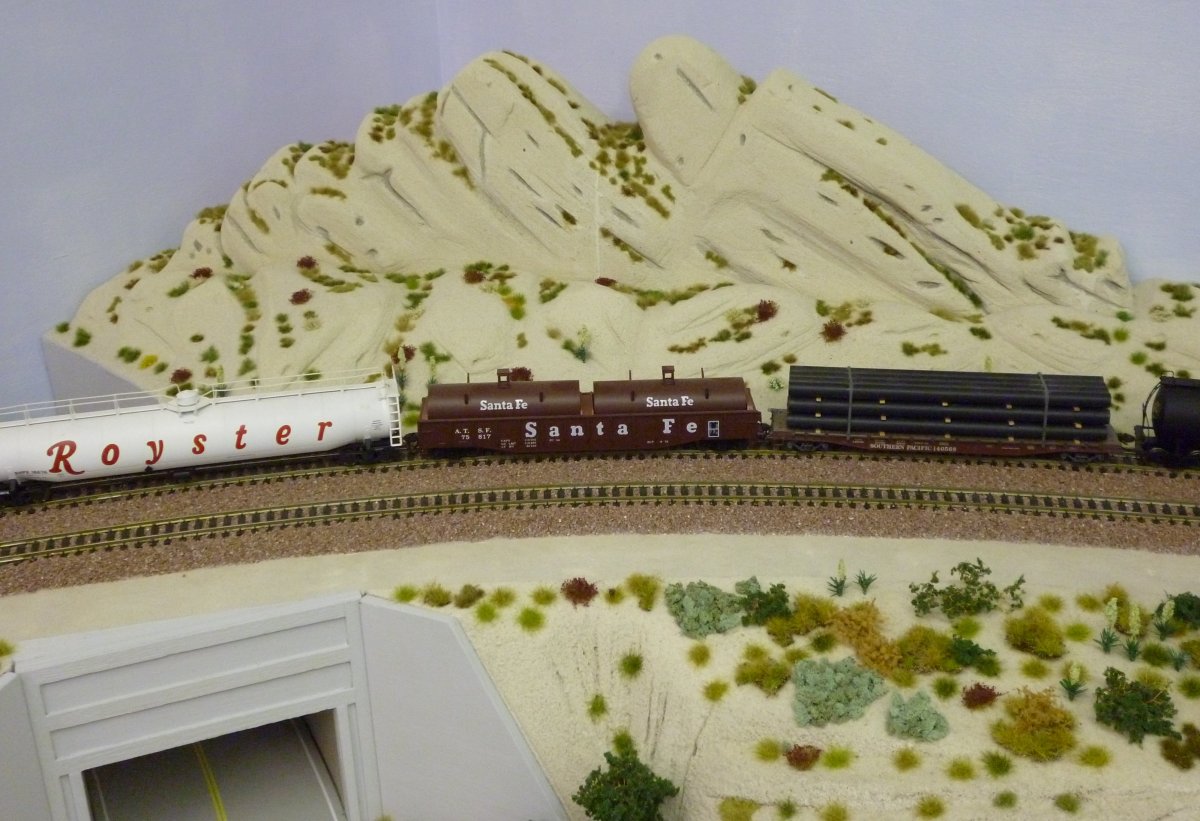

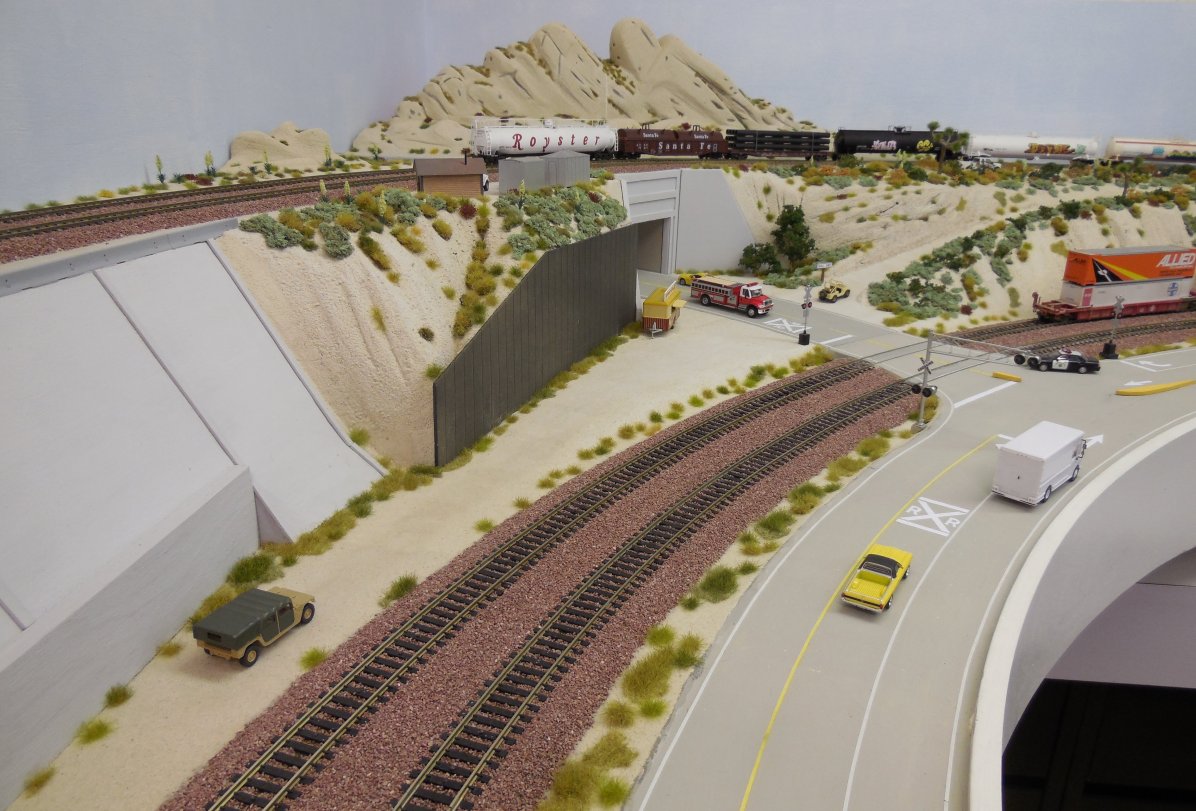

2247	2248

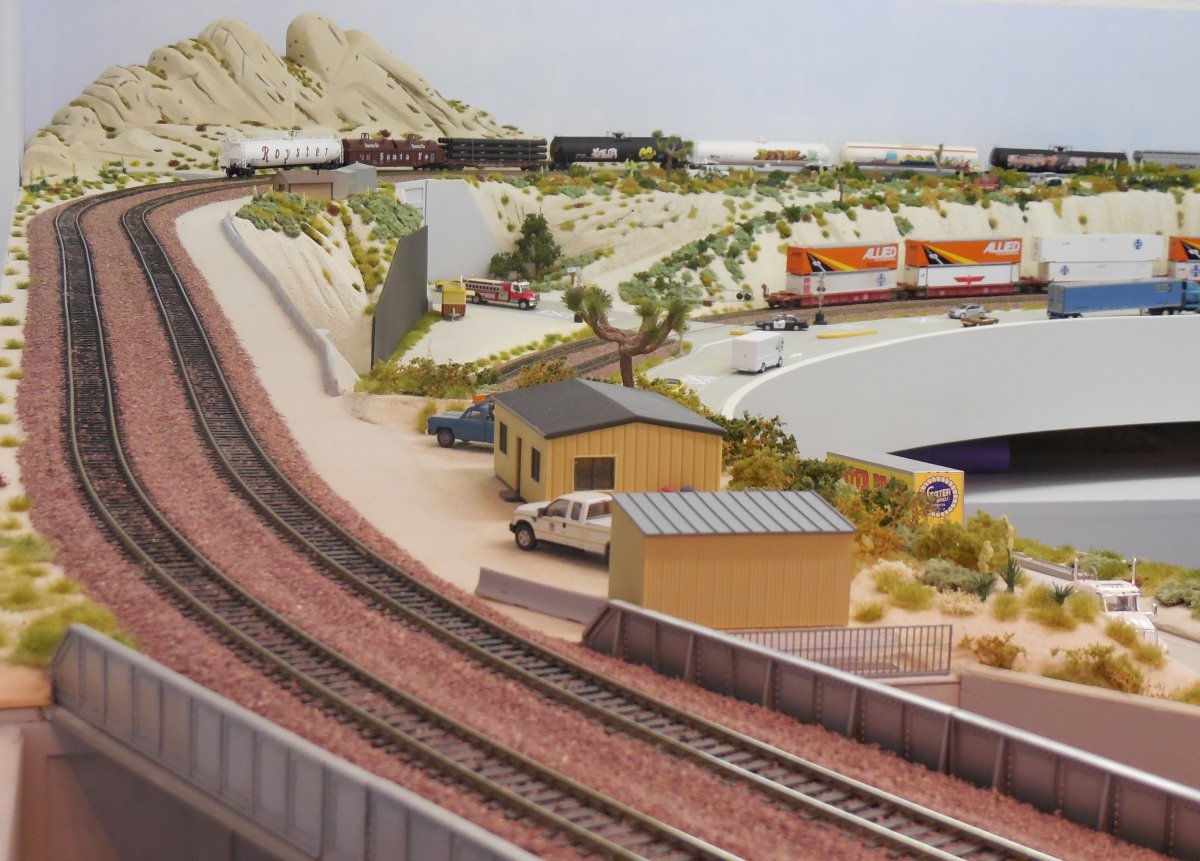

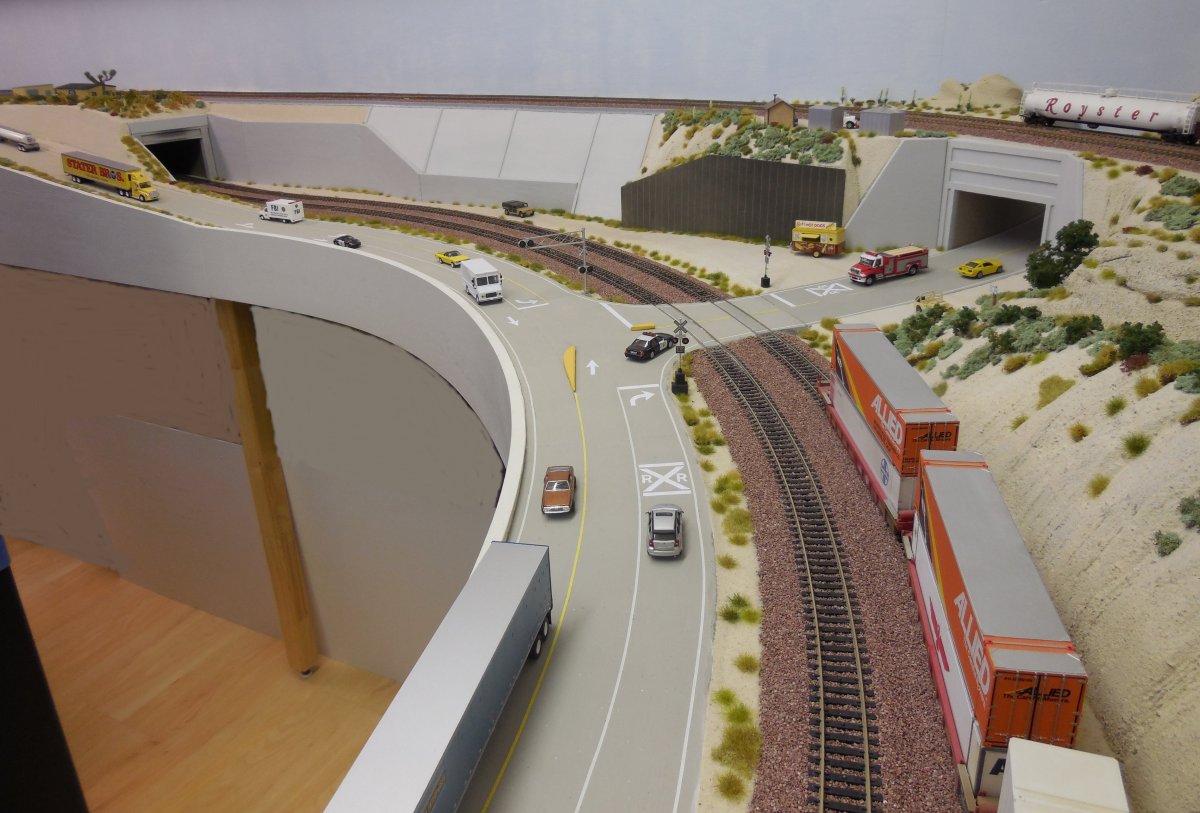

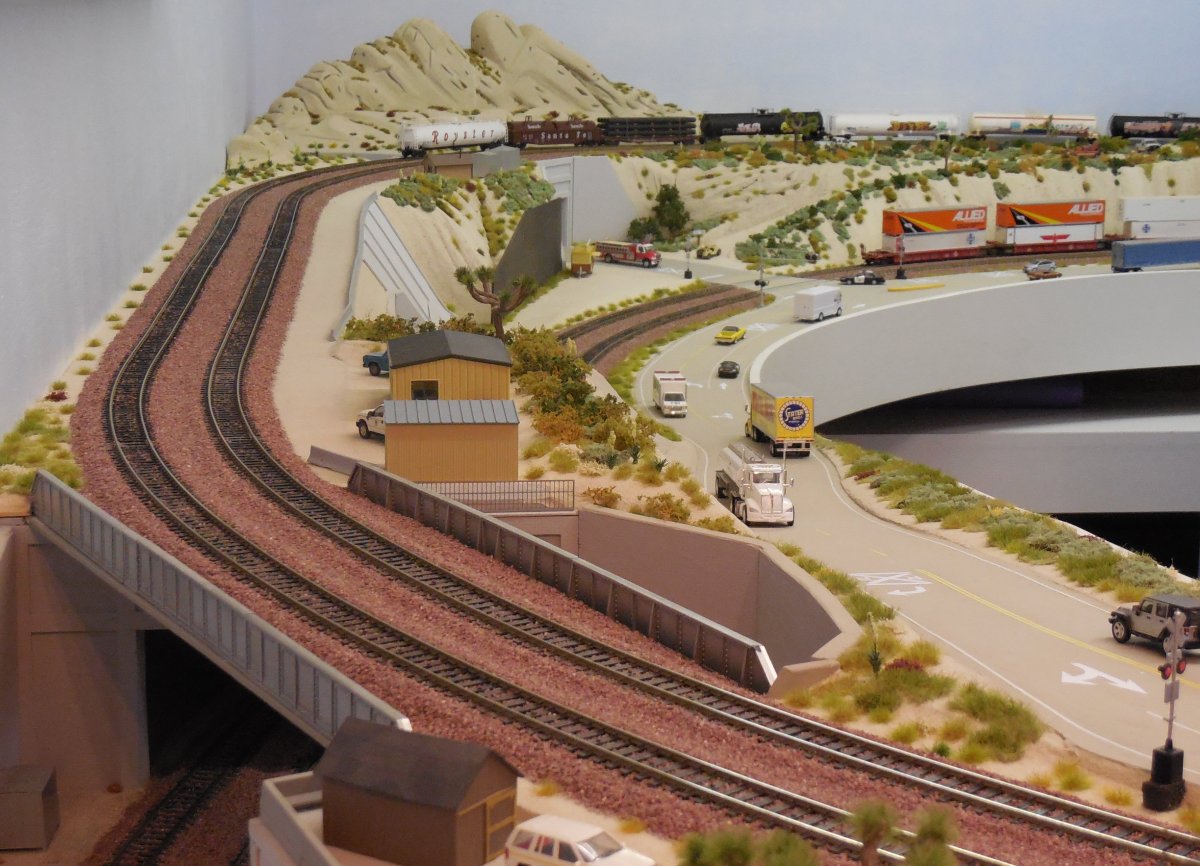

the flyover is in the foreground - 2249	here, the upper main is going over the lower main - 2250

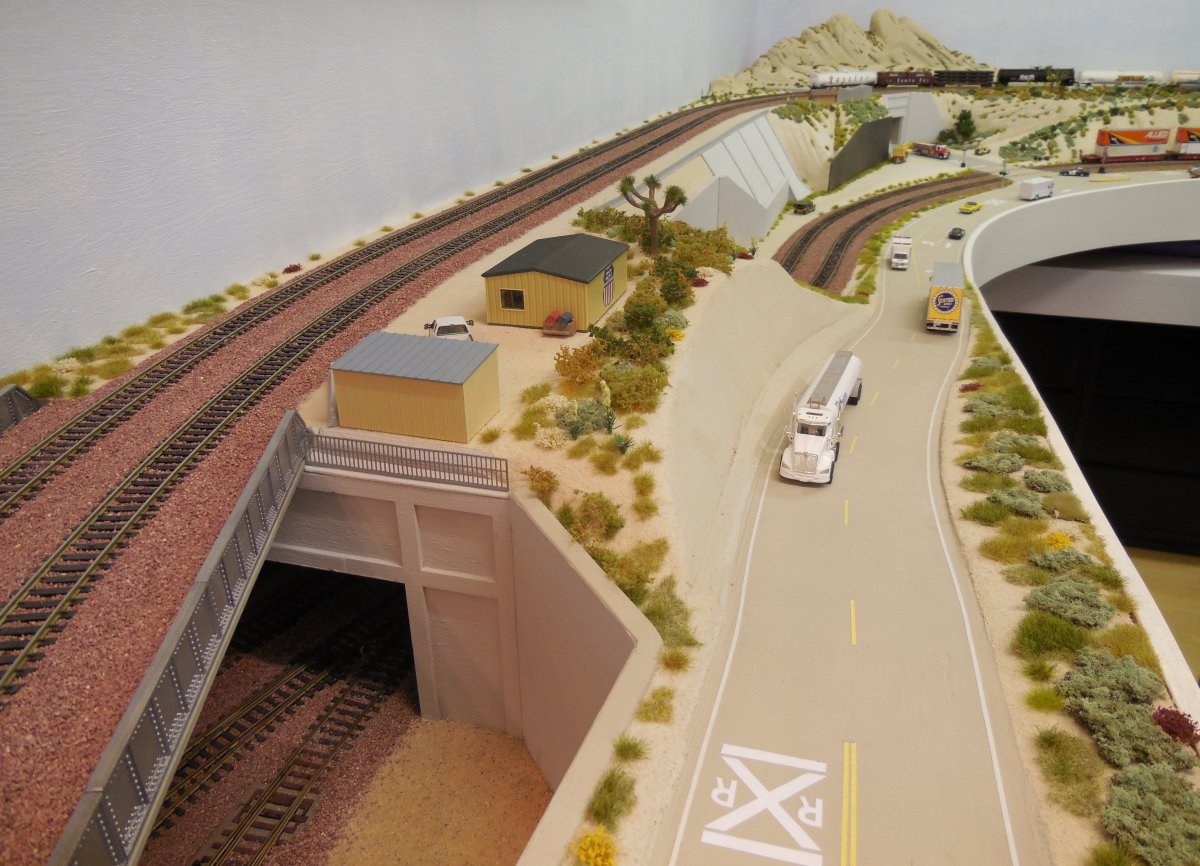

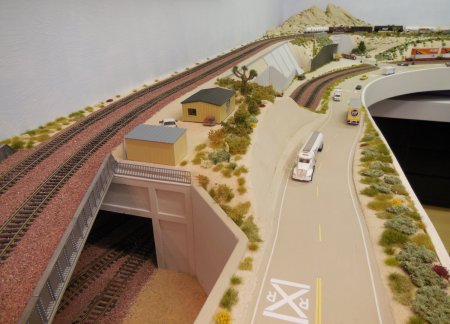

hight difference is 16 cm - 2251	2252

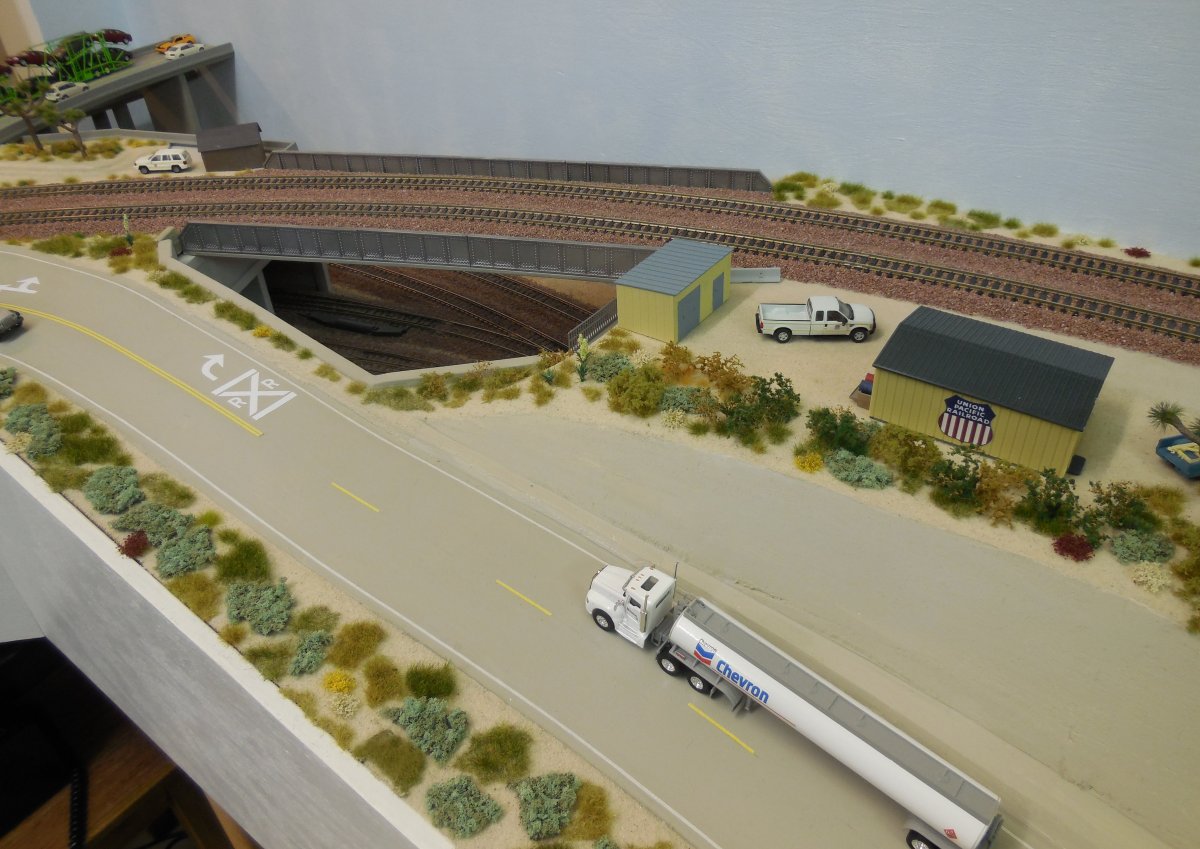

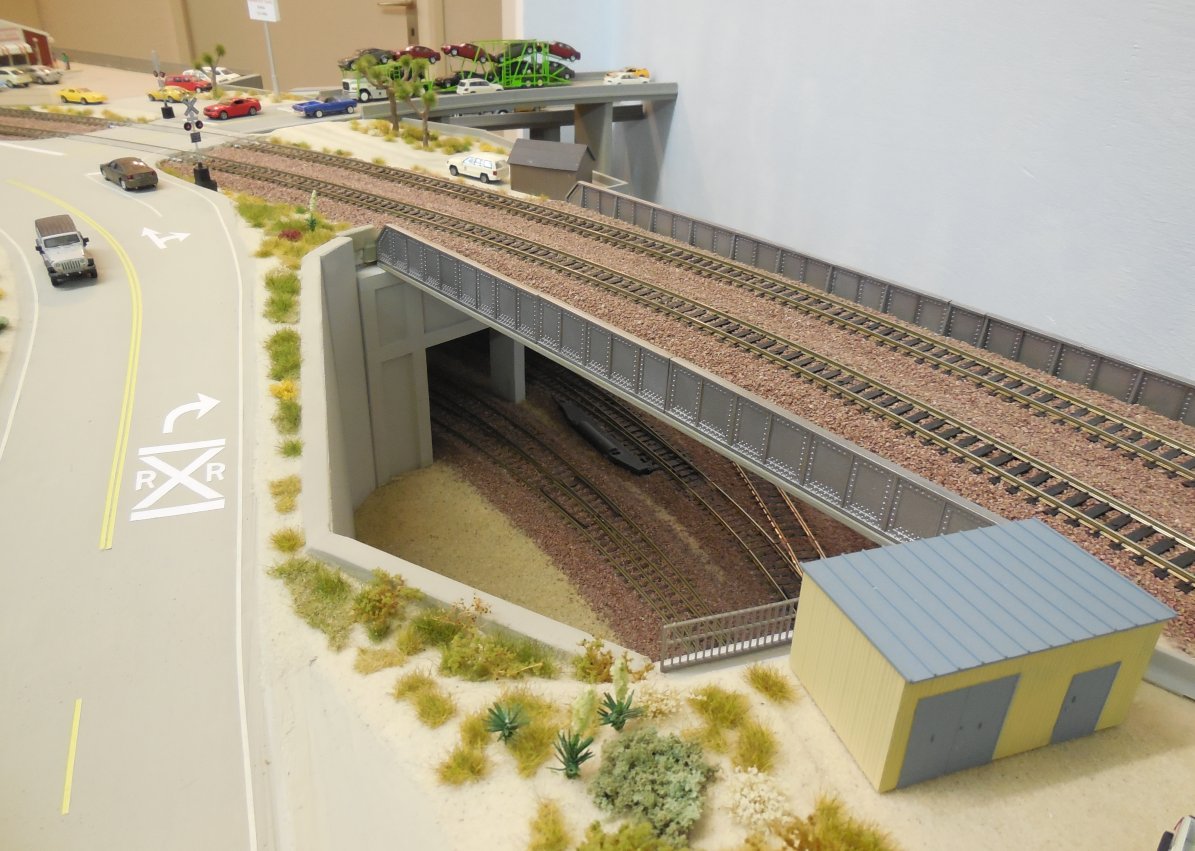

below the bridge is the entrance to the staging yard - 2253	2254

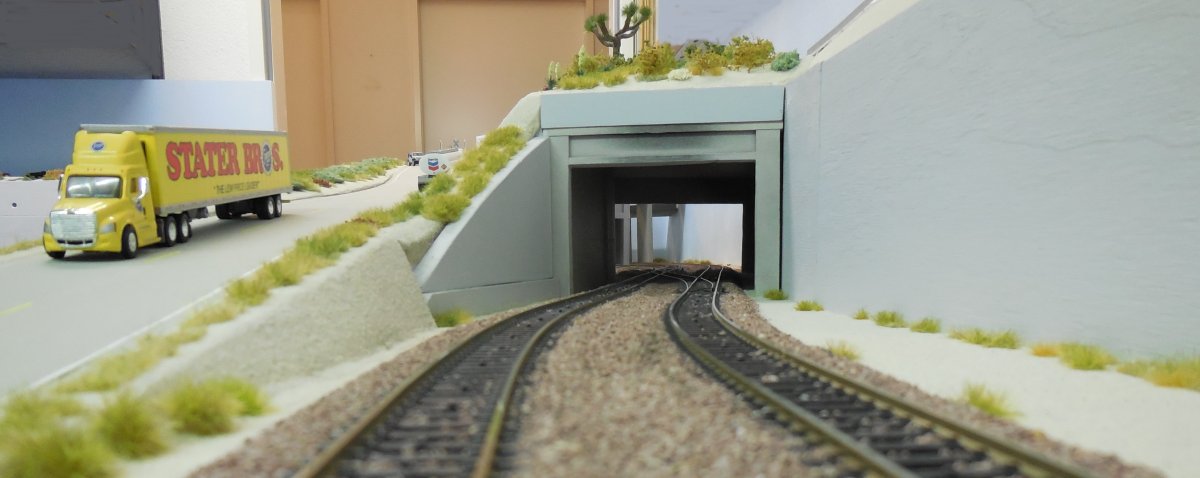

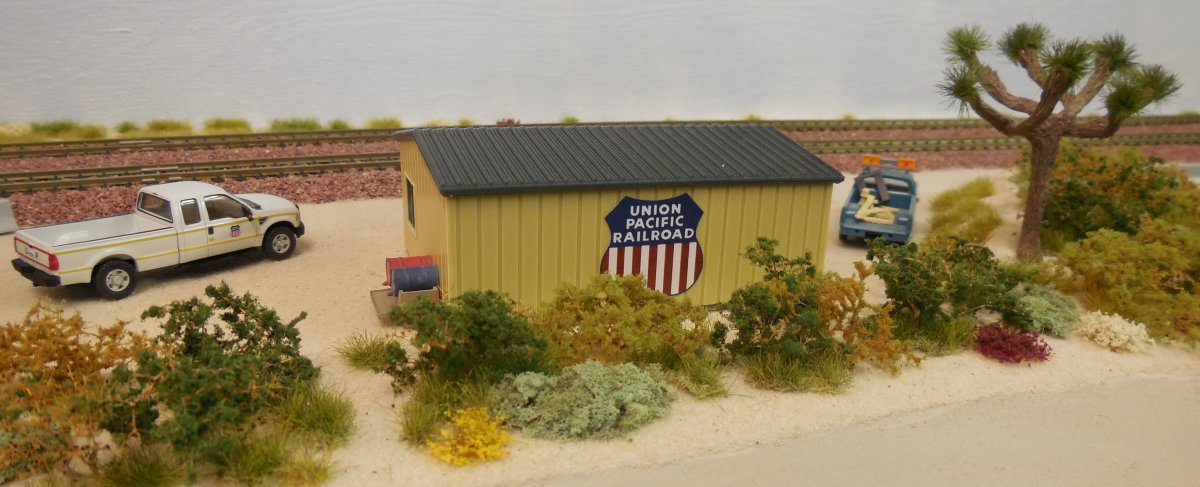

UP is having a MoW office here - 2255	looking thru the tunnel on ground level - 2256

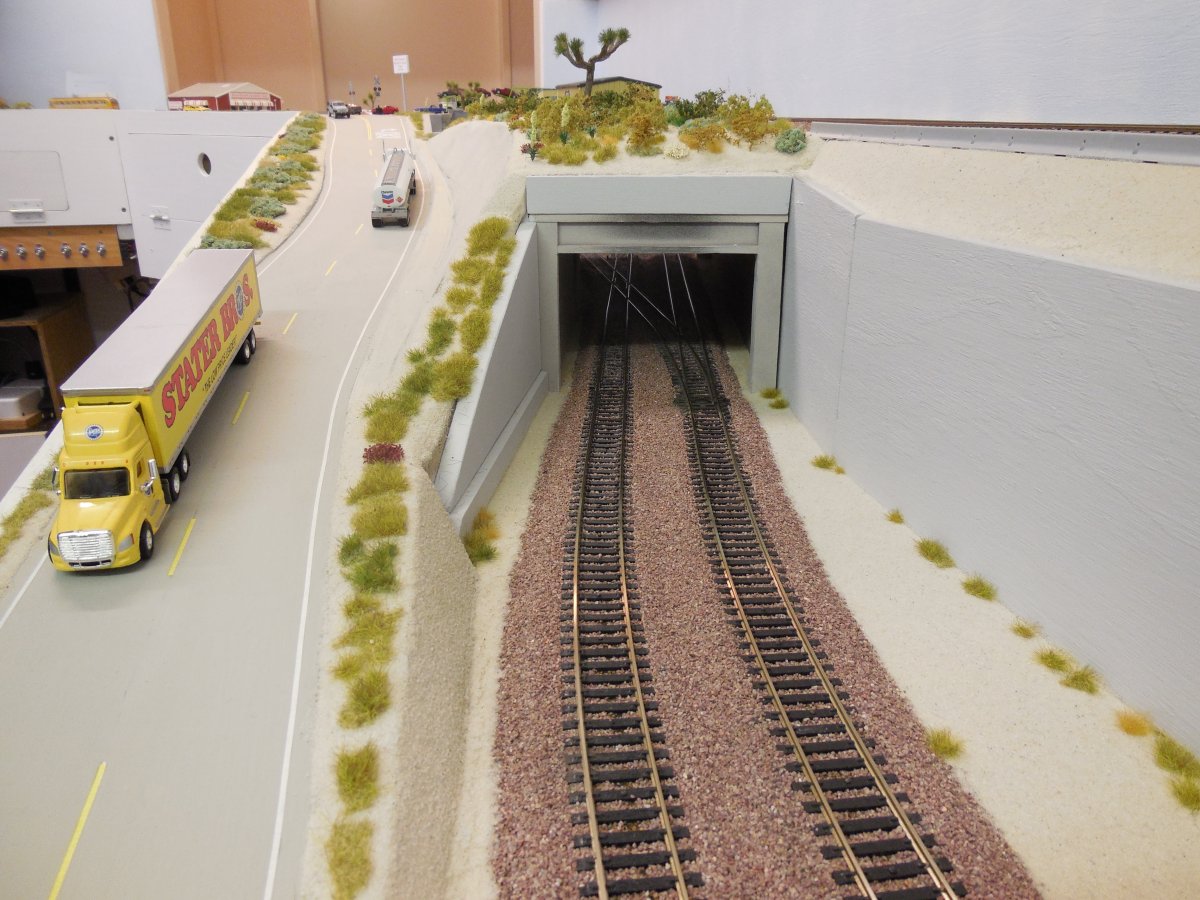

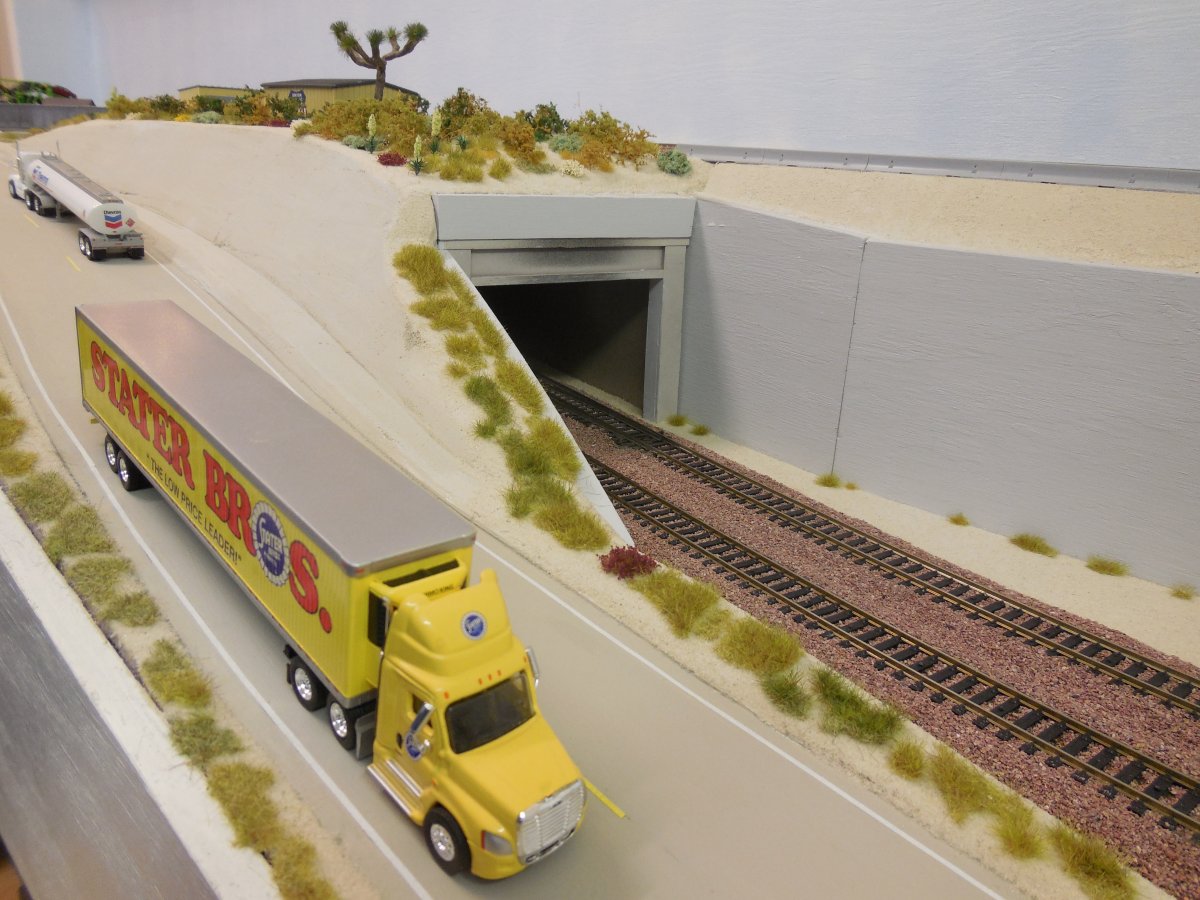

2257	2258
Above first shooting in December 2015. A second shootiong was made in January 2016 with different trains (see below)

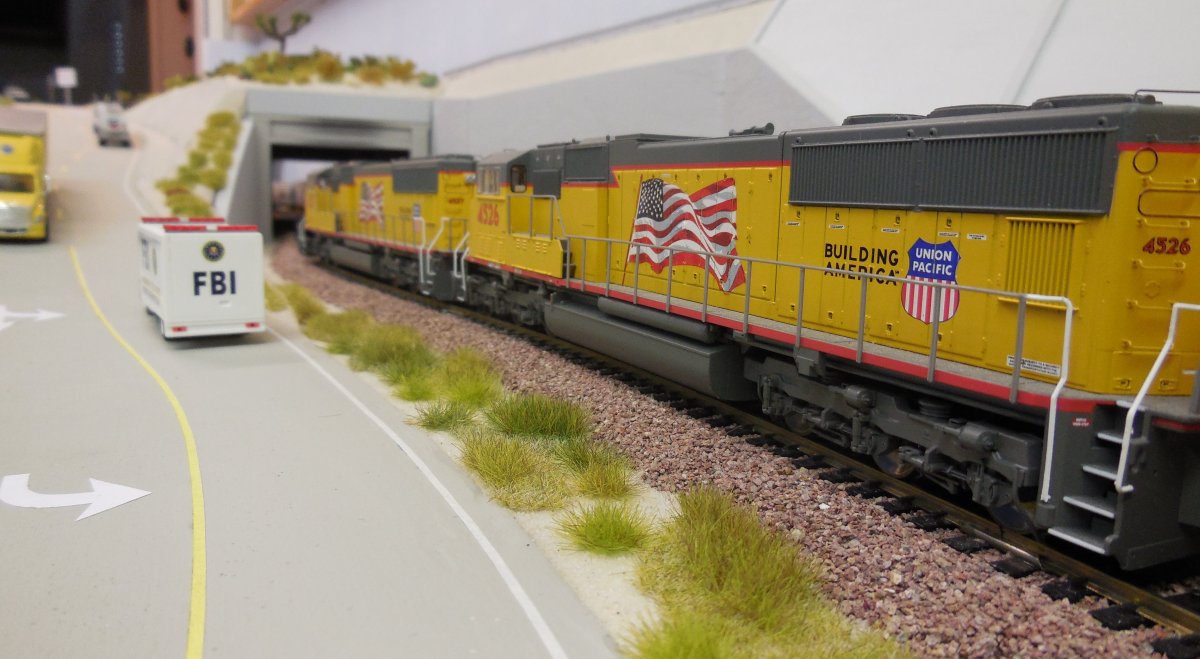

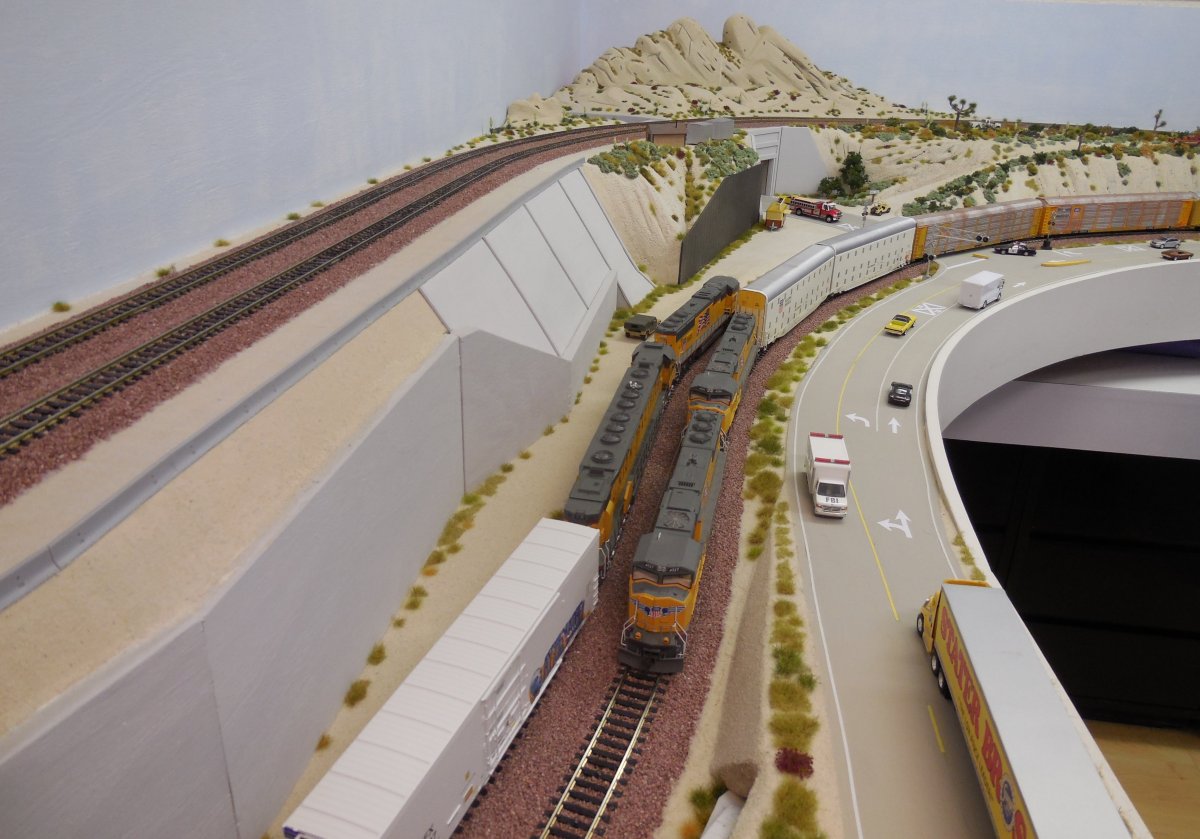

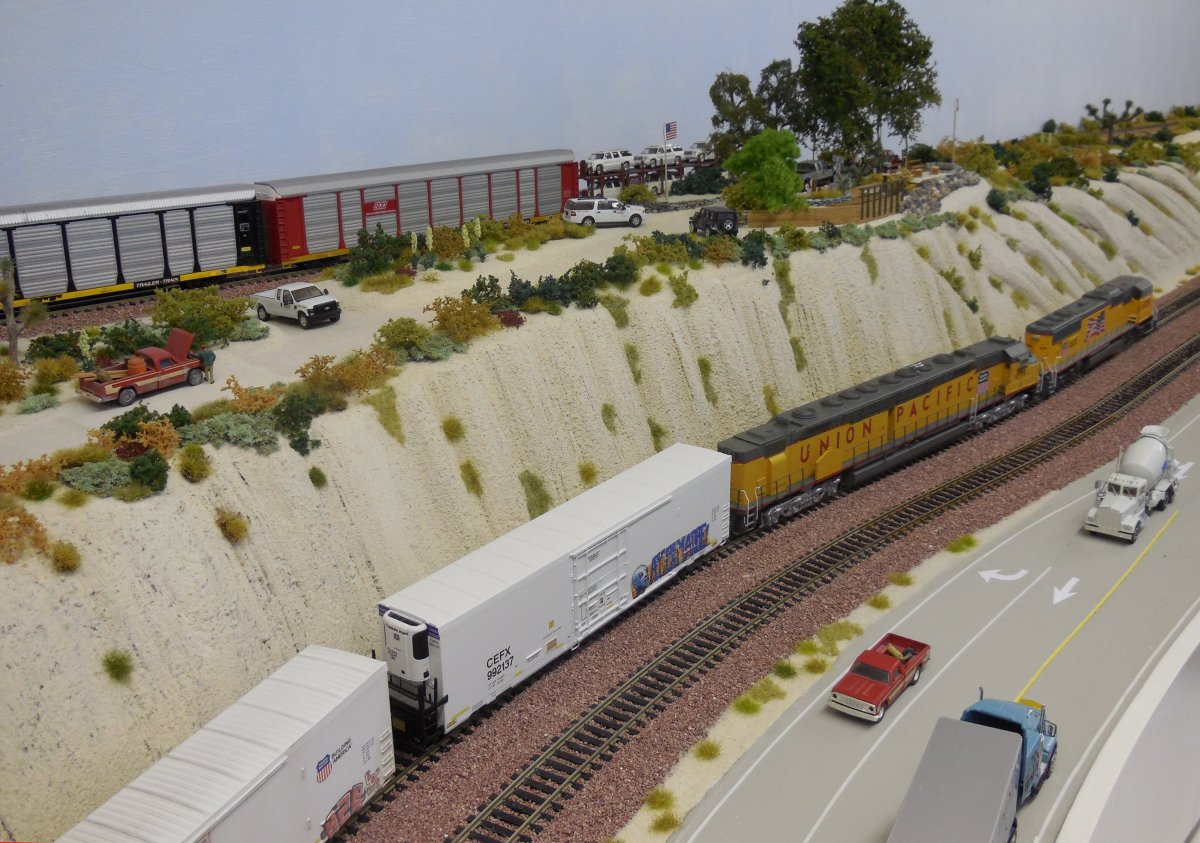

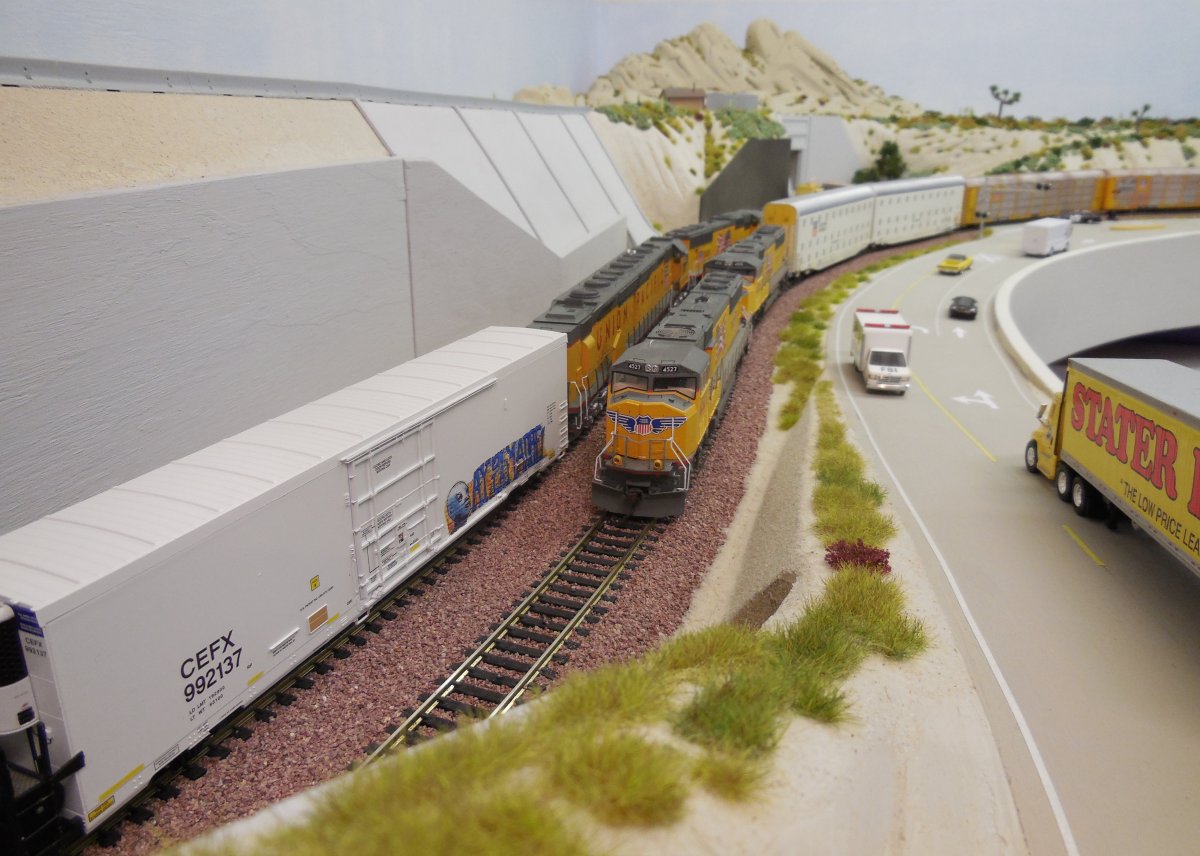

UP westbound all auto carrier train is passing . . - 2259	. . a UP eastbound manifest - 2260

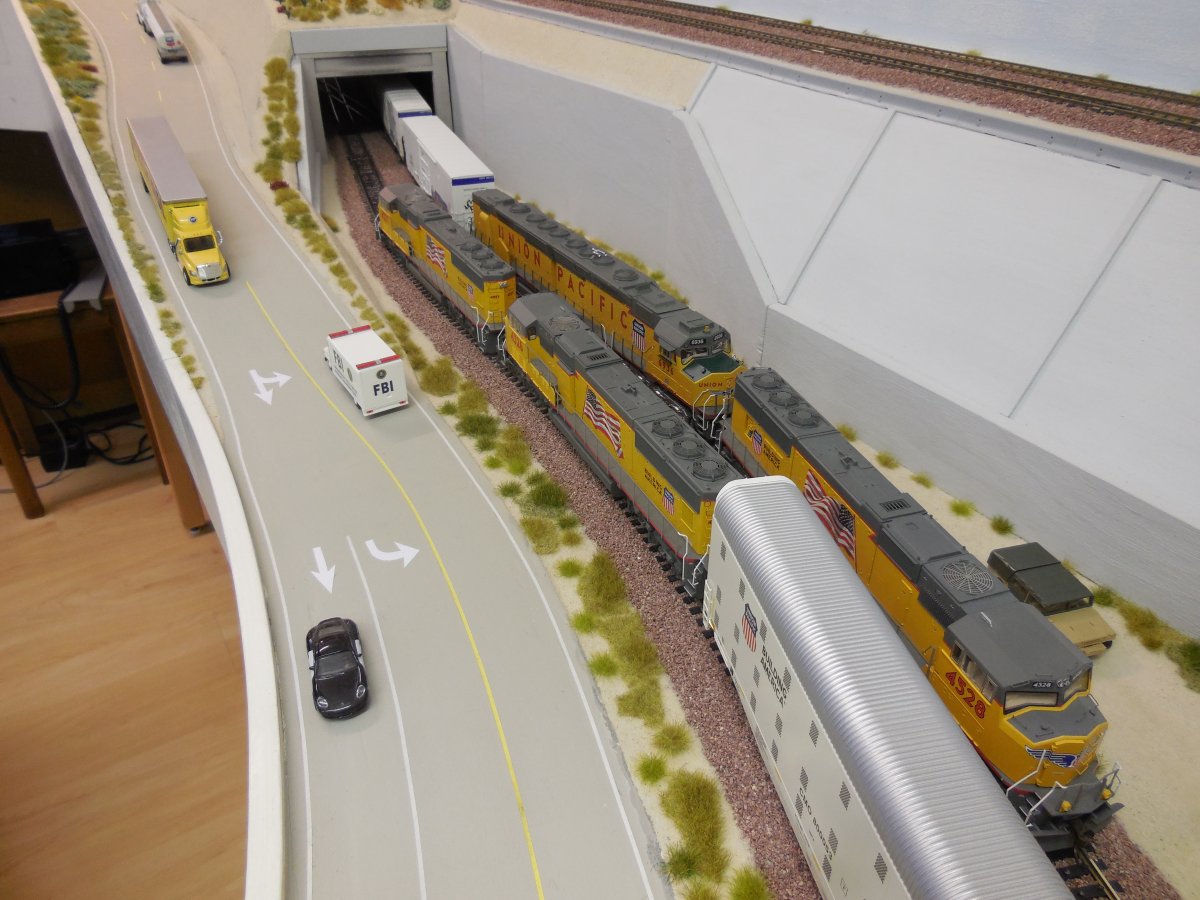

2261	2262

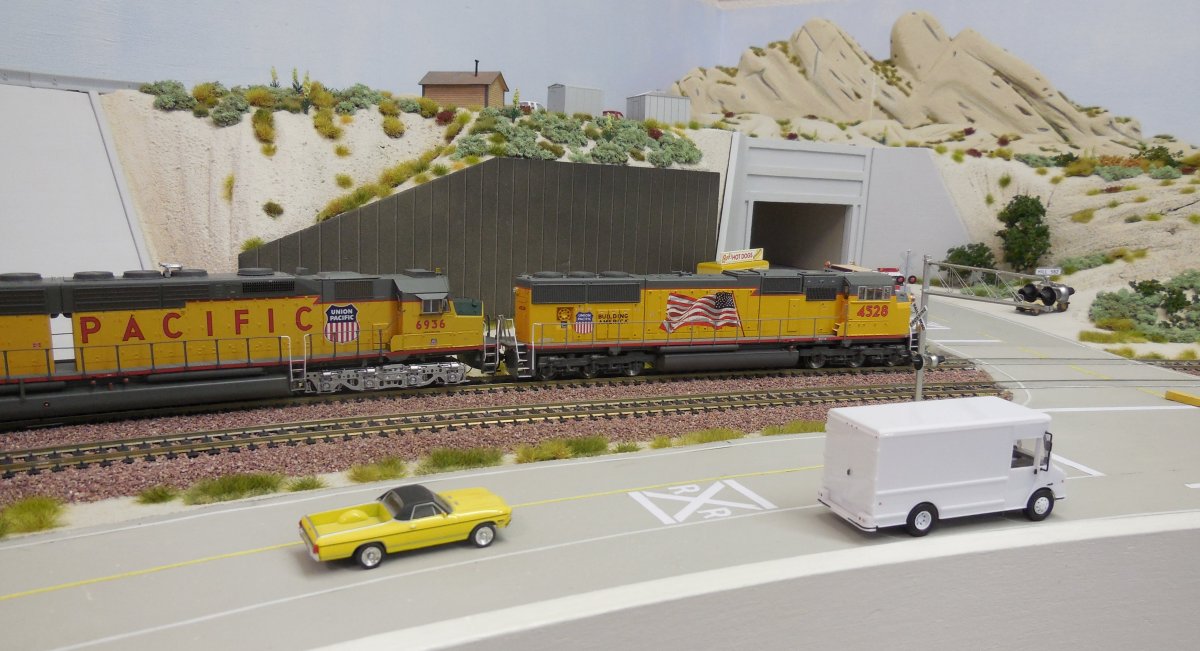

2263	2264

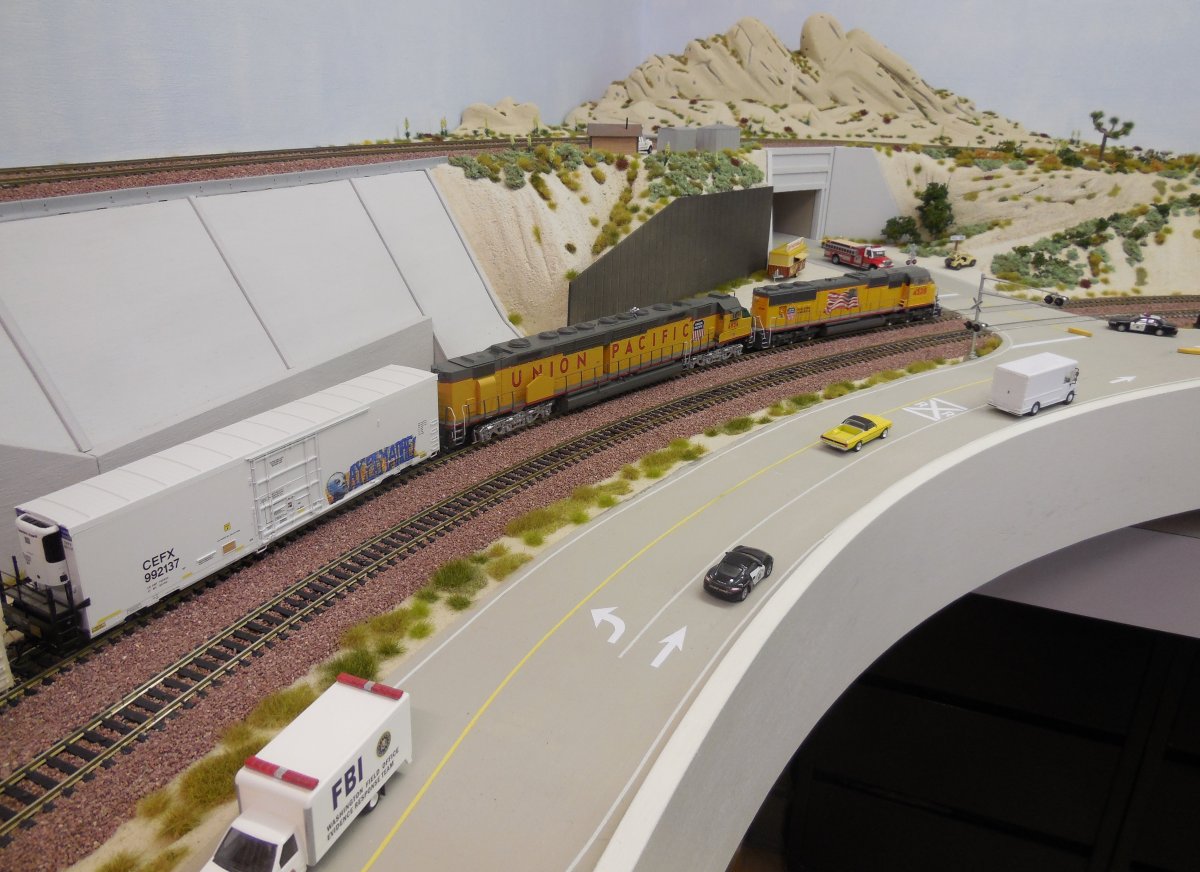

2265	2266

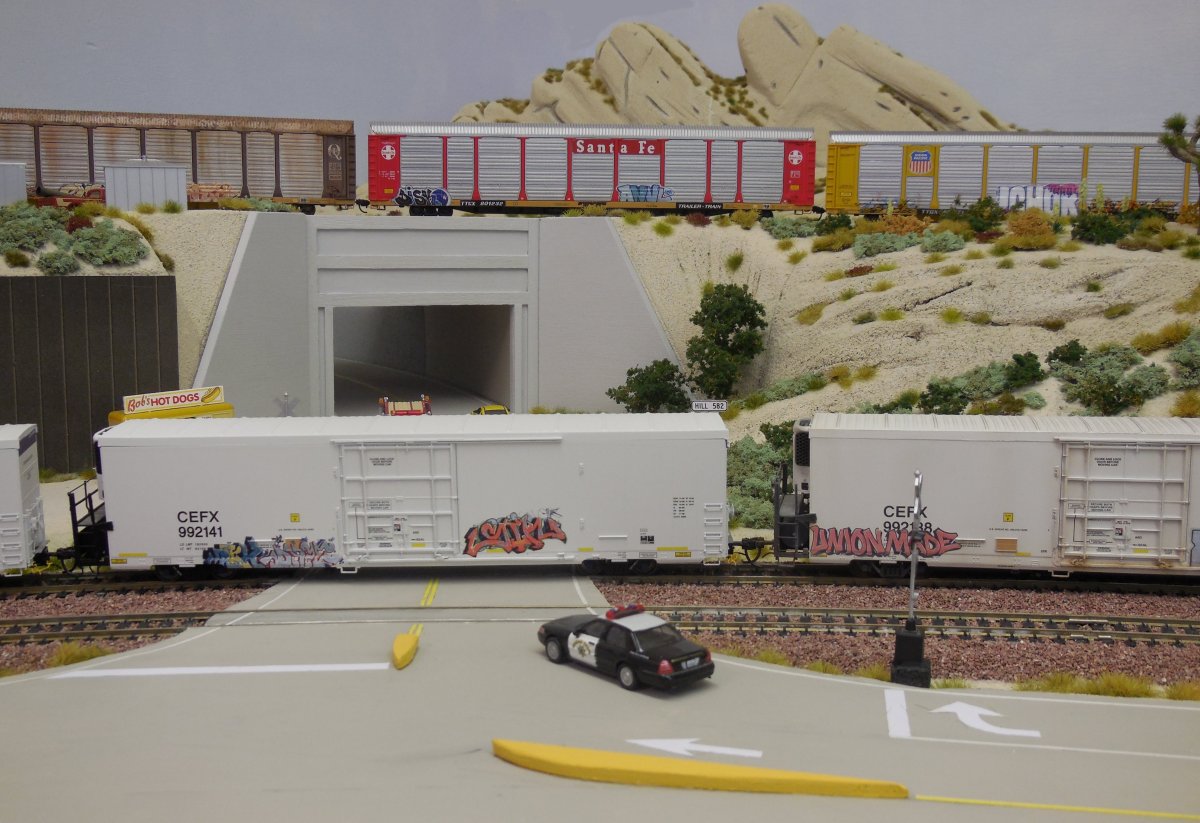

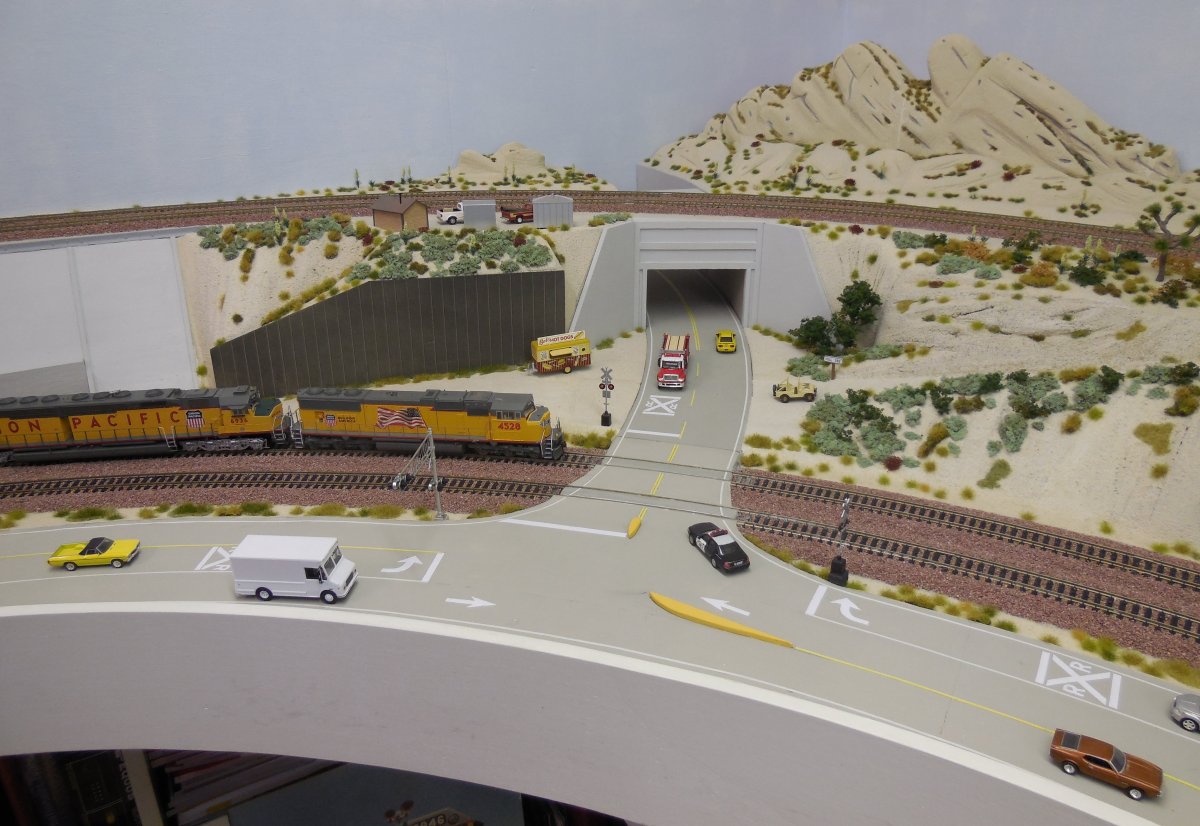

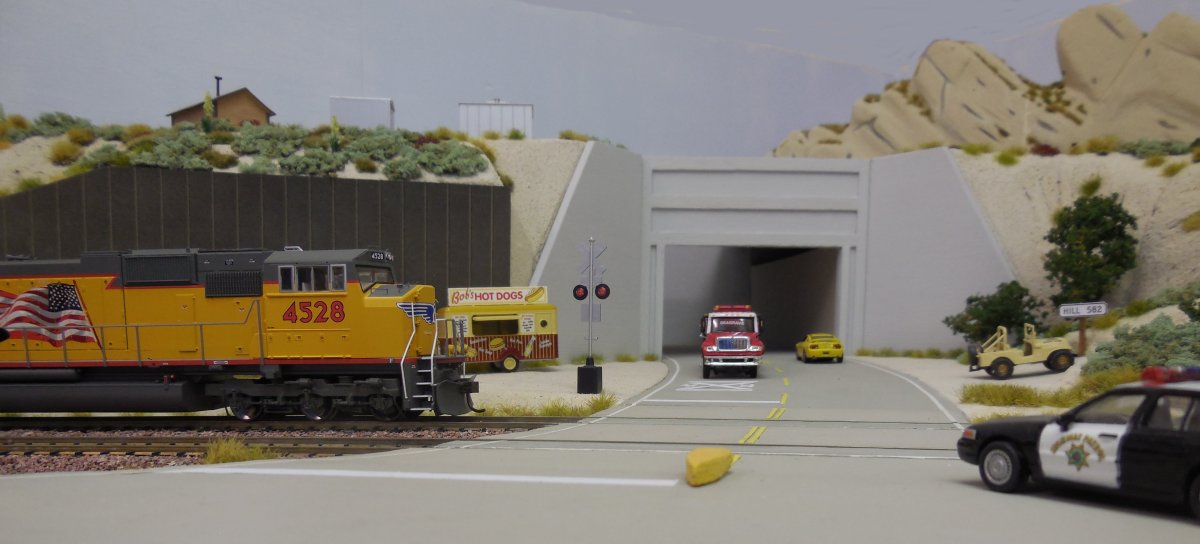

street level view with Highway 138 crossing lower level main tracks and going underneath upper main tracks - 2267

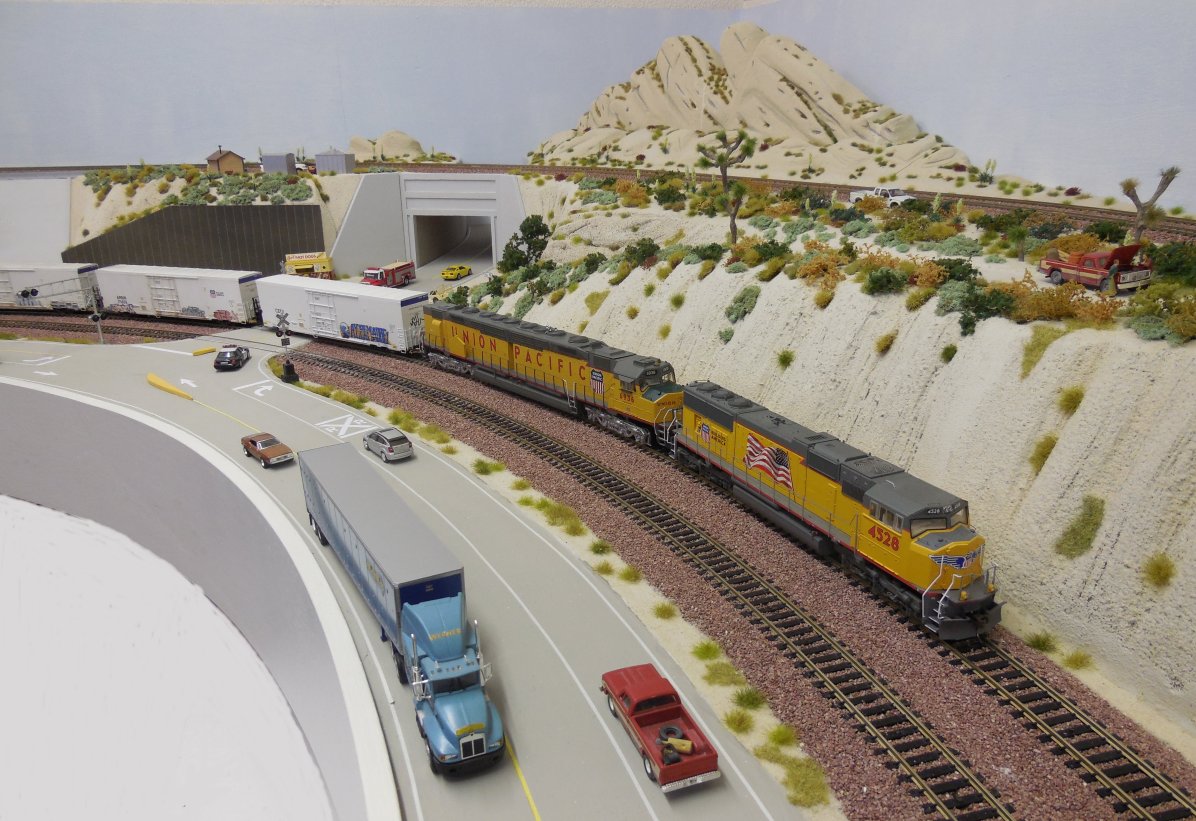

2268	2269

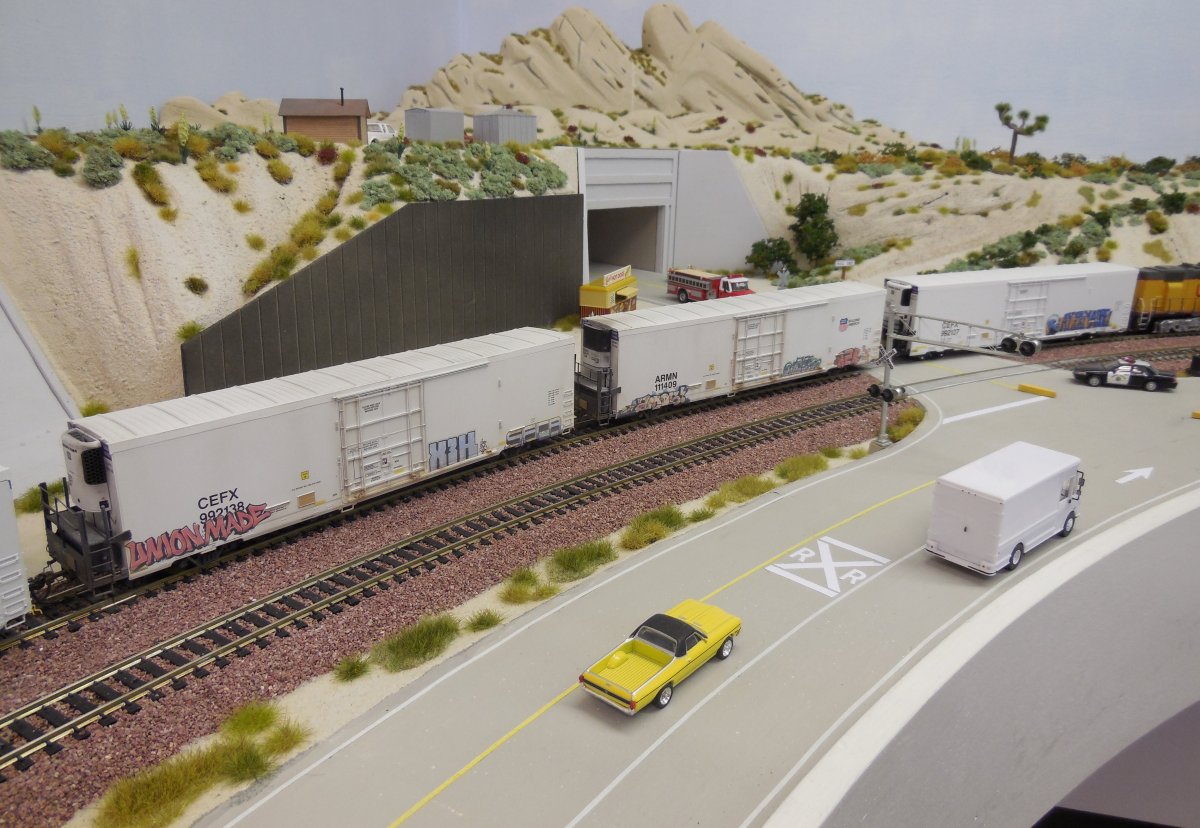

2270	2271

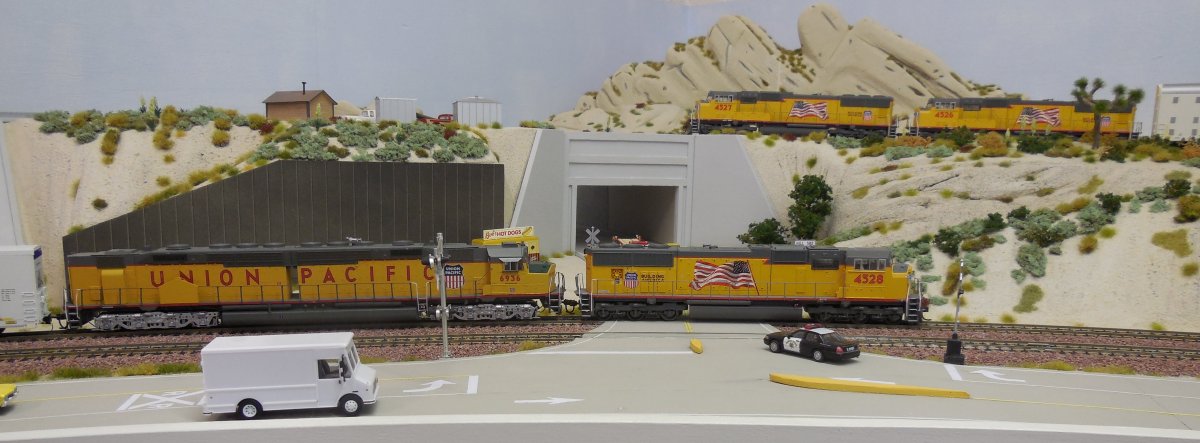

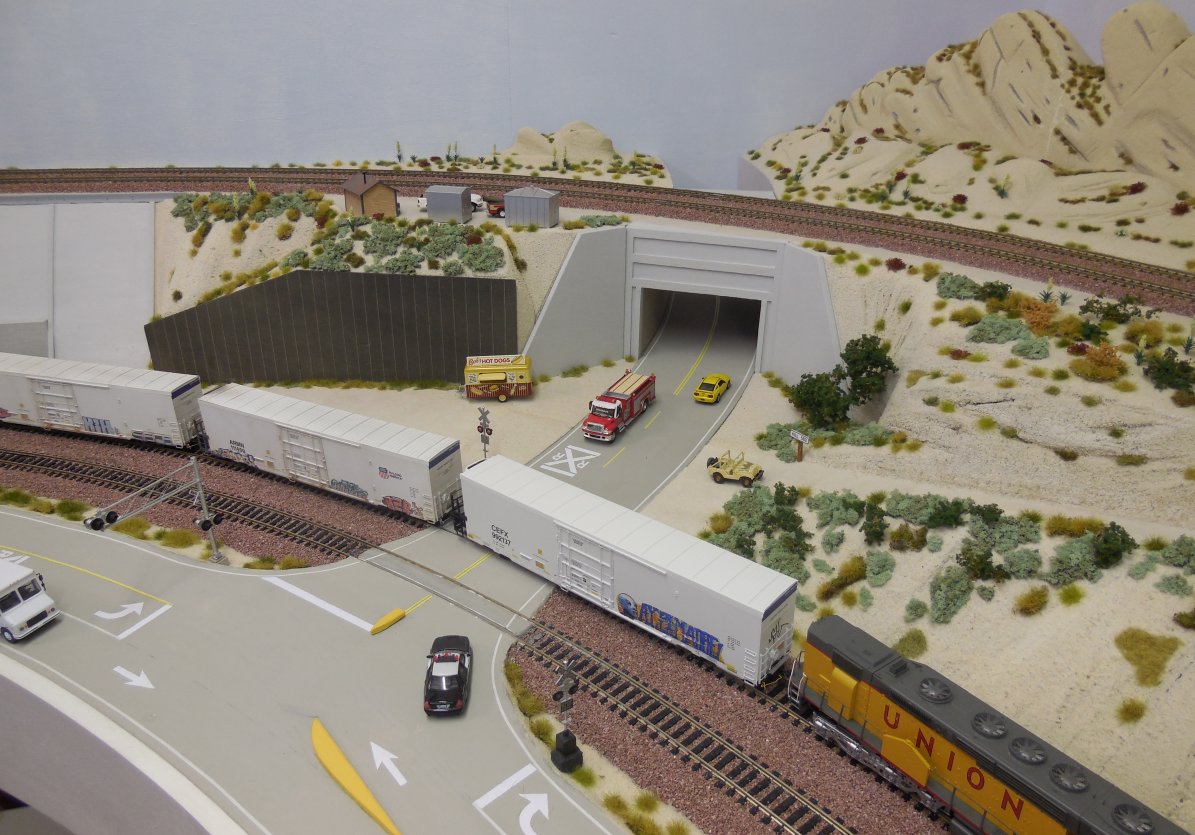

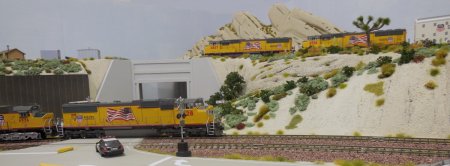

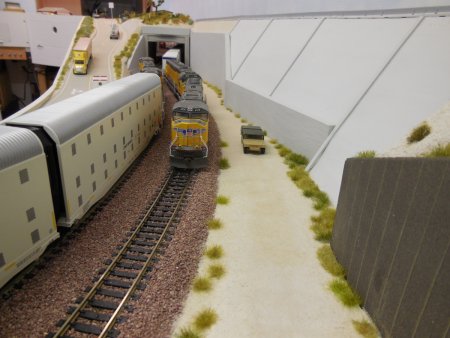

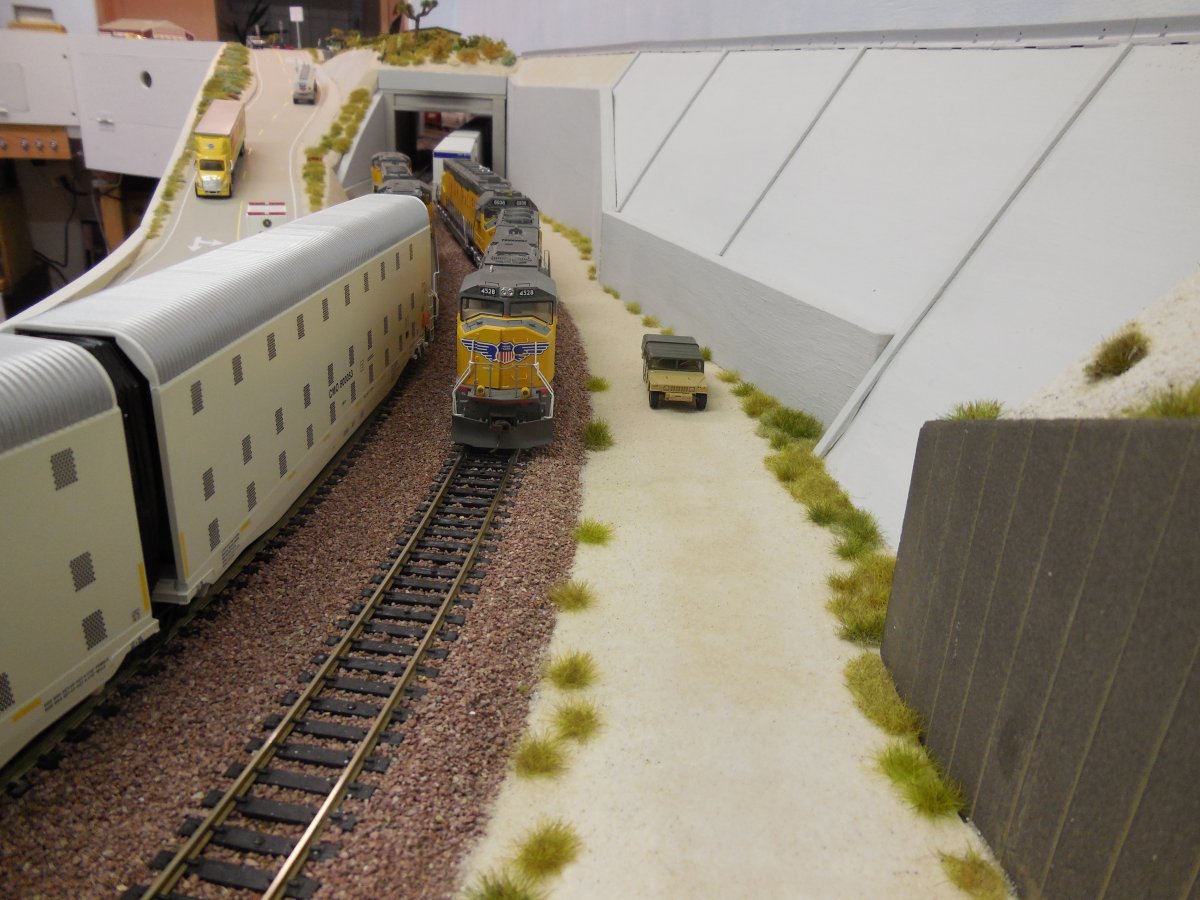

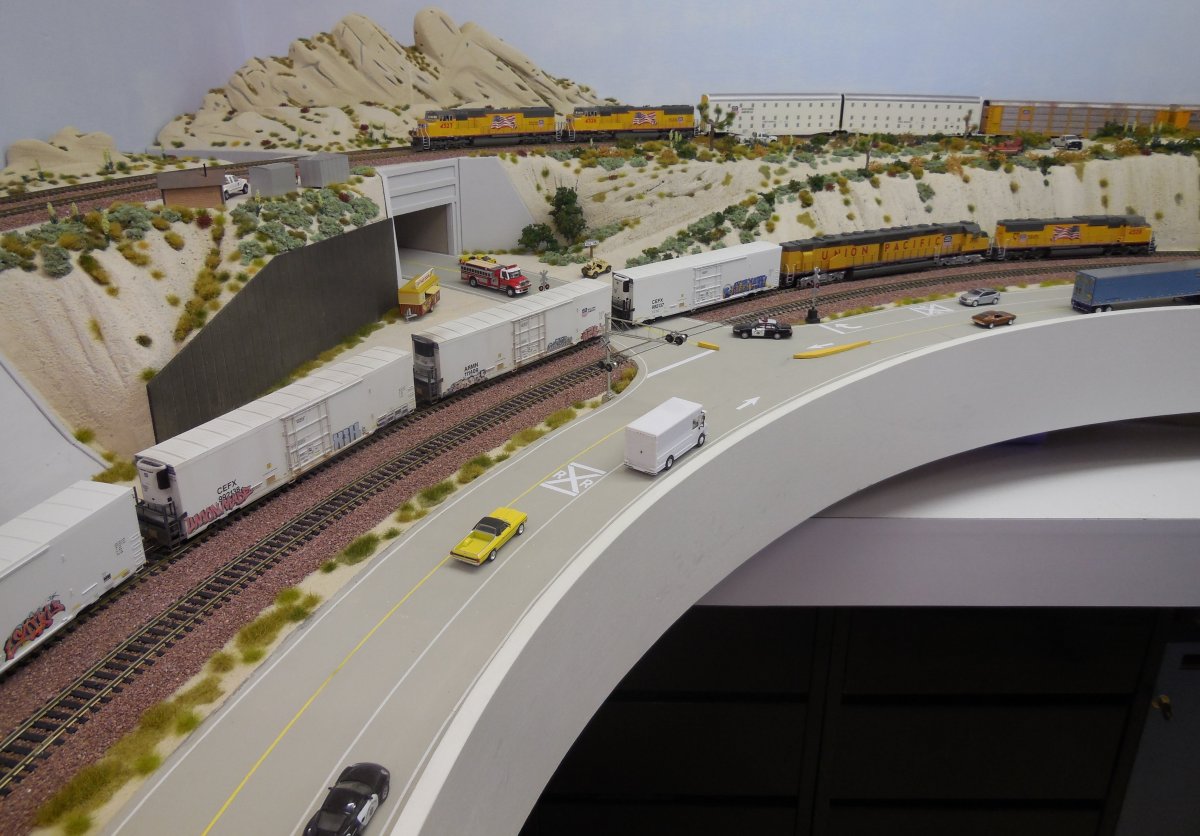

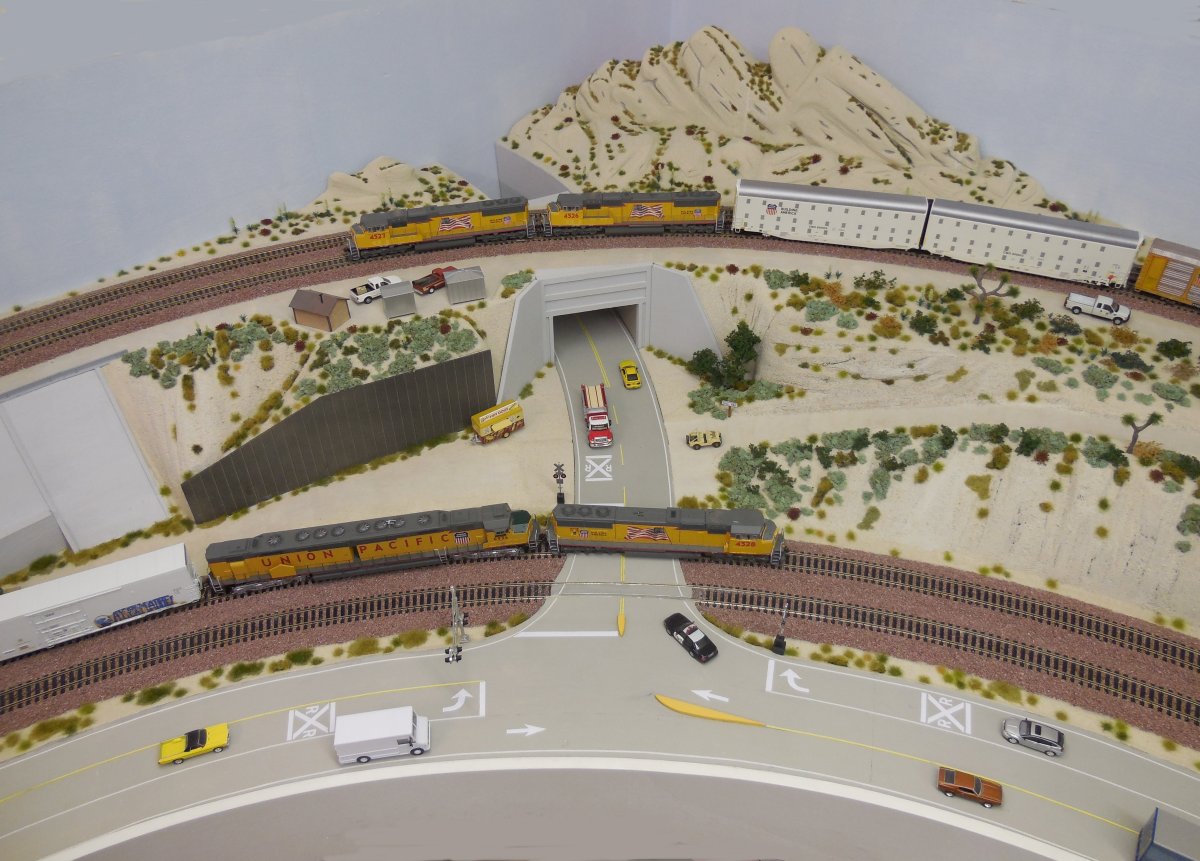

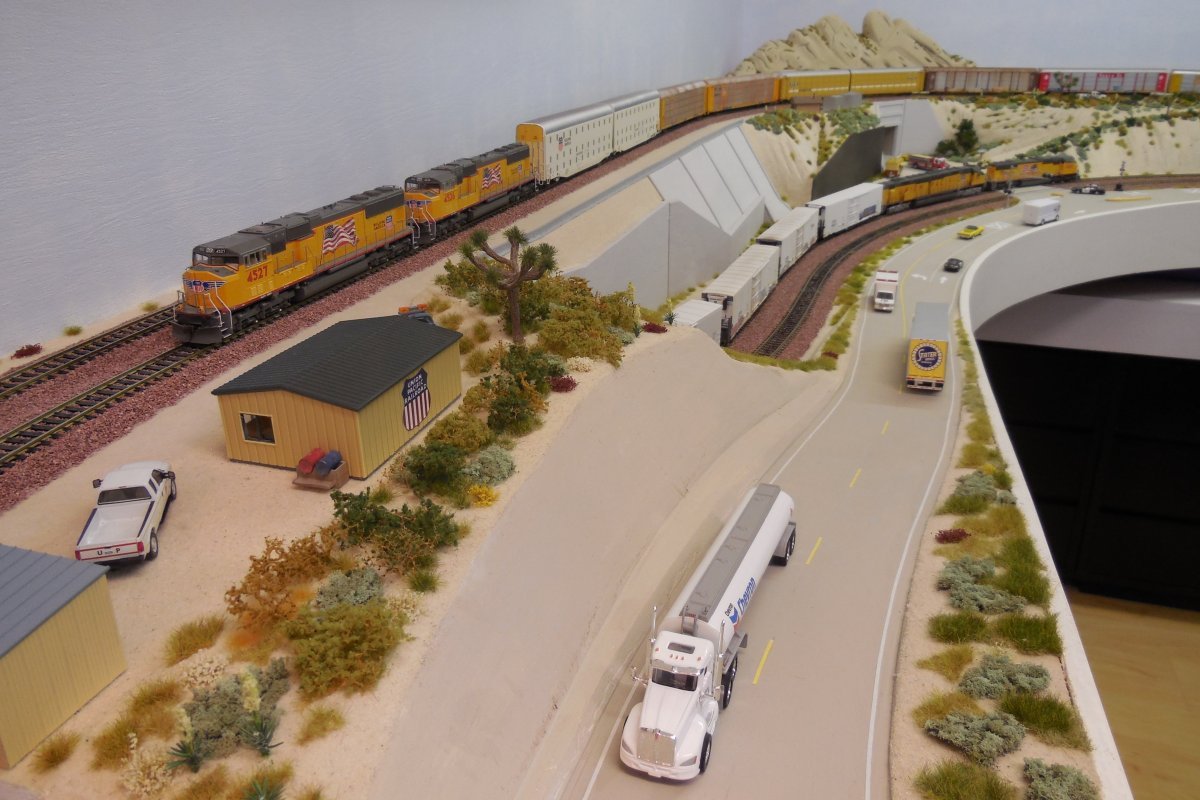

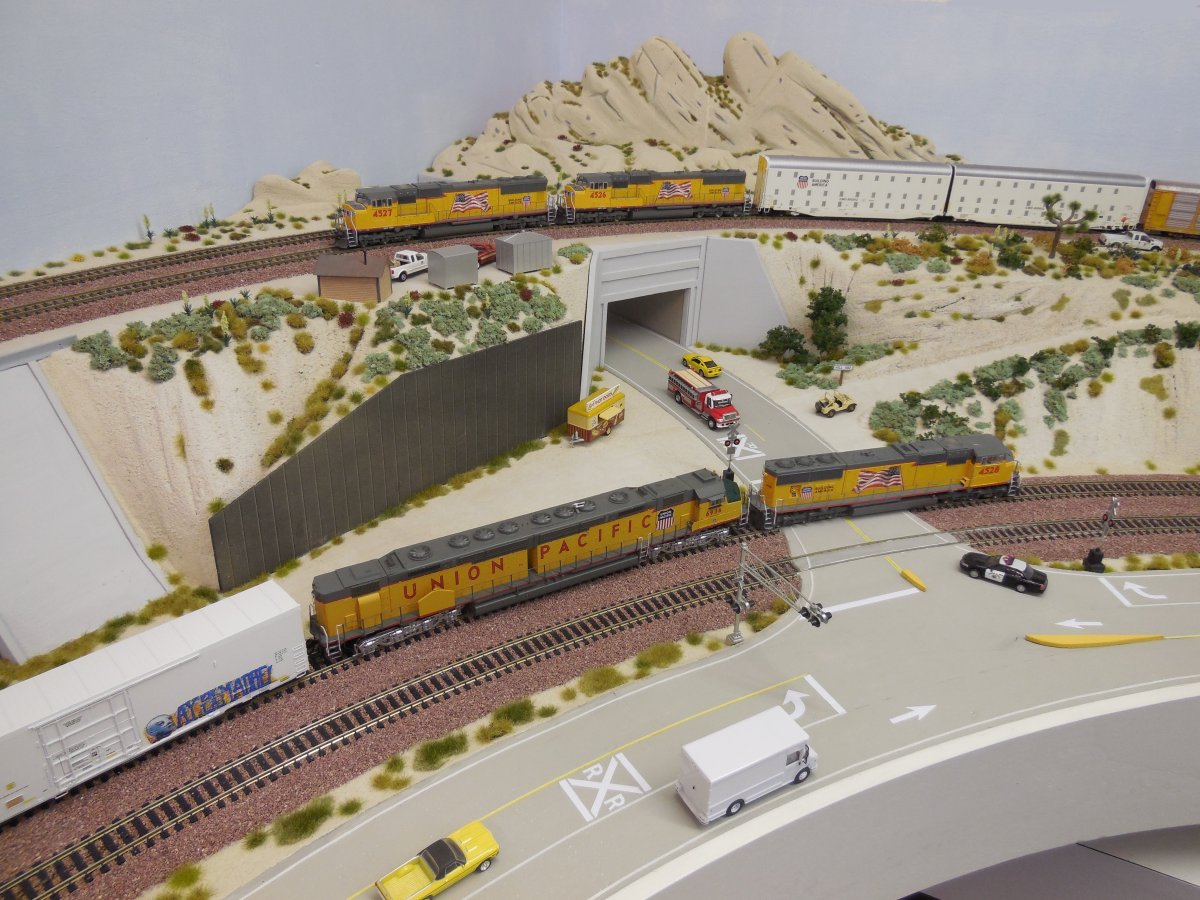

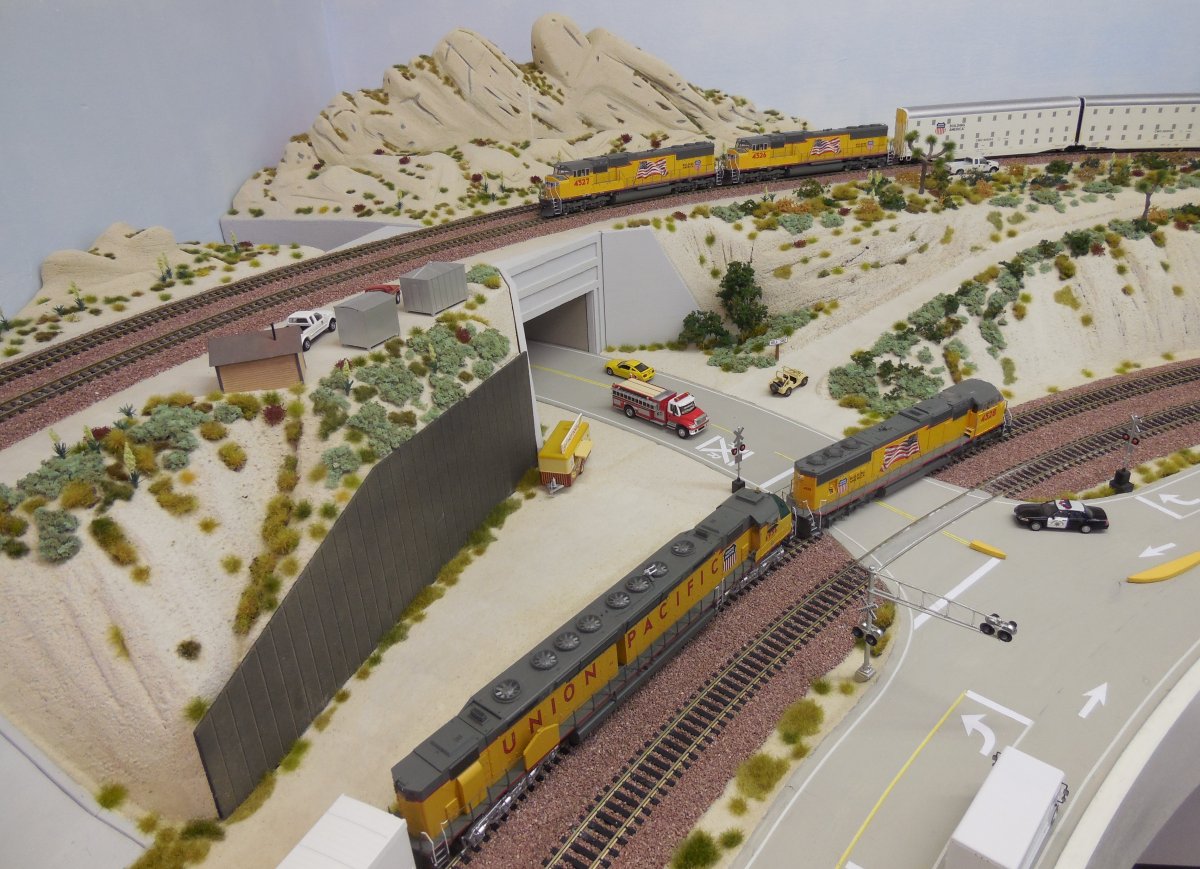

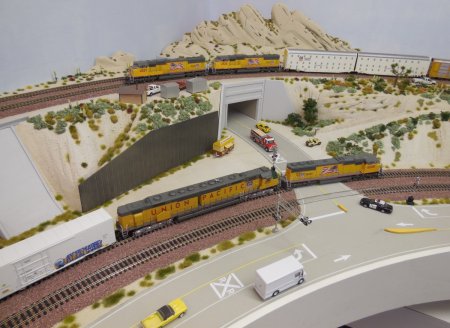

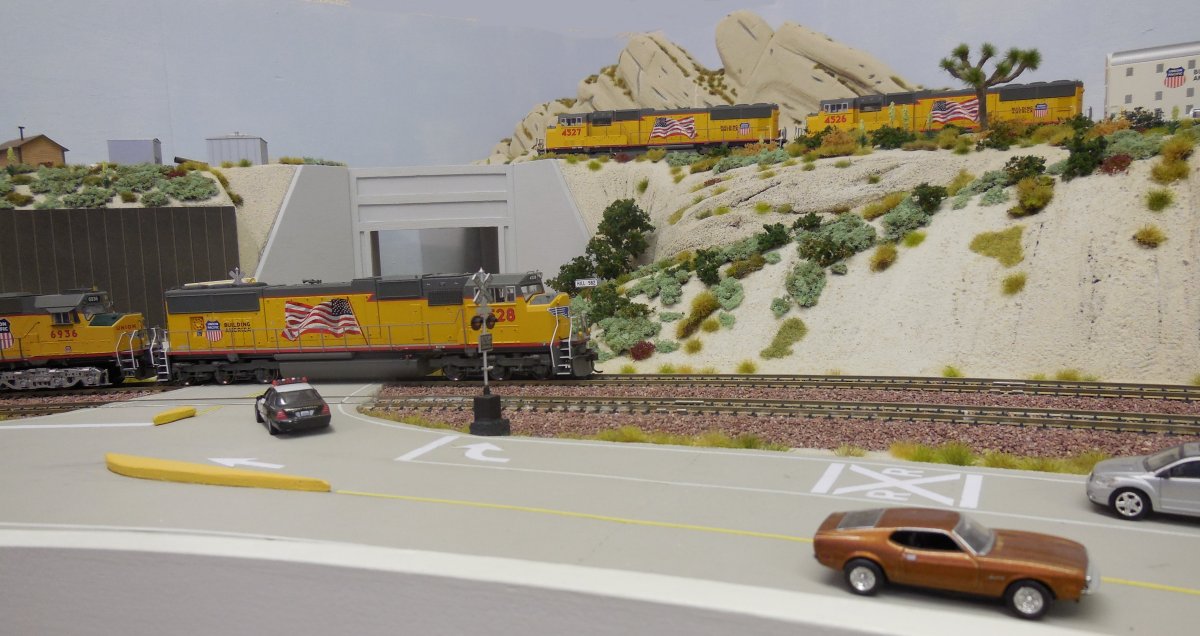

today, UP is busy around the Mormon Rocks - 2272	2273

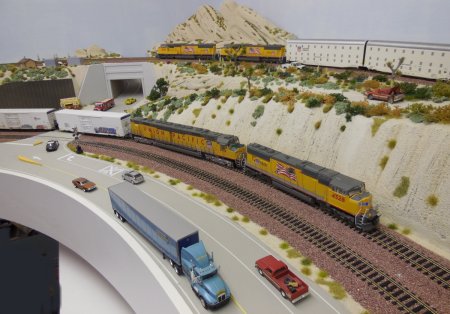

2274	2275

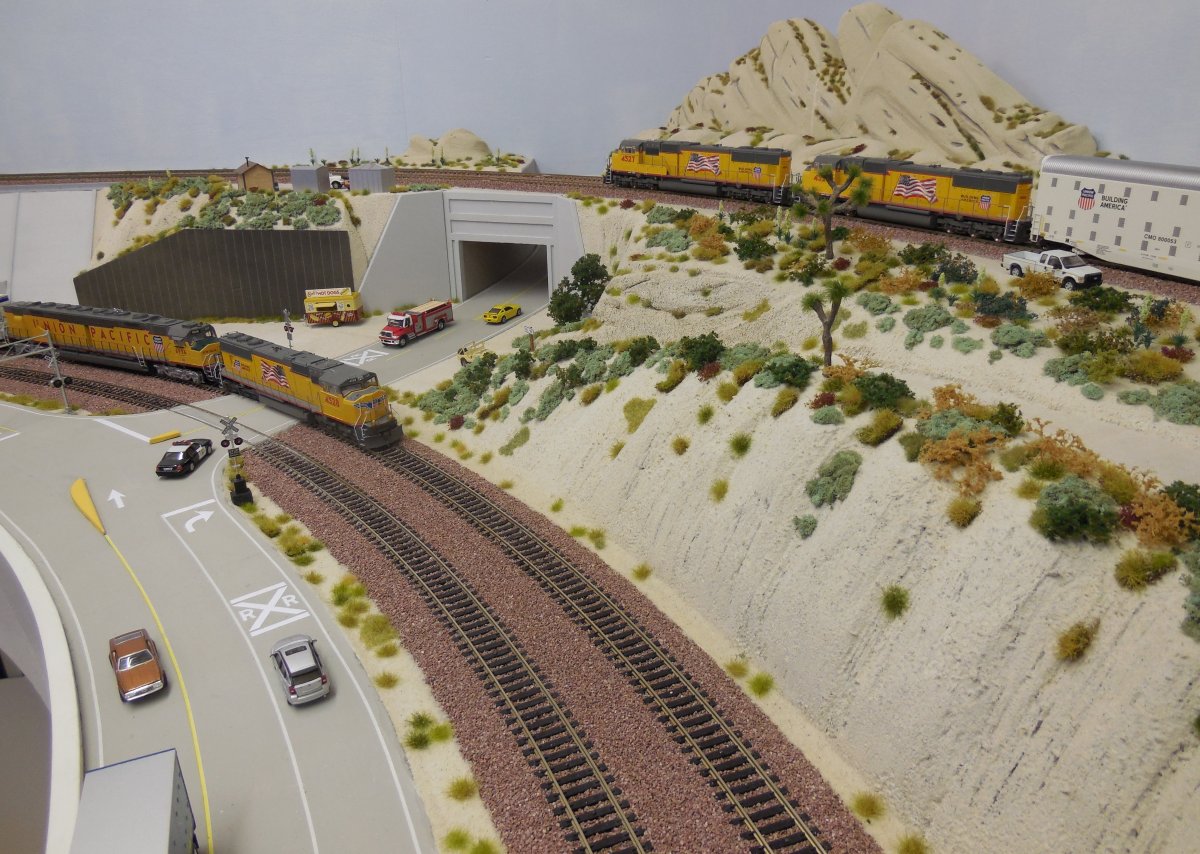

2276	2277

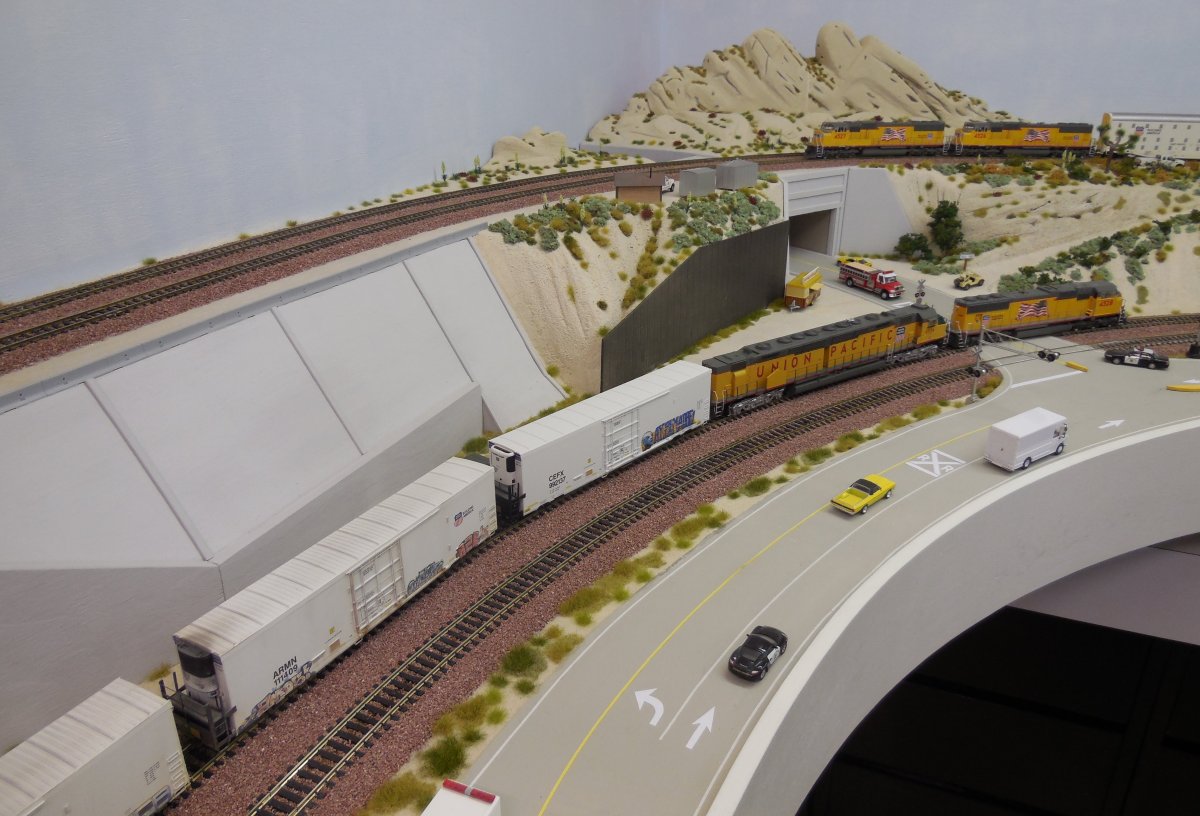

2278	2279

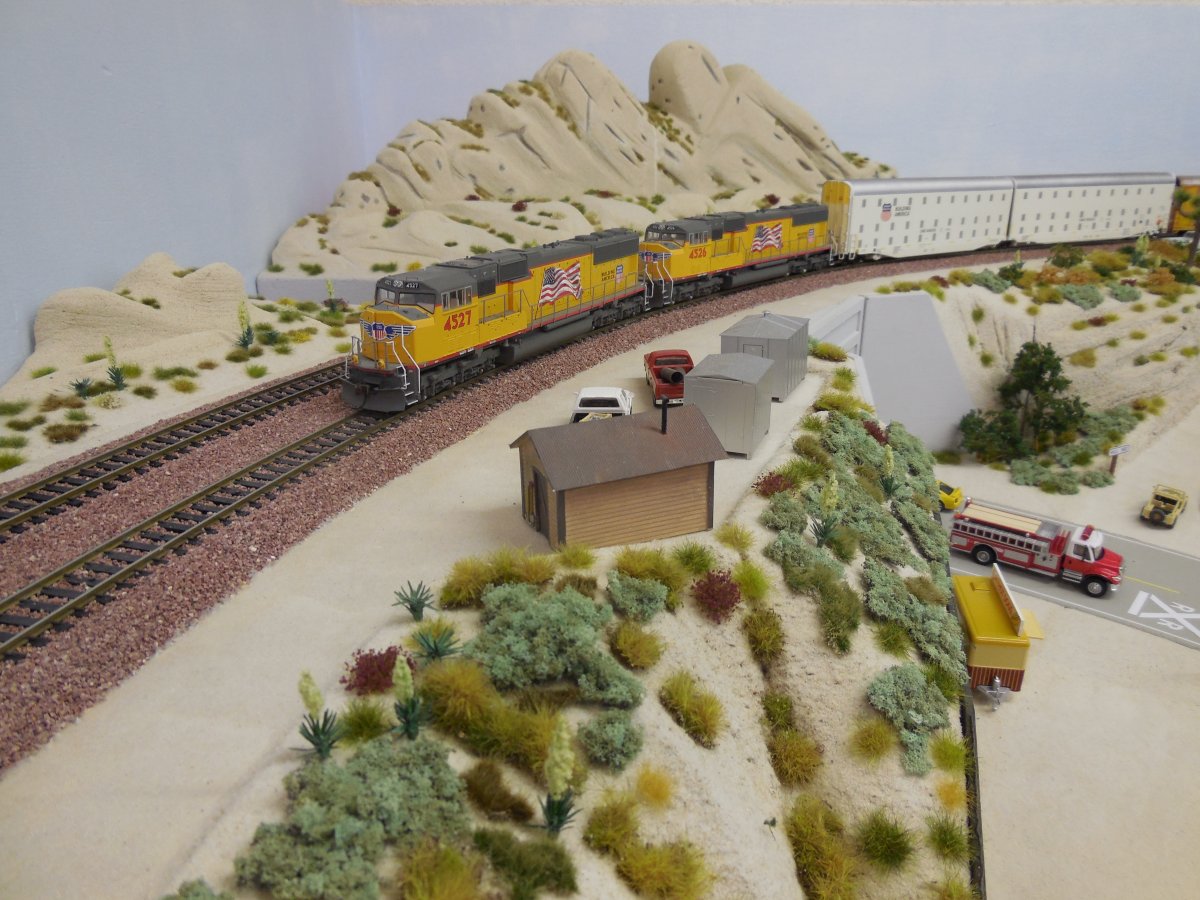

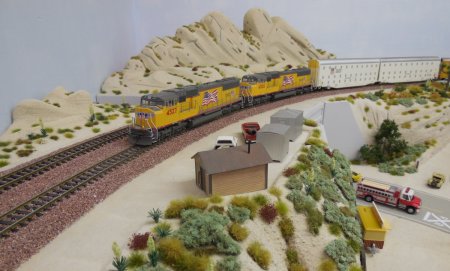

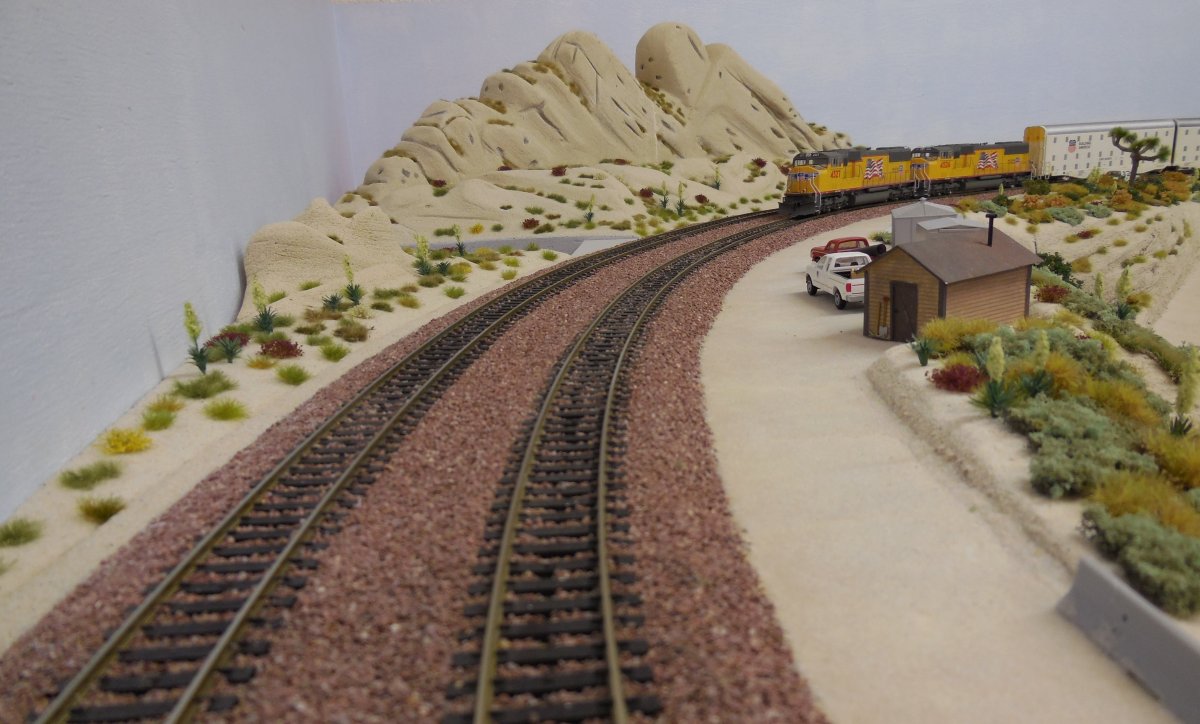

2280	2281

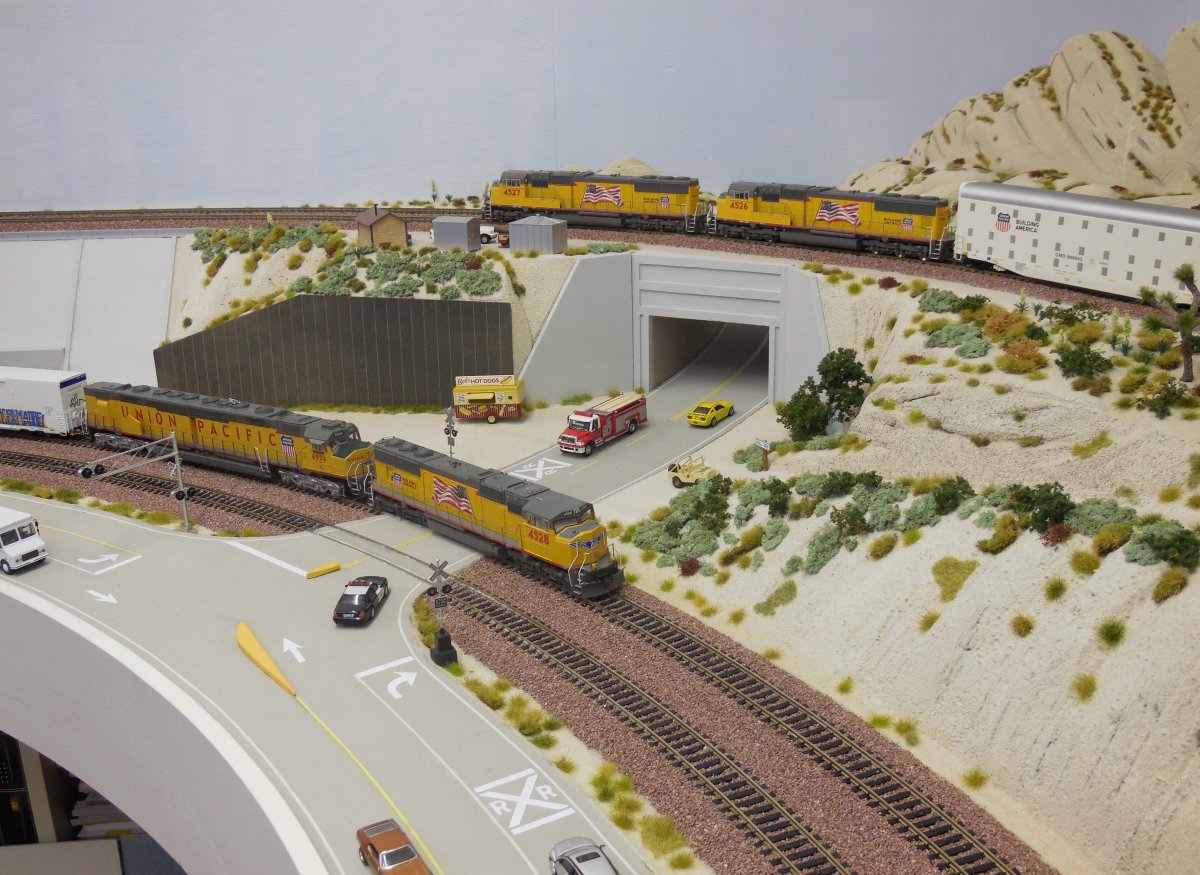

2282	2283

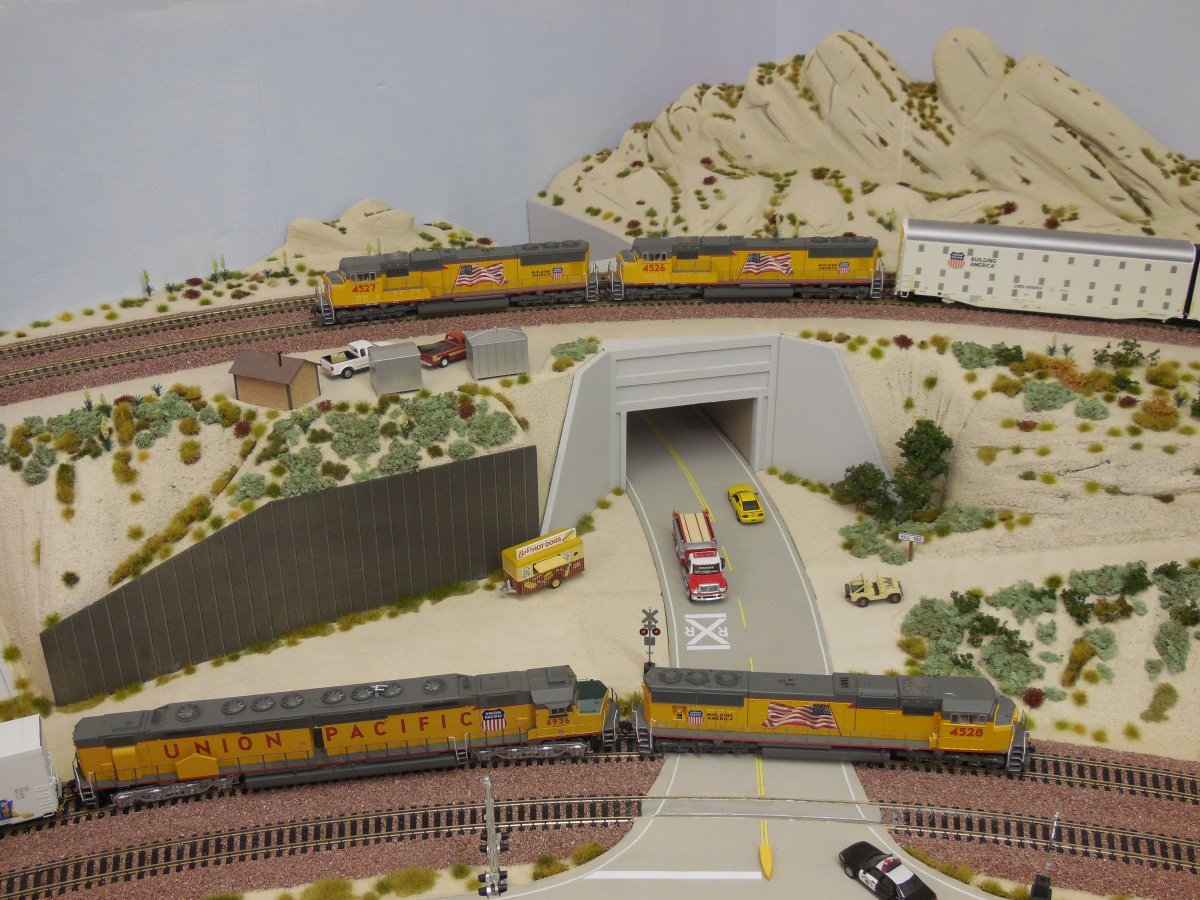

2284	2285

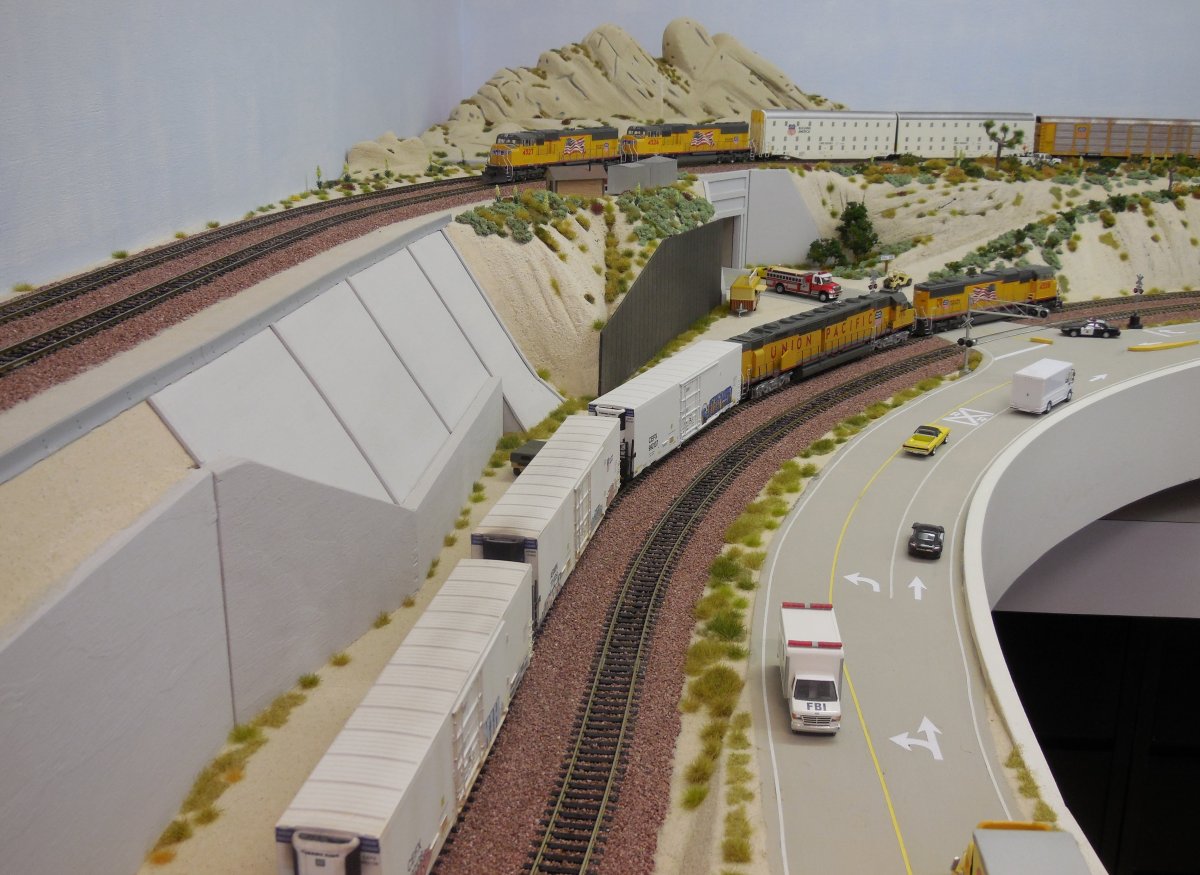

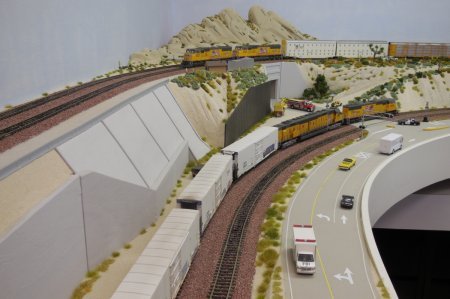

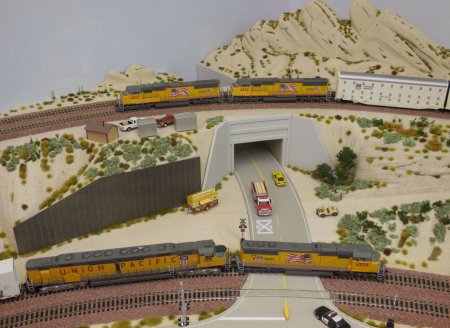

2286	2287

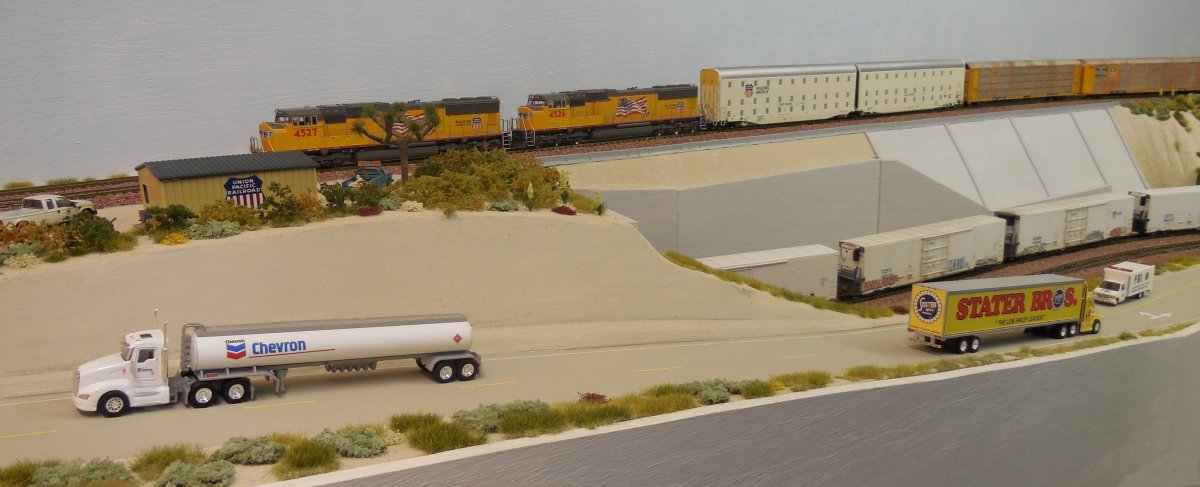

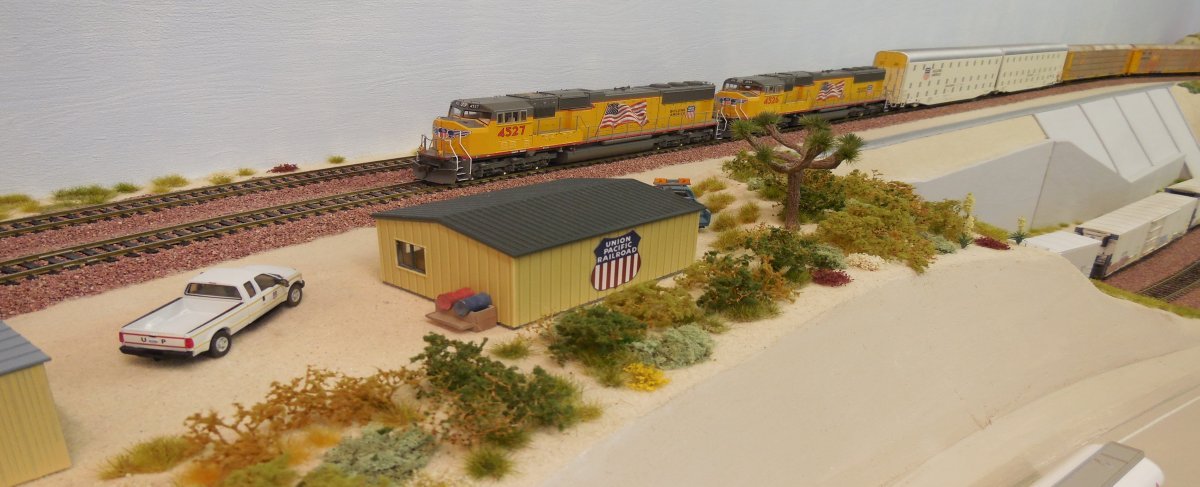

2288	2289

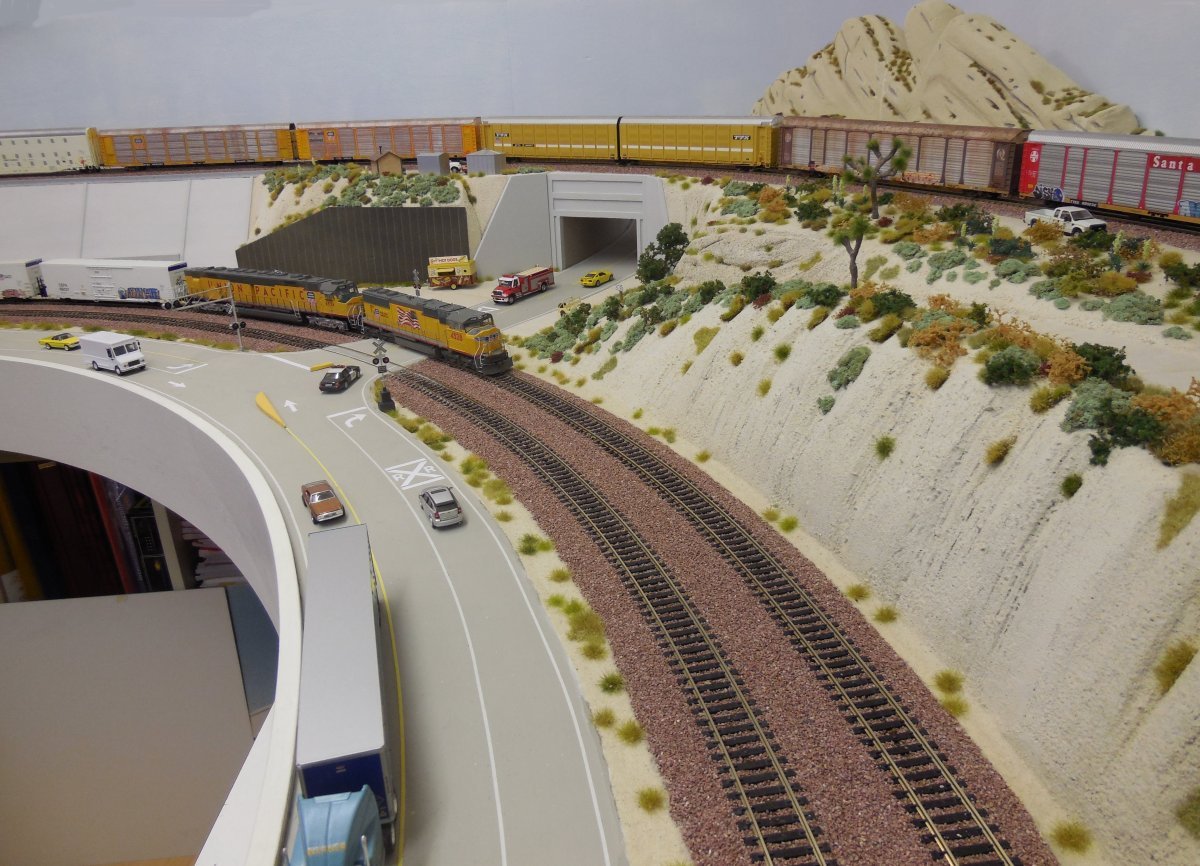

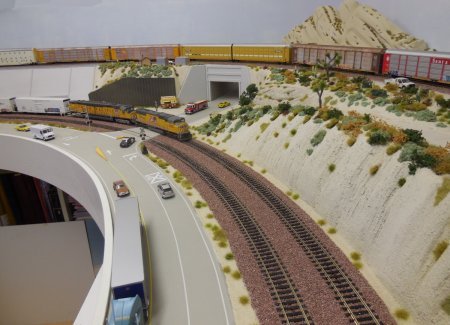

2290	2291

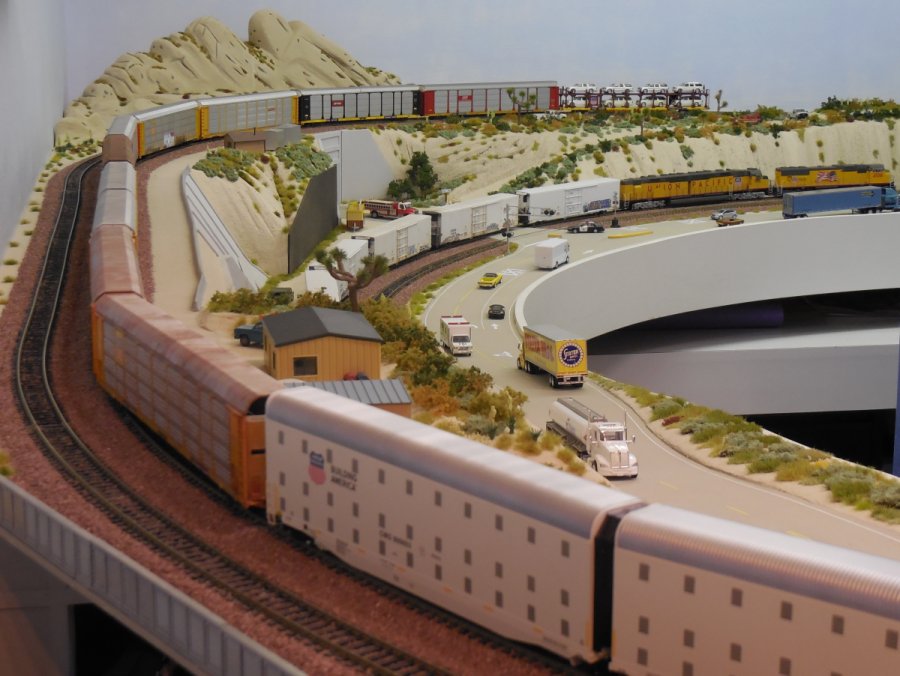

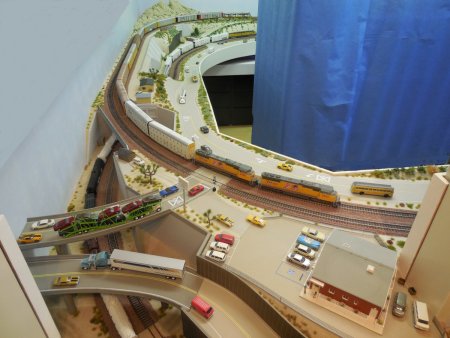

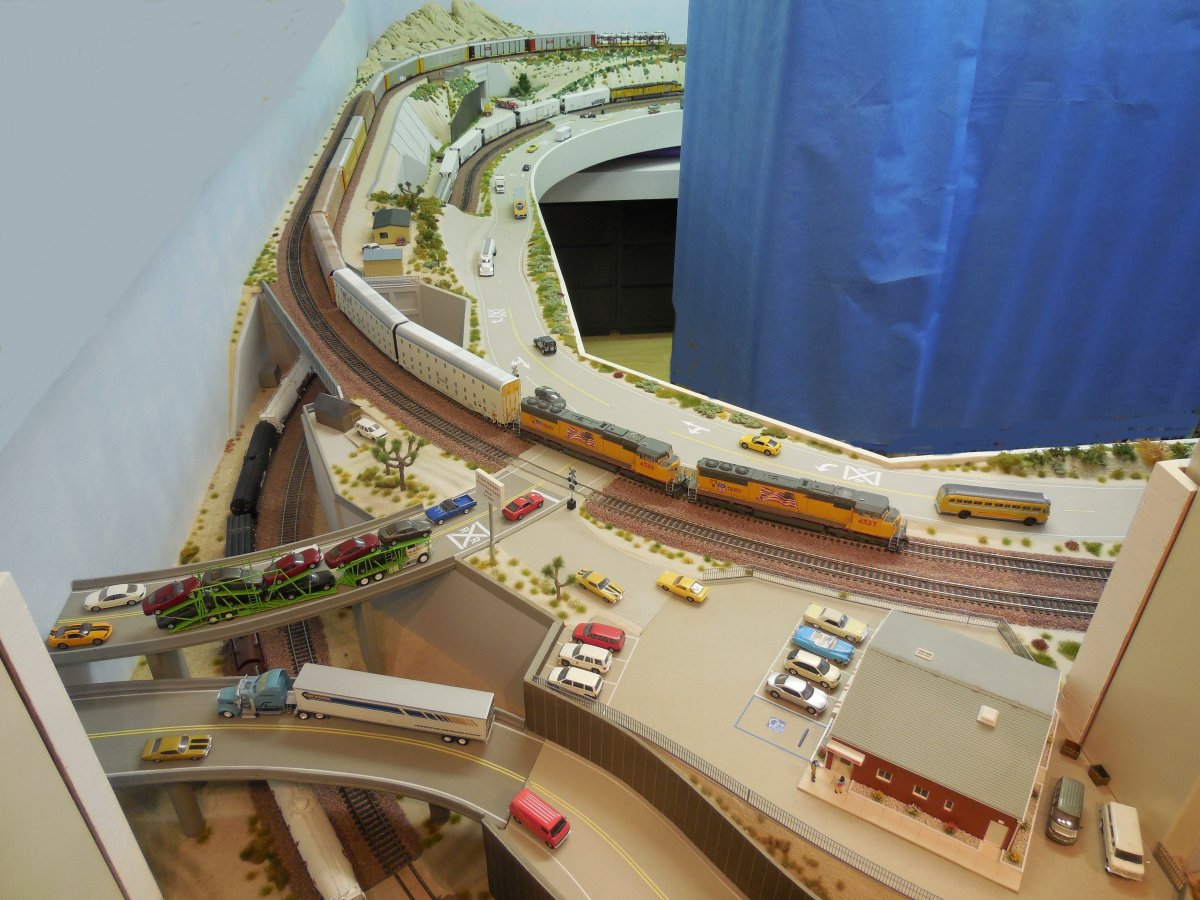

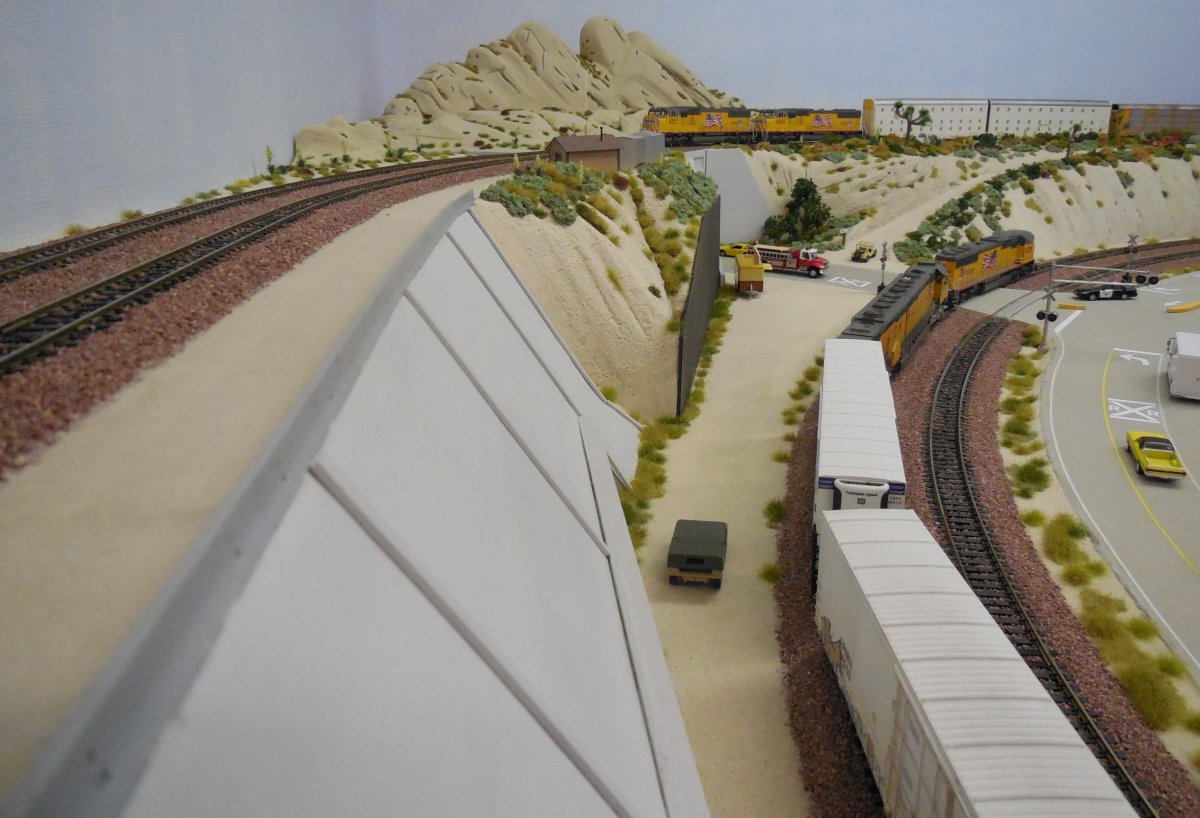

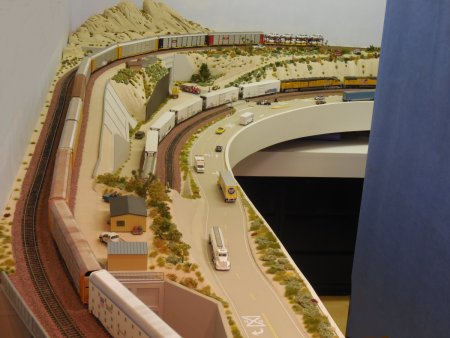

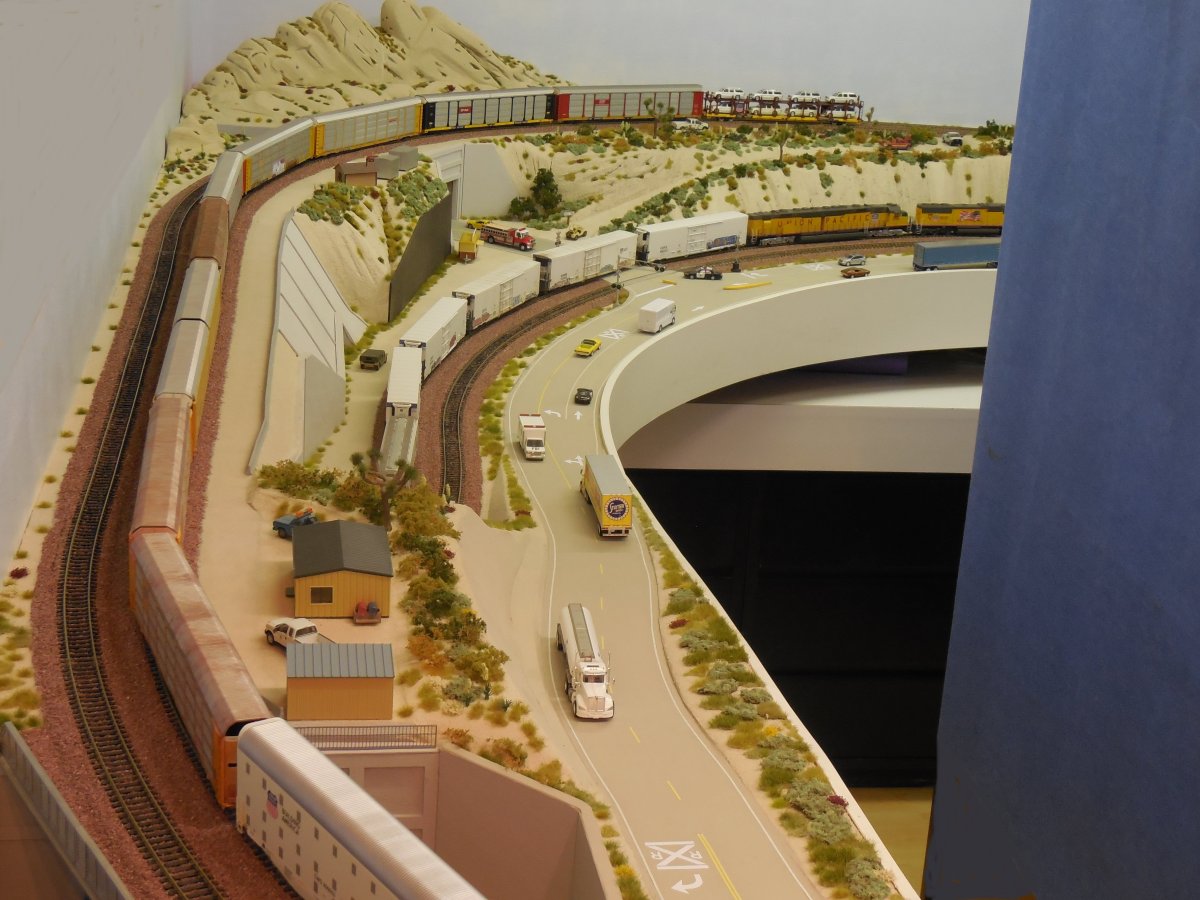

bird's eye view into office 2 from the passage - 2293	closer look towards the Mormon Rocks - 2294

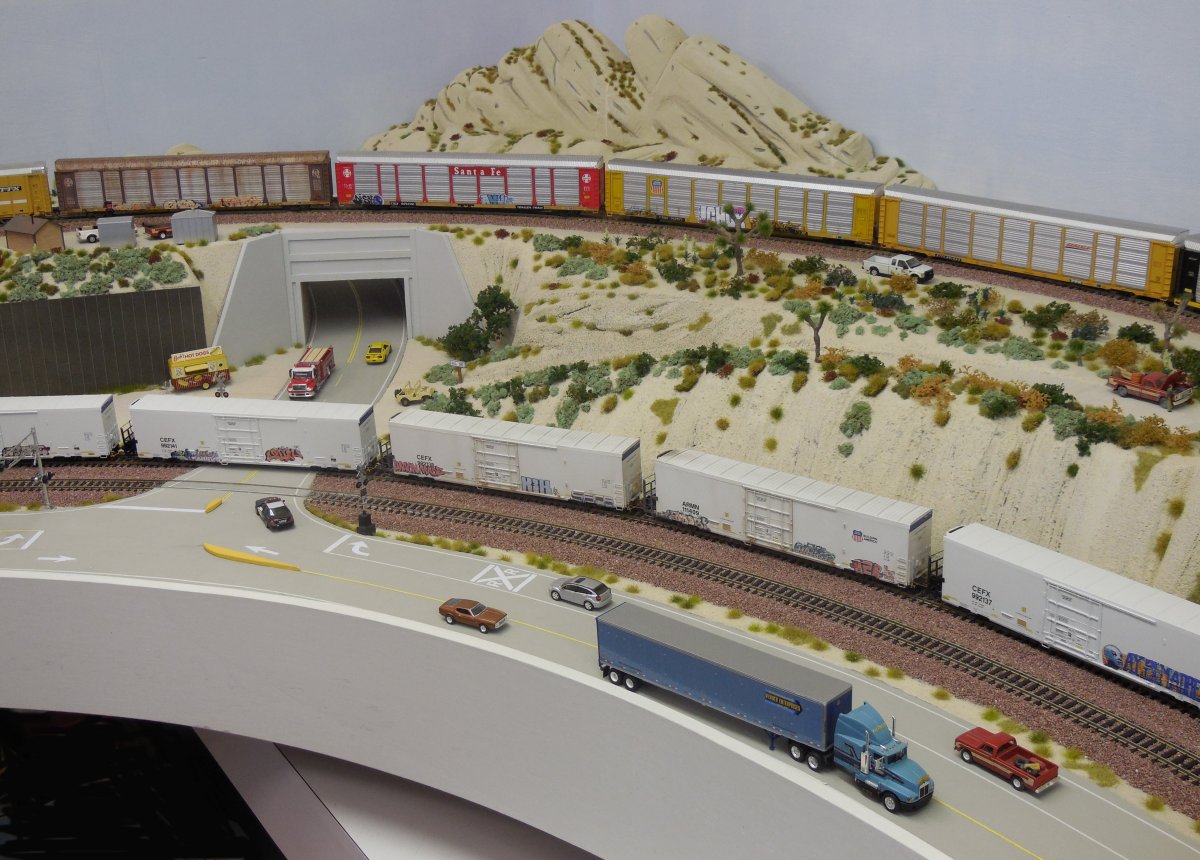

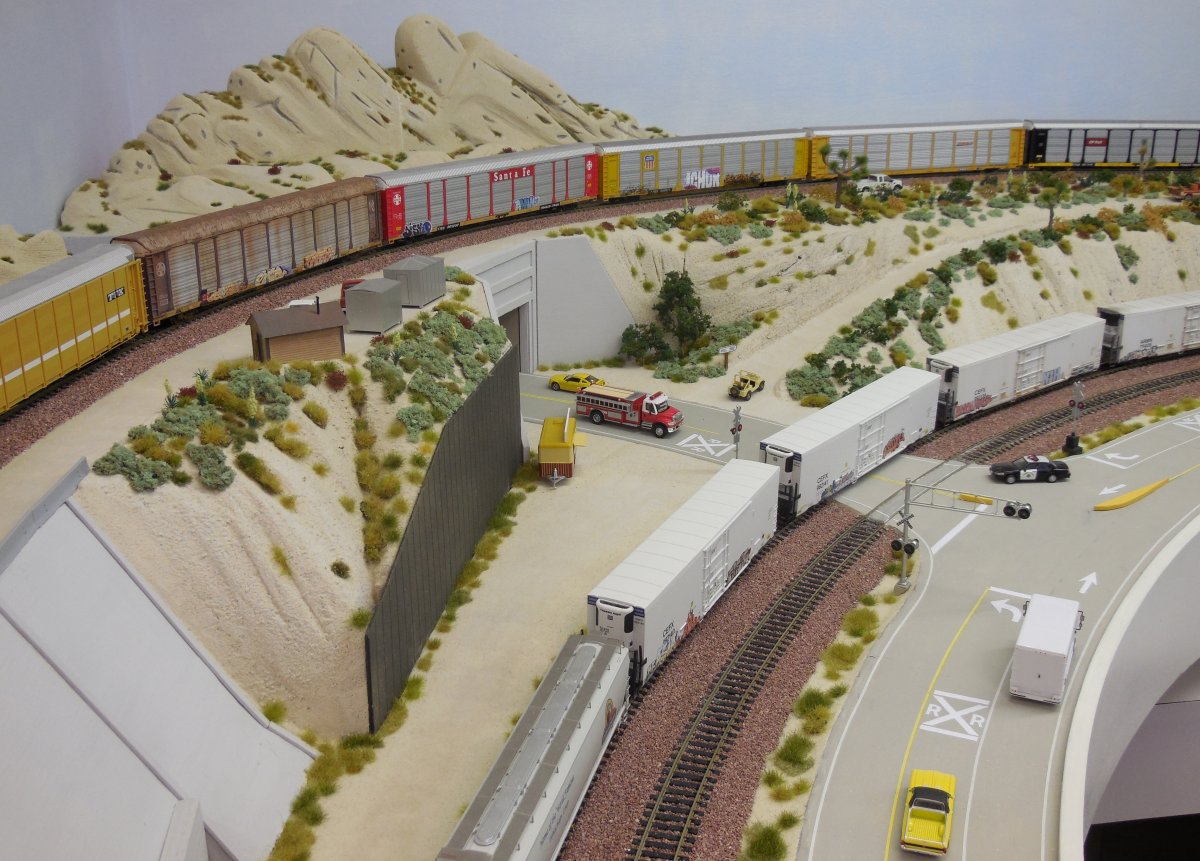

2295	2296

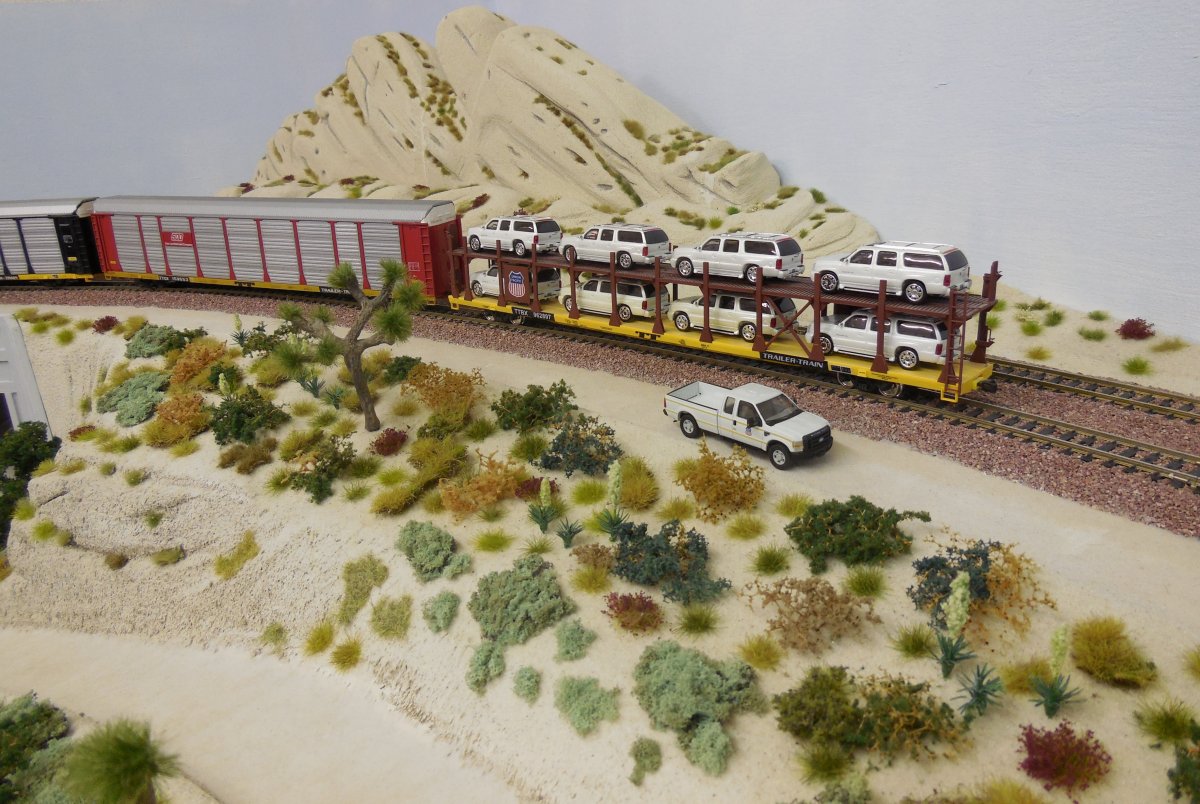

2297	2298
after the Mormon Rocks comes the Flyover, where upper and lower main lines are crossing each other

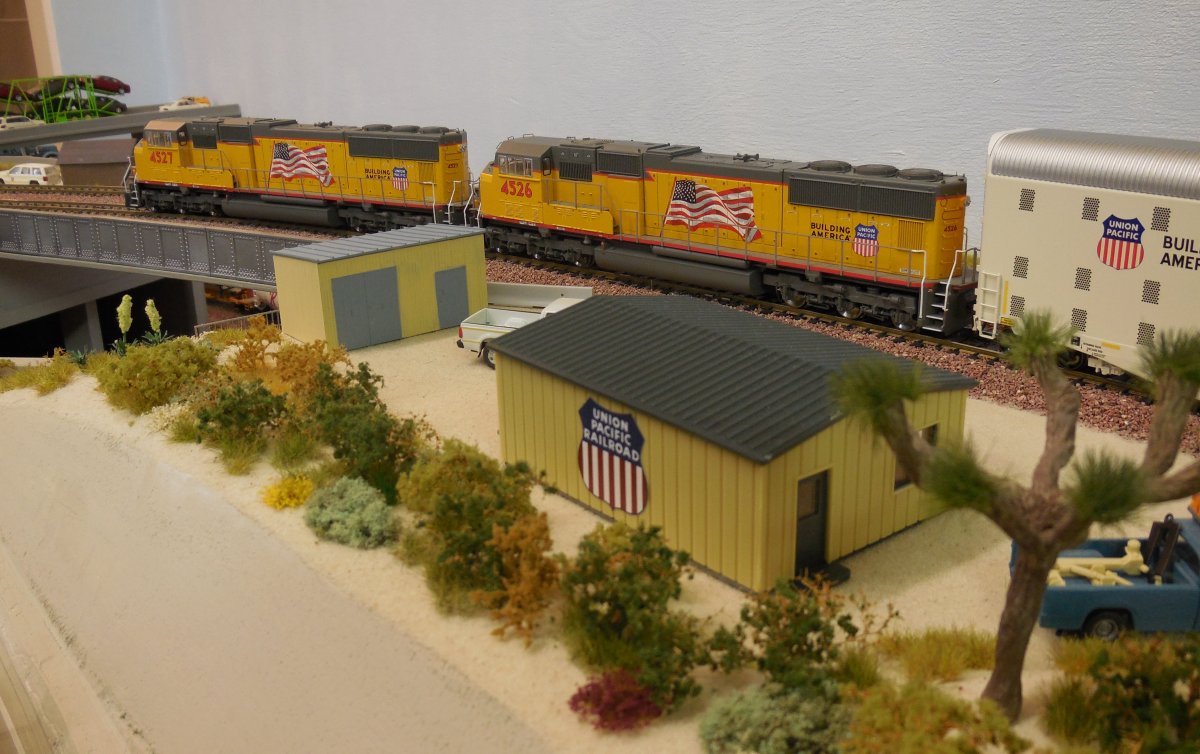

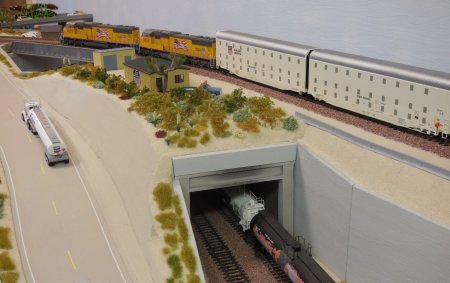

2299	UP Locos and UP Auto Max passing UP MoW office - 2300

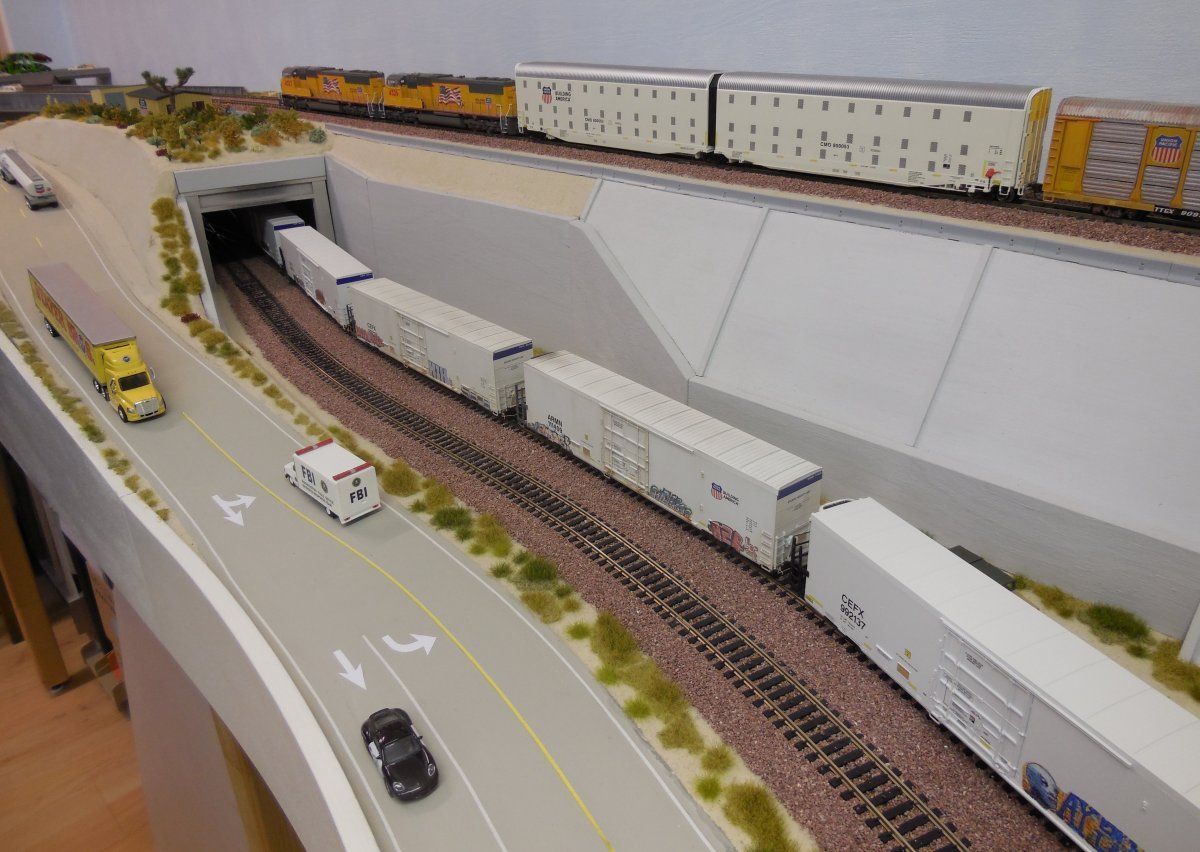

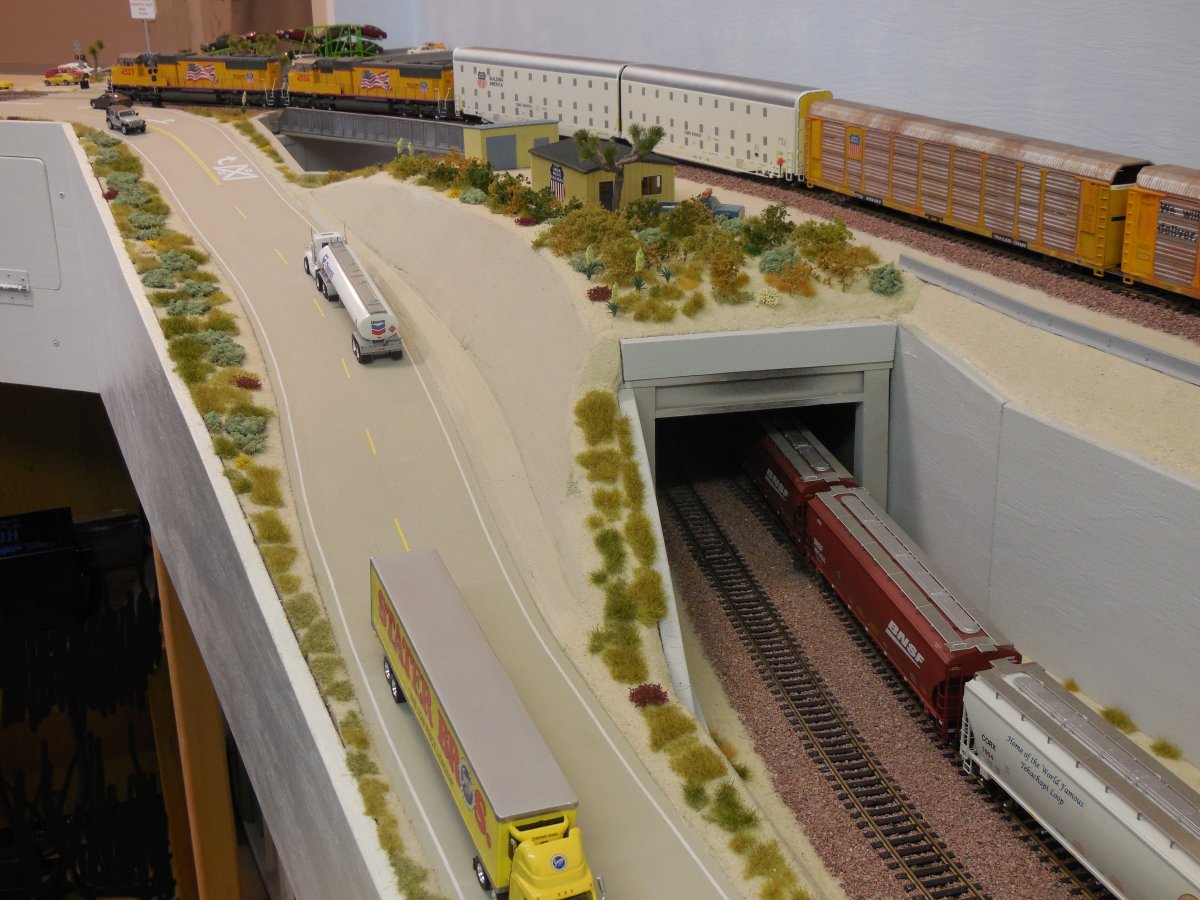

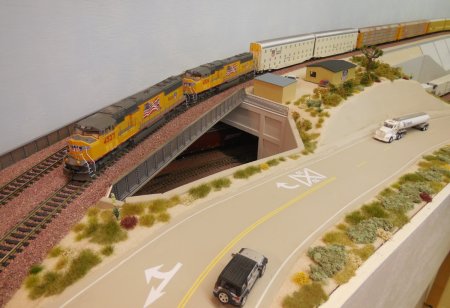

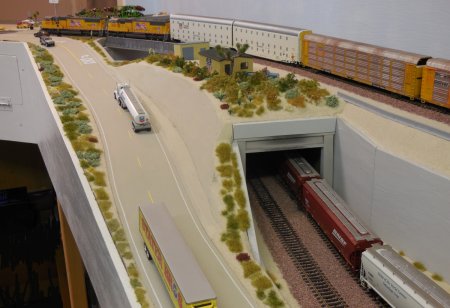

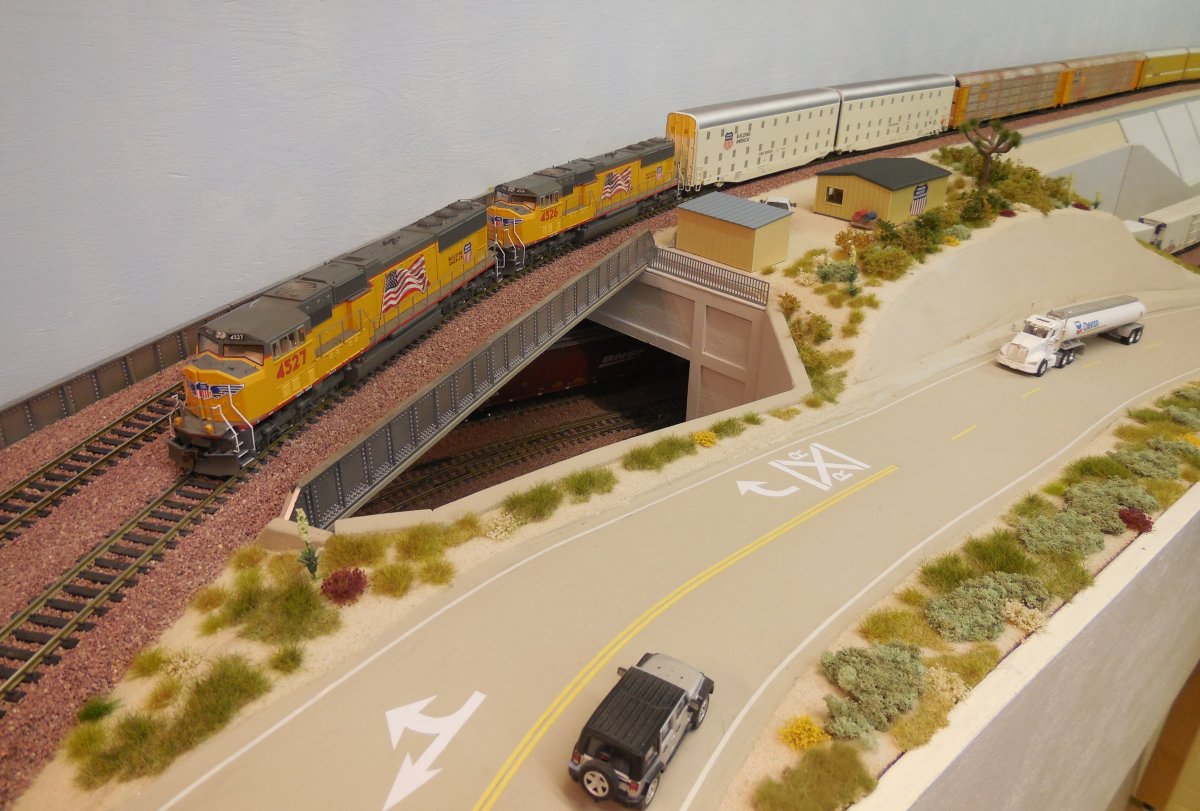

2301	UP Diesels are on the flyover - 2302

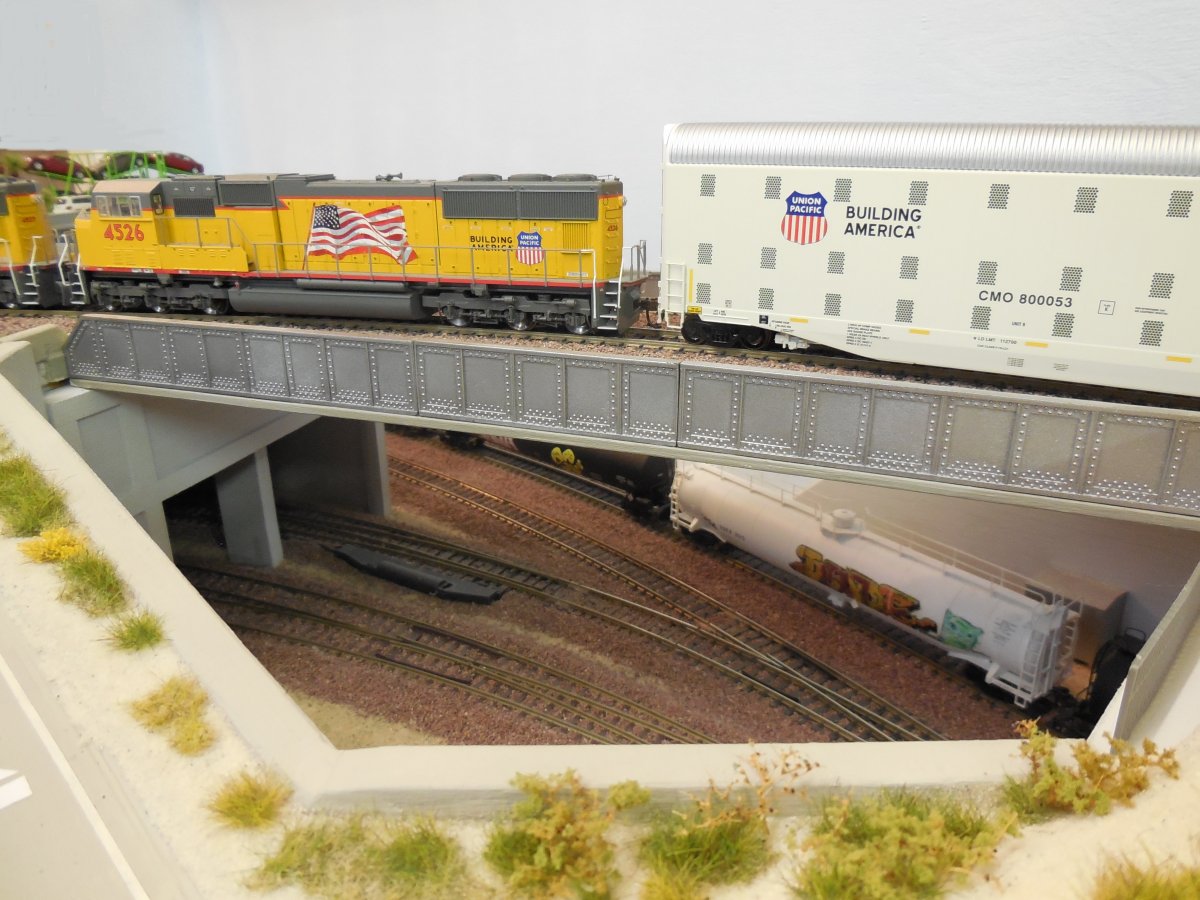

2303	the reason for this opening is the access to the hidden yard - 2304

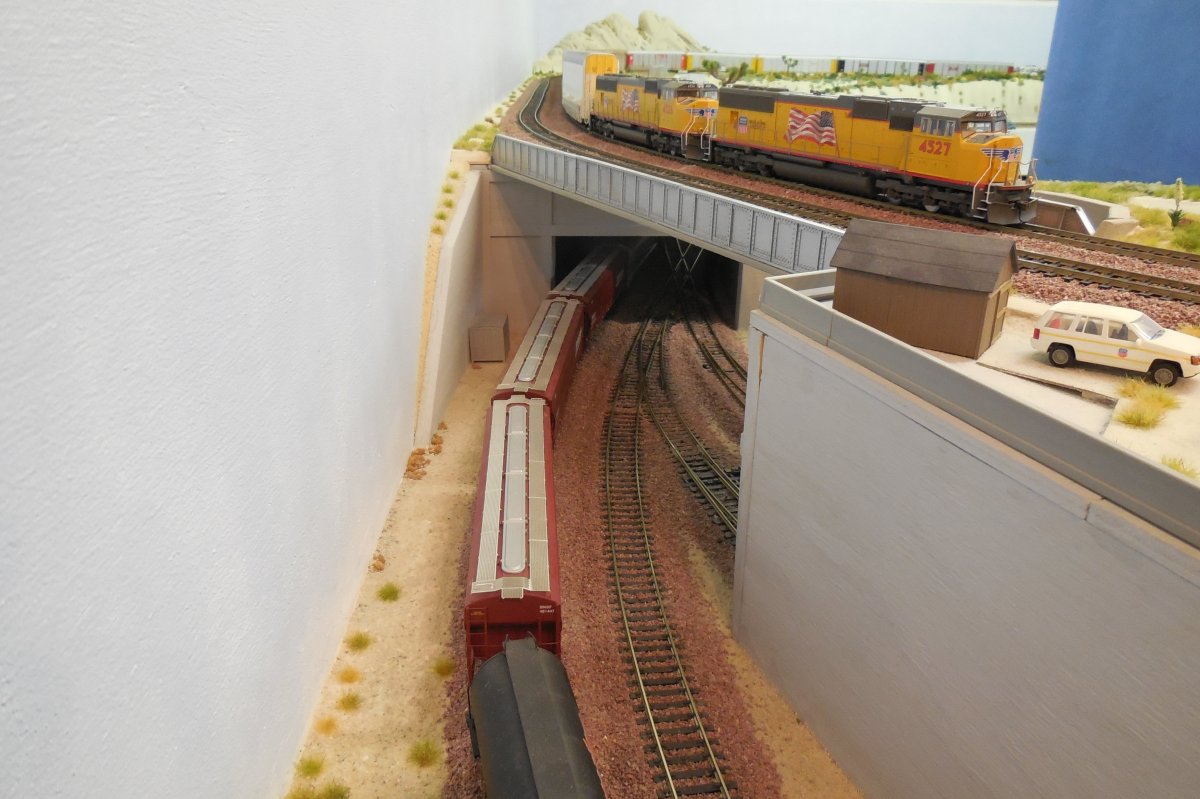

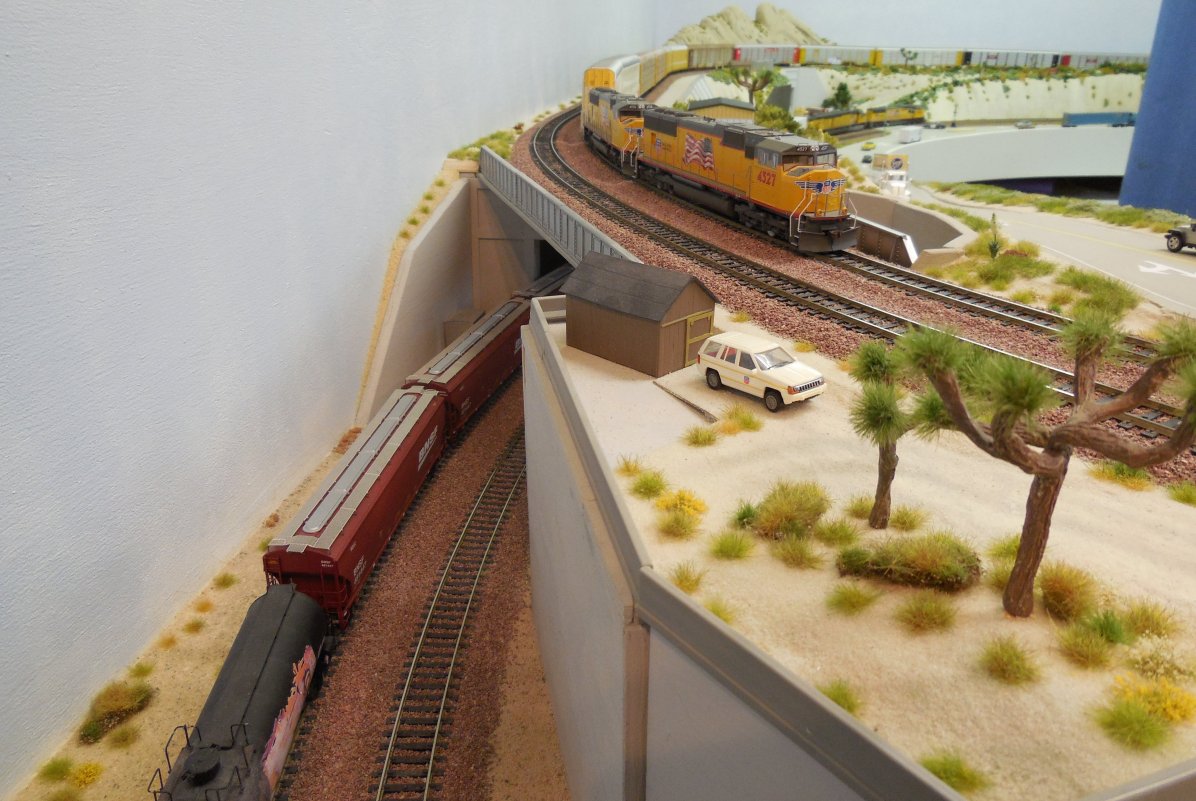

the flyover as seen from the other side - 2305	2306

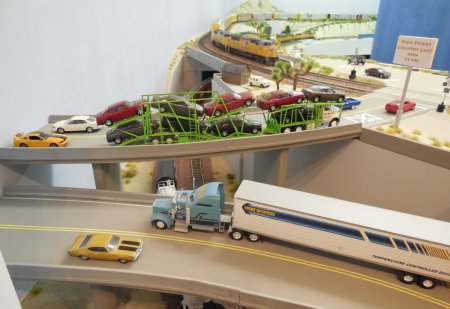

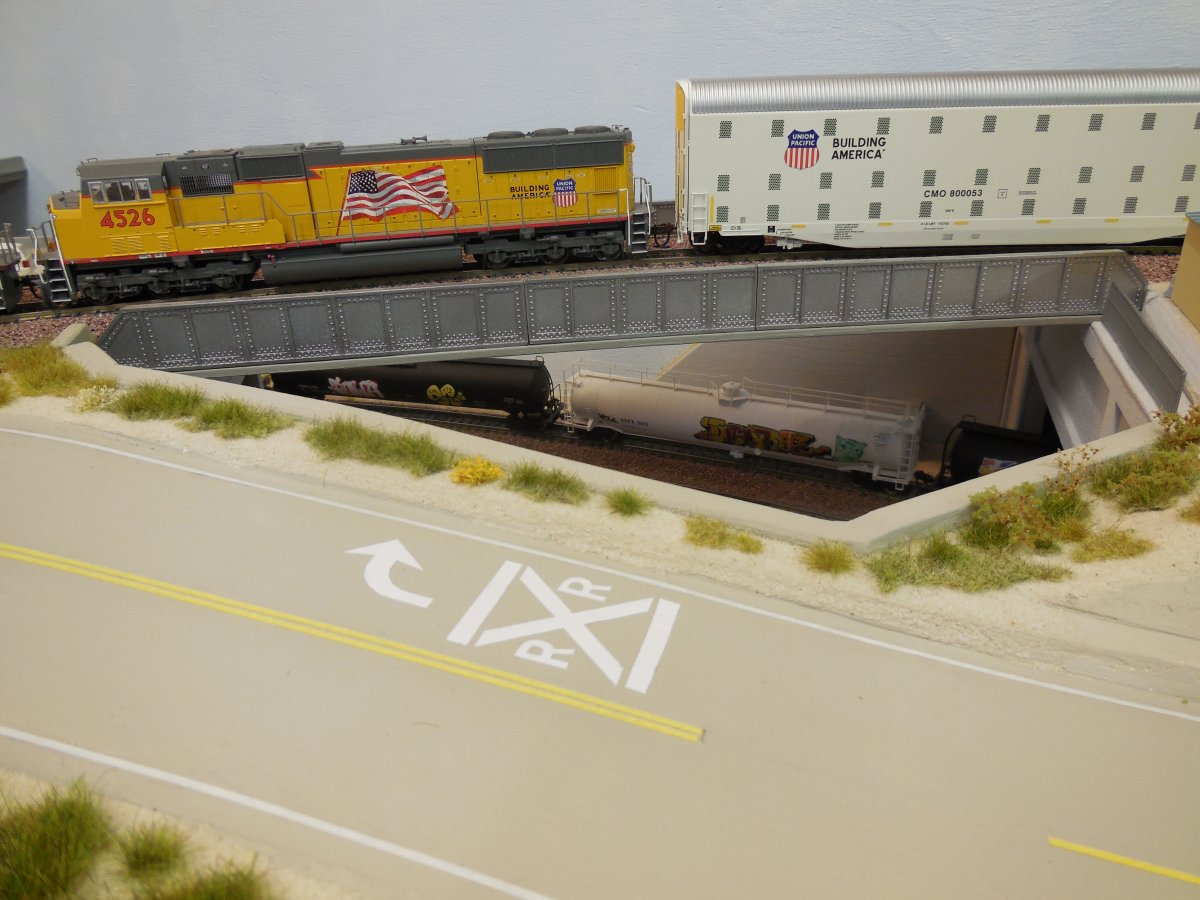

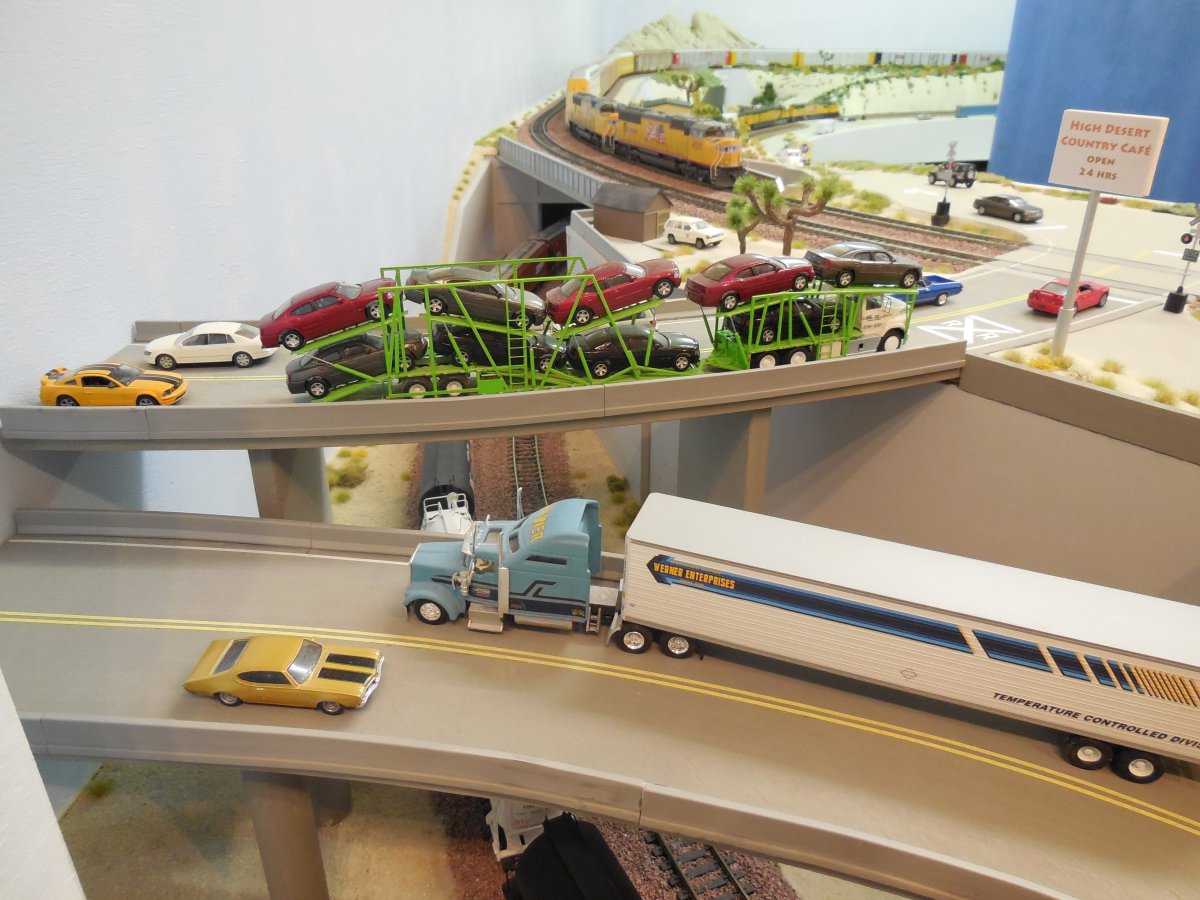

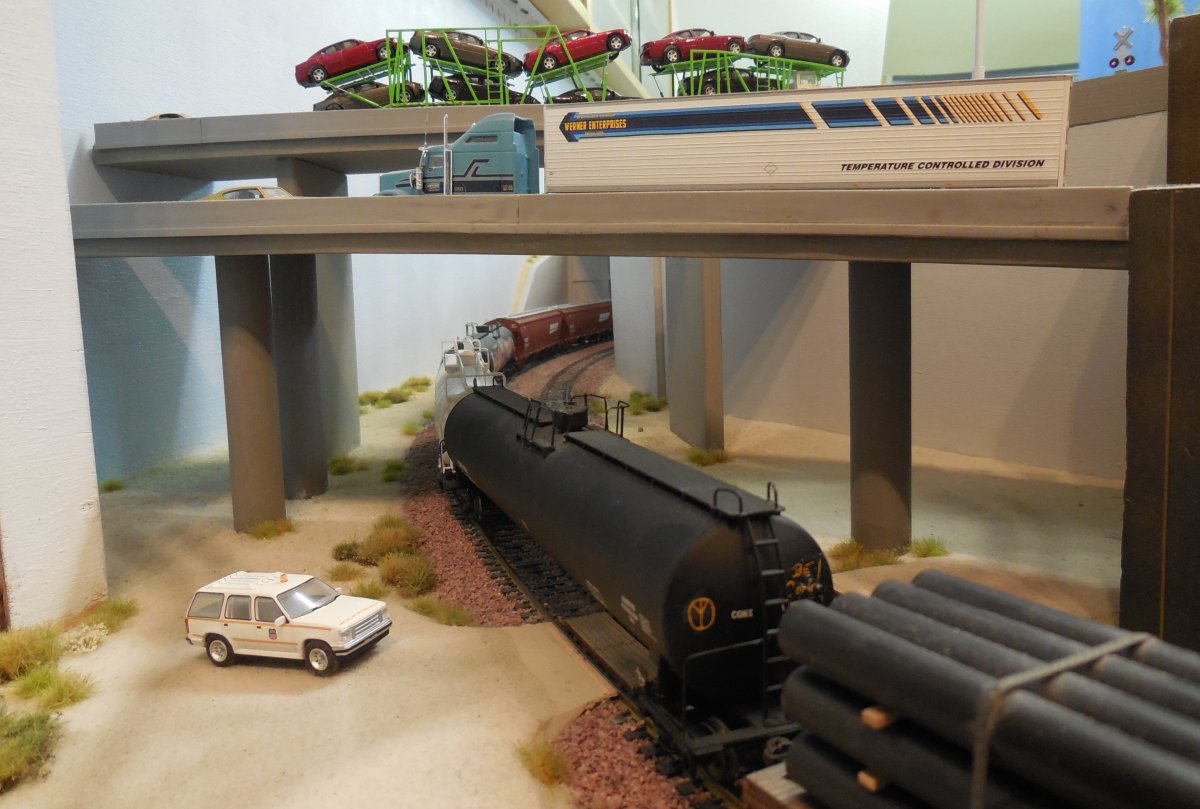

2 road bridges on two different levels - 2307	main line from the passage into office 2 under road bridges - 2308

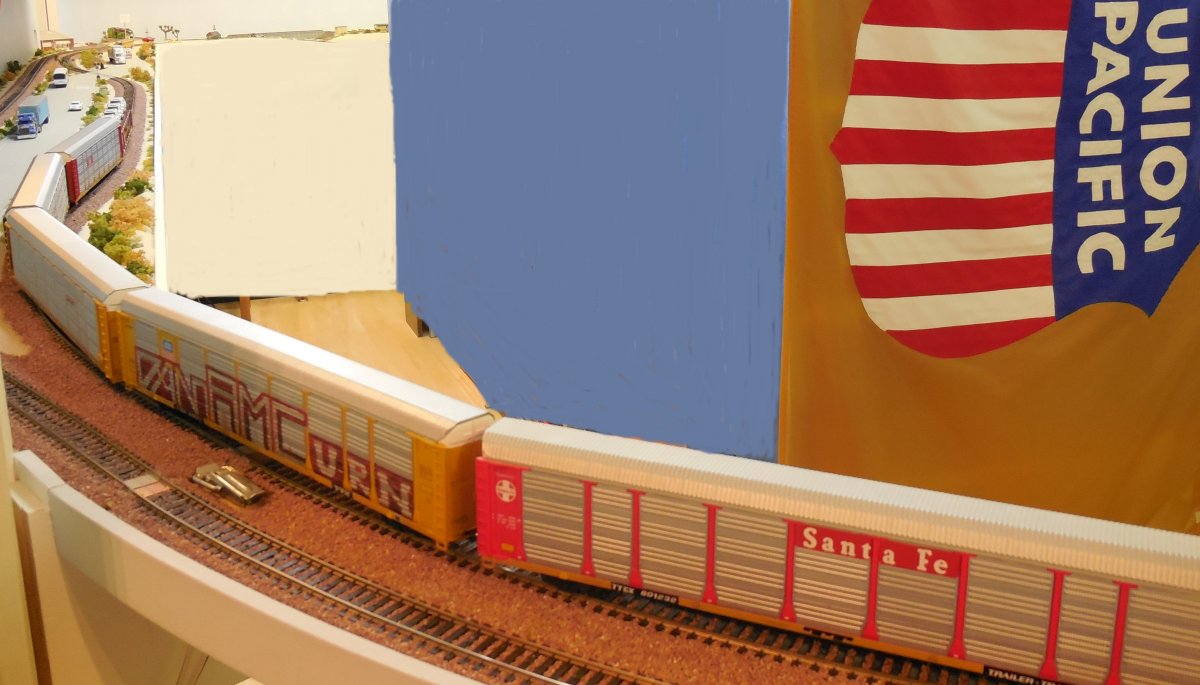

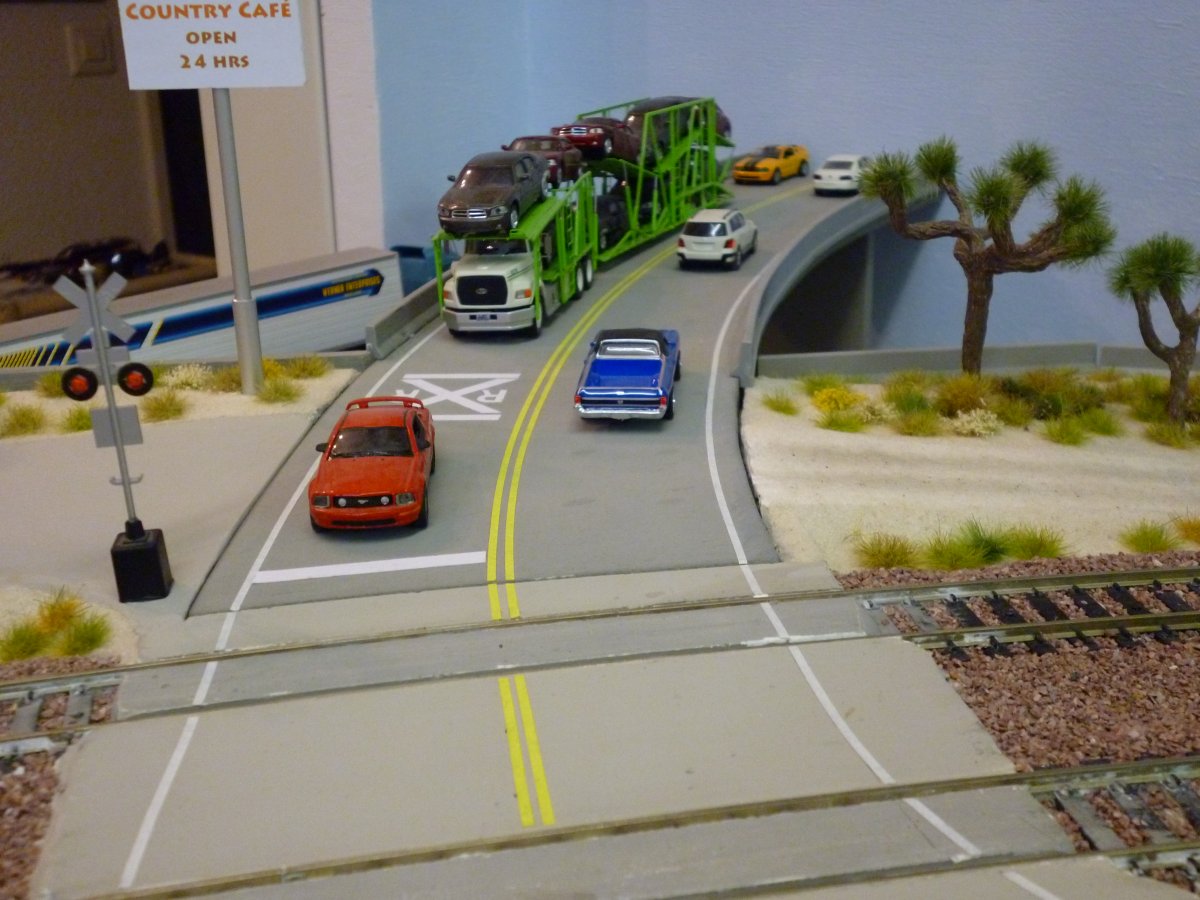

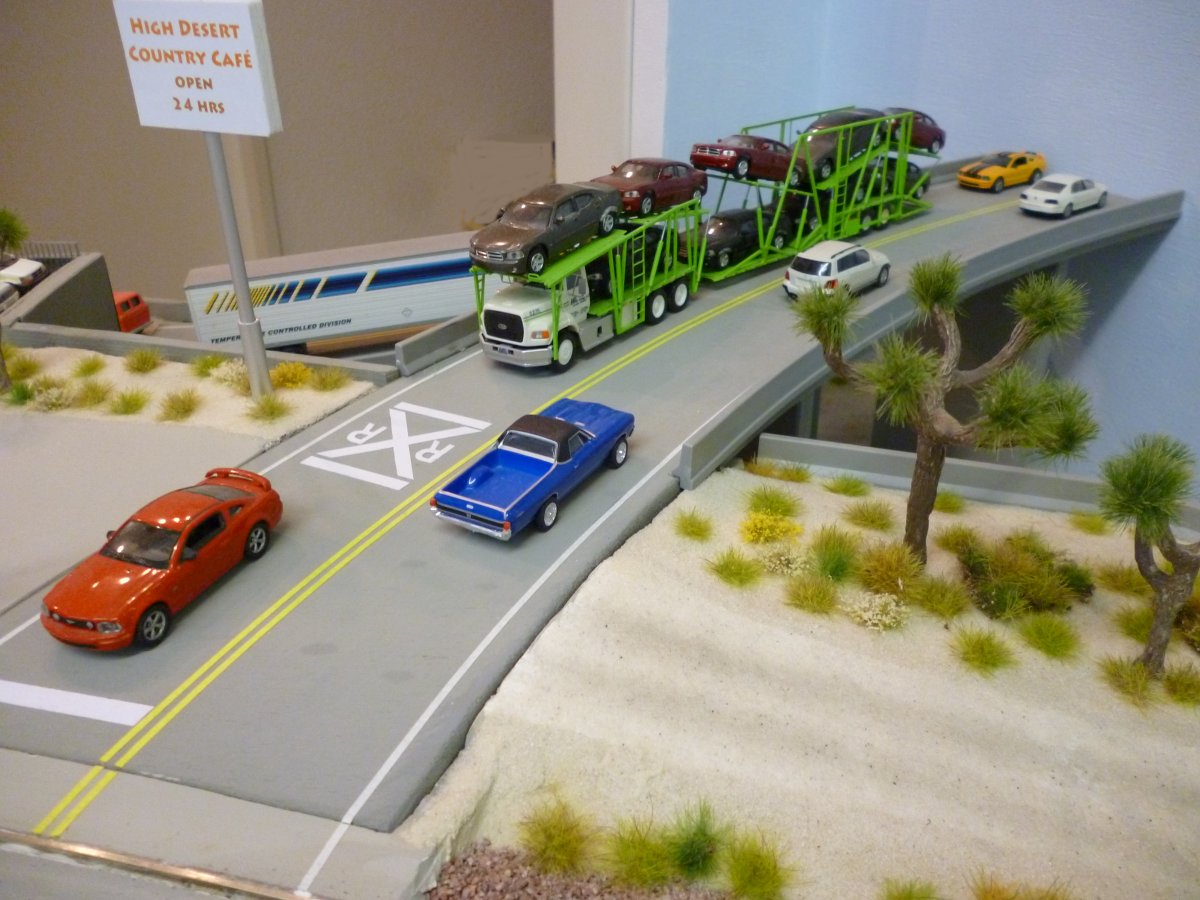

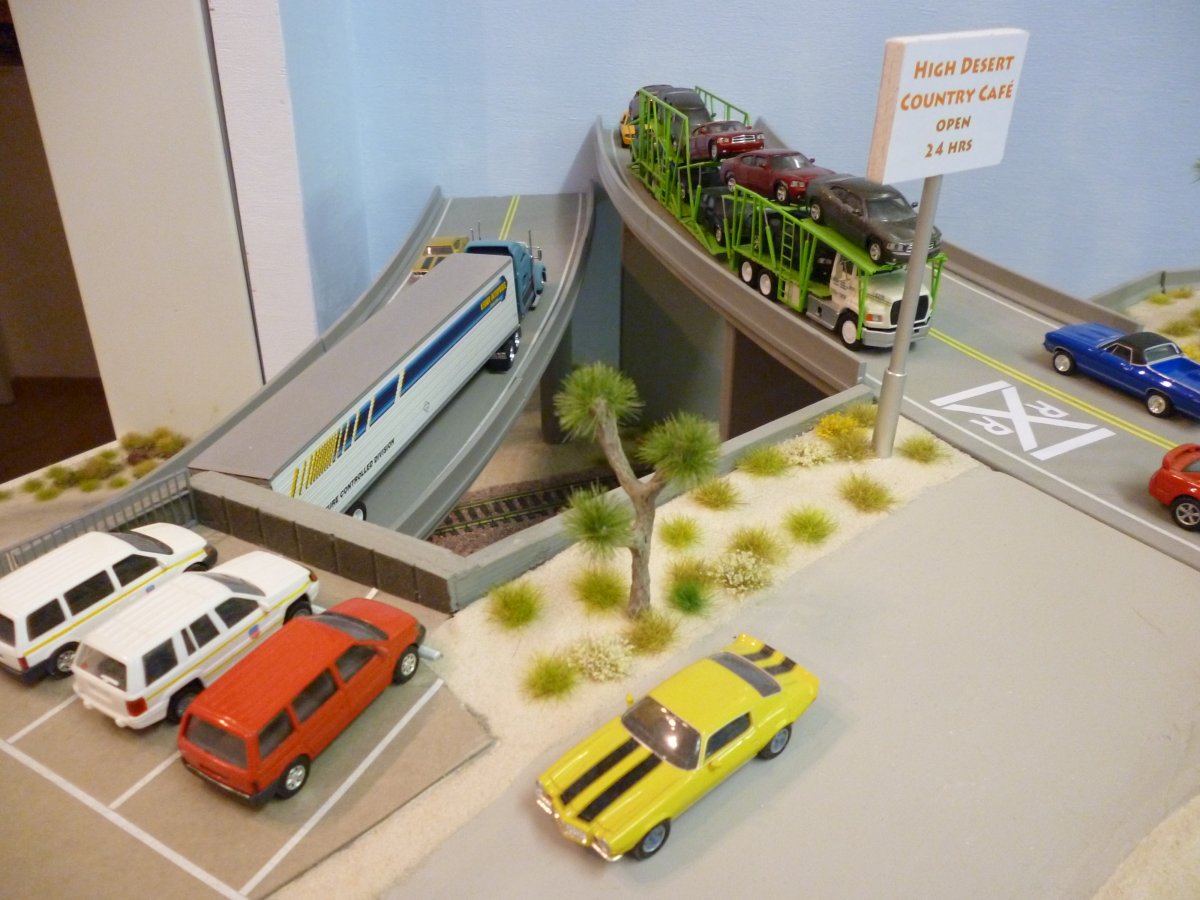

the auto carrier is loaded with new Dodge Chargers - 2340	2341

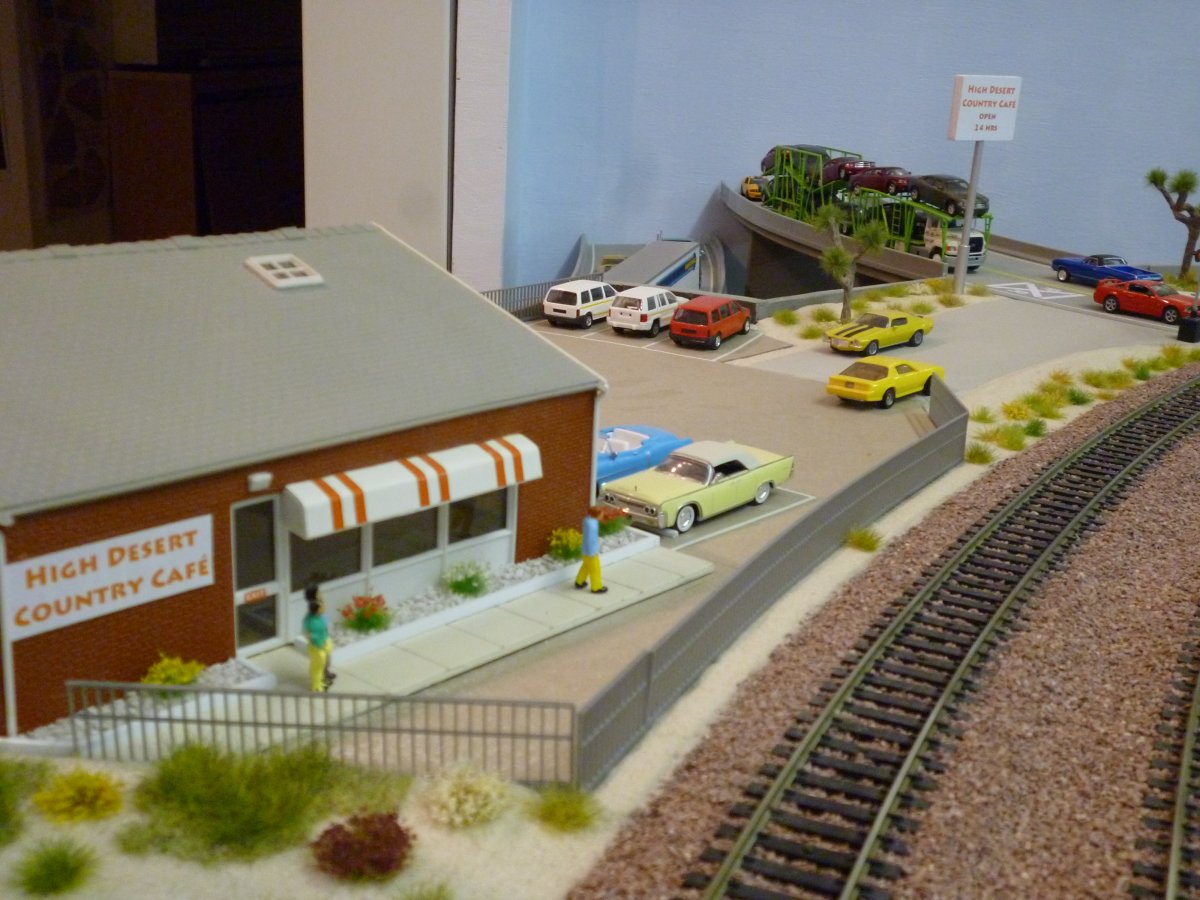

2342	the Coffee shop can be seen from office 2 and the passage - 2343

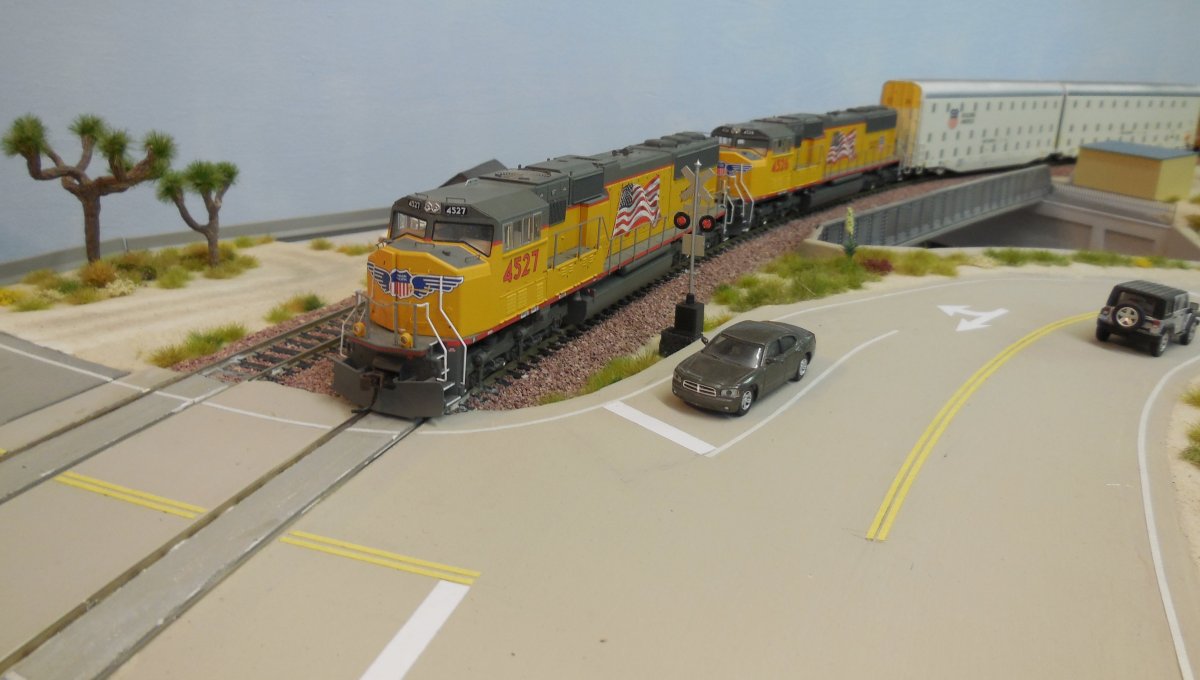

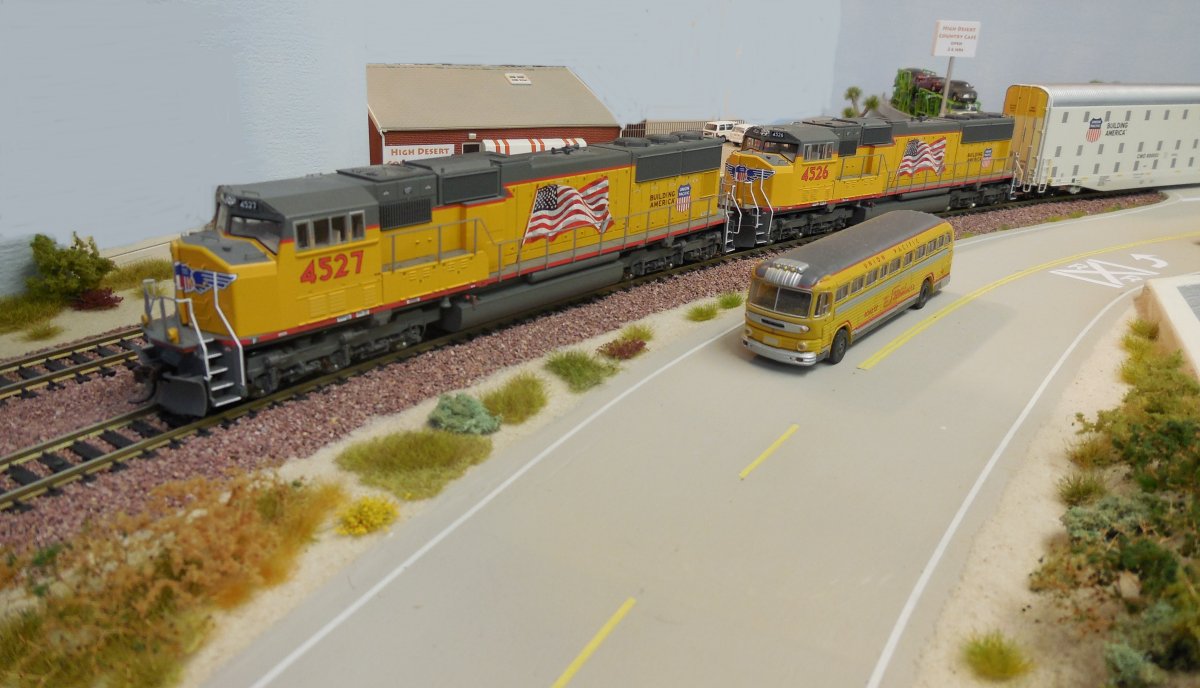

the UP locos are just passing the Coffee shop - 2309	two Joshua Trees bring some desert flavour - 2310

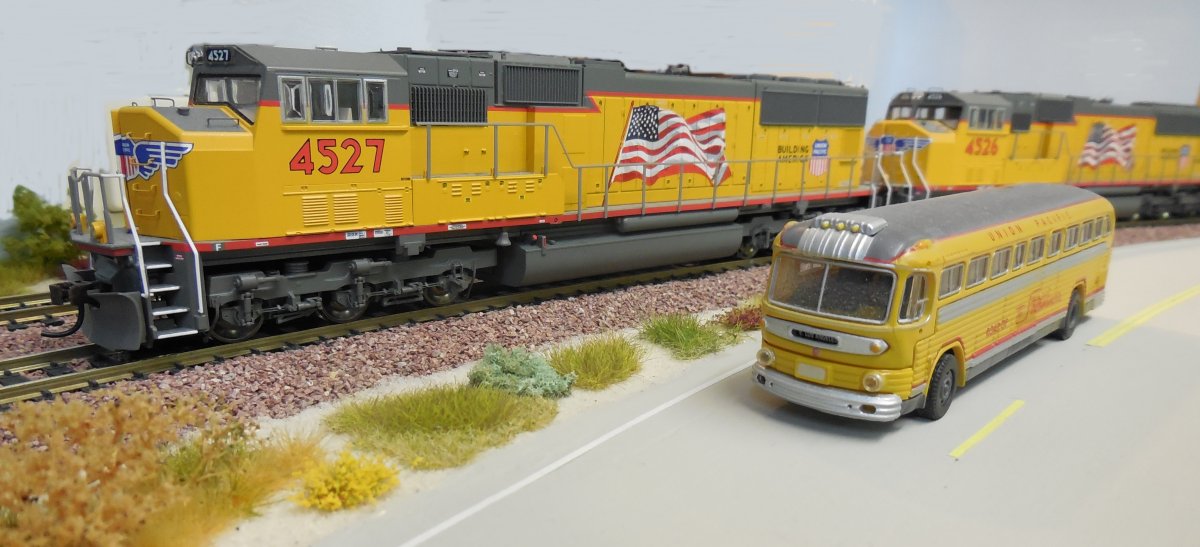

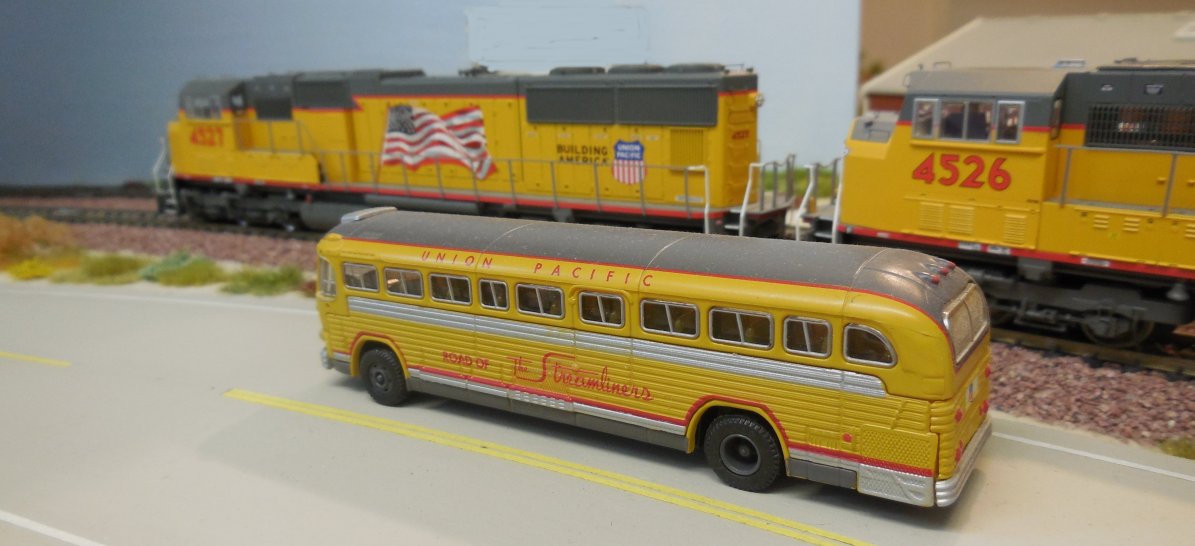

old and new meet each other - 2311	the UP Streamliner Bus is on an excursion - 2312

After the Flyover the layout is going along the wall on a shelf. Below is a 6-track staging yard.

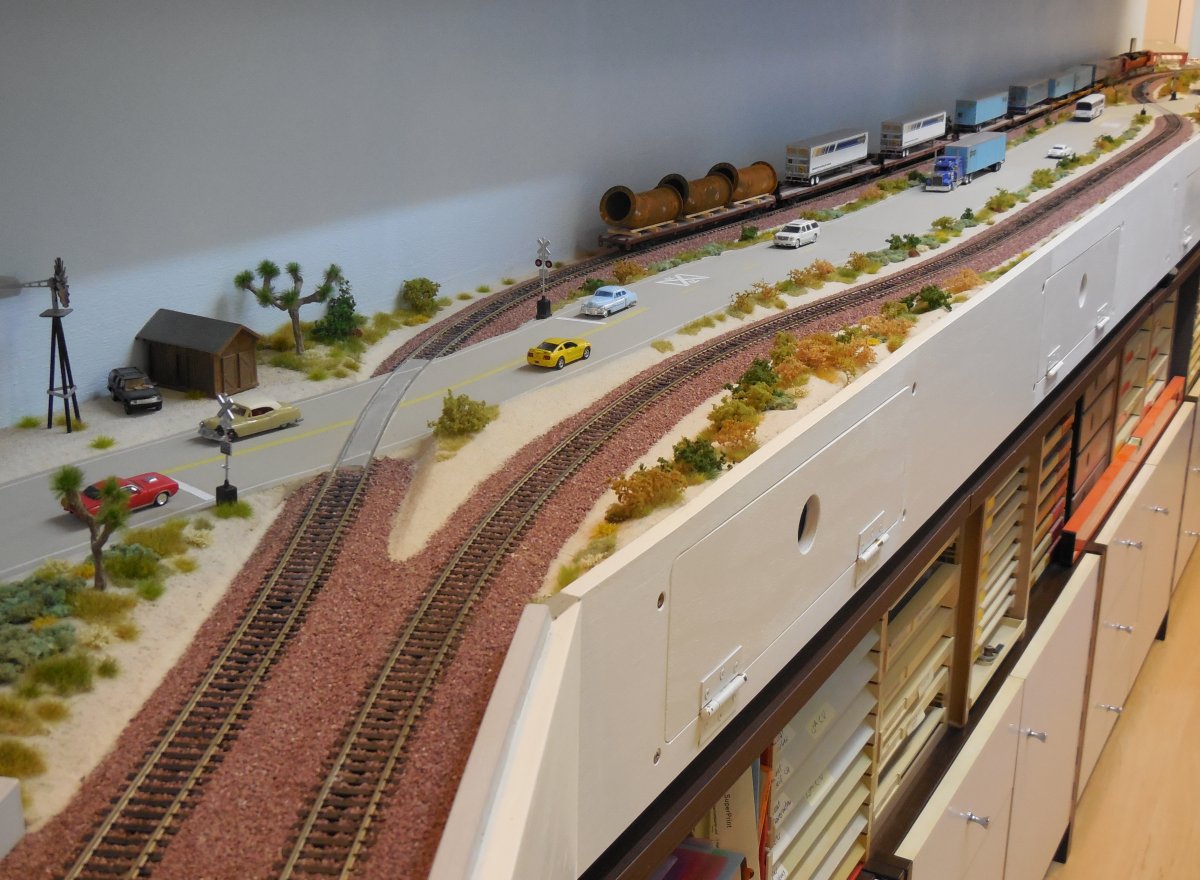

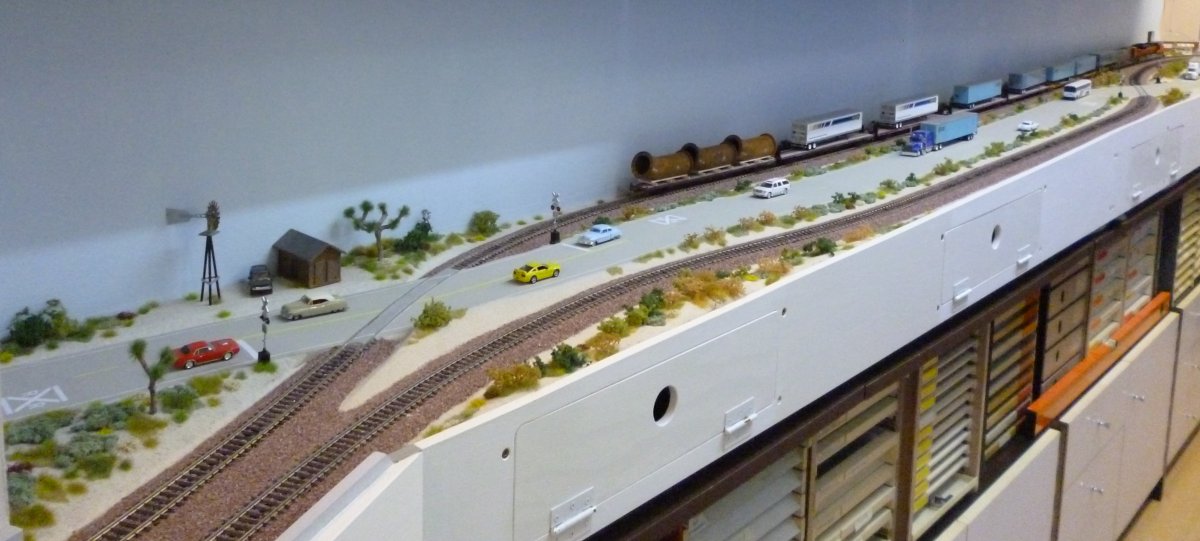

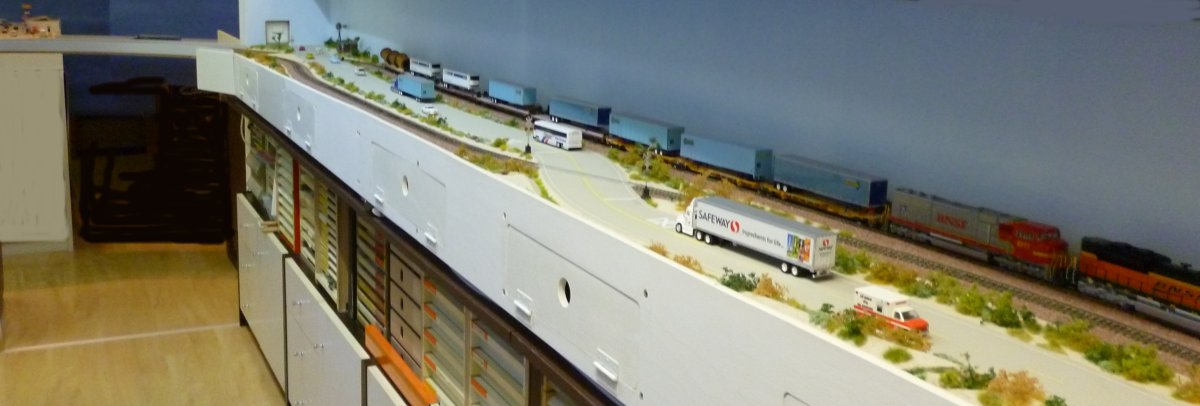

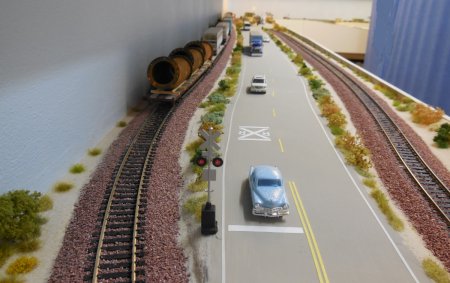

"space saver" as the layout is running along (inside) a shelf, we do not use extra space but get more lenght for the main line - 2313

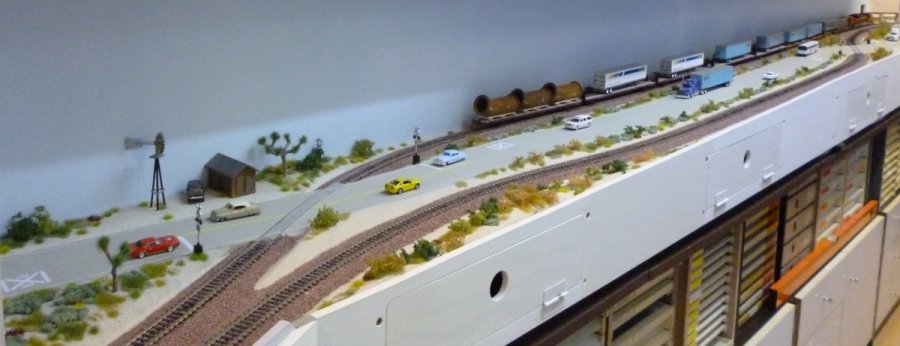

there is even a 6 track staging yard behind the white cover. There are foldable doors to access the hidden yard (if trouble) - 2314

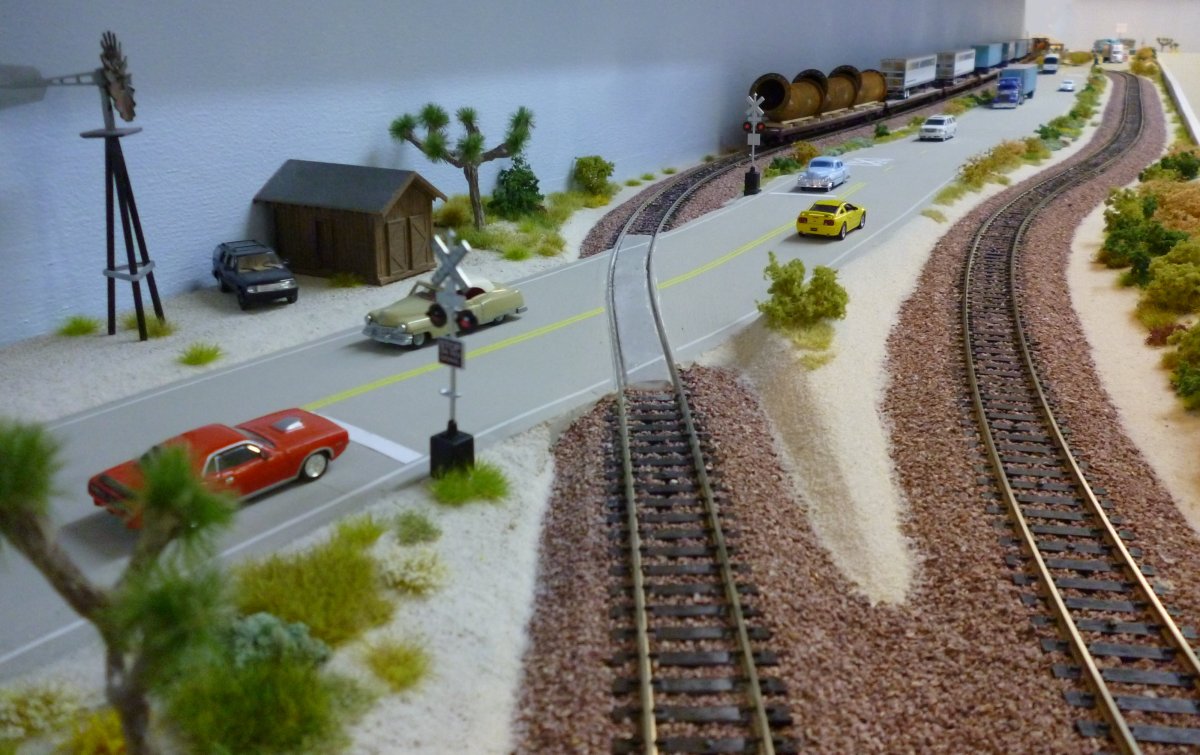

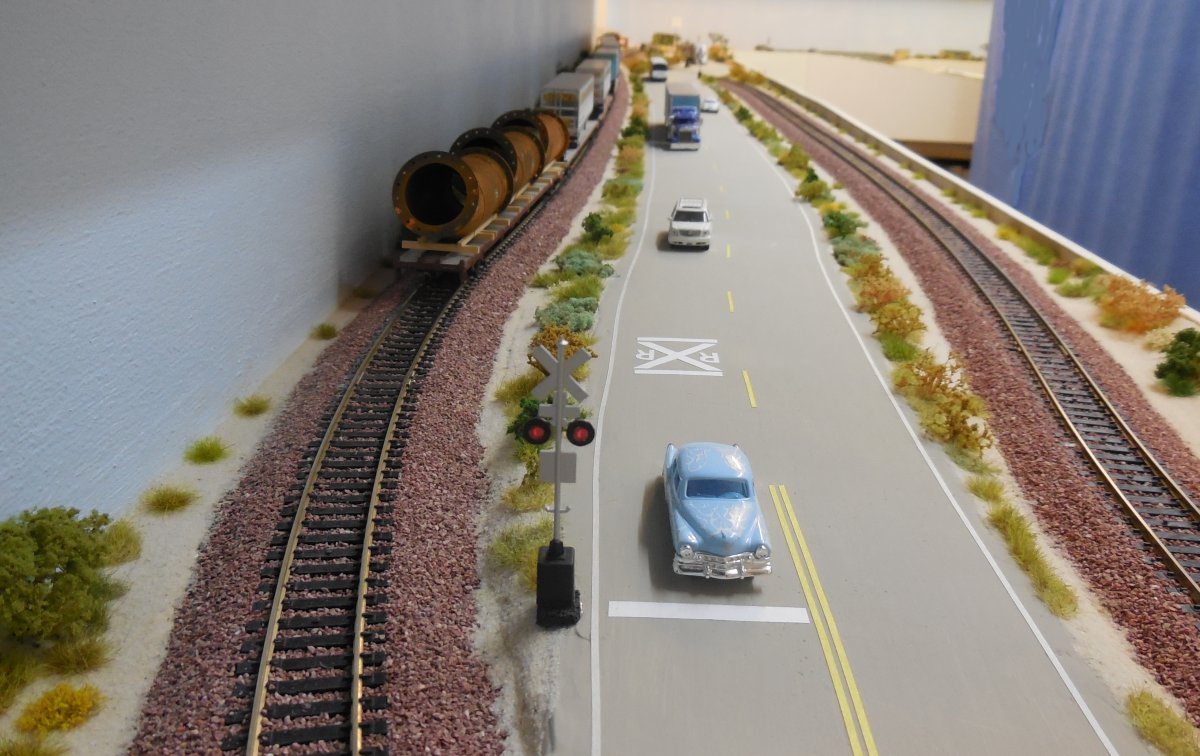

2315	2316
2317	2318

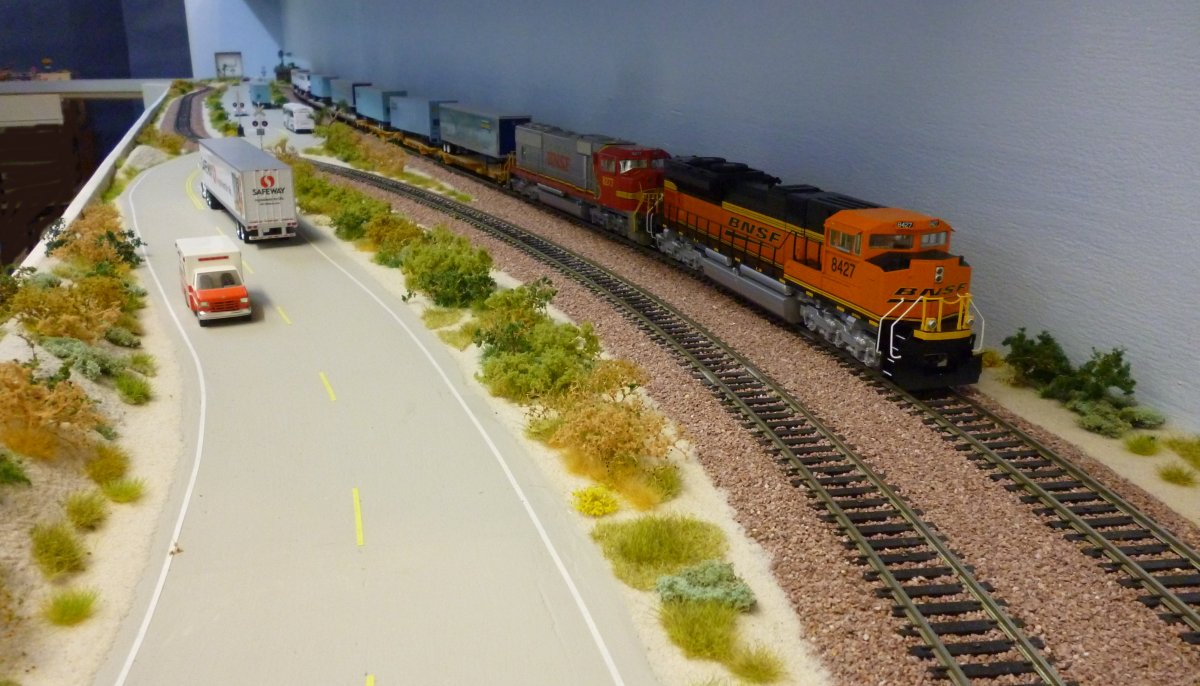

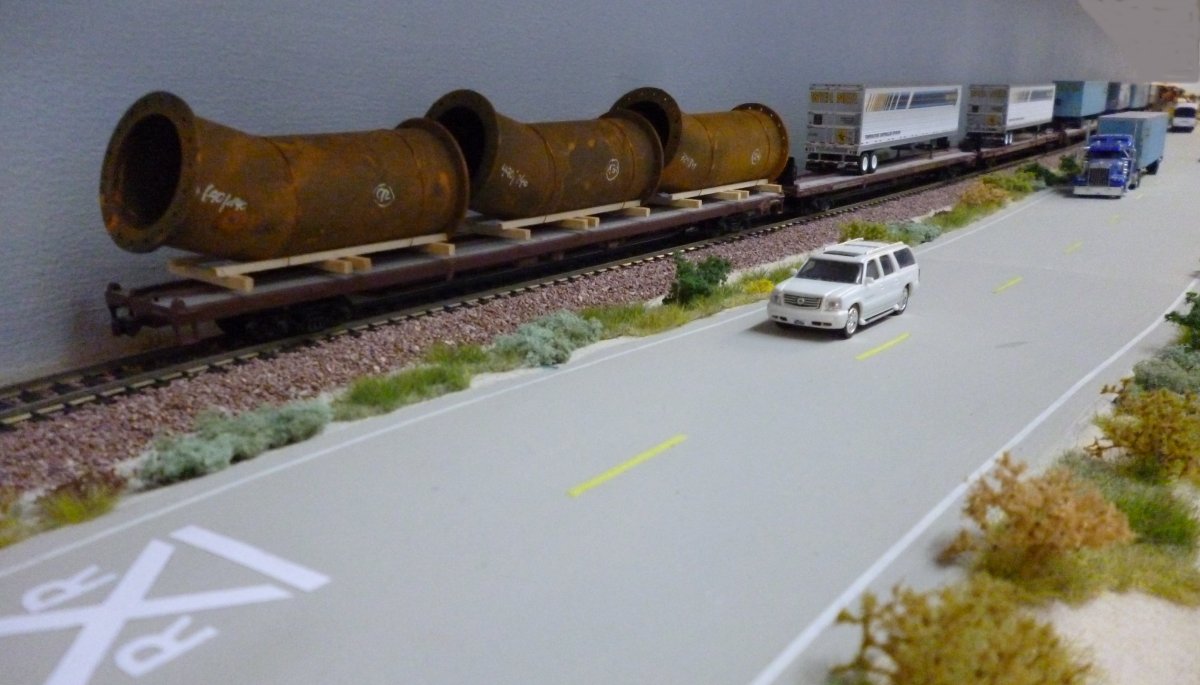

2319	2320

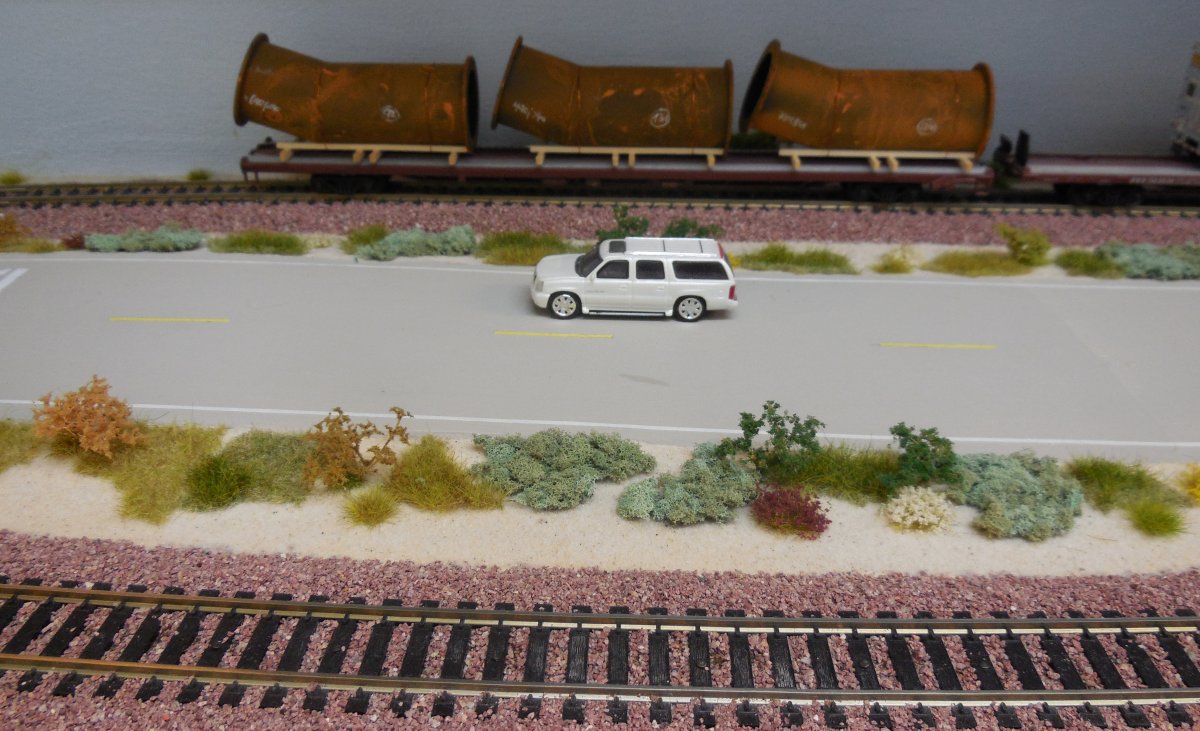

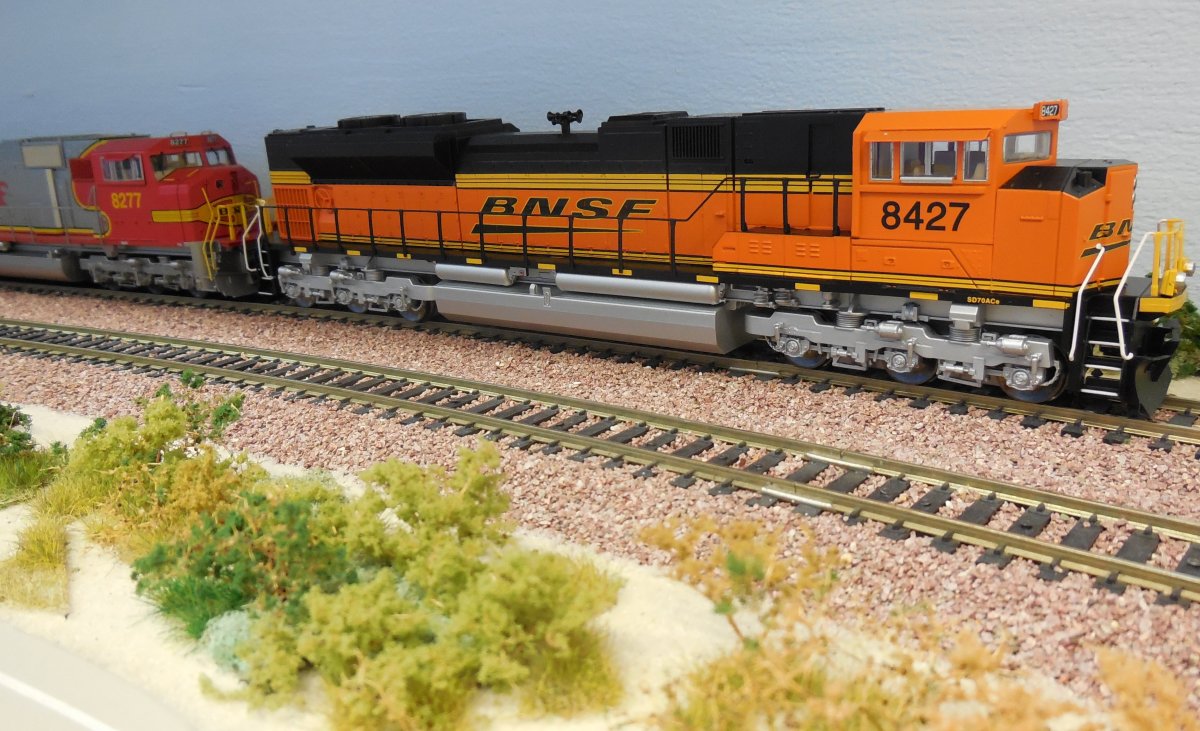

2321	Walthers Mainline EMD SD70ACe - 2322

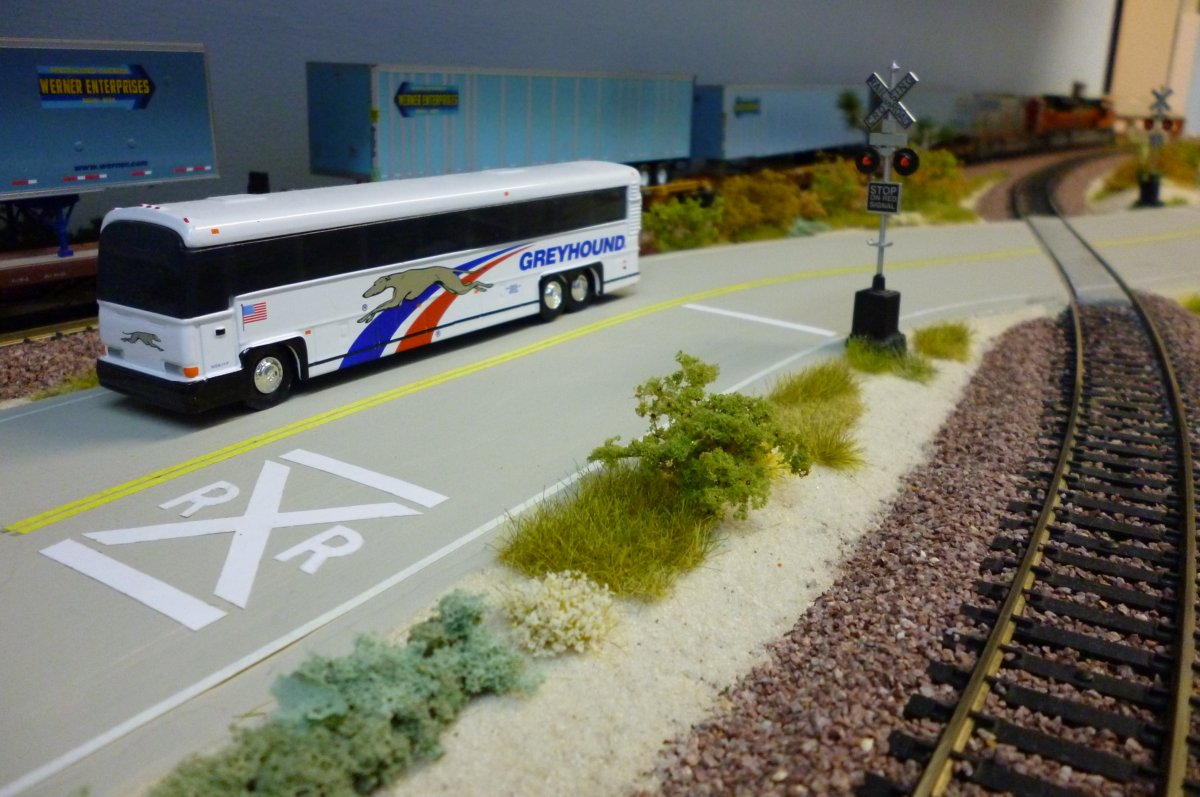

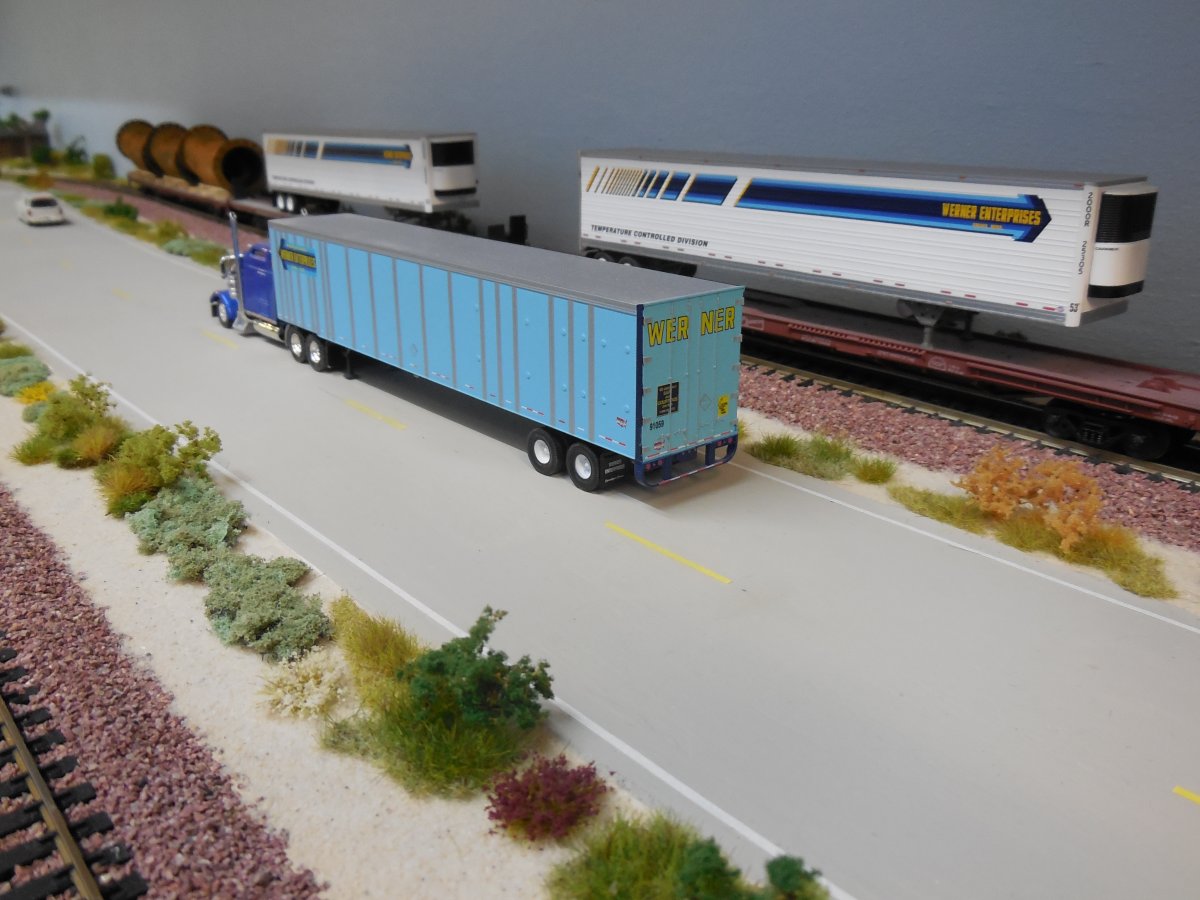

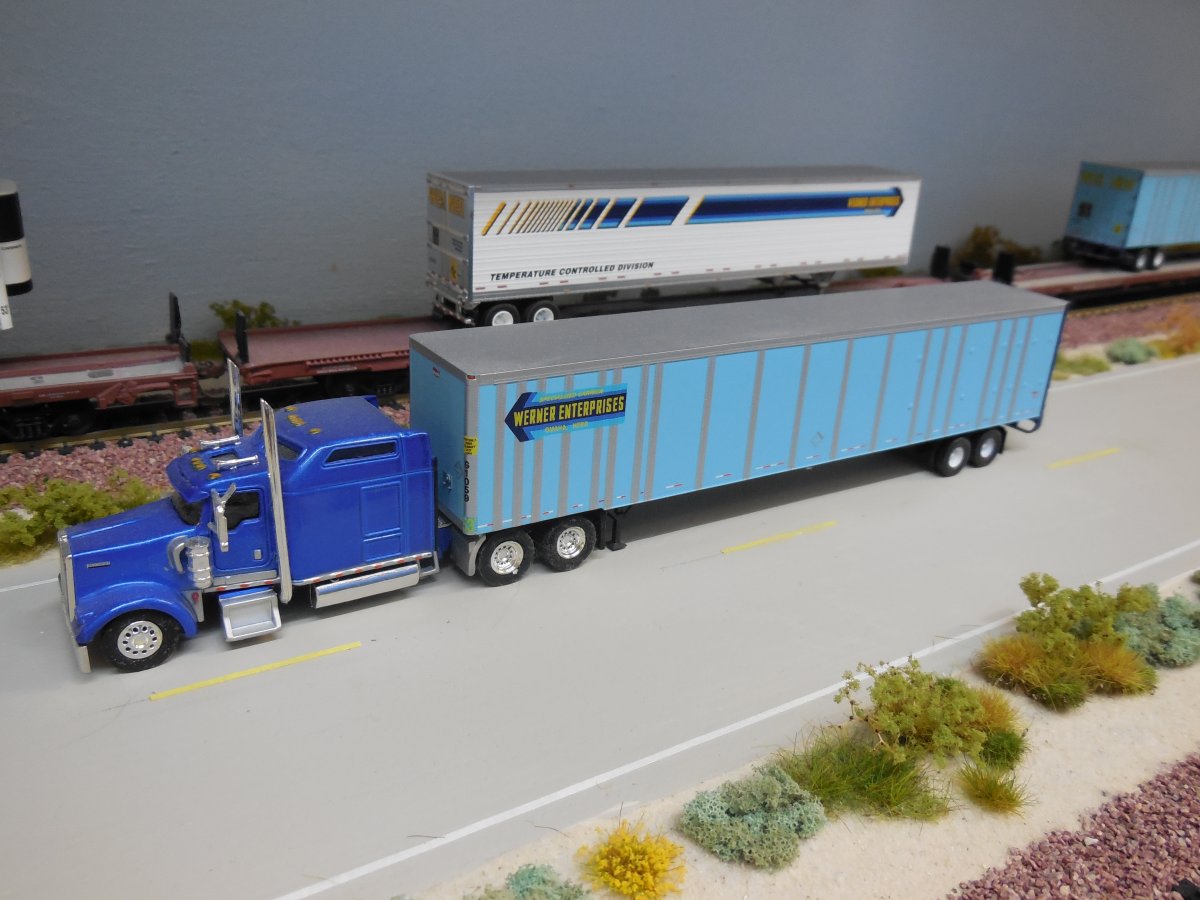

Werner is active on the road and on the rails - 2323	2324

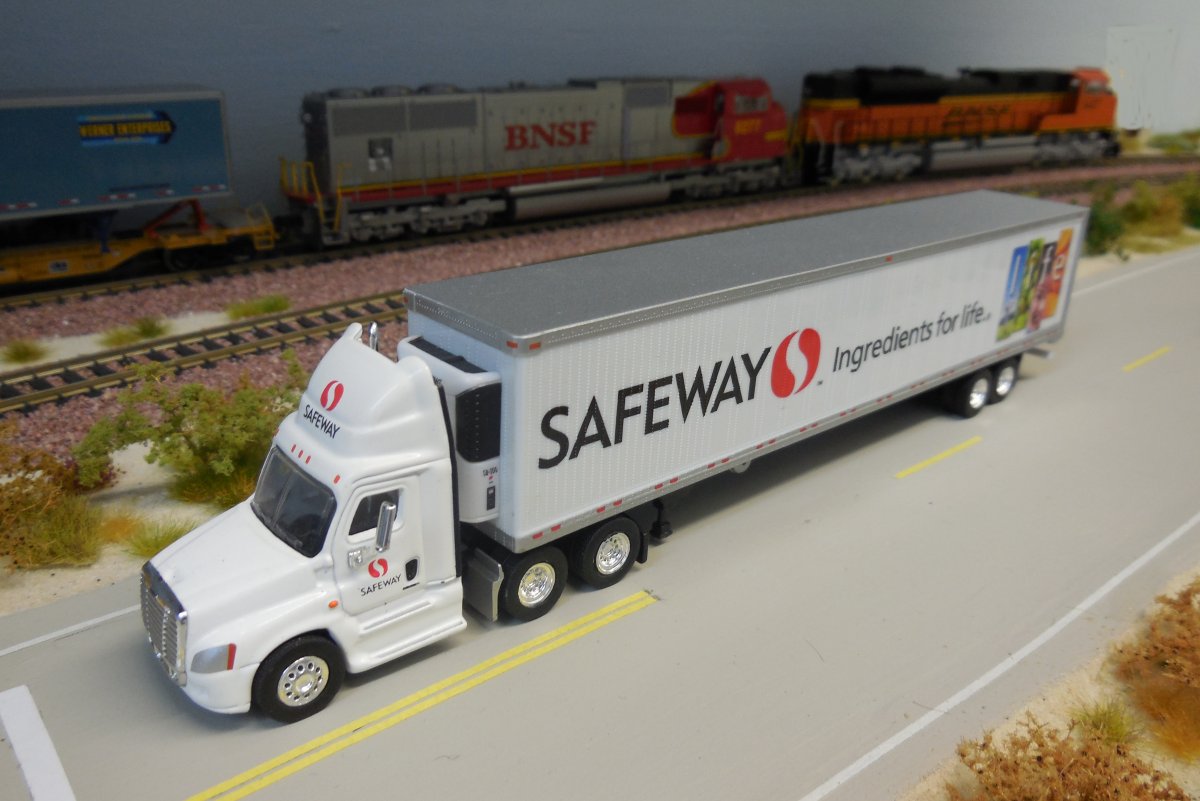

2325	2326

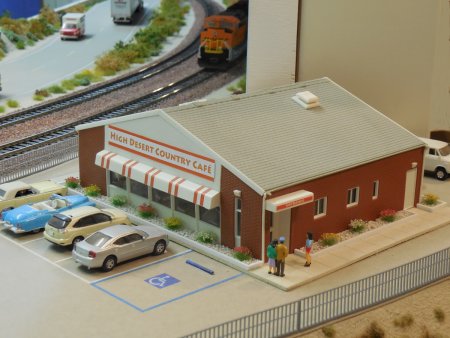

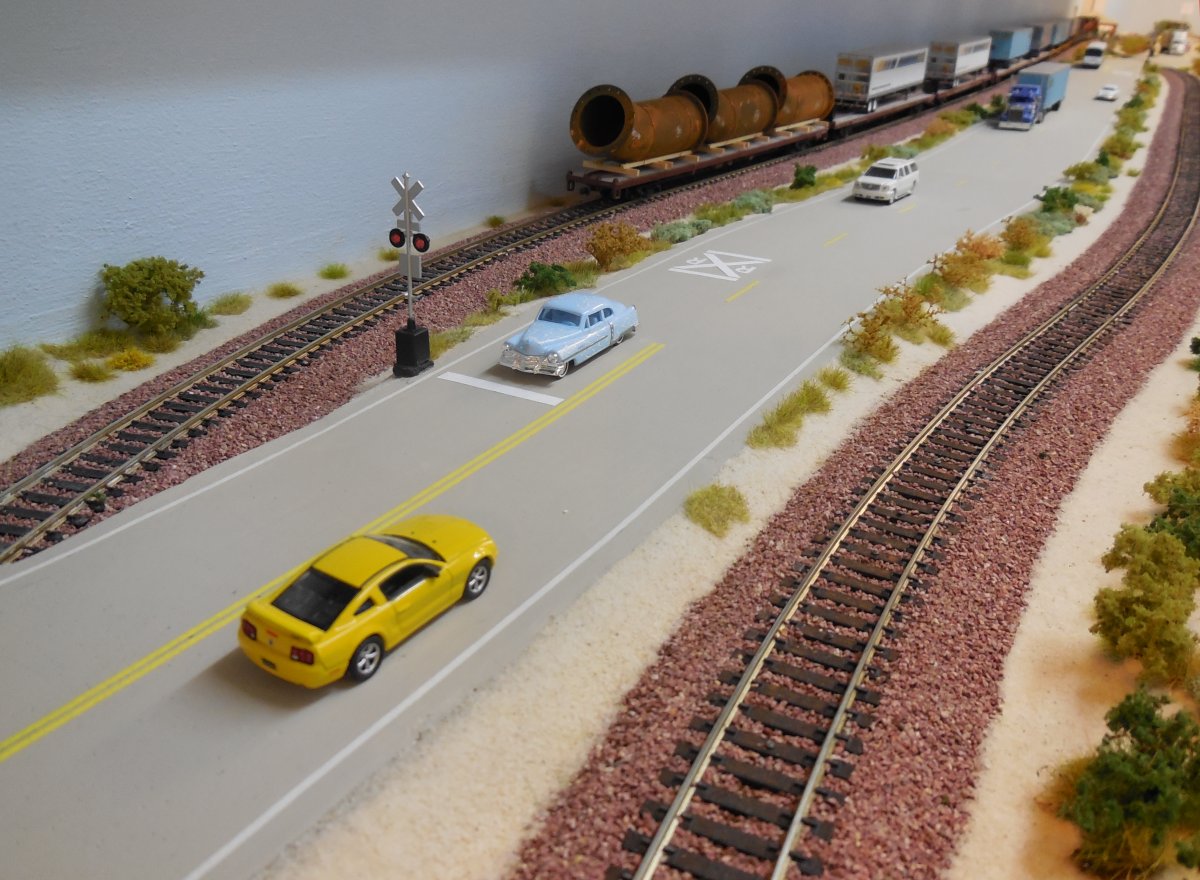

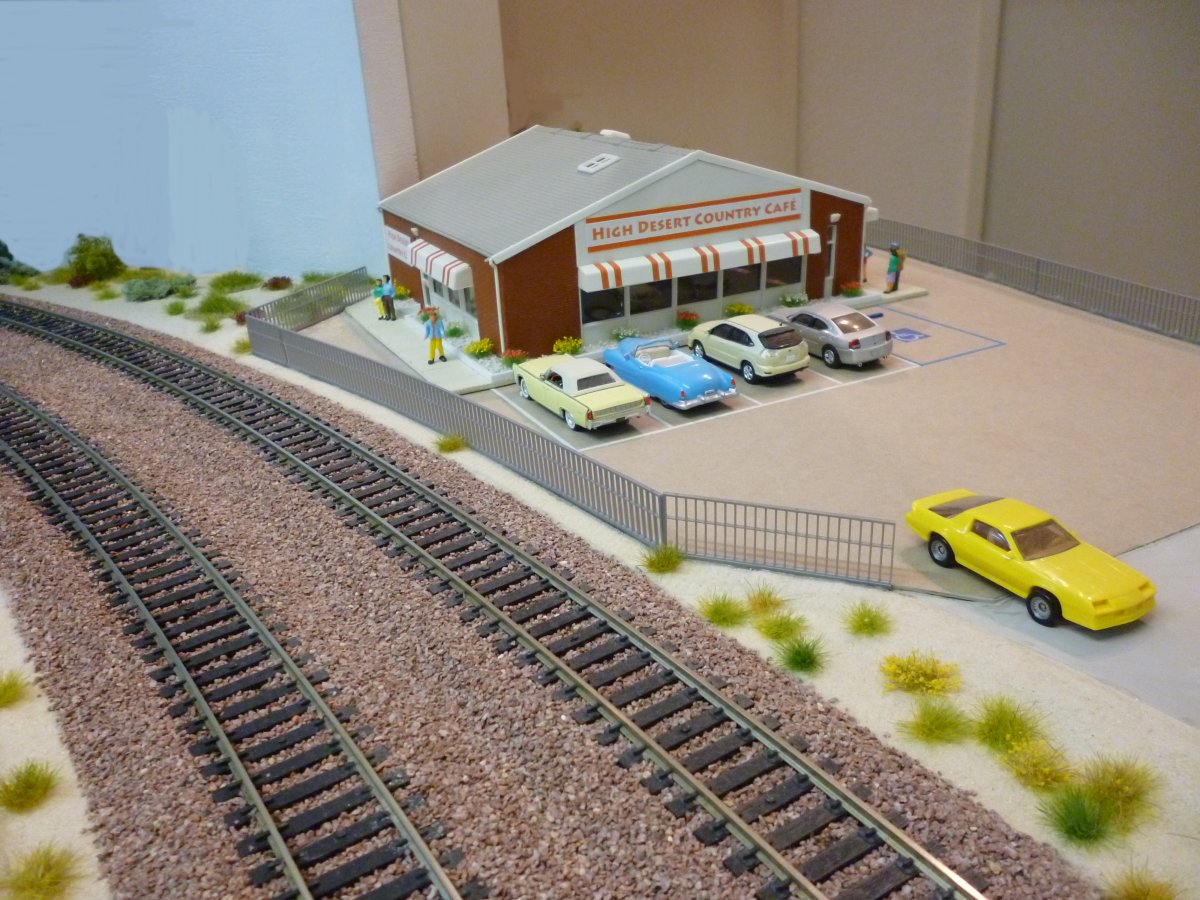

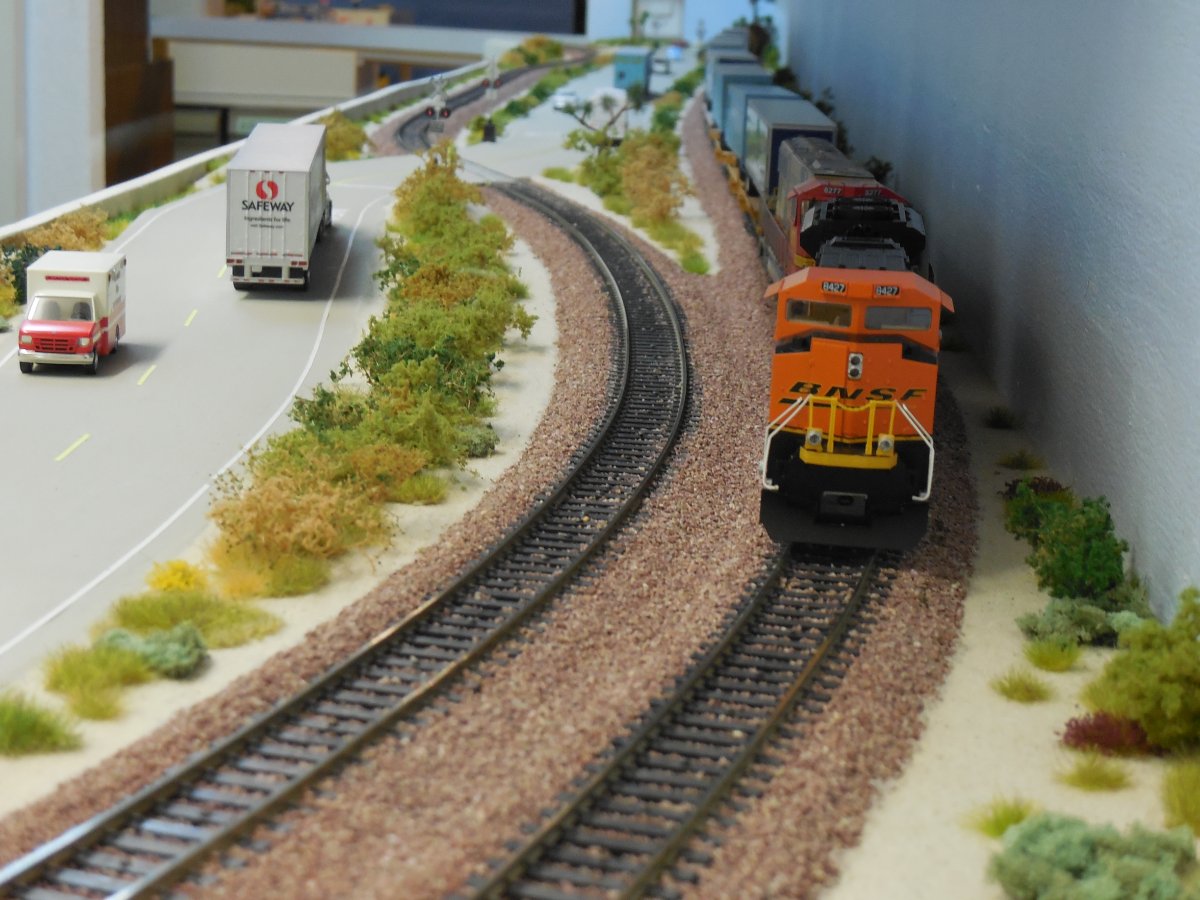

the width is just 40 cm - 2344	Coffee shop as seen from the passage - 2345

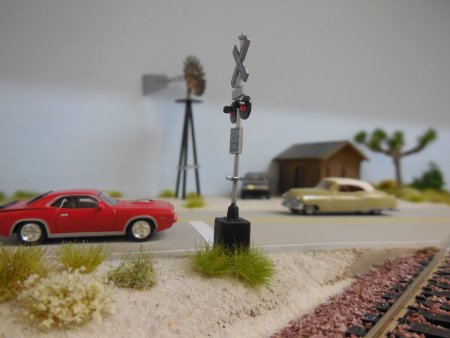

2327	Coffee shop as seen from office 2 (inside) - 2328
view from office 2 to office 1 over the curved bridge. Right side is the Werner Enterprises Terminal and left the Percyville Extension - 2116

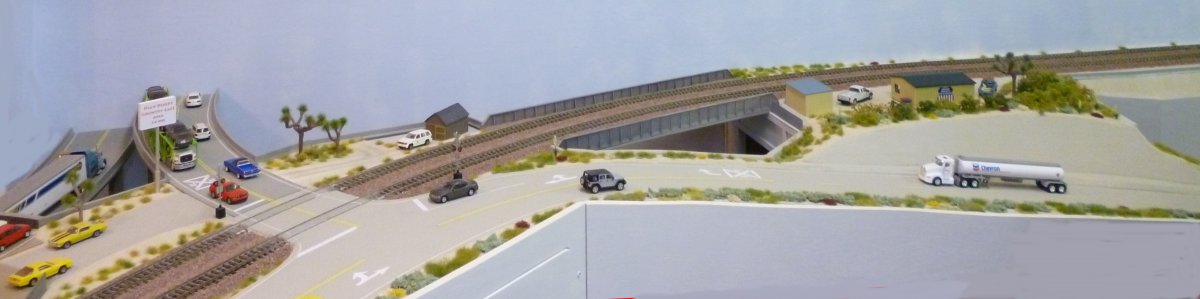

flyover in the middle - 2329

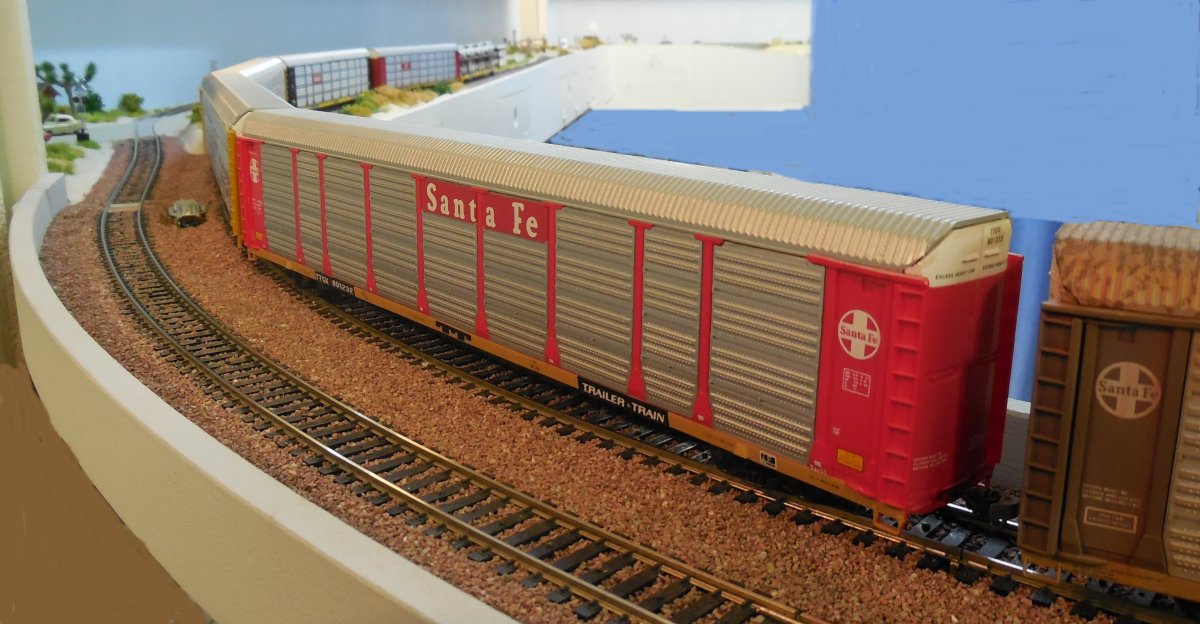

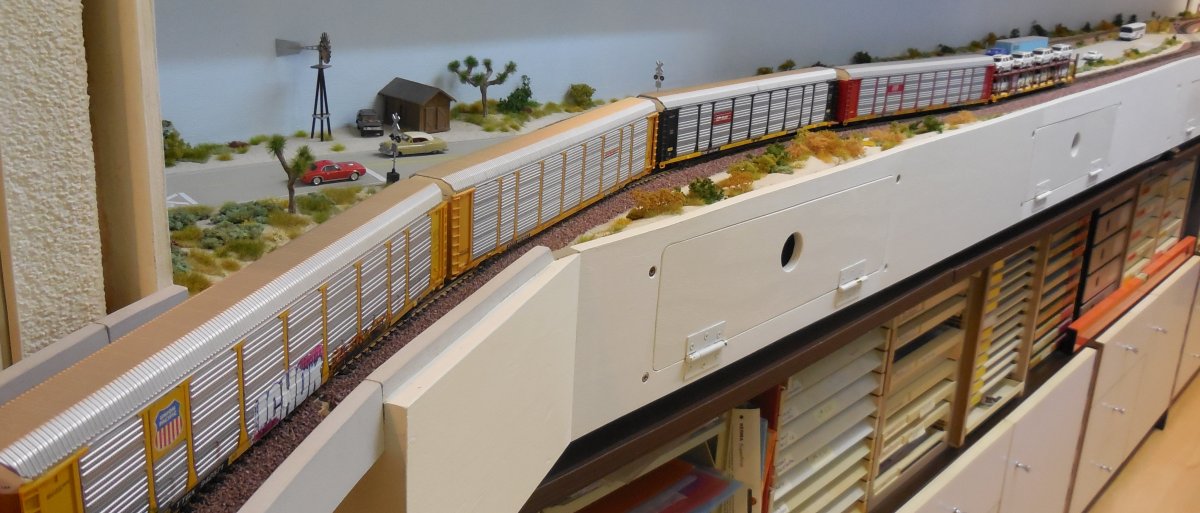

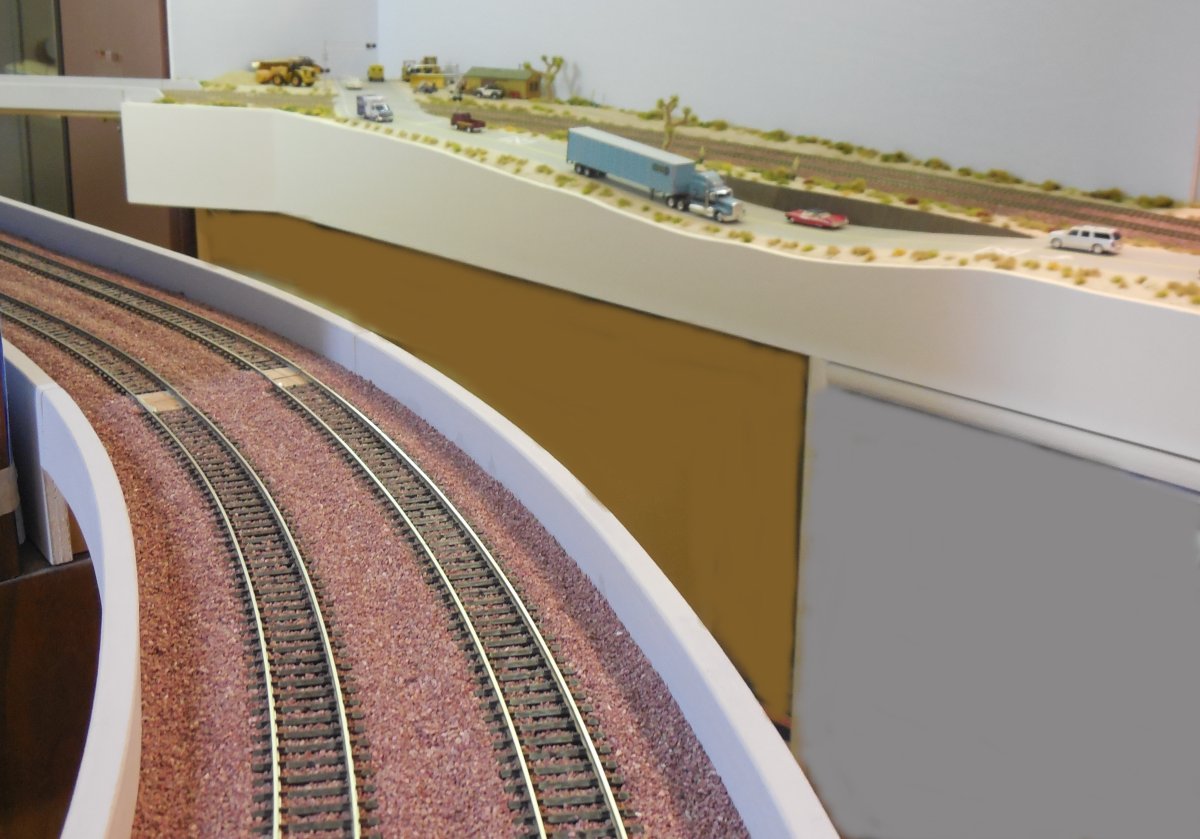

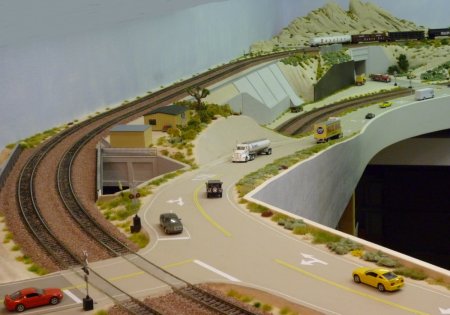

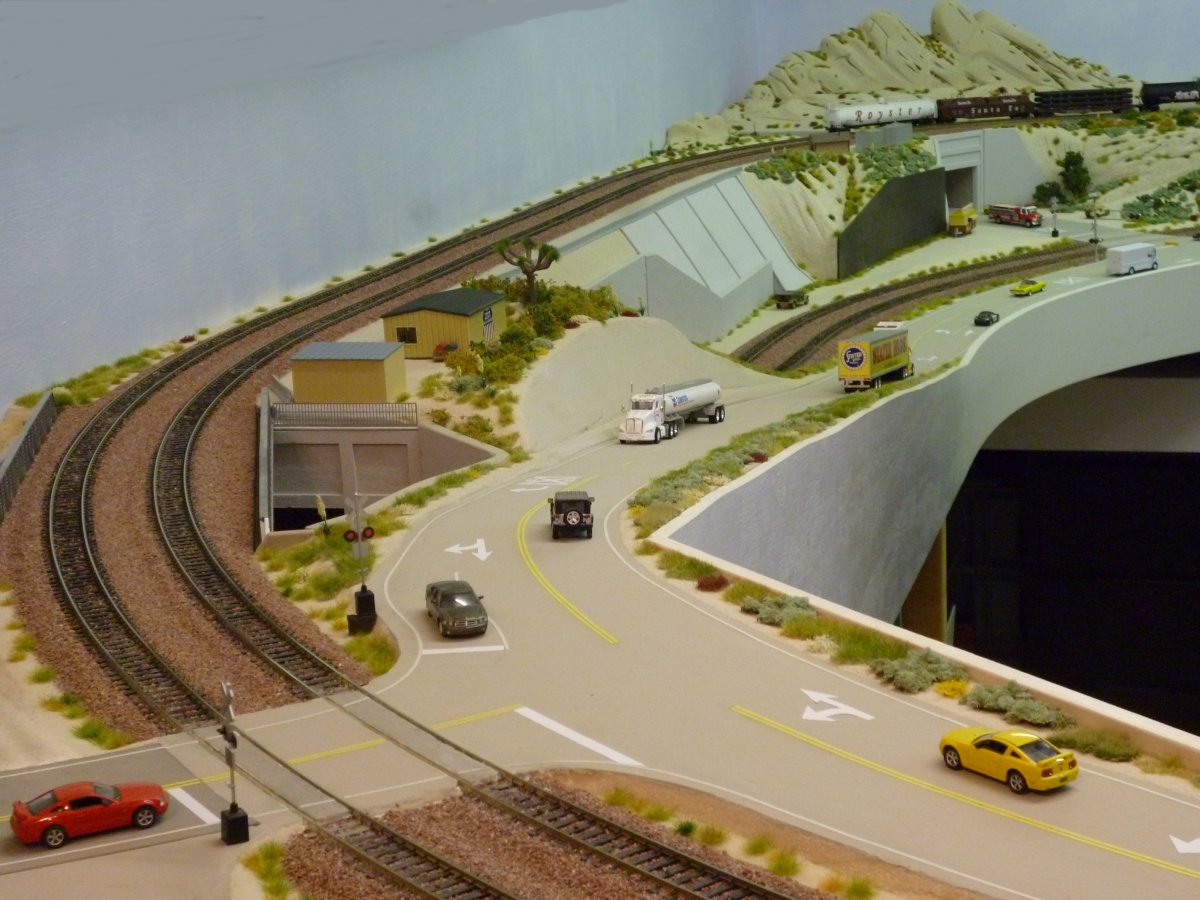

from the curved bridge the tracks are going to the East tunnels - 2330	from the shelf the tracks make a curve and go over the flyover - 2331

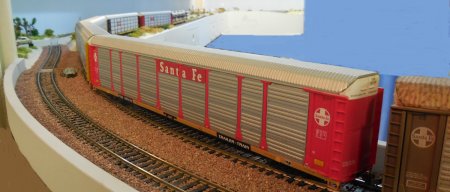

2332	2333

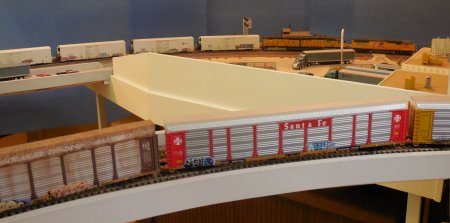

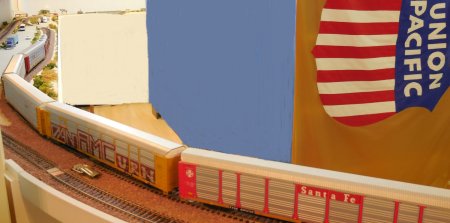

curved bridge in the foreground - 2334	in the middle of office 2 are book shelves - 2335

 I started with my layout in late December 2007 and it is finally finshed in late September 2015.
Well, I will add some detailing, weathering of the roads, road signs and street railings along main street in Percyville.
Thank you for your interest in my Mojave Desert Layout - Werner Meer
